PAS Pedal Assist Sensor KT-D12L KT D12 D12L 12 Magnet 3pin Stecker SM/Wasserdichte Elektrische Fahrrad Zubehör

Produktbeschreibung

Characteristics

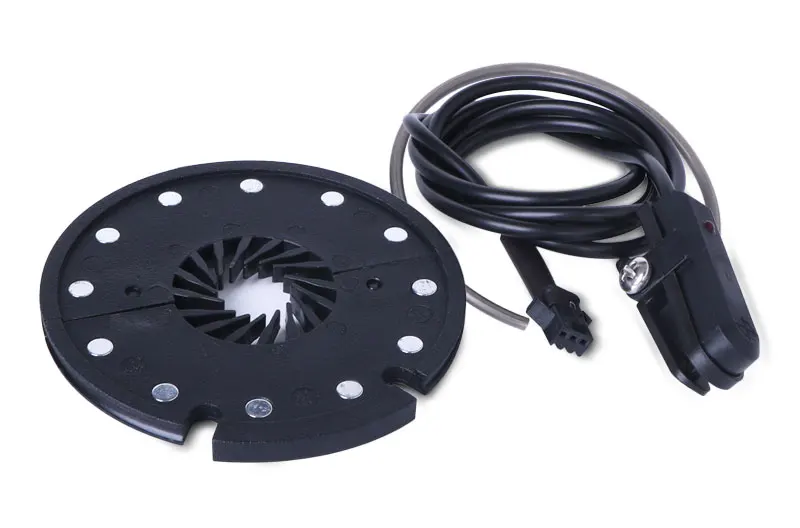

KT-D12 power-assistant sensor is with the characteristics of 12 signal outputs, fast power
response, good accuracy, strong water resistance, high reliability, etc. Its installation and
removal is quick and easy. Sensor is divided into two models of left installation and right installation
which can be installed in different locations to adapt to a variety of vehicle models.
Model specifications: left model KT-D12L

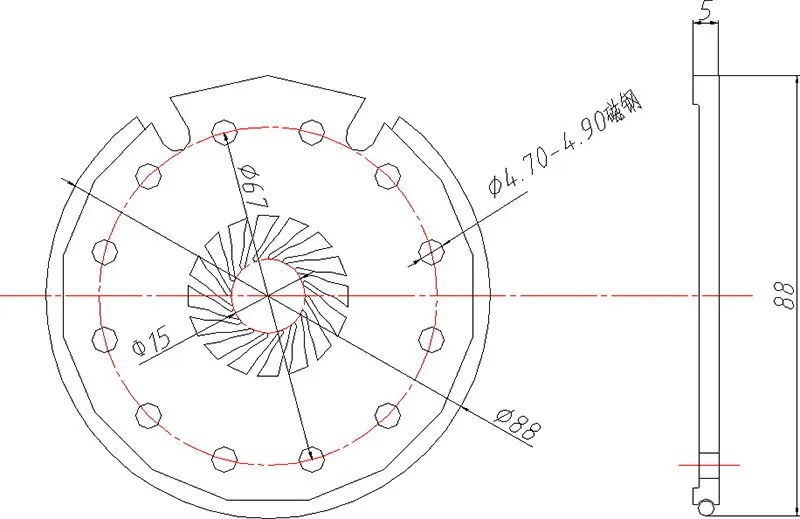

Magnetic steel plate dimension

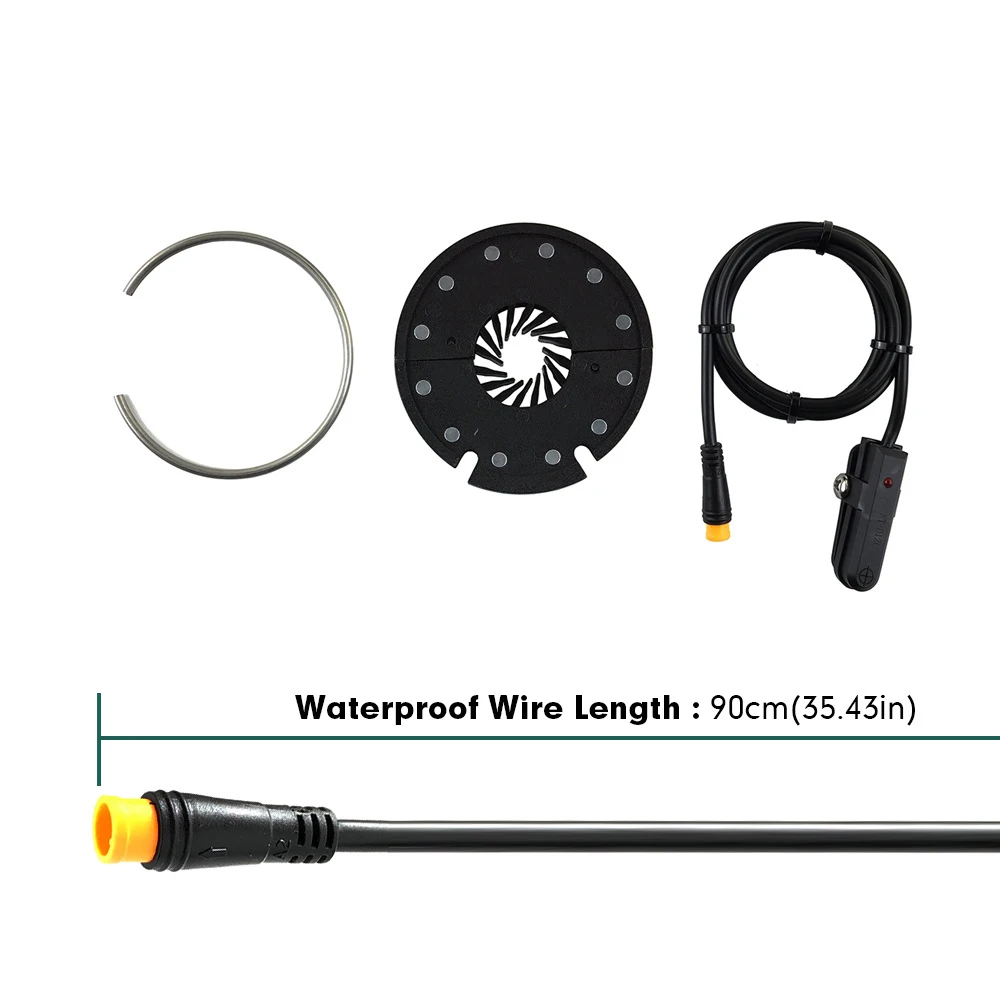

Wire leading mode: three-wire system
Standard interface: SM-3Y

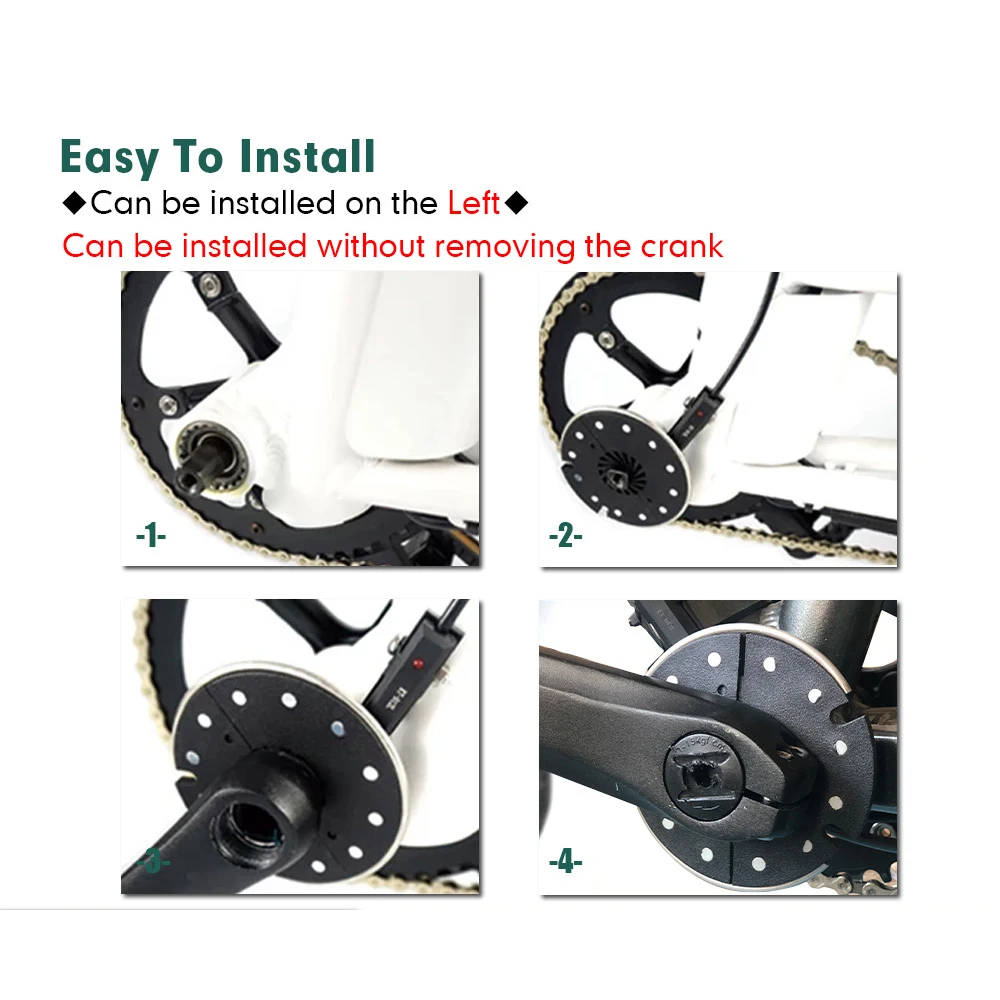

Left position installation instructions

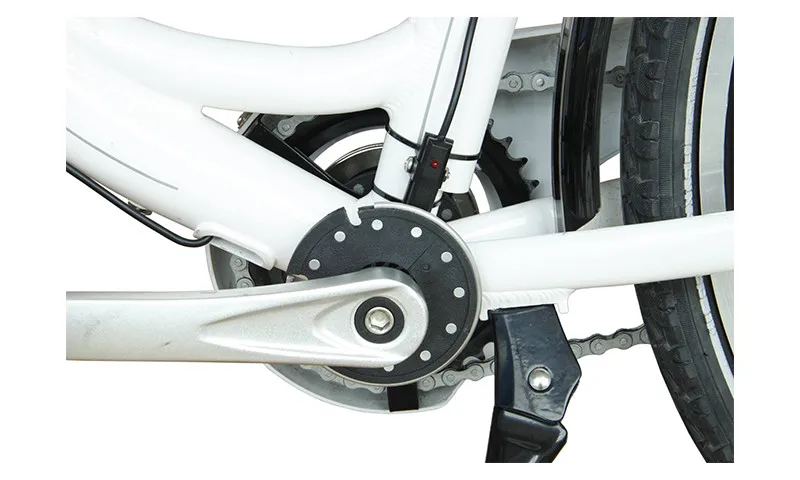

Installation of KT-D12L power-assistant sensor doesnt need remove the crank
and the sensor can be installed directly on the electric bicycle axle.

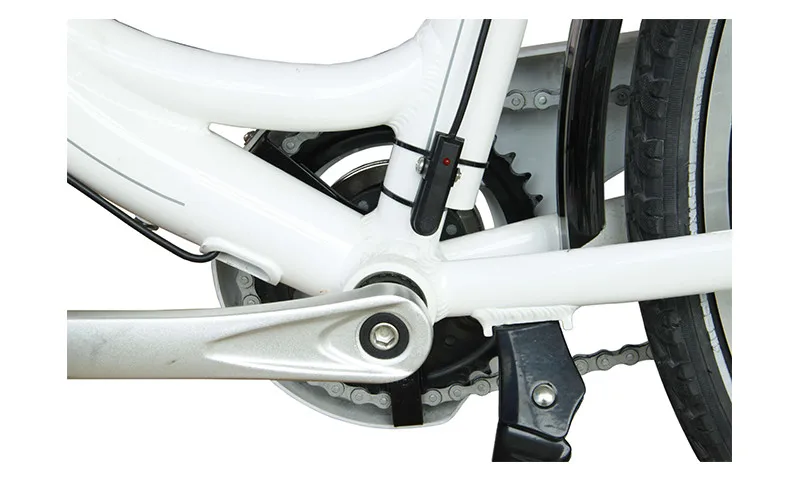

Fixing the sensor with a cable tie

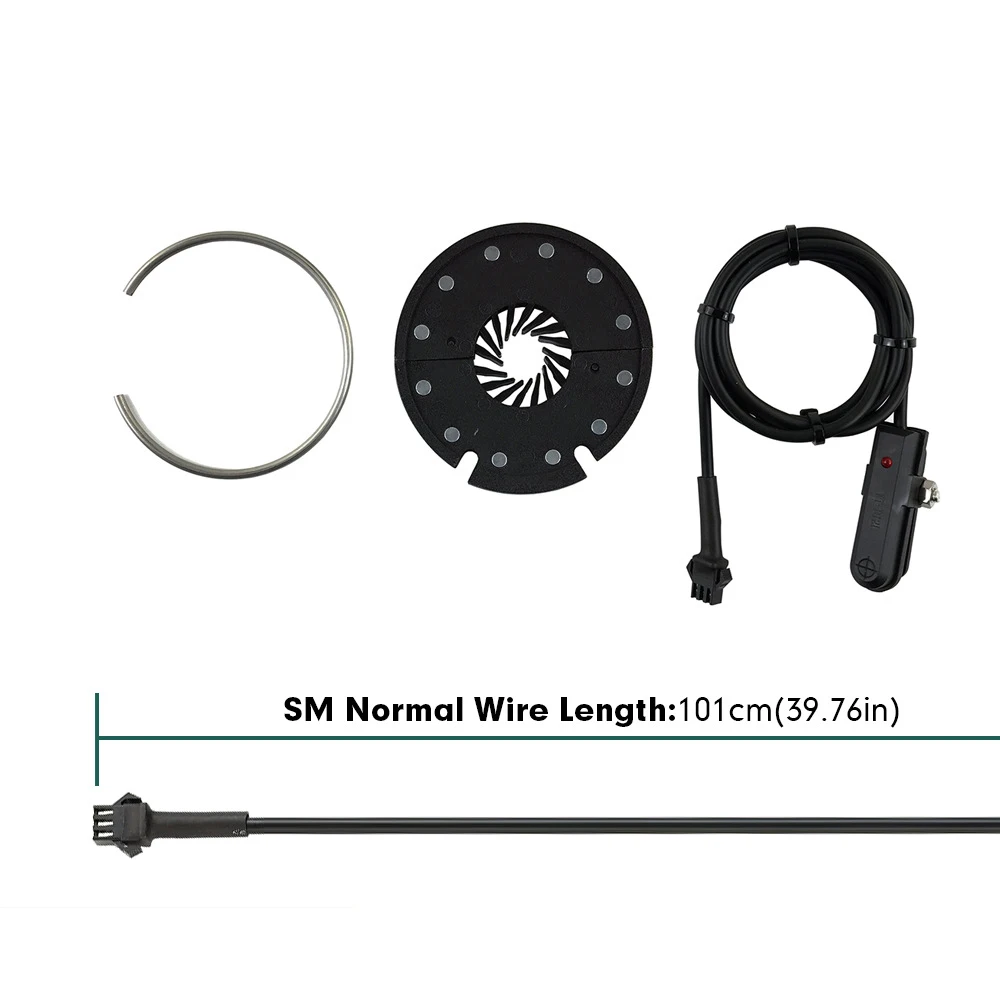

Installation of magnetic steel plate dimension

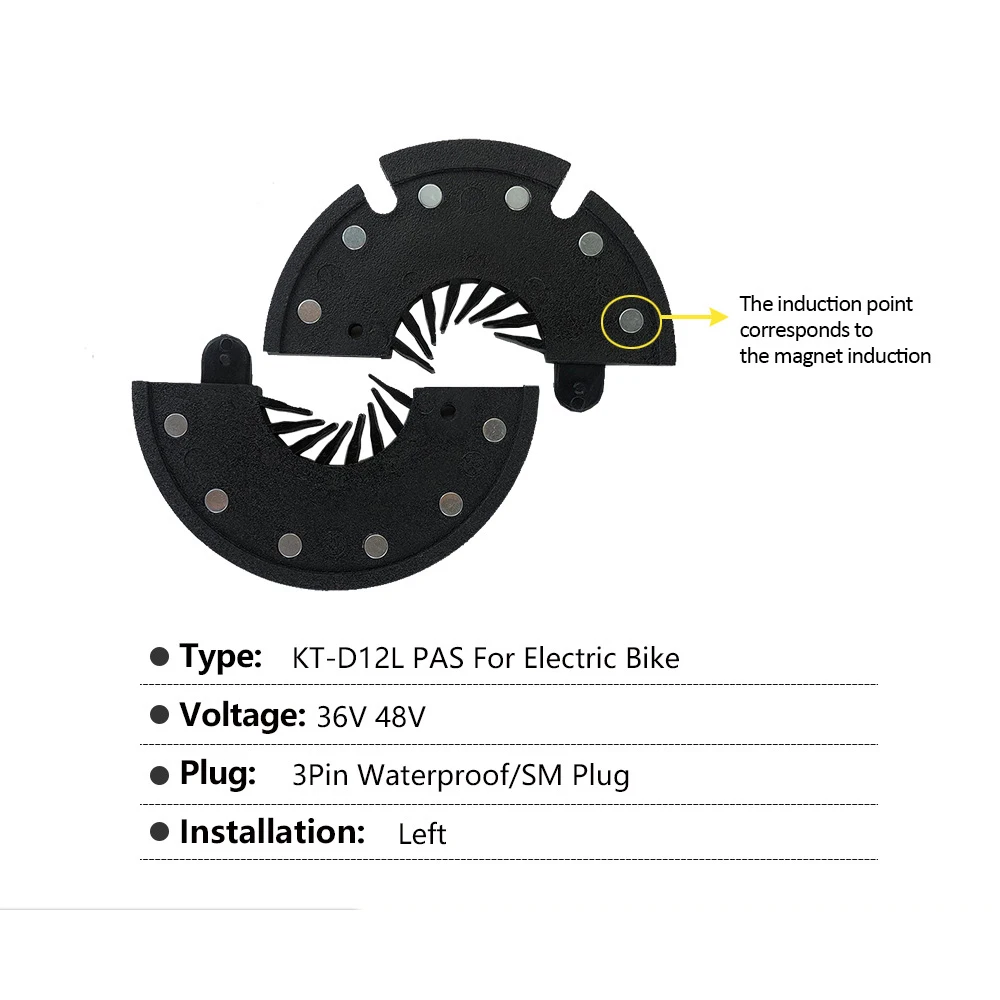

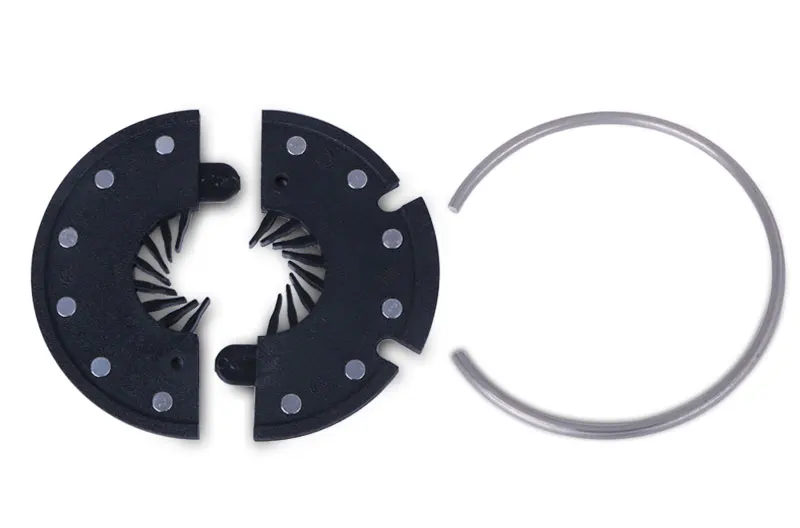

Magnet plate assembly should plug the two pieces of magnetic steel plate
according to the following diagram, which is then fixed by using a circlip.

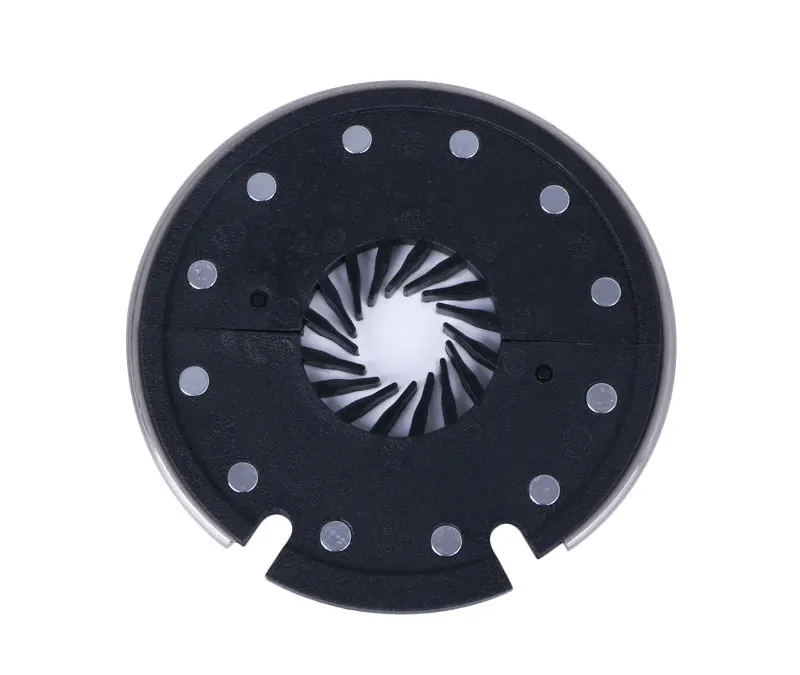

The assembled magnetic steel plate is as shown in the diagram.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Typ

PAS-Sensor

Choice

yes

semi_Choice

yes
