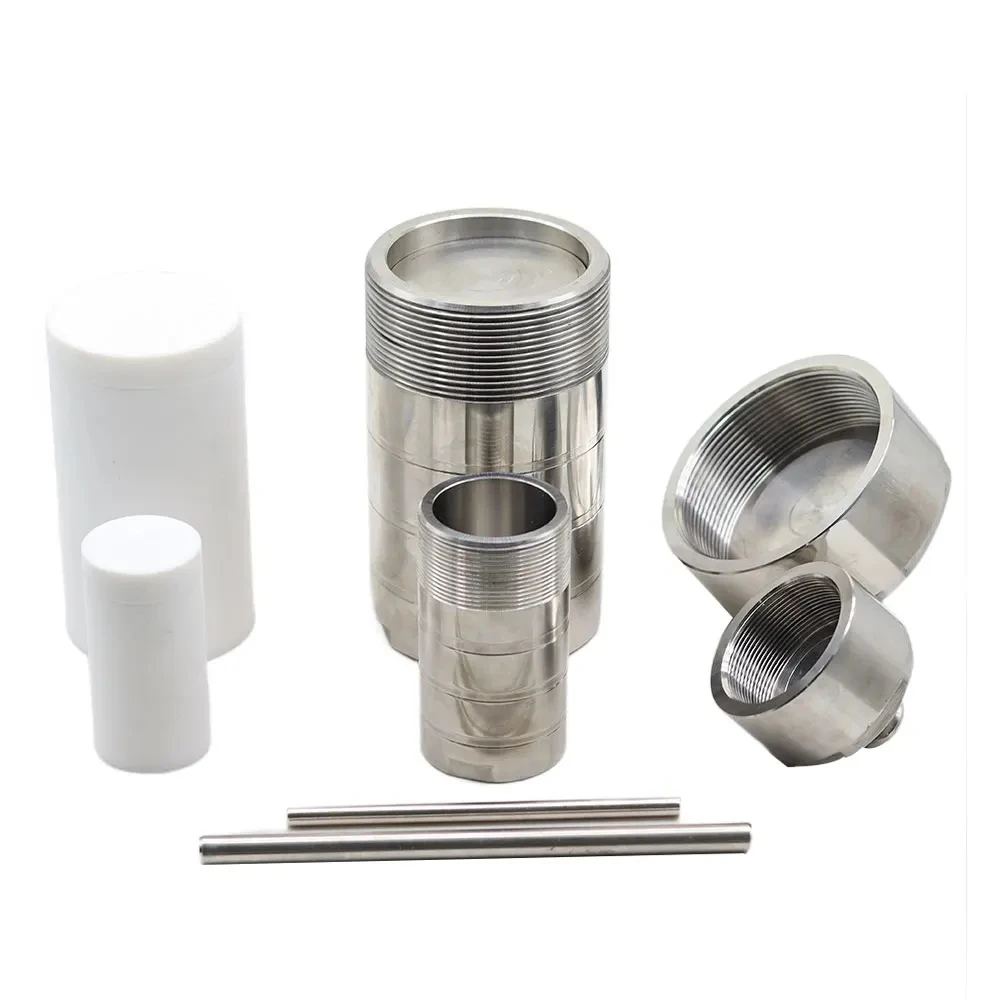

5–500 ml hydrothermischer Autoklavenreaktor mit PTFE-Kammer, hydrothermische Synthese, Hochdruck-Verdauungstank

Produktbeschreibung

5-500ml Hydrothermal Autoclave Reactor with PTFE Chamber Hydrothermal Synthesis，High pressure digestion tank
1.Technique Data
(1) Operating temperature: 220°
(2) Working pressure: 3MPa (gauge)
(3) Heating, cooling rate: 5 c / min
(4) specification 25ml,50ml,100ml.
(150ml,200 ml or others customized according to users needs.)
Packing list:Sold by set
2. Feature
The hydrothermal synthesis reactor using high-quality stainless steel processing. Kettle kettle lid body and sealed with durable, reliable cable seal structure, the sealing effect long-term stability without leakage.
The hydrothermal synthesis reactor with external heating, to reduce the volume and more favorable reaction in the same reactor operating temperature (such as multiple reactor placed in an oven heated).
3. Methods of operation
The reaction means and the reactor body, and to ensure feeding coefficient is less than 0.8. When the Department of corrosive reaction when you want to put PTFE bush, can only be assured kettle body from corrosion. Hydrothermal synthesis reactor will be placed on the heater, in accordance with the provisions of the heating rate of heating to the desired reaction temperature (less than the required safety temperature). Completion of the reaction will be when its cool, but also in strict accordance with the provisions of the cooling rate operation, to facilitate the safety and reactor life. When confirmation of intra-abdominal temperature below the boiling point solvents reaction system can only open the tank lid after a follow-up operation.
Hydrothermal synthesis reactor each time after use to clean, to avoid corrosion.
Kettle body, kettle lid seal line to pay particular attention to clean and prevent damage to the bumps.
4.Introduction of "para-polyphenylene (PPL)" lining performance of hydrothermal reactor
(1) The para-polyphenylene also becomes a polyphenylene, which is a high-linker linked by a benzene ring.
The para-polyphenylene has high temperature resistance and can be used for rocket engine parts and space navigation
The para-polyphenylene has good thermal stability and can be used to make high temperature bearing materials
The para-polyphenylene has good corrosion resistance and can be used as a bearing and chemical equipment with corrosive environment and working conditions

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Heimwerkerbedarf

Sanitär

Elektronisch

Nein

Typ

Autoclave Reactor

Art

tank

Zertifizierung

CE

Modellnummer

5-500ML

Größe

5.7*11-15*30CM

Product name

Hydrothermal synthesis reactor

Body material of the kettle

304 stainless steel

Lining material

PTFE

Maximum pressure

3MPA
