Maschinenteile für Holzwerk

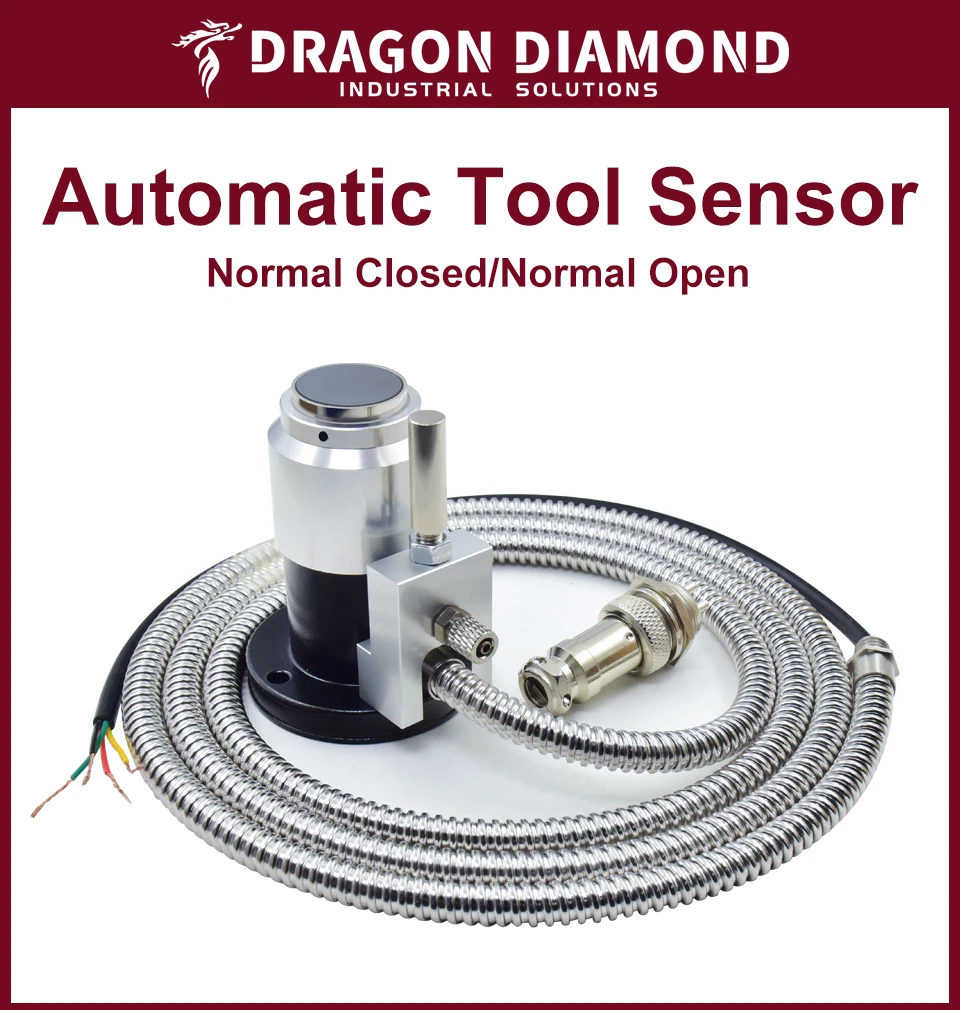

Automatischer Werkzeugsensor, Z-Achsen-Sondensensor, 4-Draht für CNC-Fräser, Fräsen, Graviermaschine, Touch-Press-Einstellung, Zubehör

56,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–14 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

[Description] The tool presetter is a specialized tool presetter for carving machining center machines. The numerical control system receives the output signal of the tool setter, and then detects the tool length setting, tool wear detection, and tool fracture through program control. In the absence of vibration and faults, the thermal deformation of the machine can be corrected according to the rated voltage and current, as well as the specified speed.
This is a normally open 4-wire high-precision tool setter with a stroke of 5mm. The positioning accuracy is 0.001mm, the contact life can reach 3 million times, the contact force is 1.5N, and the contact rated value is DC24V 20mA.
The material of the casing of this cutting machine is 4S grade grinding material. The bottom magnet design can be directly connected to the machine and firmly attached to the body. The contact material is made of superhard alloy, with exquisite design and simple installation.
【 Feature 1 】 The tool setter adopts a dust-proof and waterproof structure, which still has strong durability under the conditions of coolant and iron filings. It does not require a built-in amplifier, and there will be no deviation due to fluctuations in the temperature and power supply voltage of the tool setting instrument. It can be directly input into the NC program.
【 Feature 2 】 The cutting machine will promptly issue an alarm signal when it exceeds its travel range, avoiding other malfunctions caused by equipment operation. In addition, the cutting tool has strong anti-interference ability. The protruding sharp corner of the tool directly contacts the tool tip related to the machining size, detects its value and size, and outputs a signal. It has higher accuracy than the average value obtained by converting light and electricity.
Automatic Tool Sensor Z Axis Probe Sensor For CNC Router Milling Engraving Machine Touch Press Setting Gauge Accessory
How to distinguish the normally close or open?
Normally closed: signal disconnected after conecting
Normally open, signal connected after conecting
Product Features
1.Dustproof waterproof grease-proofing
2.Collision prevention
3.With alarm signal if not working normally
4.Automatic detection of tool damage
Caution
1. The diameter of the knife tool should be within 20mm. The speed of setting should be controlled in 50-200mm/min, and the tool nose should fall in the center of the sensor surface.
2. When using, clean the nearby iron filings, so as not to affect the accuracy of the sensor.
3.When touching the contact surface of the sensor with hand, do not leave immediately, so as not to damage the internal structure of the sensor, affect the efficiency and life of it.

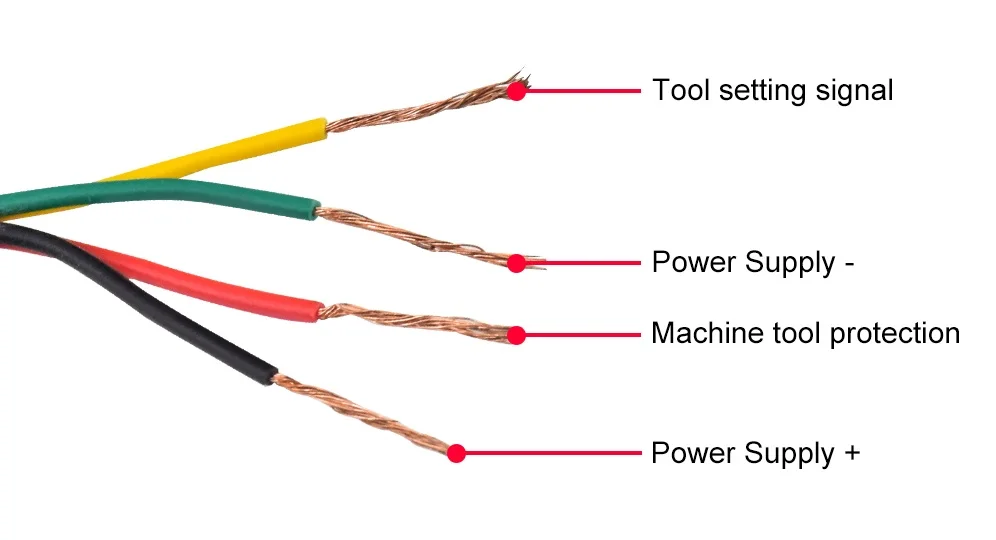

Connection Method

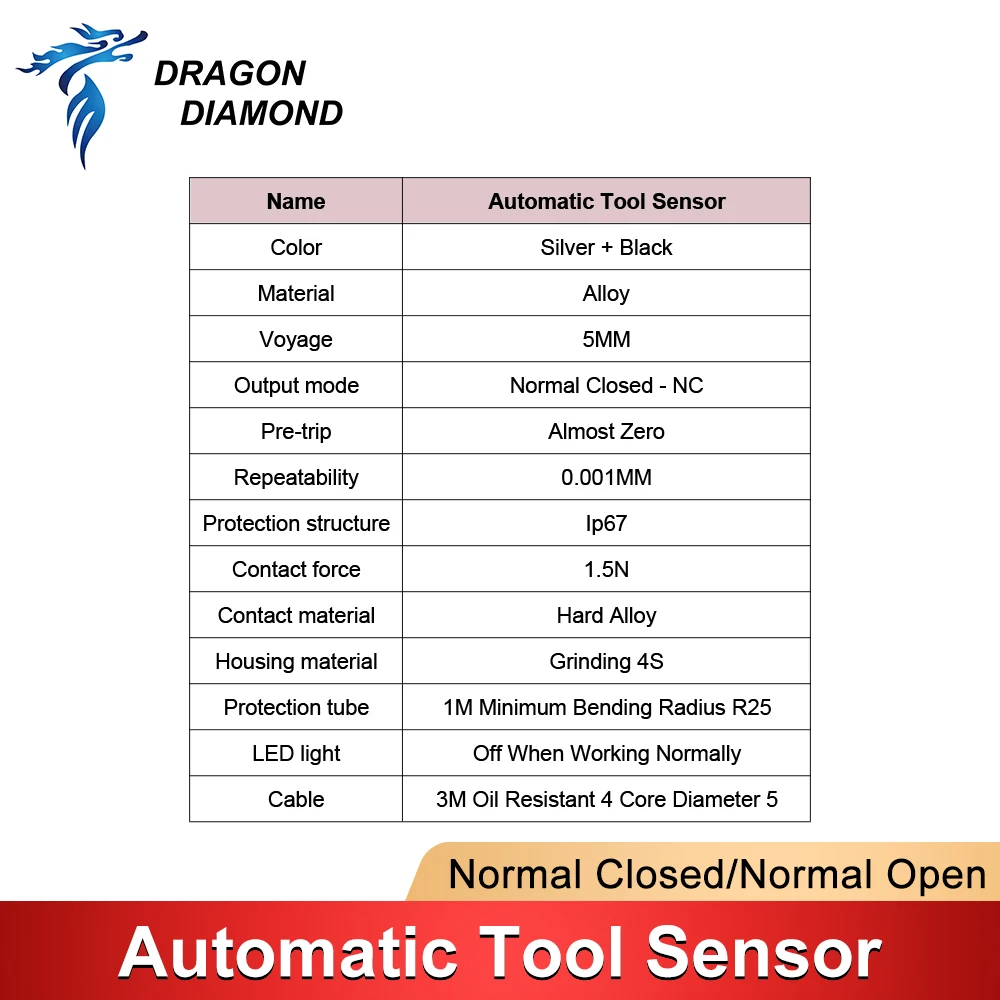

Product Parameters
