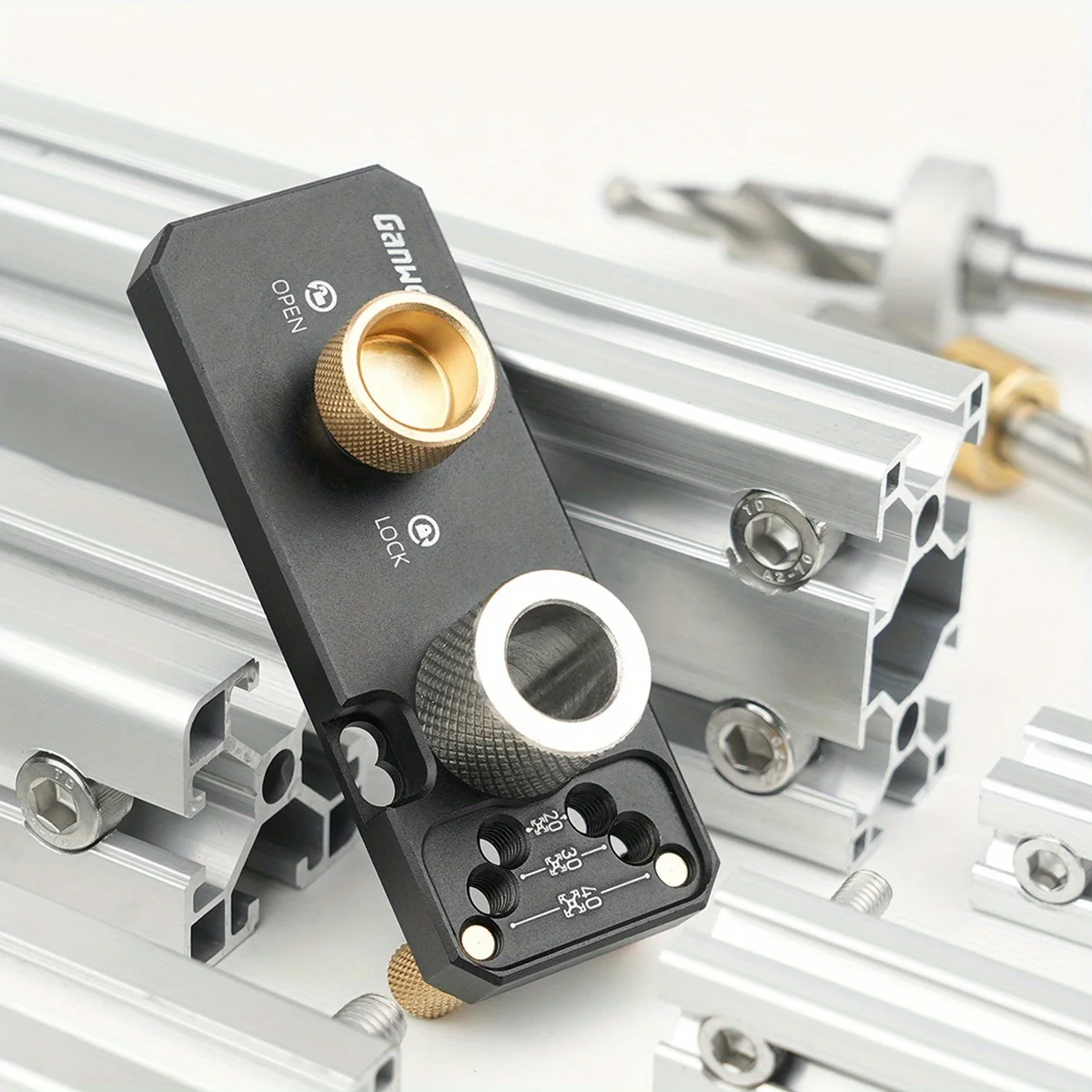

Schienenbohrführung für Aluminiumprofile mit Schiebern und M10-Senkbohrmaschine, vertikaler Locher für 20 Personen # 30 # 40 # Aluminiumprofile

Produktbeschreibung

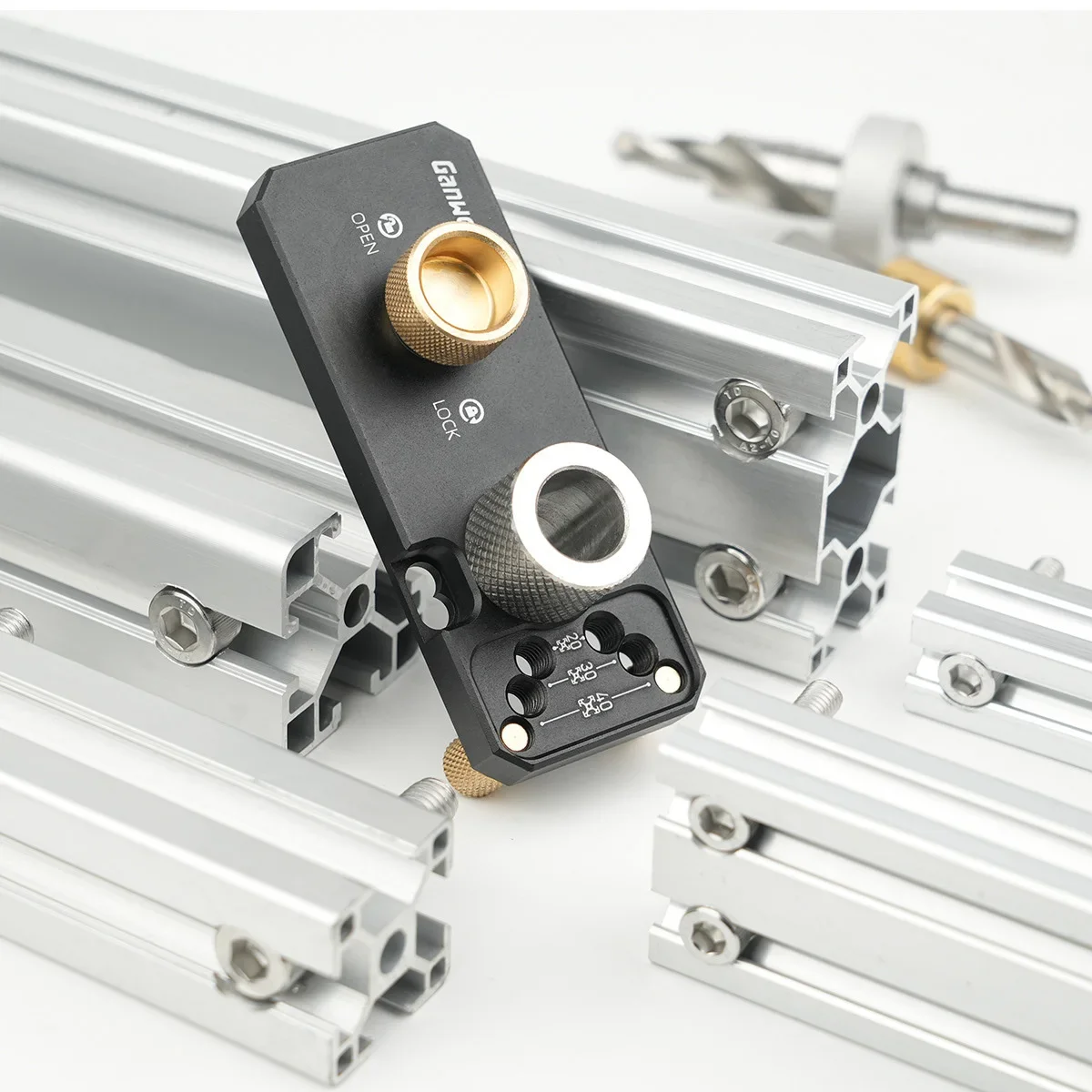

Product Name: Aluminum Profile Positioning Puncher
Scope of application: 20/30/40 series aluminum profile punching

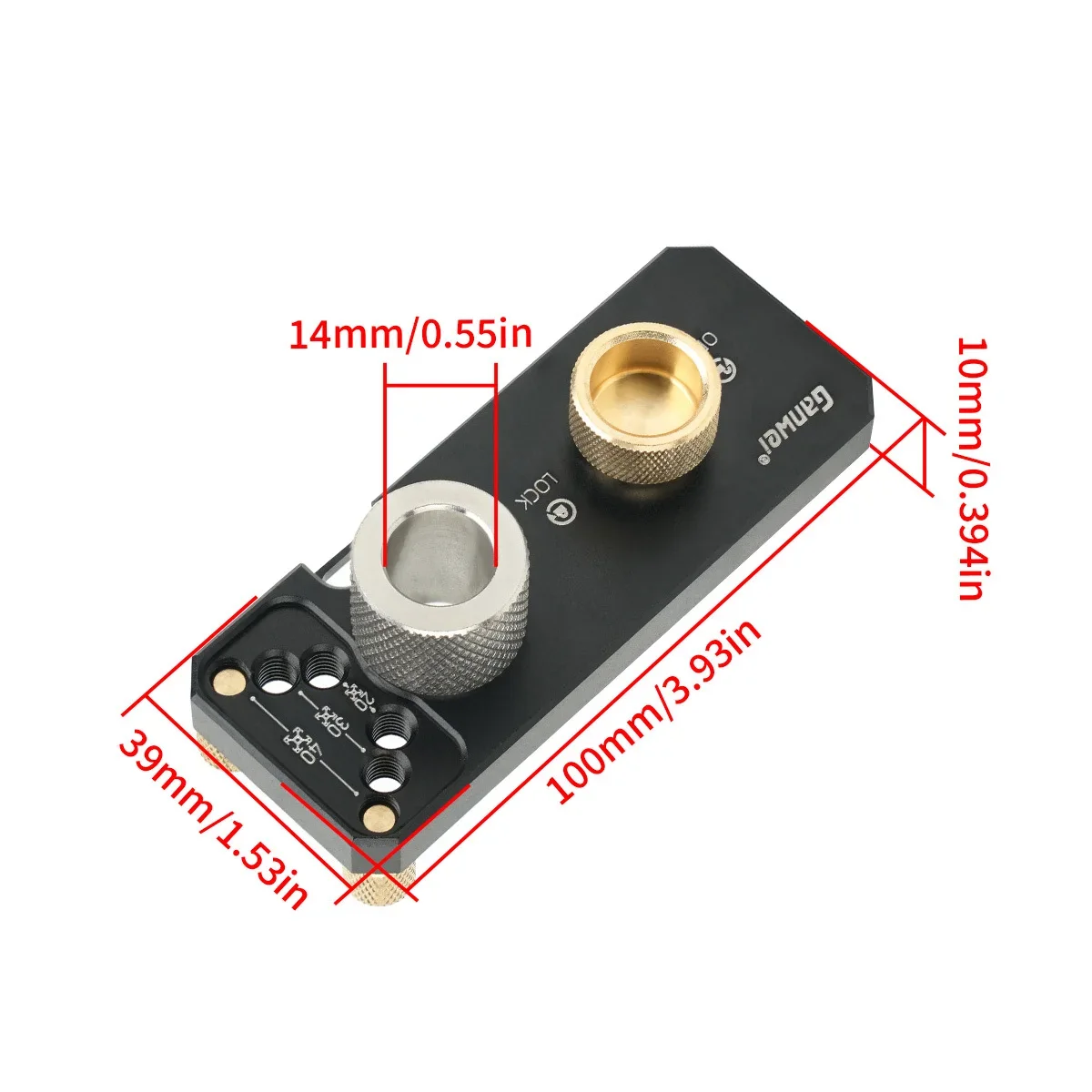

Drill sleeve size: 10mm drill sleeve/14mm drill sleeve
Drill specifications
HSS 10 * 6.5 * 13mm, total length 90mm
HSS 14 * 8.5 * 20mm, total length 90mm
Product Material: CNC Aluminum Alloy/Anodized
Operation
Step 1 Adjust the limit
If punching profiles 3030, 3060, adjust the limit column to the "30" pointing hole.
2. Install the slider
Select the appropriate slider according to the profile specification.
3. Fixed punching
Slide the product into the aluminum profile, against the copper pillar. Lock the brass screws and use the step drill to punch holes.
4. Punch holes in other locations
Remove the copper pillar, slide the product into the aluminum profile. Punch the center, 25mm away from the top of the product, (as shown by the laser logo on the product). Use a ruler to confirm the punching position, lock and punch.

Produktdetails in Bildern

Produkteigenschaften

Markenname

FNICEL

Abteilung

Unisex-Erwachsene

Ursprung

CN (Herkunft)

Material

Metall

Muster

andere

Hochbetriebenes Chemikalienunternehmen

Keine

Heimwerkerbedarf

Holzbearbeitung

Typ

Kombination

Paket

Tasche

Anwendung

Hölzernes Funktions-Werkzeug

ist kundenspezifisch

Ja

Größe

as shown

Choice

yes

semi_Choice

yes
