MAX7219 Dot 4-in-1-Display für Mikrocontroller-Modul mit 5P-Leinenverstärker, Ladefunktion, Lora, Netzteil, Spannungsregler

Produktbeschreibung

Description
Report Item

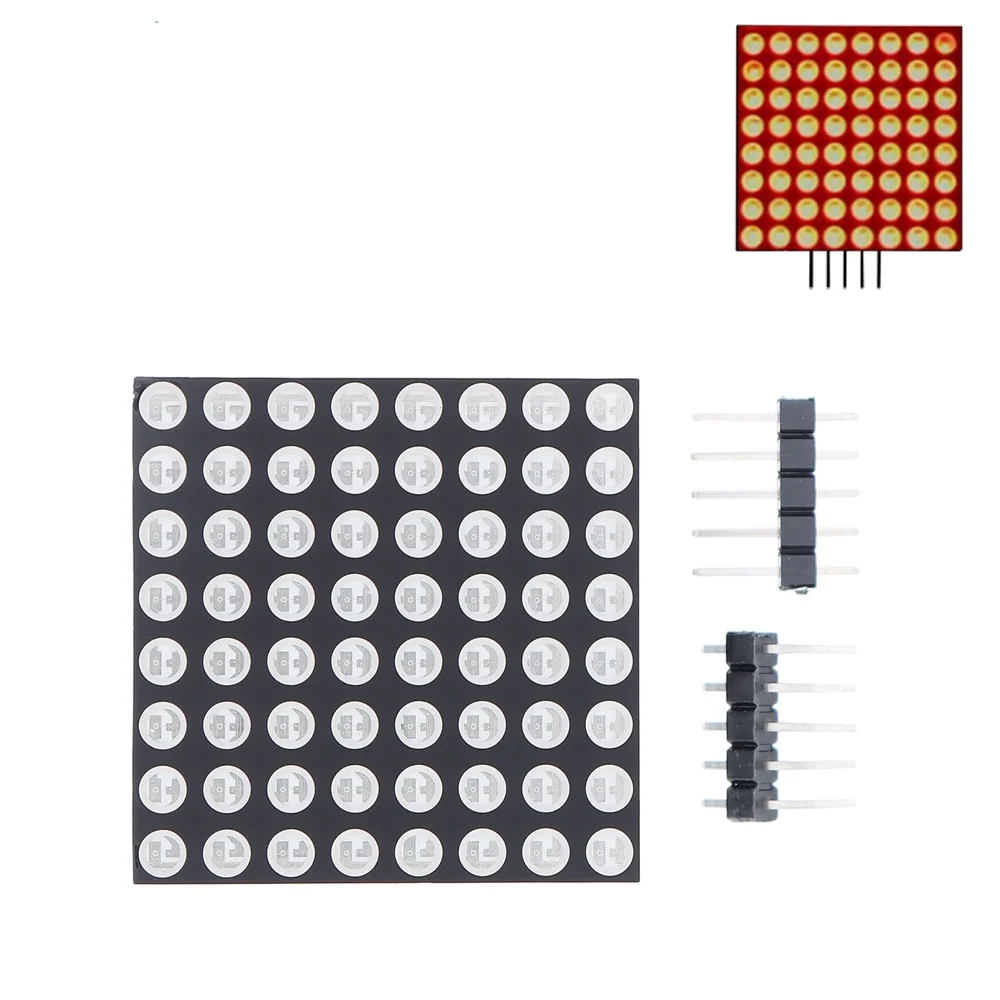

A single module can drive a 8x8 dot matrix common cathode
Operating Voltage: 5V
Dimensions: 12.8X12.8X1.3cm/
Fixing screws with 64 holes with a diameter 3mm

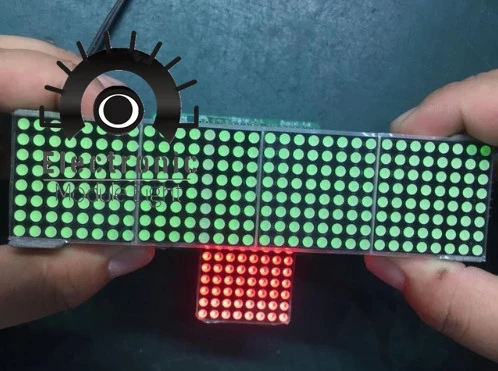

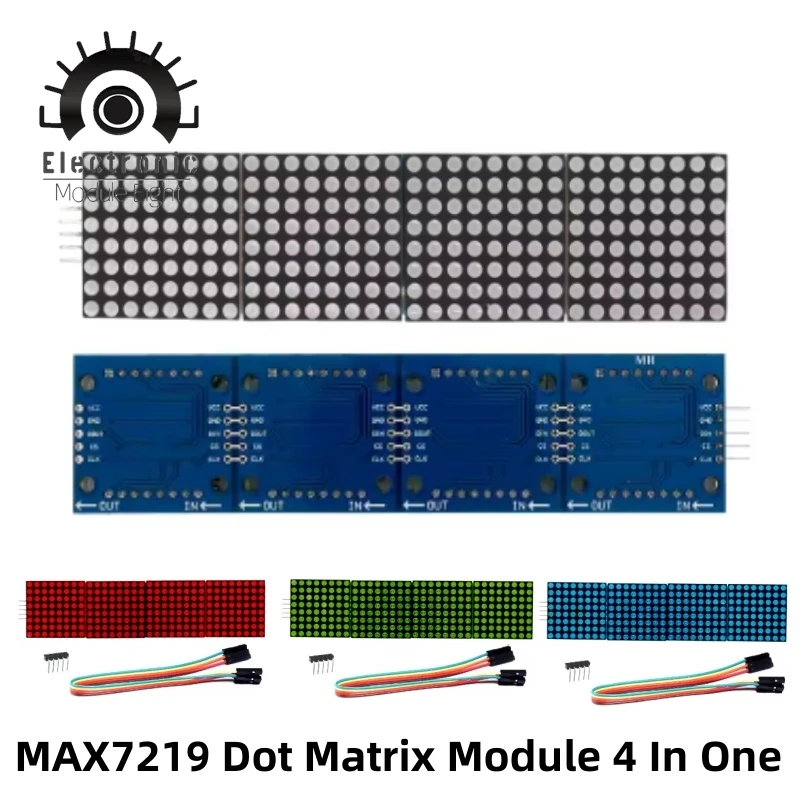

Module with input and output interfaces, support for cascading multiple modules
Quality:1Set
The left side of the module to the input port, the right to an output port
When the control of a single module, simply input port connected to CPU
When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on...
51 microcontrollers, for example:VCC 5VGND GNDDIN P2.2CS P2.1CLK P2.0
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
MAX7219 is an integrated serial input/output common cathode display driver,it is connected to a microprocessor and an 8-digit 7-segment LED display.it can also be connected to a bar graph display or 64 independent LEDs.It includes an on-chip B-type BCD encoder, multi-channel scanning loop, segment word driver, and an 8*8 static RAM for storing each data.Only one external register is used to set the segment current of each LED.
A convenient four-wire serial interface can be connected to all general-purpose microprocessors.Each data can be addressed without updating all displays when updating.MAX7219 also allows users to choose to encode or not to encode each data.The entire device contains a 150μA low-power shutdown mode, analog and digital brightness control,a scan limit register allows the user to display 1-8 bits of data, and a detection mode that allows all LEDs to emit light.
