HDC-HE-48 Core WHE48 Wasserdichter Hochleistungsstecker, oberer/seitiger Enrty-Einsatz, 16 A, 500 V, rechteckige Verkabelungskabel-Steckdose

76,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–14 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Heavy Duty Connector HDC-HE-48 Core Industrial Waterproof Aviation Plug Socket 16A 500V
DESCRIPTION
Heavy Duty Power Connectors are ideal for industrial applications with harsh requirements. It can help provide a solution to the wide range of needs in industrial connectors in mechanical and plant engineering. Working together with cable entry connector, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.
Each Heavy Duty Power Connector includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.
Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.

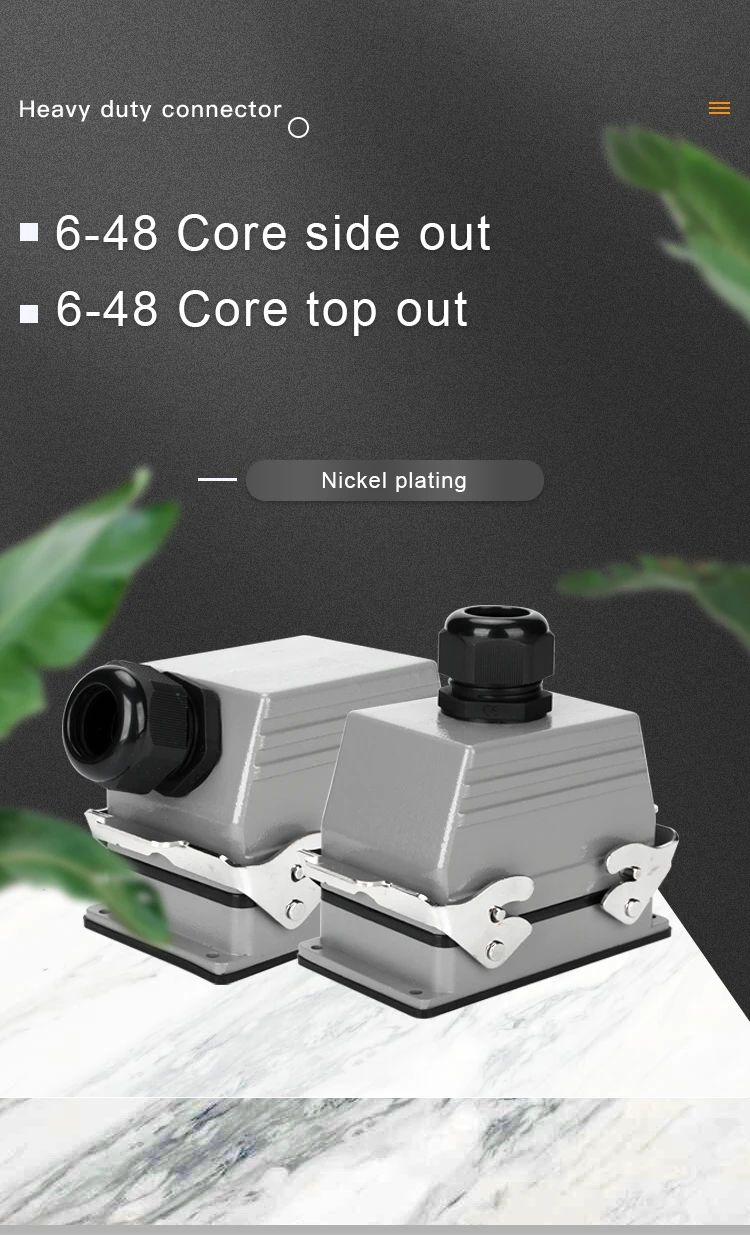

Available in side or top cable entry.

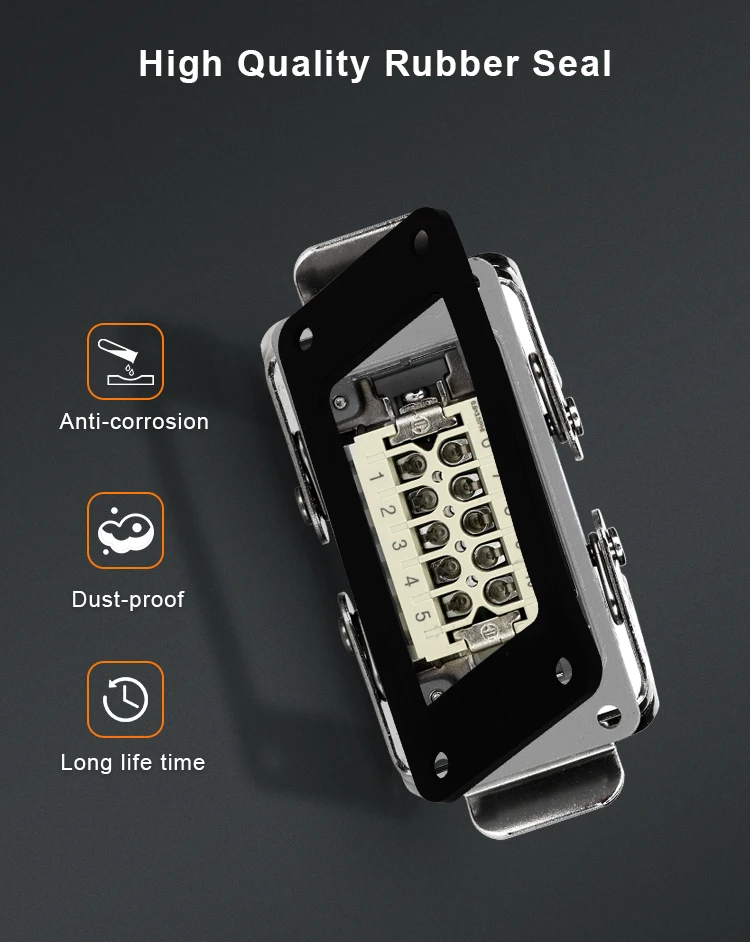

Bulkhead mounting housings with water-proof performance.
Cable gland provide entry protection.
No special tools required (Field Termination), high number of cycles, low actuation force, Robust/Durable heavy duty protection.

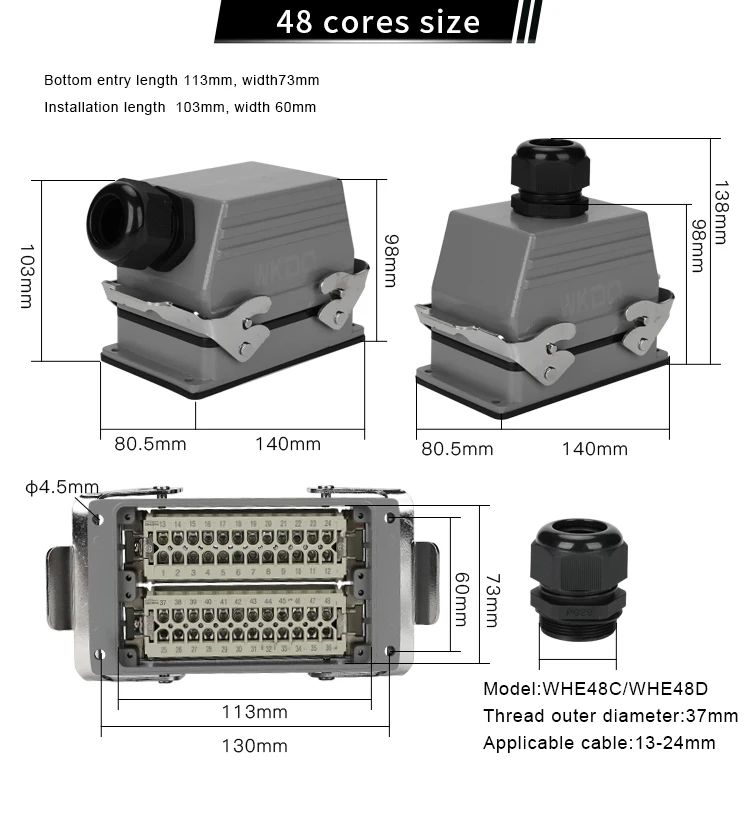

TECHNICAL PARAMETERS
No.
PART NO.
Entry Side
Number of contact
A
(mm)
B
C (mm)
D (mm)
