256/388/640 Wärmebildkamera CVBS-Ausgang Langwellige Infrarot 12 um Temperaturmessung Mini-Wärmebildkamera für FPV-Drohne

Produktbeschreibung

256/388/640 Thermal Imaging Camera CVBS Output Long Wave Infrared 12um Temperature Measurement Mini Thermal Camera for FPV Drone
256 x 192 Specification

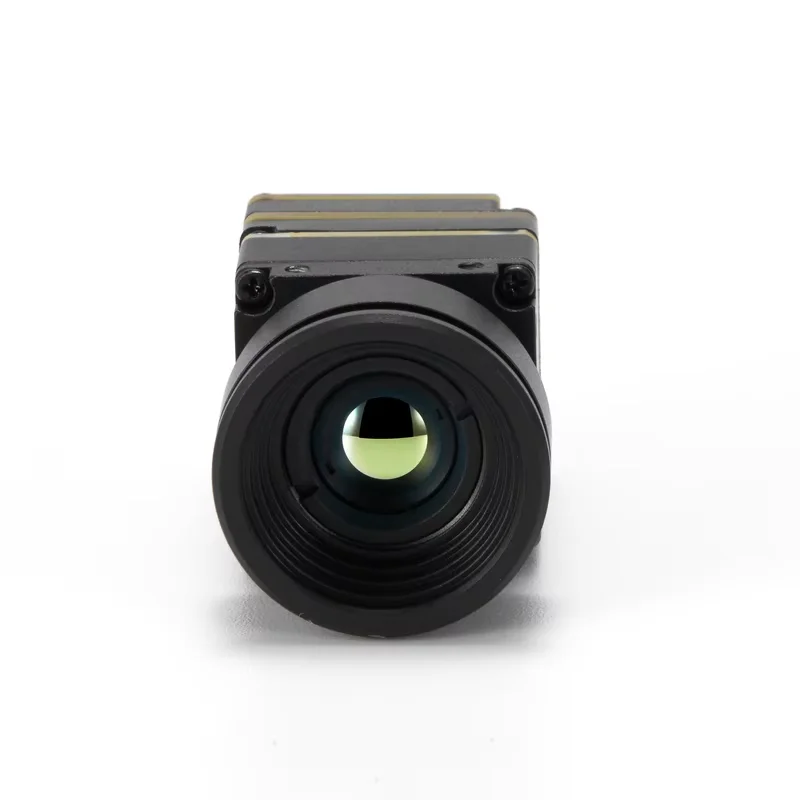

The XK-C130 is a miniature FPV thermal camera that combines HD and drone camcorder features and is designed for RC FPV cars, aircraft, racing cars and drones.

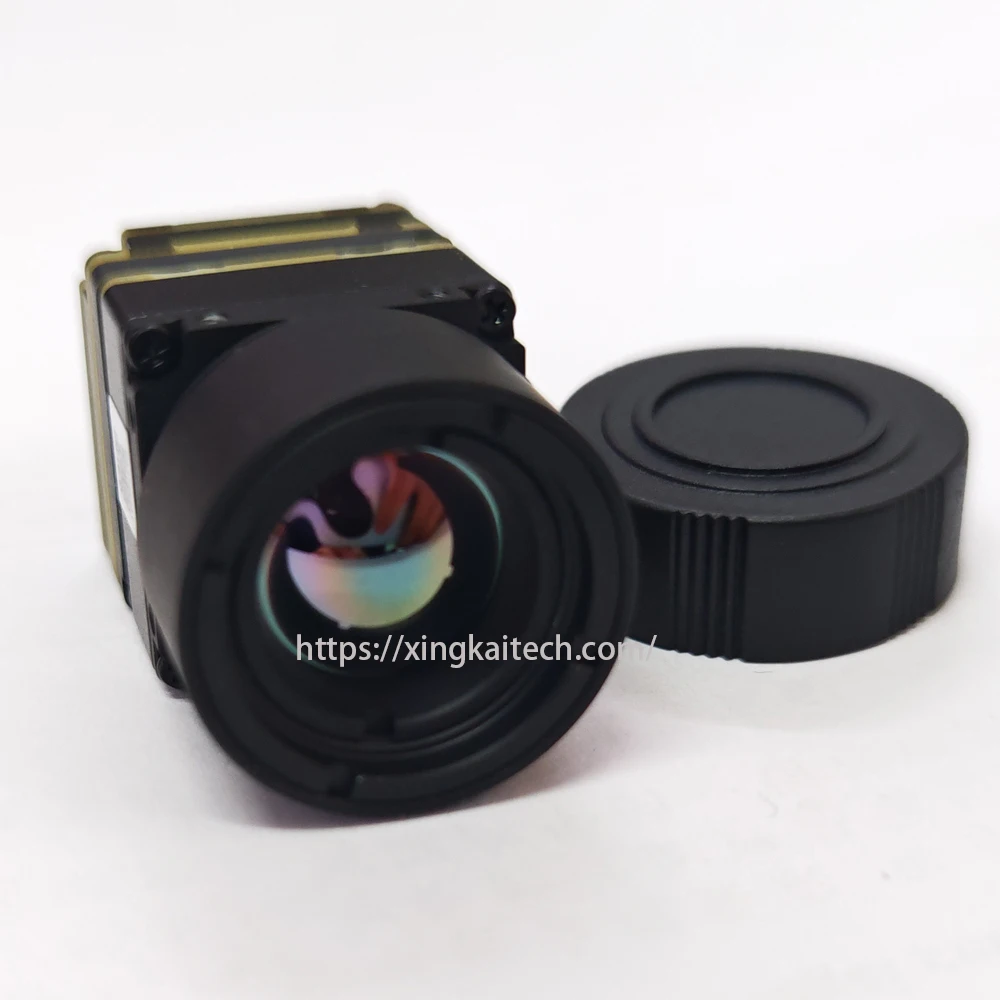

The XK-C130 camera is small and easy to install, and the lens housing design makes it easier to install on your aircraft. Not only does it have all the features of a tiny drone camera, it also has thermal imaging to provide clear images in low-light or total darkness. The camera also comes with a lens cover that effectively protects the lens from dust and dirt.
This camera has a very high resolution, whether it is 256×192, 384×288 or 640×512 resolution, it provides extremely high image quality. The open-stop shutter and adjustable focus feature allow you to adjust the effect as needed to meet a variety of shooting needs. Most importantly, the output resolution is very high, the picture quality is clear, can capture every moment.
Resolution: 256 x 192
Detector type: vanadium oxide uncooled infrared focal plane detector
Pixel pitch: 12um
NETD: 40mk
Spectral band: 8 - 14um
Lens parameters: 4.0mm F1.0/6.8mm F1.0/10mm F1.0
FOV (HxV)
4mm: 45°(H) x 33°(V)
6.8mm: 26°(H) x 20°(V)
9.7mm: 18.1°(H) x 13.6°(V)
Polarity/palette: white heat, black heat, fusion, iron red, fusion
Power supply input: 5V - 16V
Power: ≤0.8W
Output: CVBS

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ist elektrisch

Keine Batterie

Handelt es sich um eine Batterie/Netzteil?

n

Ist es ein Ladegerät/Adapter?

n

Ursprung

CN (Herkunft)

Sind Batterien im Lieferumfang enthalten?

Nein

Material

Verbund Material

Empfohlenes Alter

14+ Jahre

Größe

20mm x 20m

Für Fahrzeugtyp

Flugzeuge

Benutzen

Fahrzeuge und ferngesteuertes Spielzeug

Menge

1

Modellnummer

XK FPV Camera

Radstand

BODENPLATTE

Brand Name

Xingkaitech
