5,8G RX PORT V3.0 Digital-Analog-Empfänger DJI-Brille analoge Empfängerplatine Rapidfire TBS Fusion für DJI Fatshark FPV-Brille

Produktbeschreibung

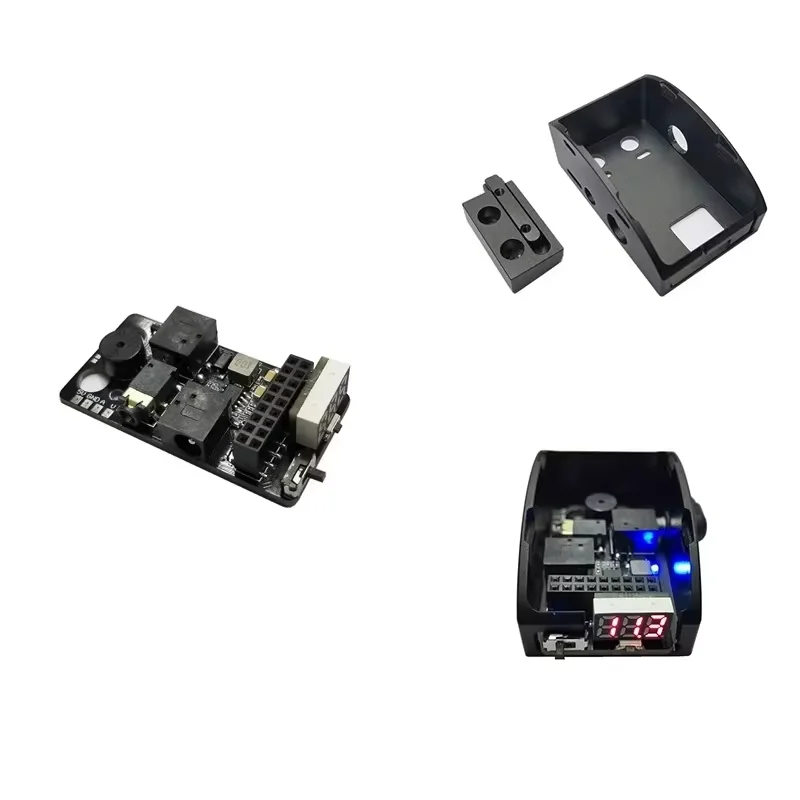

5.8G RX PORT V3.0 Digital to Analog Receiver DJI Goggles analog Receiver Board rapidfire TBS fusion for DJI Fatshark FPV Goggles
Description
The digital image transmission system and visual perception of DJI FPV flying glasses are the evolution of the FPV industry. At the same time, the simulated FPV system represented by Fatshark also has a very large market base and inventory.
The design of 1.2G 1.3G 5.8G RX PORT 3.0 PLUS is fixed with the screw of DJI flying glasses headband ring and is completely non-destructive installed on the side of DJI flying glasses. This allows you to easily transfer video and audio signals to the high-quality screen of DJI FPV flying glasses for viewing or recording.
1.2G 1.3G 5.8G RX PORT 3.0 PLUS is small, lightweight, portable, and versatile, and will be popular with players who have both analog and digital FPV flight equipment.
Specification
Item name:receiver module
Power input:2S-4S(DC 5.5*2.1)
Internal voltage:5V 3A(output with welded pad)
Power output:2S-4S(DC 5.5*2.1)
Signal input:standard Fatshark receiver interface(include third party receiver:Reaxacc Furious Rapid Fire)
Signal output:standard audio/video, support external connecting DVR module, with voltage display and low voltage alarm
Size:55x28x12mm
Weight:13g(NOT include adapter cable)
Used for DJI FPV V1 V2 Goggles
Lastest Condition
1.Add Backpack function interface,add a power switch and a standard DVR interface (the interface of the video module). The DJI FPV Glasses 0200 version now opens the function of DVR recording, but it cannot record sound. We have reserved a standard DVR interface, which allows guests with this need to connect to their own DVR to record images and sounds.
2.Add a Nixie tube, which can display the battery voltage in real time and set low voltage alarm. It can be used as a 1.2G 1.3G 5.8G receiving base station to modify various FPV flying glasses and 1.2G 1.3G 5.8G monitoring screen.
Note
1.The goggles and others will not include.

Produktdetails in Bildern

Produkteigenschaften

Markenname

XINGKAITECH

Kompatible Drohnenmarke

DJI

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Größe

55x28x12mm

Gewicht

13g(NOT include adapter cable)

Modellnummer

XK-1.2/1.3/5.8G RX PORT 3.0 PLUS

Paket

Ja

Power input

2S-4S(DC 5.5*2.1)

Internal voltage

5V 3A(output with welded pad)

Power output

2S-4S(DC 5.5*2.1)

Used for

DJI FPV V1 V2 Goggles
