MFRC-522 RC-522 RC522 Antenne RFID IC Wireless Modul Für Arduino IC KEY SPI Writer Reader IC Karte Proximity Modul

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 18–24 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

64474
Click the collection to become our VIP lover

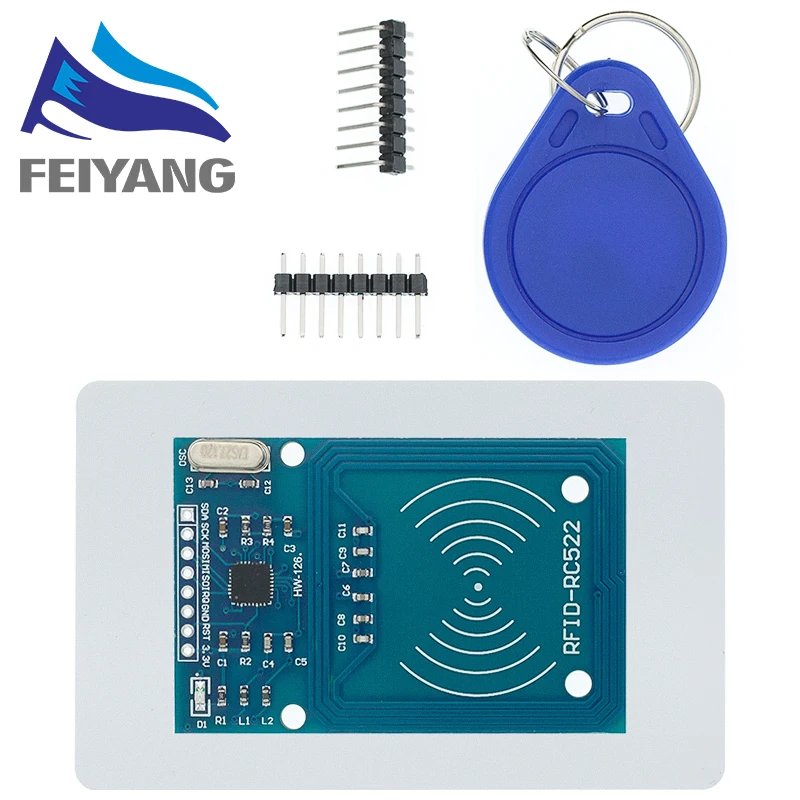

[Description]

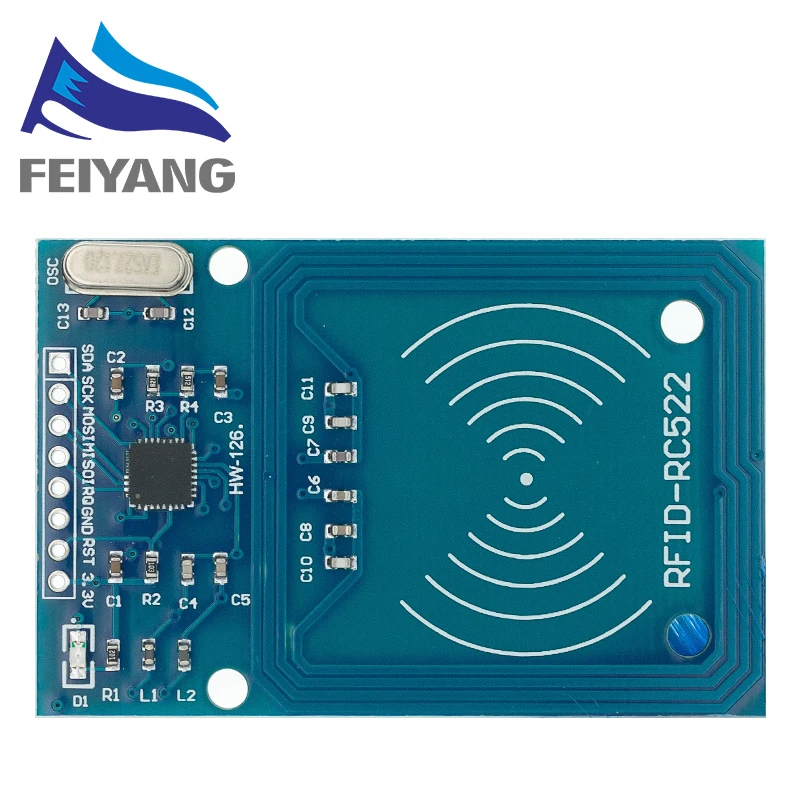

1, RFID-RC522 module one

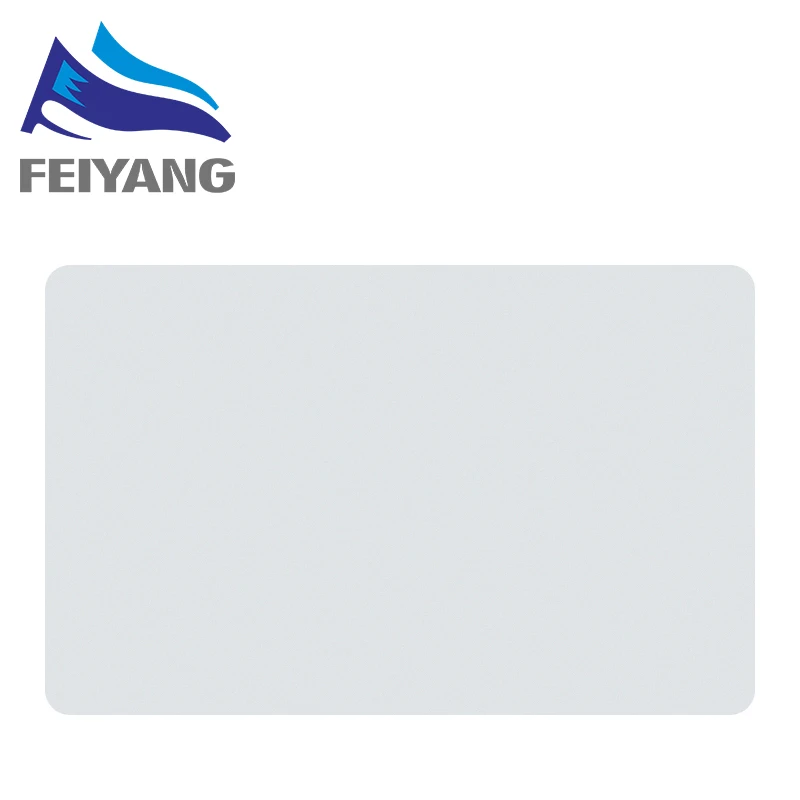

2, the standard S50 blank card one

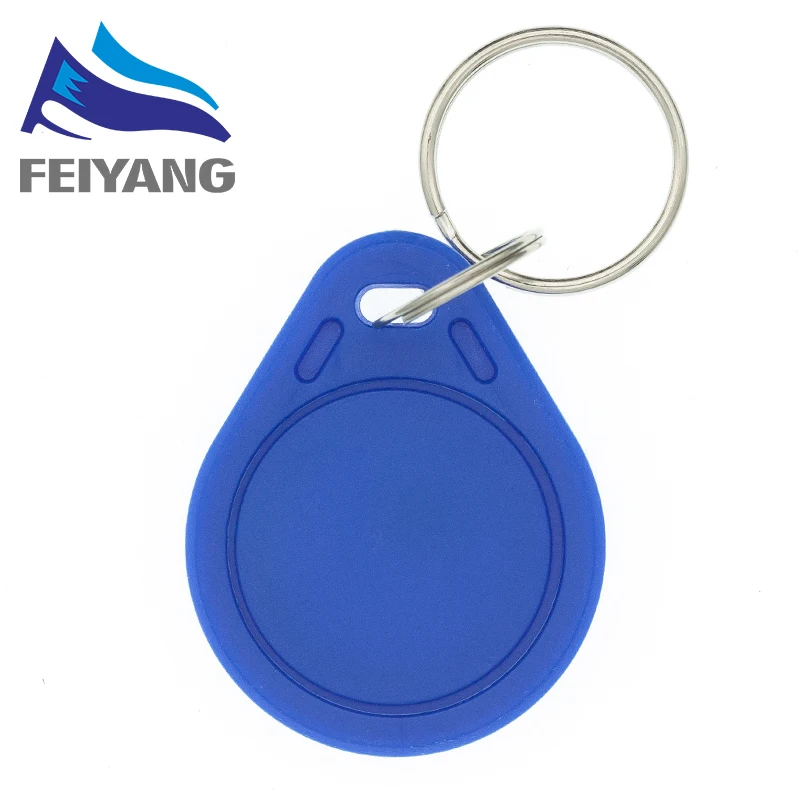

3, S50 shaped cards one (as shown keychain shape)
4, vertical, curved row of pins each one
Note: The relevant technical details and the development of routines, etc. Want to contact customer service request, please buy download address.
Mainly includes the following
A, supporting reference materials
B, mainstream processors (including MSP430F149) RC522 module for this application C program
RC522 chip [Introduction]
MF RC522 is applied to 13.56MHz contactless communication highly integrated chip card reader, is NXP for the "Three Tables" application launch of a low-voltage, low-cost, small size and non-contact card reader chip, smart instrumentation and portable handheld devices developed better choice. MF RC522 using advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products. MFRC522 supports MIFARE Series higher speed non-contact communication, two-way data transfer rates up to 424kbit / s. As a highly integrated 13.56MHz card reader new family of chips, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many features and differences. It is between the host communication using SPI mode, helps to reduce connection, reduce PCB board size and cost.
[Introduction] RFID module

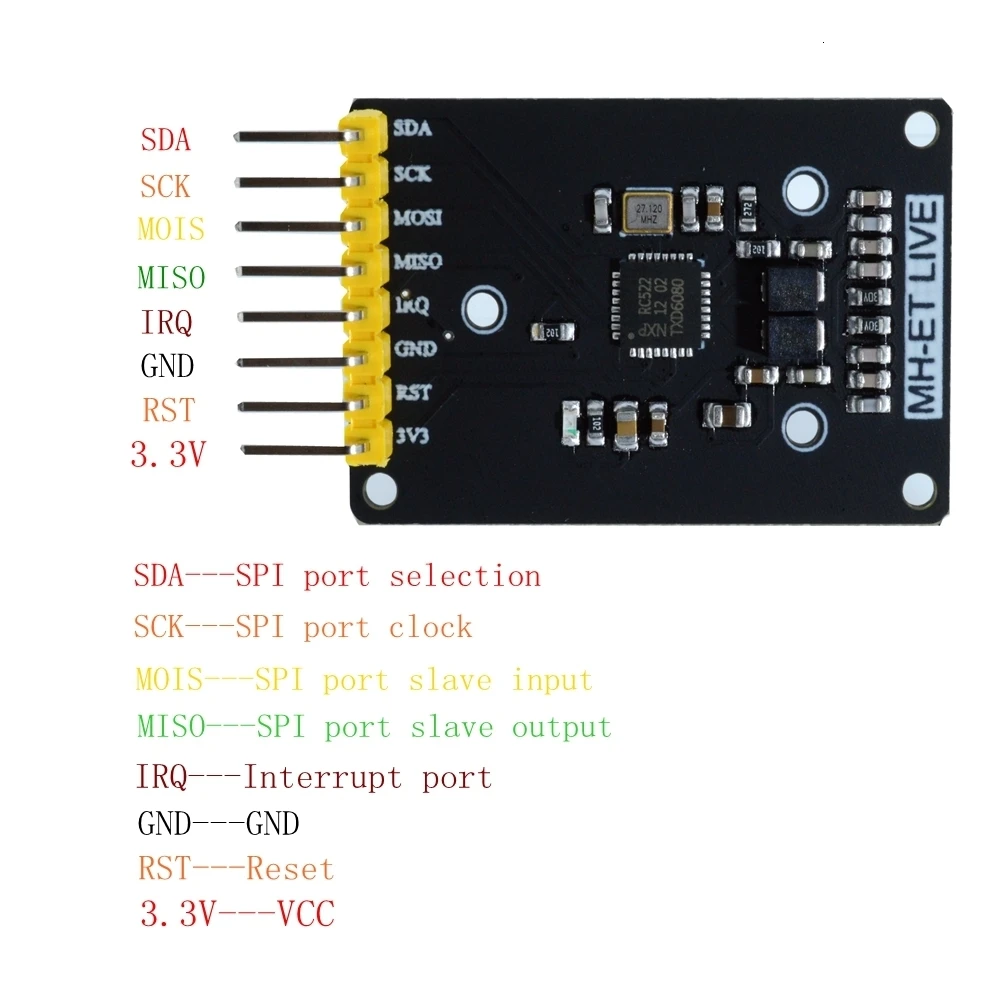

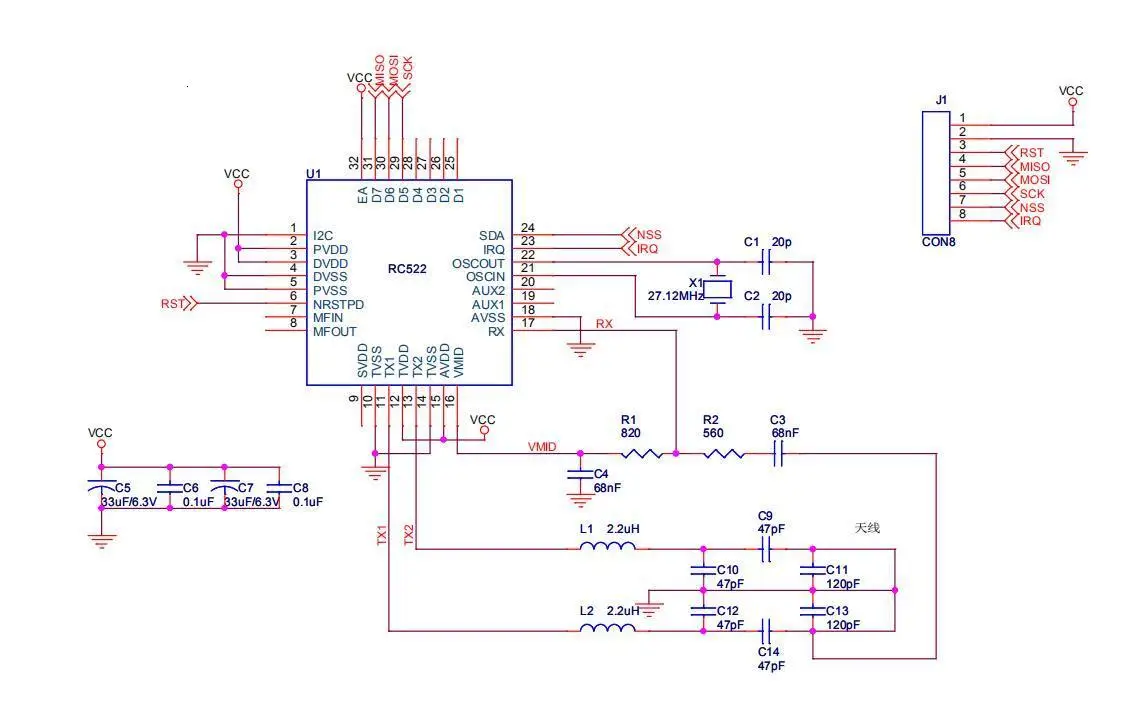

MF522-AN module adopts Philips MFRC522 original reader circuit chip design, easy to use, low cost, suitable for equipment development, development of advanced applications such reader users, the need for RF card terminal design / production of the user. This module can be loaded directly into a variety of readers molds. Module uses voltage of 3.3V, through the SPI interface simple few lines can be directly connected to the user any CPU board communication module can guarantee stable and reliable work, reader distance
Electrical parameters [Introduction]
Current:13-26mA / DC 3.3V
Idle Current:10-13mA / DC 3.3V
Sleep current
