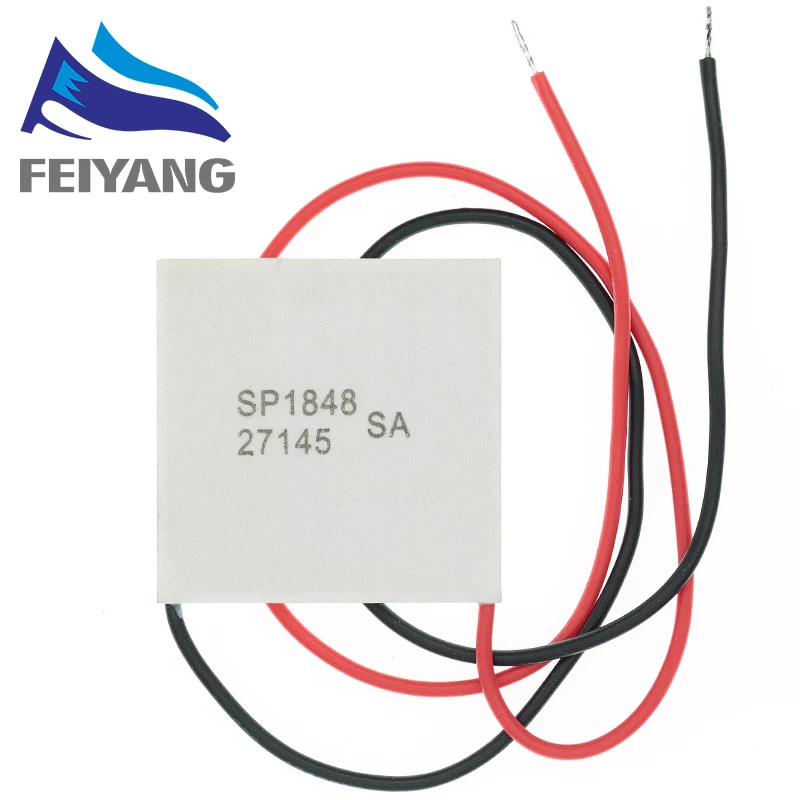

TEC1-12706 12V / SP1848-27145 4,8V 669MA Thermoelektrischer Kühler Peltier Neu der Halbleiterkühlung

Produktbeschreibung

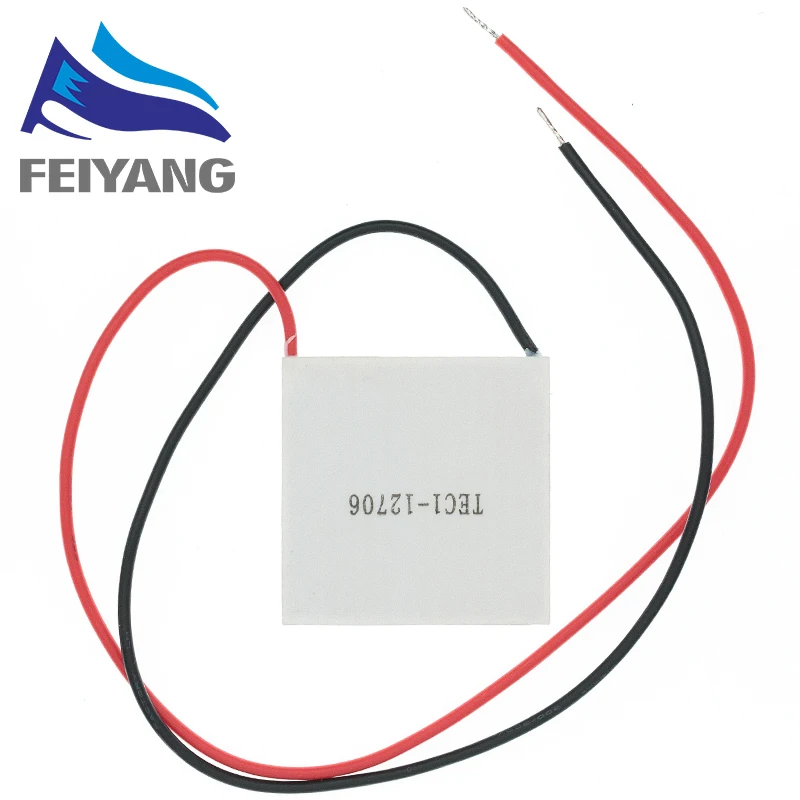

Chip Type: TEC1-12706
External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4Ω (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59 'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)
Description
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads
Designed Specifically for POWER GENERATION Thermal Elements formulated for optimum Seebeck (Power Generation) Can be used for power generation, cooling or heating applications These modules are manufactured specifically for power generation but they can also be used for cooling and/or heating applications. They are far superior than standard peltiers for power generation applications.
Specifications
(Power input when used in Peltier Effect) 1.40mm x 40mm x 3.3mm 2.Open-circuit voltage:(V) 0.97 1.8 2.4 3.6 4.8 3.Temperature difference: (°) 20 40 60 80 100 4.Current: (MA) 225 368 469 558 669

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

4.8v-12V

Verlustleistung

6A

ist kundenspezifisch

Ja

Betriebstemperatur

SP1848-27145

Anwendung

Computer

Paket

SOP
