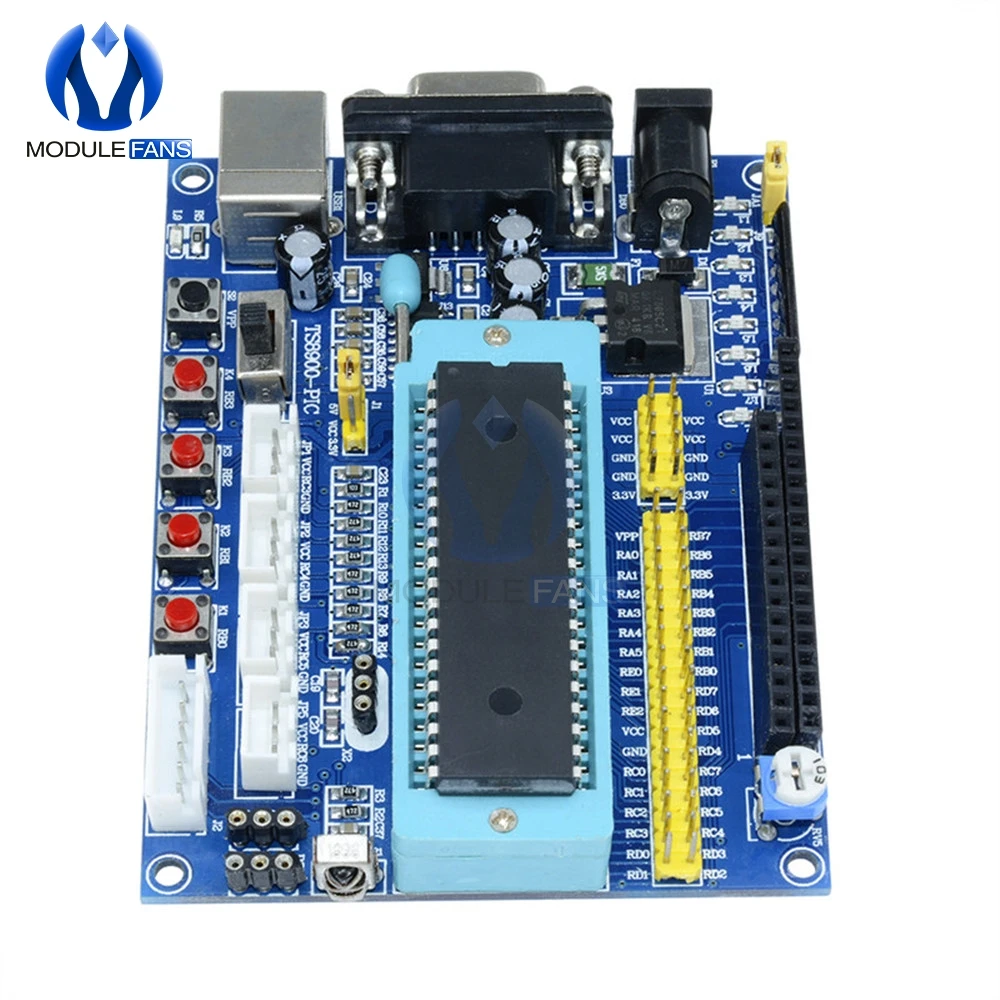

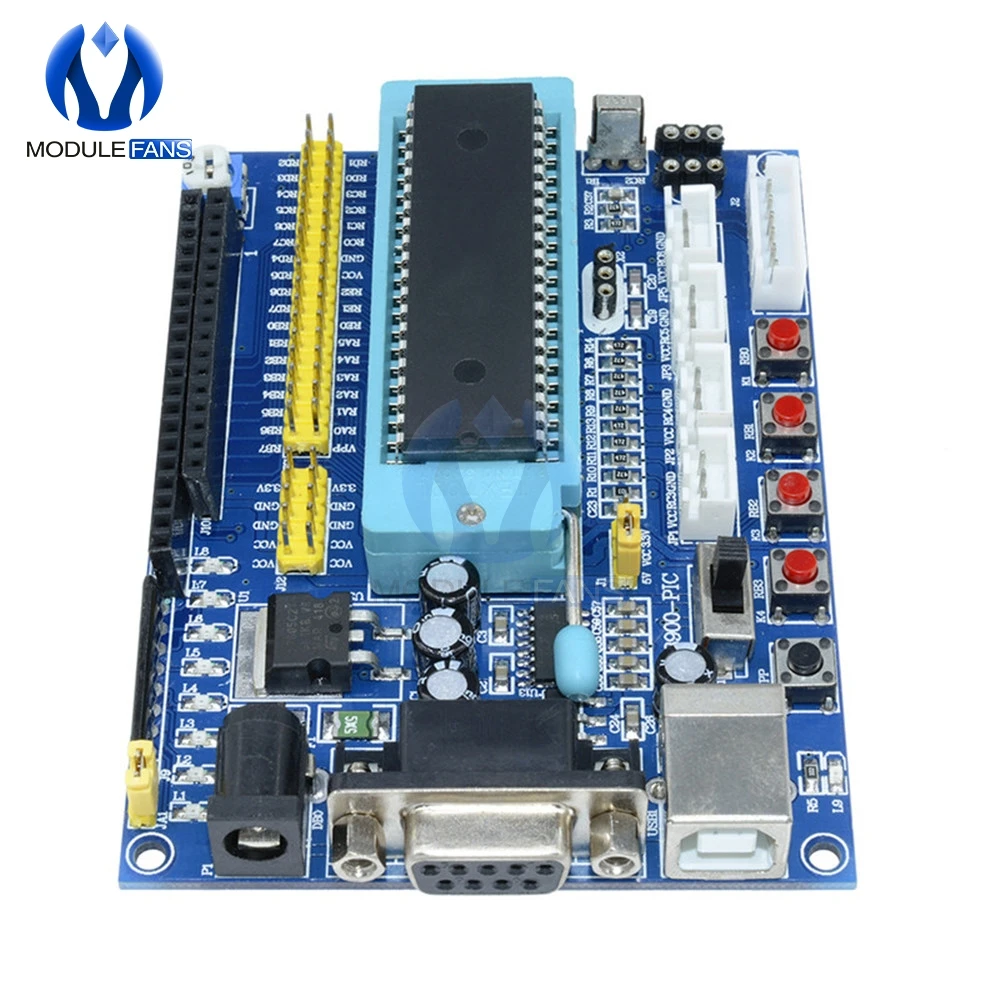

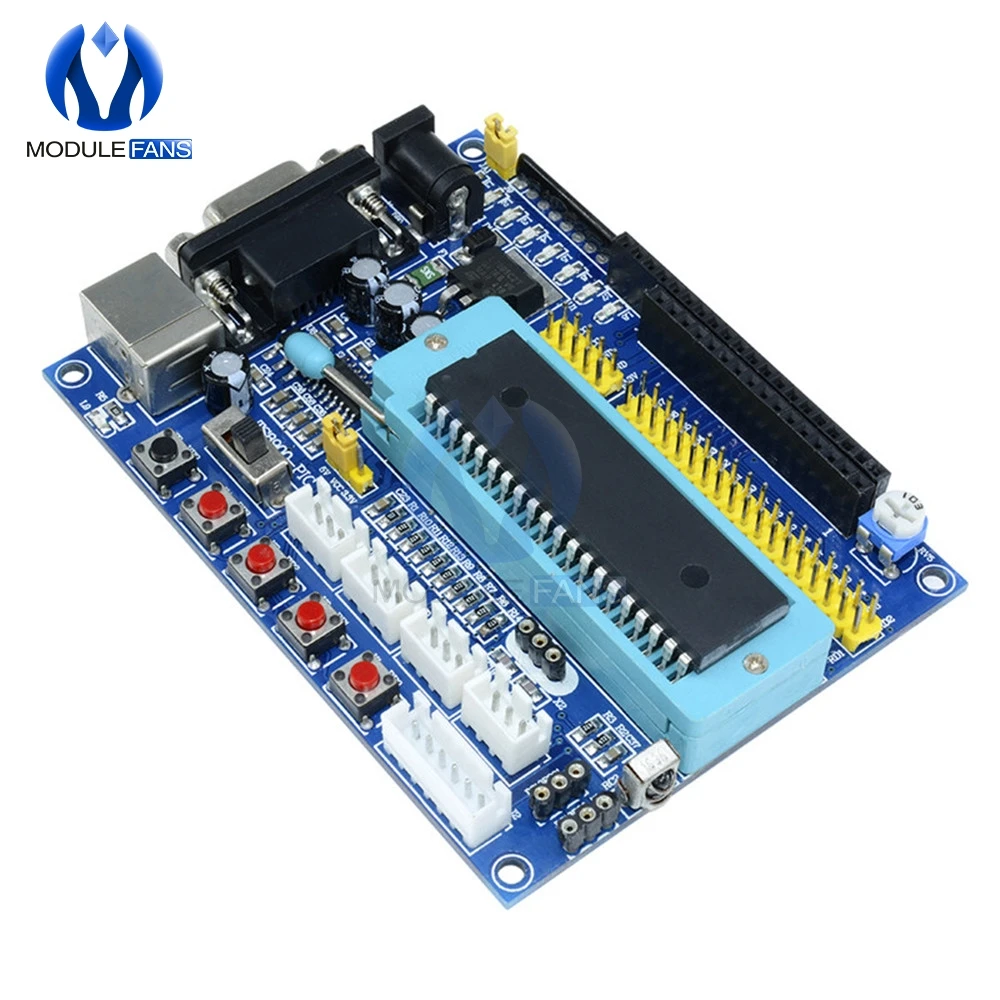

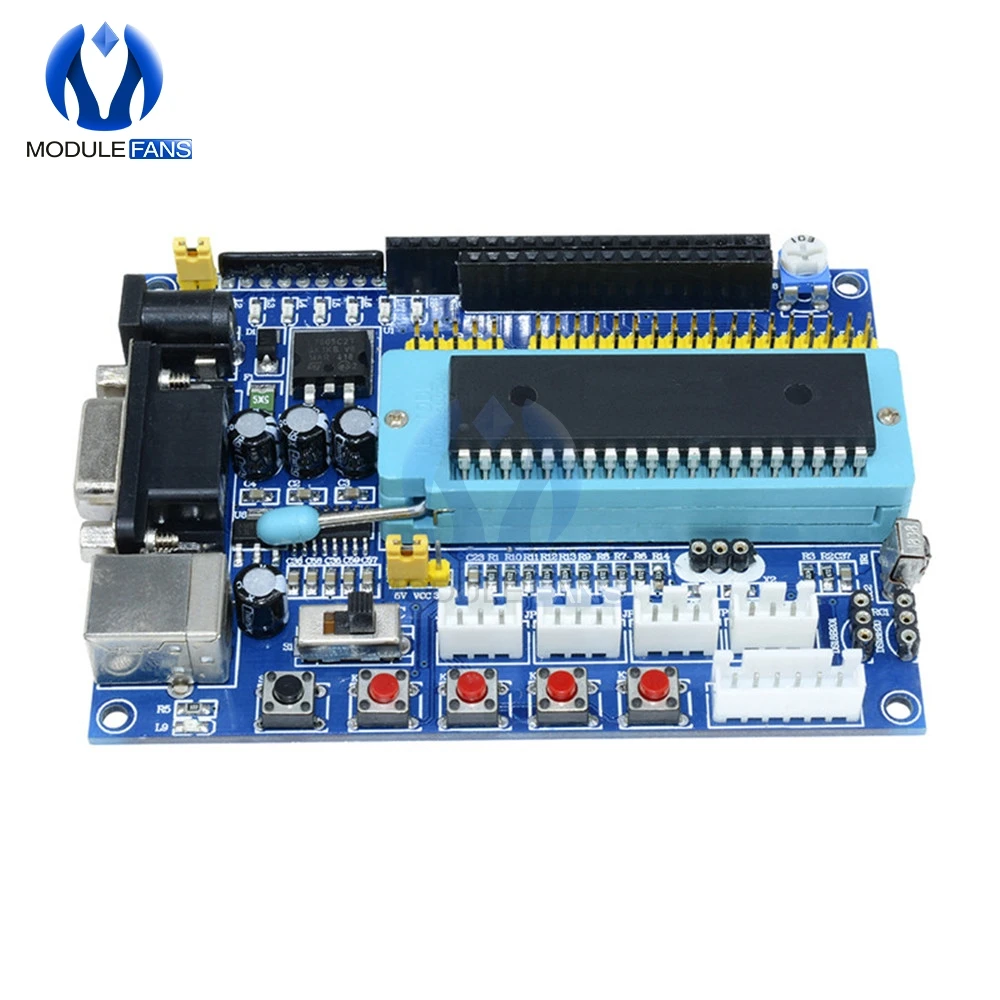

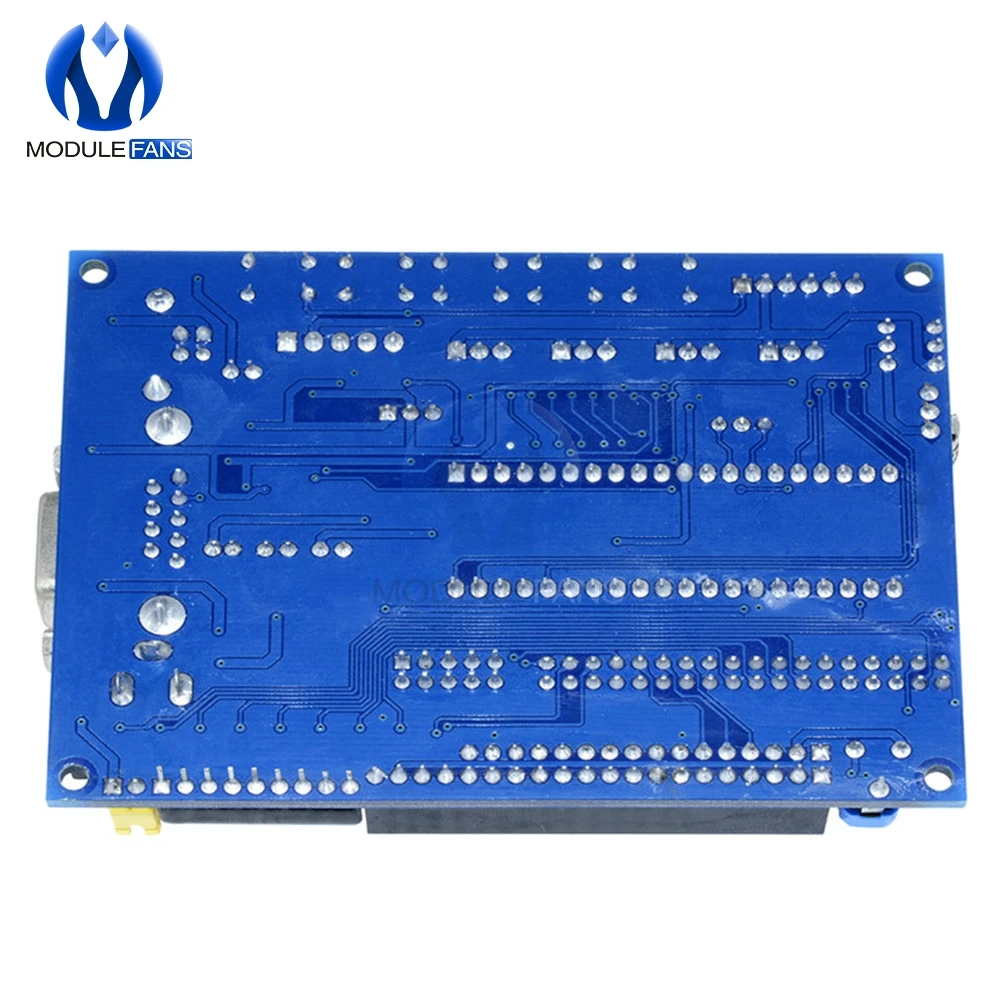

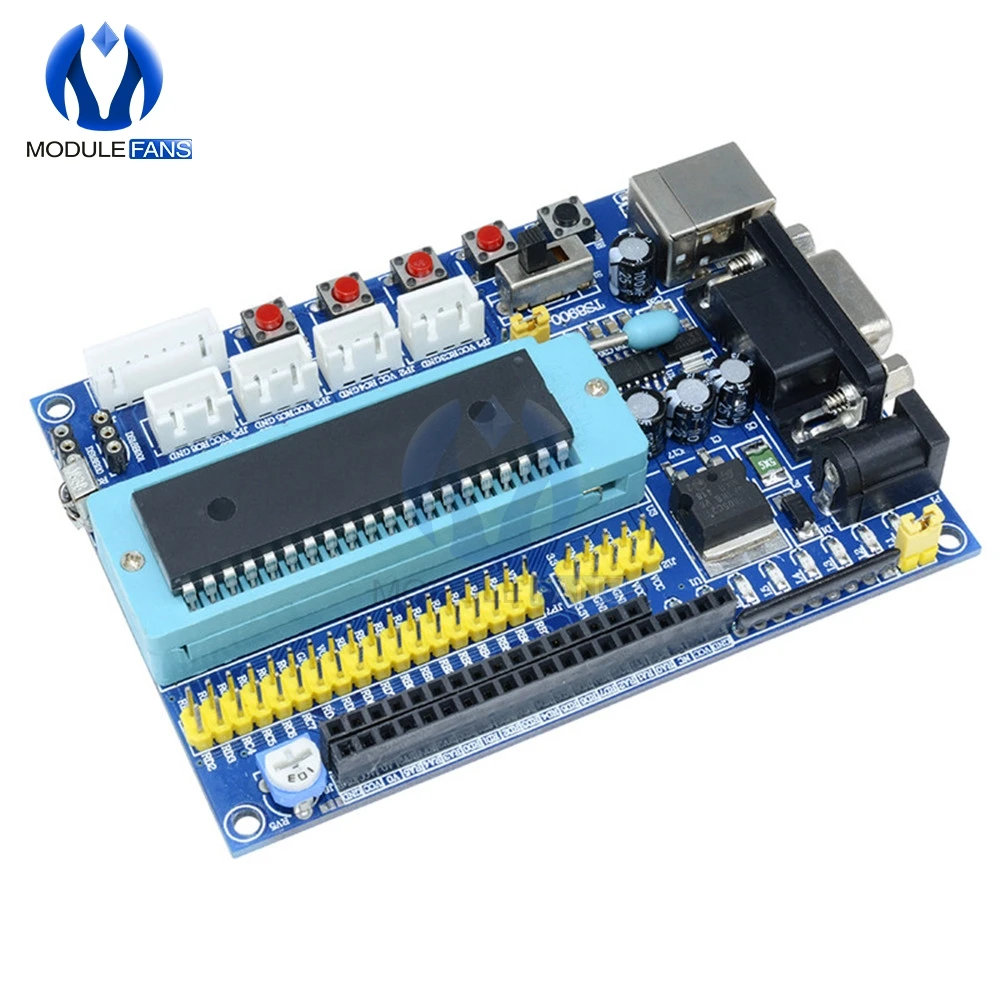

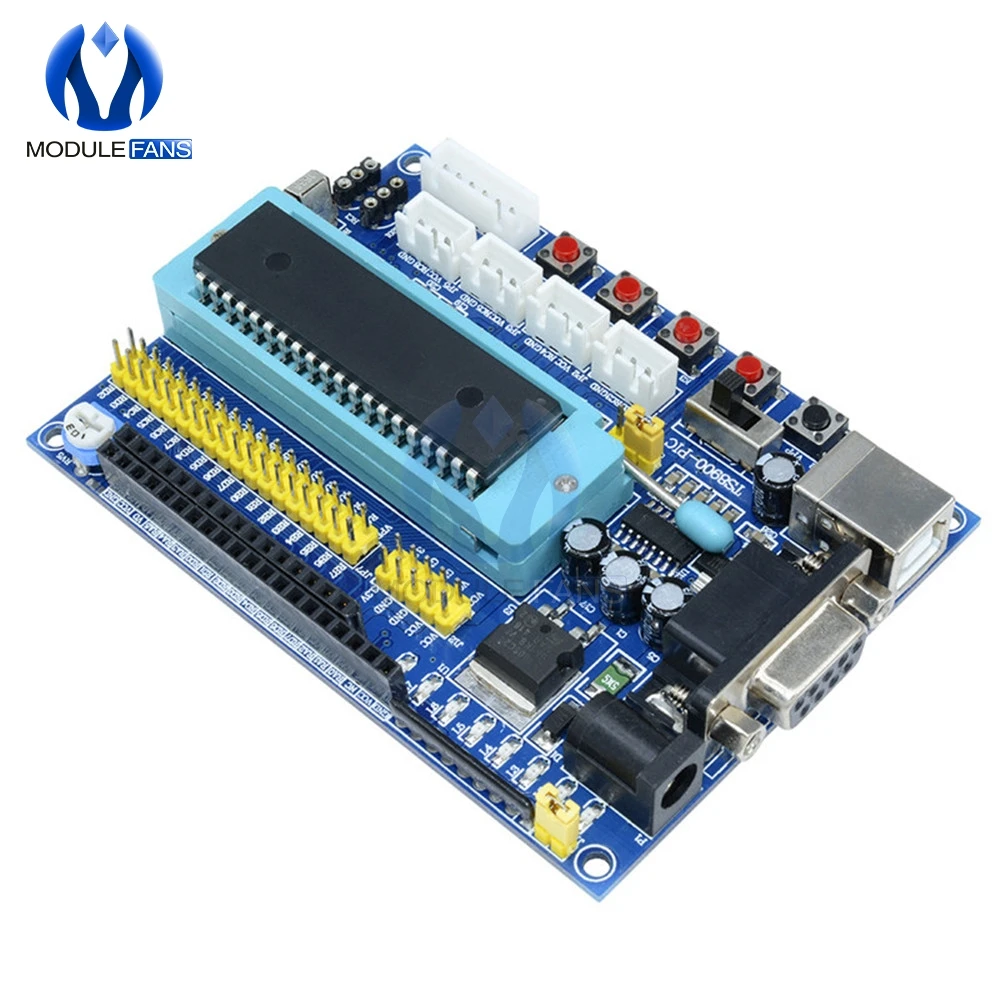

DC 12V PIC16F877A PIC Mindest System Development Board Emulator JTAG ICSP Programm Mindest System Mikrocontroller Modul

Produktbeschreibung

This product is a high cost PIC microcontroller development board, USB and external 12V DC power supply, provides ICSP download debugging interface with PIC-Circuit Debugger (PICKit2 & ICD2, etc.), or the programmer (K149 & K150, etc.) to facilitate the for program debugging, downloading. Completely independent of the IO port design, compatible with a variety of models, various DIP Series package MCU. PIC877A board development board has a wealth of resources that will catch PIC microcontroller's internal resources, you can get the full learning applications. Freedom with the MCU peripheral circuit design, the user can be used to implement various experiments. By PIC877A development board learning applications, as well as on the development board schematics and incidental learning reference routines, each routine has done a detailed notes, from the simple to the complex layers of depth. Users can easily and convenient to master PIC's internal resource utilization and system software development
An external 12V power supply; also USB powered
Onboard there MAX3232 chip, do serial communication experiment
board provides 5V and 3.3V voltage
8bit light water experiment
LCD interface, with 12,864
LCD Interface with 1602
With two DS18B20 temperature sensor interface
with an integrated infrared receiver, to do remote control experiments
left ISP download port
Onboard with 6M crystal
CPU all the IO ports and power VCC, 3.3V, GND are outside the lead out to facilitate the various functional test
With four separate buttons, and buttons do interrupt experiments
Onboard a reset circuit can be manually reset

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

ist kundenspezifisch

Ja

Anwendung

Computer

Paket

SMD
