XCAN PCB-Bohrer, 0,9 mm Hartmetall, Mini-Pistolenbohrer für PCB-Leiterplatten-Bohrwerkzeug

Produktbeschreibung

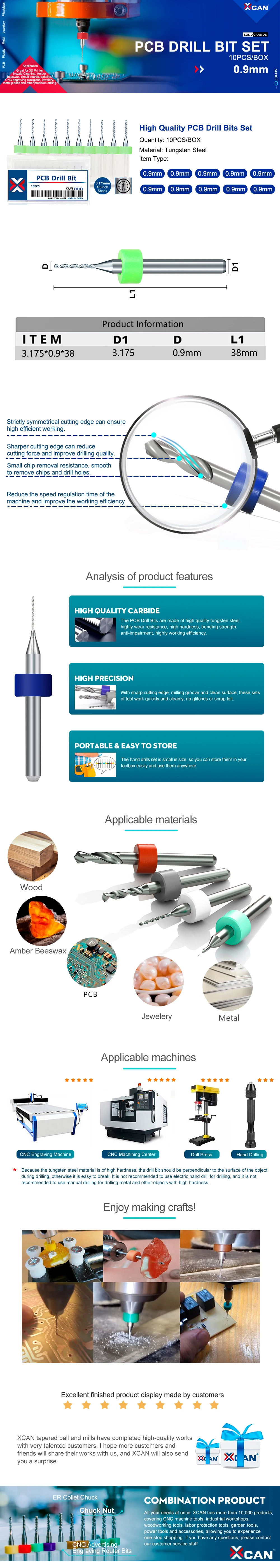

XCAN PCB Drill Bits 0.9mm Carbide Mini Gun Drill for PCB Circuit Board Drilling Tool
Suitable Materials
1. PCB, normal FR-4, CEM-3 boards, environmental protection board, SMT, CNC, molds, plastic, stainless steel and precision hardware processing
2. Circuit board, carbon fiber, composite board, and so on.
Features
1. Precision machining by high accurate equipment
2. With good milling and cutting performance, ensuring high efficiency
3. High hardness, wear resistance, and intensity; anti-bending
4. To removing chips, with big space and small resistance; Smooth chip removal, less heating value, to reduce pollution
5. Sharp cutting edge, reduce cutting force, lower breaking rate and improve the quality of hole wall
6. Symmetrical cutting blade, help to high effective cutting, avoiding drilling offset.
Specification
Type: PCB Drill Bit
Material: Carbide
Diameter: 0.9mm
Shank: 3.175mm(1/8'')
Cutting Length: 9mm
Overall Length: 38mm
Note
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Produktdetails in Bildern

Produkteigenschaften

Markenname

xcan

Heimwerkerbedarf

Metallbearbeitung

Typ

Gun Loch bohren

Körnungstyp

fein

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

PC001090

Material

Wolframkarbid

Länge

38mm

Benutzen

Leiterplattenbohren

ist kundenspezifisch

Ja

Zertifizierung

CE

Schaft für PCB-Bits

0,125 Zoll / 3,175 mm

Länge des Schnitts

0,217 "-0,413 "/5,5-10,5MM

Geeignete Materialien

Leiterplatten, PCBs, SMT, CNC-Platinen usw.

Zustand

Hervorragende PCB-Bohrarbeiten!

Verwendung für

3D-Druck

Verwendung für 1

Reinigungsdüse
