ST-LINK V2 Simulator Download Programmierer STM32F103C8T6 ARM STM32F103C6T6 Minimum System Development Board STM32F401 STM32F411

Produktbeschreibung

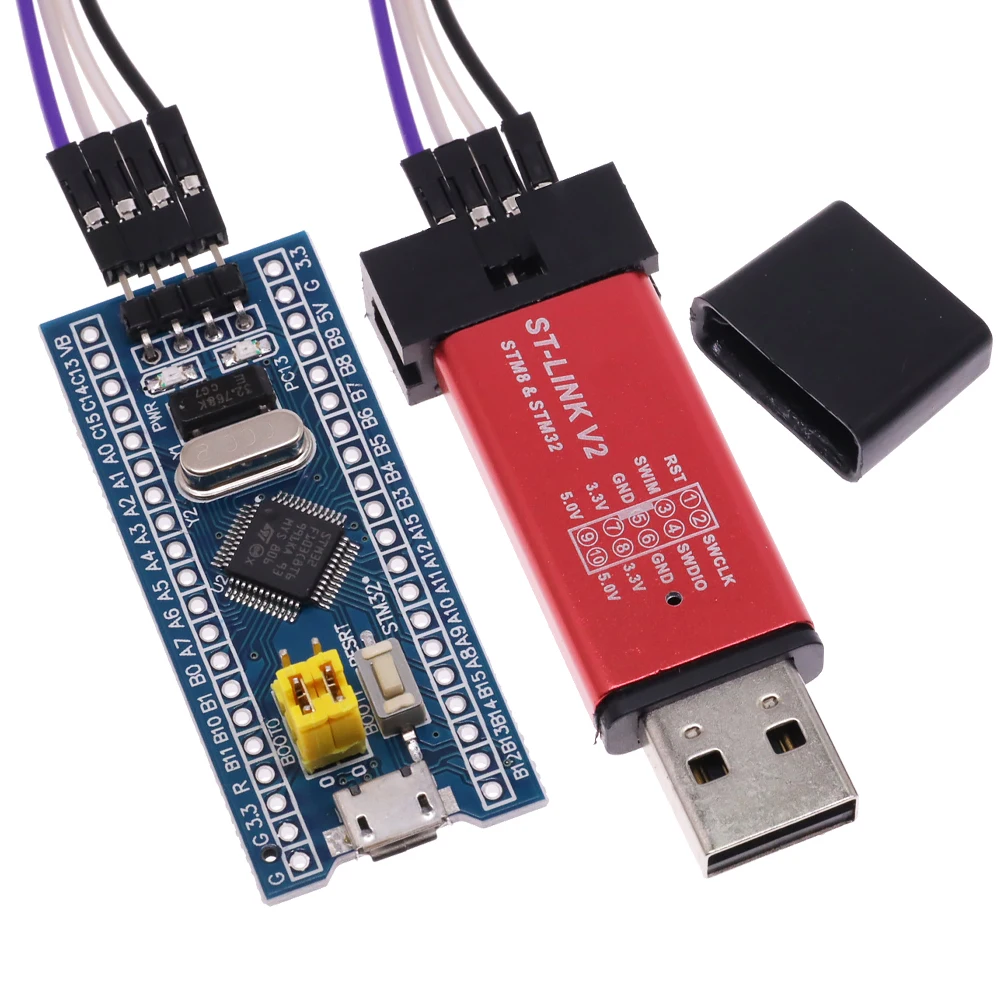

ST-Link V2 Mini STM8 Simulator Download
Specifications
lInput voltage (USB): 5V
lOutput Voltages: 3.3V, 5V
lInterfaces: SWIM, SWD
lConnectors: USB, 10 pin (molex type)
lDimensions: 57mm x 20mm x 8mm[2.2in x 0.7in x 0.3in]
The St Link V2 programmer supports STM8 and STM32 microcontrollers
The module supports automatic firmware upgrades to ensure the maintenance of ST products. The factory firmware has been updated to the latest version V2.J17.S4.
2x5 headers 2.54 mm (0.1 in) apart, including cables (4 f-f jumper wires)
USB 2.0 full speed compatible interface
lWARNING: STM32 chips run on 3.3V, most breakout boards will include a voltage regulator so it can be powered from USB, and STLink dongles will provide a3.3V VCC pin to power up the chip.
lDo not connect the board to the PC using USB while the chip is powered up usingthe ST-Link V2 programmer!
lConnect one or another but not both simultaneously. The ST-Link V2 dongle provides a 5V pin as well. It is not going to be used because the STM32 chips are not5V tolerant, the 3.3V pin has to be used only.

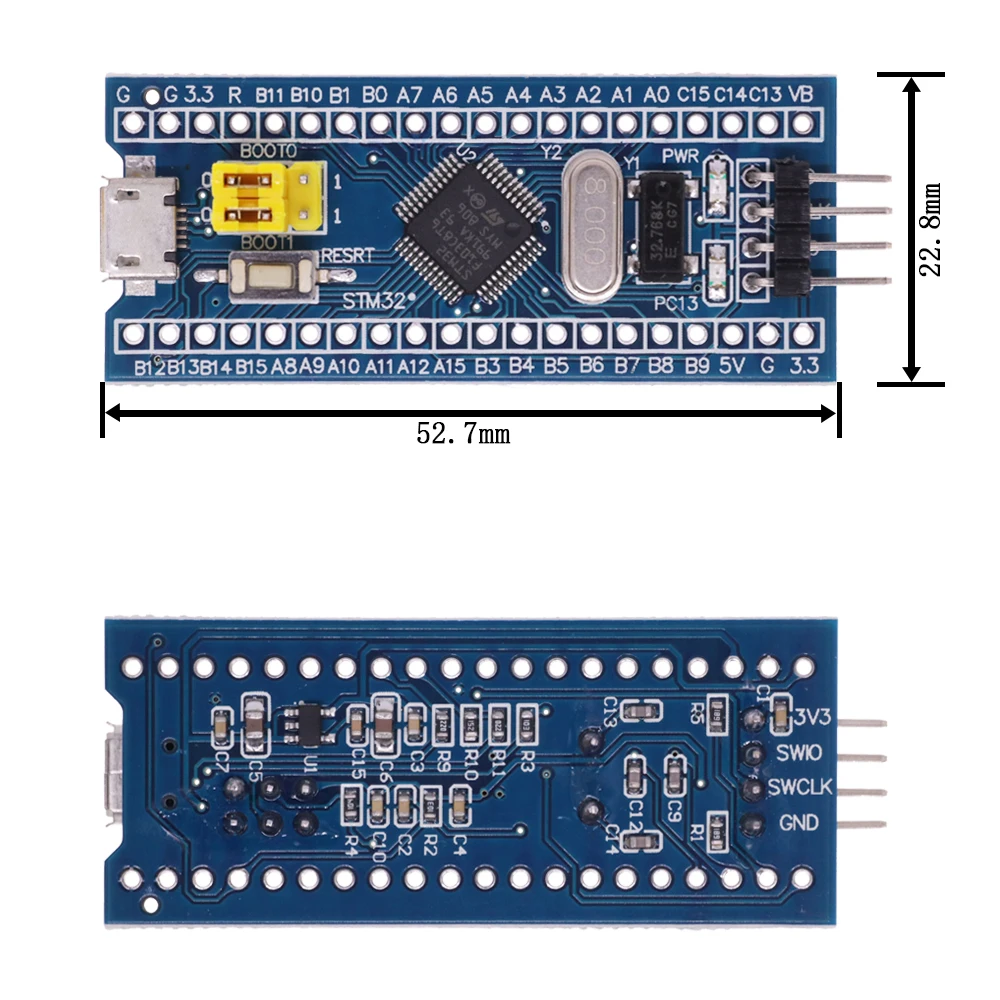

STM32F103C8T6 ARM STM32 Minimum System Development Board Module For Arduino
This is a core chip based on for CS32F103C8T6 ARM core board, features are as follows
1, the board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit.
2, the core board is divided into two rows leads to all the I / O port.
3, with SWD simulation debug download interface, simple and convenient, debugging speed.
4, the use of the Mirco USB interface, you can do USB communication and power supply, USB interface, compatible with the ordinary Andrews mobile phone charger interface.

Produktdetails in Bildern

Produkteigenschaften

Markenname

sincere&promise

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Choice

yes

semi_Choice

yes
