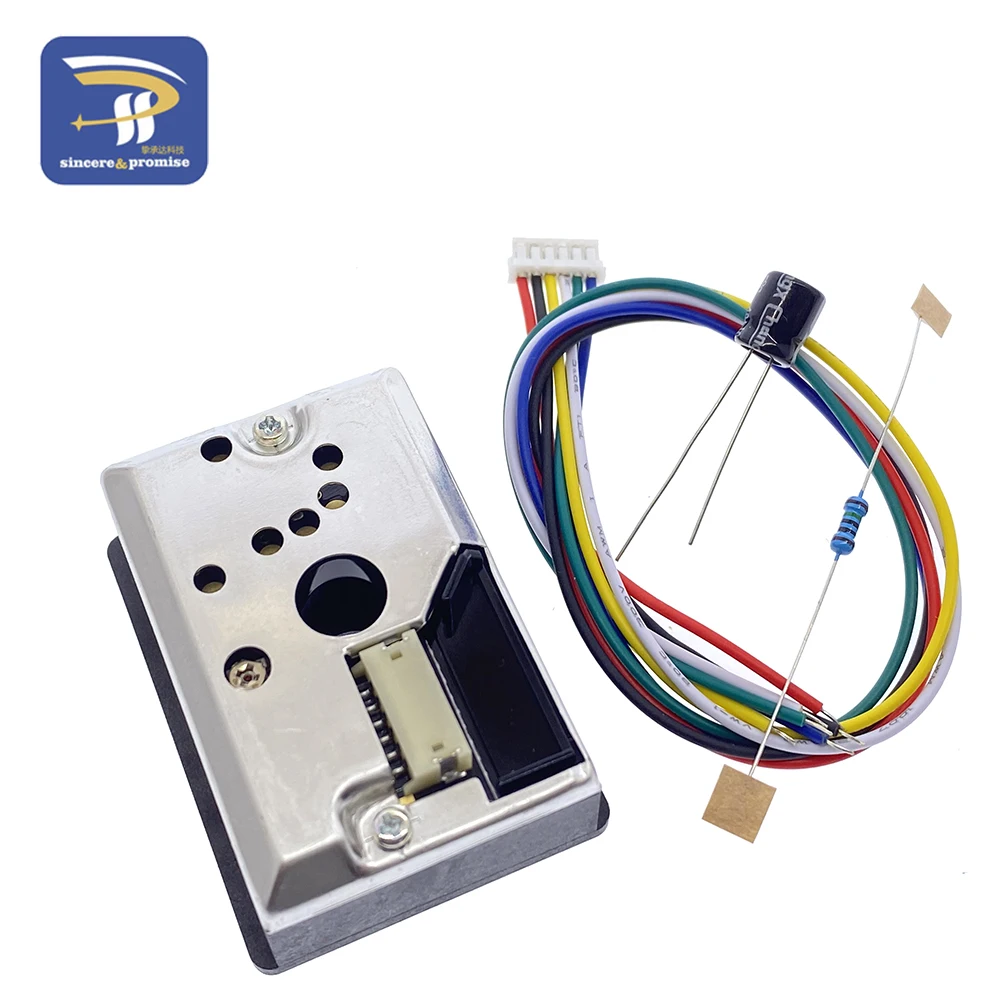

GP2Y1014AU0F Kompakte Optische Staub Sensor 5V Kompatibel GP2Y1010AU0F Rauch Partikel Mit Kabel Air Qualität PM 2,5

Produktbeschreibung

Description
GP2Y1014AU0F is a dust sensor by optical sensing
system.
An infrared emitting diode (IRED) and an phototransistor
are diagonally arranged into this device.
It detects the reflected light of dust in air.
Especially, it is effective to detect very fine particle
like the cigarette smoke.
In addition it can distinguish smoke from house dust
by pulse pattern of output voltage.
Features
Compact, thin package (46.0 × 30.0 × 17.6 mm)
Low consumption current (Icc: MAX. 20 mA)
The presence of dust can be detected by the
photometry of only one pulse
Enable to distinguish smoke from house dust
Lead-free and RoHS directive compliant
Compliance
Compliant with RoHS directive (2002/95/EC)
Applications

Produktdetails in Bildern

Produkteigenschaften

Markenname

sincere&promise

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Ausgabe

Analoger SENSOR

Theorie

Stromsensor

Typ

Gassensor

Benutzen

GASSENSOR

Material

Mischung

Choice

yes

semi_Choice

yes
