10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY

6,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 18–24 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

64474
Click the collection to become our VIP lover
This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegent. The USB interface is achieved by using an atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website.
Some of the features include
Support for AVRDude from version 5.2 onwards
Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
Support for Linux, OS X and Windows (will work on vista)
5 KB/sec maximum write speed
Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
10 pin ISP interface
These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit. Supported microcontrollers include
Mega Series
ATmega8 ATmega48 ATmega88 ATmega168 ATmega328
ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16
ATmega161 ATmega162 ATmega163 ATmega164 ATmega169
ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329
ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649
ATmega6490 ATmega8515 ATmega8535
Tiny Series
ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26

Produktdetails in Bildern

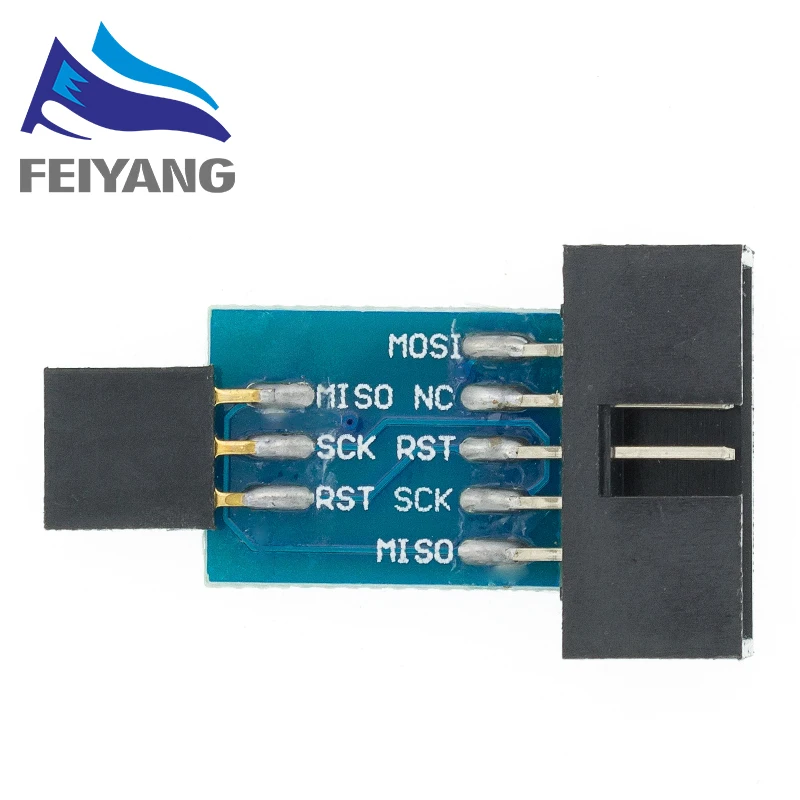

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 1

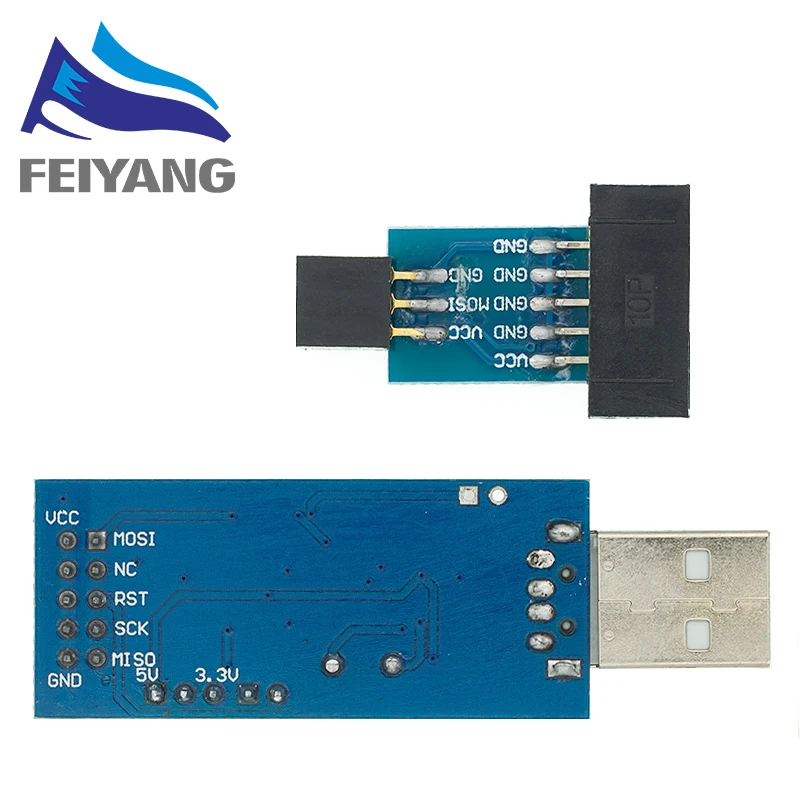

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 2

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 3

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 4

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 5

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 6

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 7

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 8

10Pin zu 6 Pin Adapter Board + USBASP USBISP AVR Programmierer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Draht Modul DIY – Detail 9

Produkteigenschaften

Markenname: SAMIORE ROBOT
Ursprung: CN (Herkunft)
Hochbetriebenes Chemikalienunternehmen: Keine
Zustand: Neu
Typ: SPANNUNGSREGELER
Versorgungsspannung: 3,3V~5V
Verlustleistung: AVR-Programmierer
ist kundenspezifisch: Ja
Betriebstemperatur: 40-+85
Anwendung: Computer
Paket: DIP
model Nummer: AVR-Programmierer USB ATMEGA8
Für Arduino STM: Elektronikmodul
TYP: AVR-Programmierer mit Atmega128-Unterstützung
ZUR VERWENDUNG FÜR: USBASP USBISP Win7 64
Modul 2: USBASP USBISP AVR Programmierer
Modul 3: USB ASP USB ISP
CHIP-VERWENDUNG: ATMEGA8 ATMEGA128
Modul 5: 10-Pin-Kabelmodul AVR-Programmierer
Modul 6: ATMEGA128 6-Pin Adapterplatine
Modul 7: USBASP DIY
Modul8: 1 Satz CAN/PWM

Artikelnummer: 32653187143
