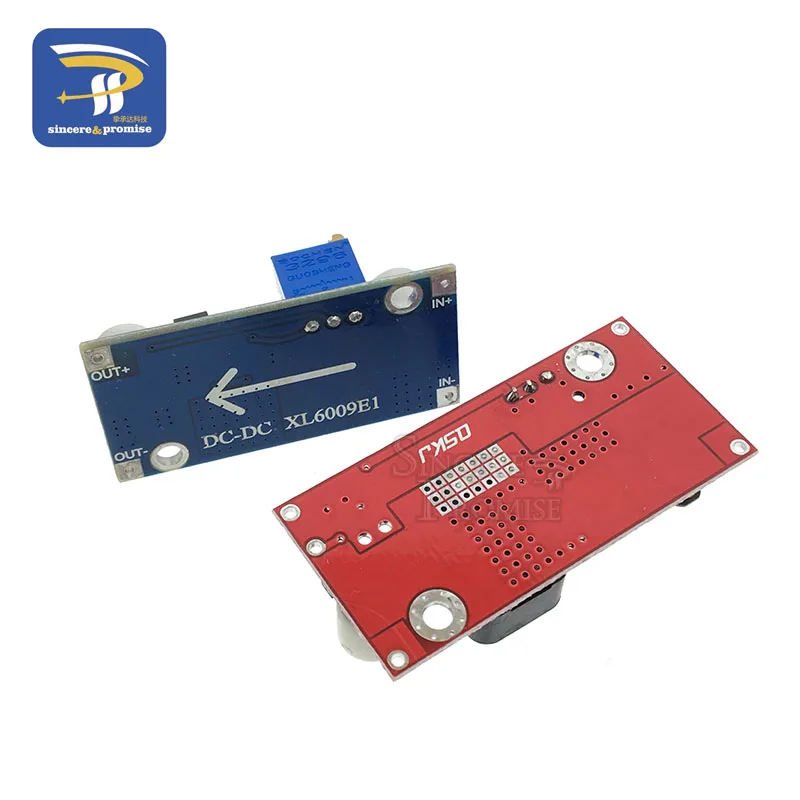

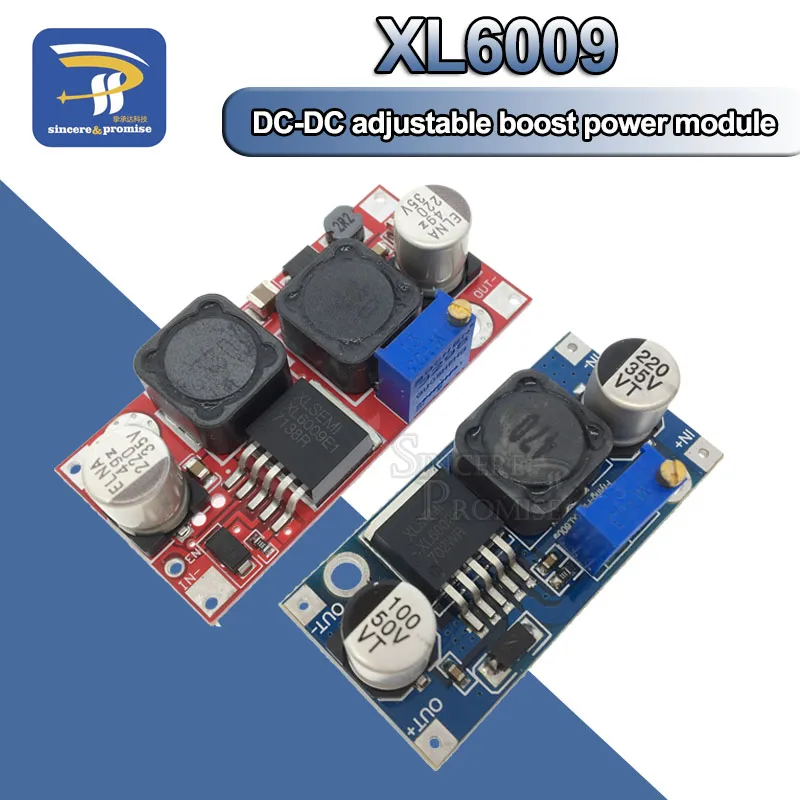

XL6009 Boost Buck Converter Step Up einstellbar 20 W 5–32 V auf 1,2–35 V DC/DC-Stromversorgungsmodul, hohe Leistung, geringe Welligkeit

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

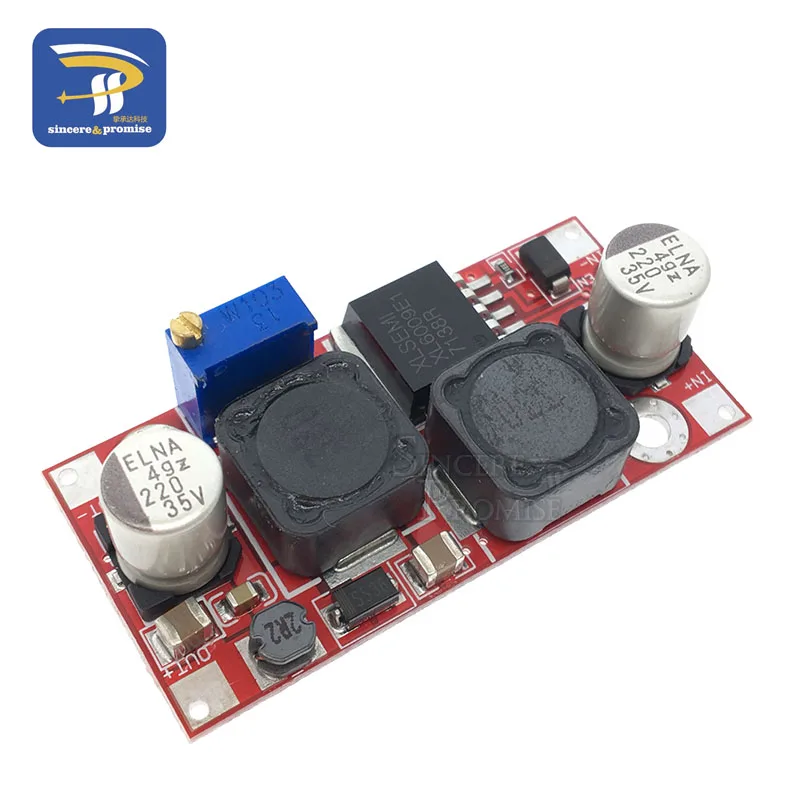

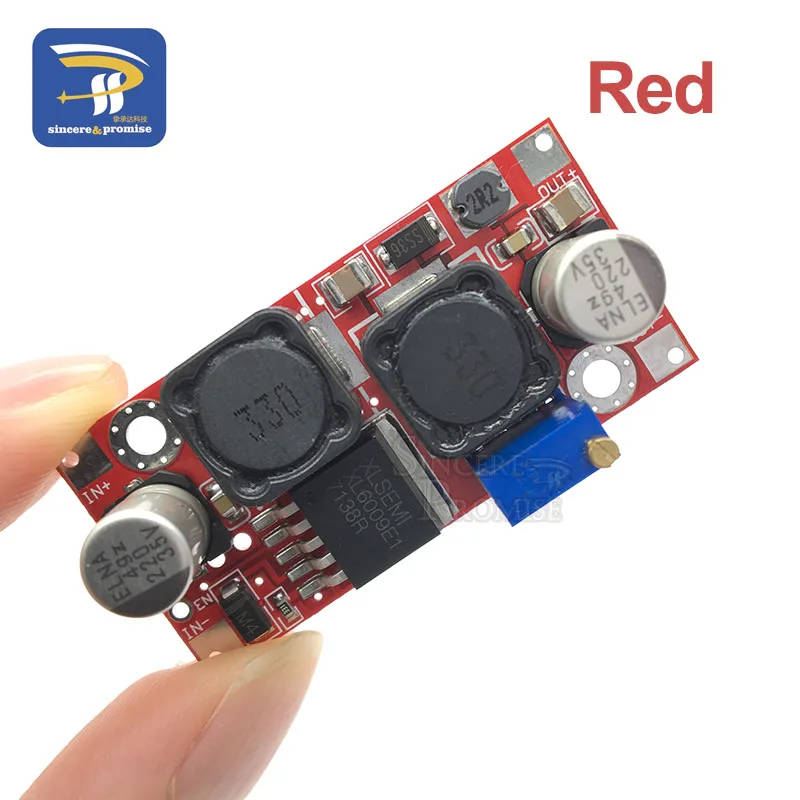

Red Introduction
1: The new original chip, eliminate fake, disassemble chip.
2: Imported SMD electrolytic capacitors, not accompanied by homemade capacitance.
3: Up to 400Khz operating frequency, and LC filter circuit, output ripple is very low.
4: Import TDK inductors, the heat and noise to a minimum.
6: Input and output three MLCC Multilayer ceramic capacitors, interference enhance stability.
7: PCB use kb of A grade sheet material, to prevent cardboard, garbage plate.
8: Built-in MOSFET, the LM2577 built-triode say goodbye, can reach 94% efficiency.
9: Increased enable the port, you can control whether the boost circuit.

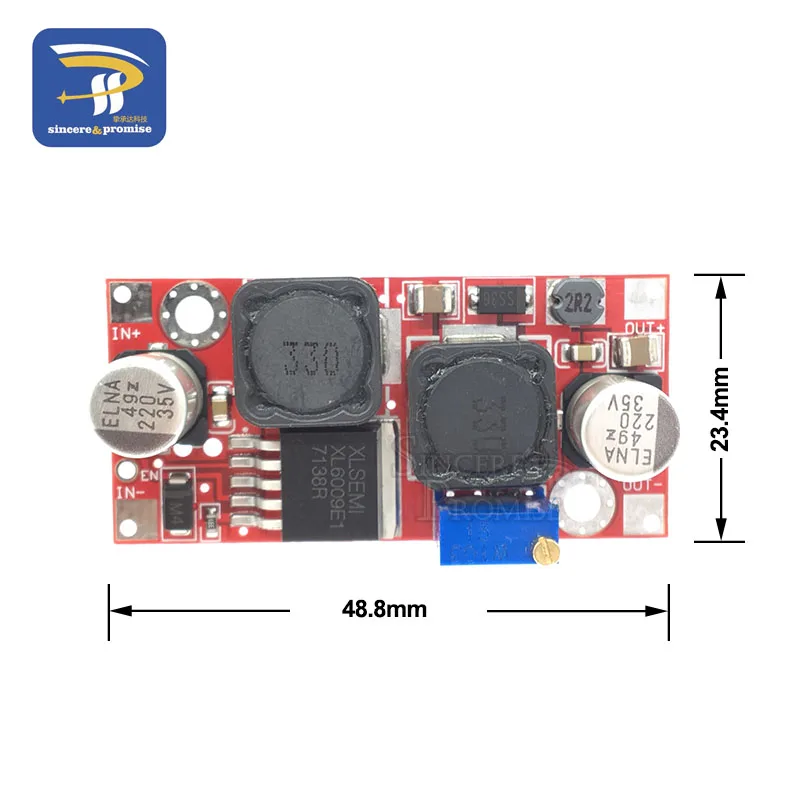

10: Dimensions: 49 (L) * 23.4 (W) * 11.4 (H) mm (excluding potentiometer)

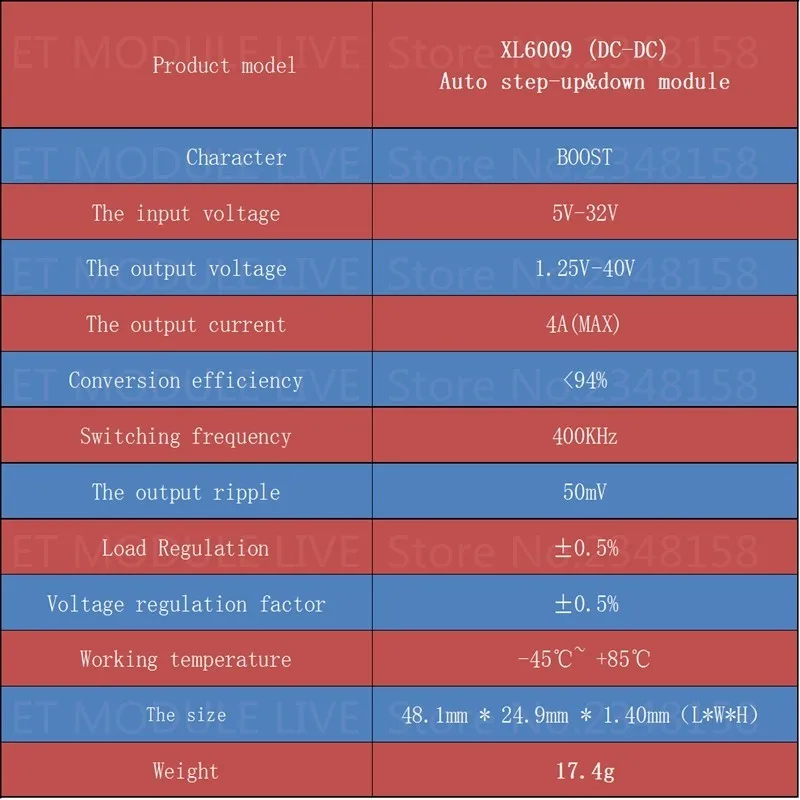

Parameters
Module Properties: non-isolated step-up & down module (BOOST & Buck)
Input voltage: 5-32V
Output voltage: (1) continuously adjustable (1.2-35V)
Output Current: 1.5A (MAX)
Input Current: 4A (MAX)
Output power: natural cooling 20W, plus heat sink 25W (MAX) real power
Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency

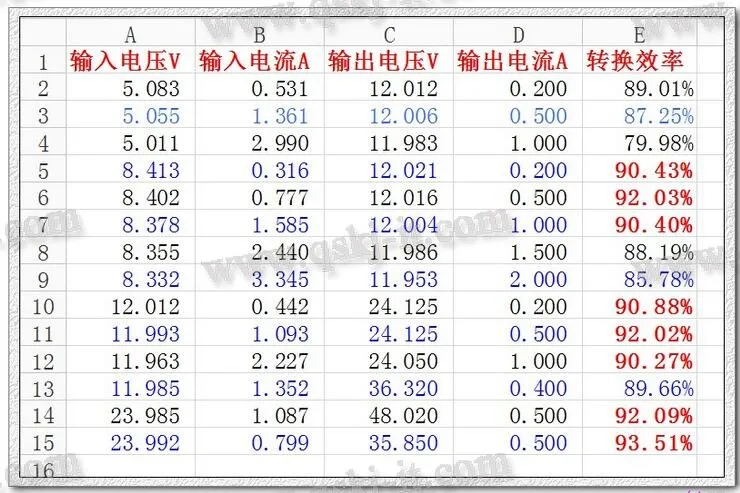

Conversion efficiency: the efficiency of the measured voltage and current commonly used (hereinafter, for reference only)
A=Input voltage. B=Input Current. C=Output voltage. D=Output Current. E=conversion efficiency
