3D Drucker Teile & Zubehör

Trianglelab Präzisions-Piezo-Z-Sonde Universal-Kit Z-Sonde für 3D-Drucker Revolutionärer Auto-Bett-Nivellierungssensor 3D Touch

38,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.
Reference guide
This product is a Z-probe sensor kit using piezo electric bimorphs technology to provide precision auto bed levering on 3D printers.
Of all the other sensing technologies being used in 3D printing we believe this one is the best at present.Nozzle contact is a direct measurement, the nozzle is the 'sharp end of the tool'.Since there are no x and y offsets(and very minimal z-offset) the whole of the printable area of the bed can be probed.It is permanently mounted so no servos to setup,and no issues with repeatability between probings.Any type of tilt in the carriage or effector does not result in probing errors being fed into computations for bed levelling or calibration.
WIKI
It is very precise to 0.01mm accuracy(hotend mount)
Very repeatable-standard deviation in testing 0.007mm
Can be used with any printing surface including Printbite,PEI,Buildtak,Glass, Aluminium,FR4
Uses a standard endstop connector
Is permanently fixed,no servos,no deploying required
Easy to configure in your firmware
No X or Y offsets,your nozzle is the tool head,so use the nozzle to probe
Replaces inductive probes,IR probes,Capacitative probes,FSR's,servo probes
Illuminates on probing OR you can specify a solid colour unit both units have LED's front and back
Full STL's provided,Open Source Hardware

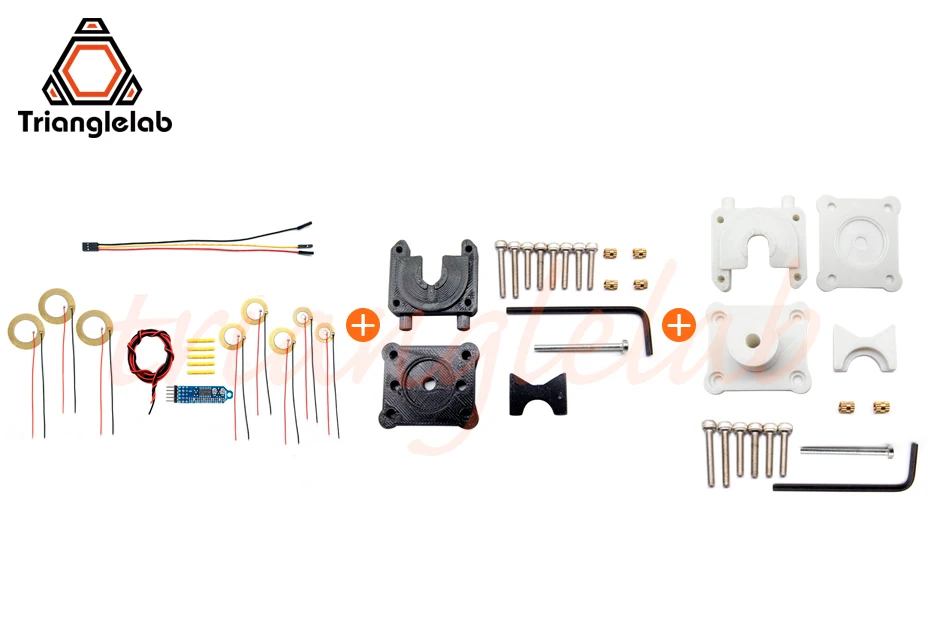

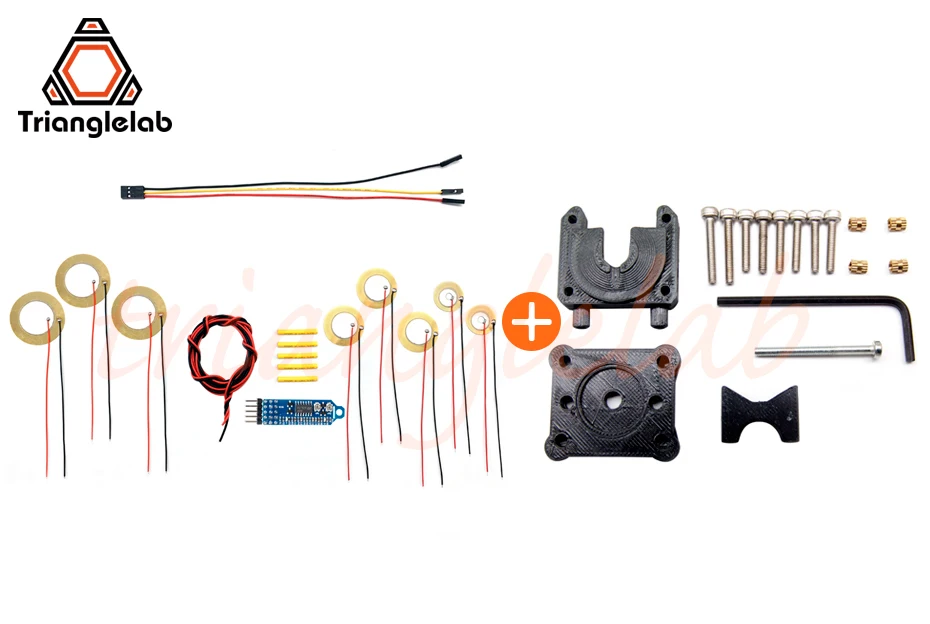

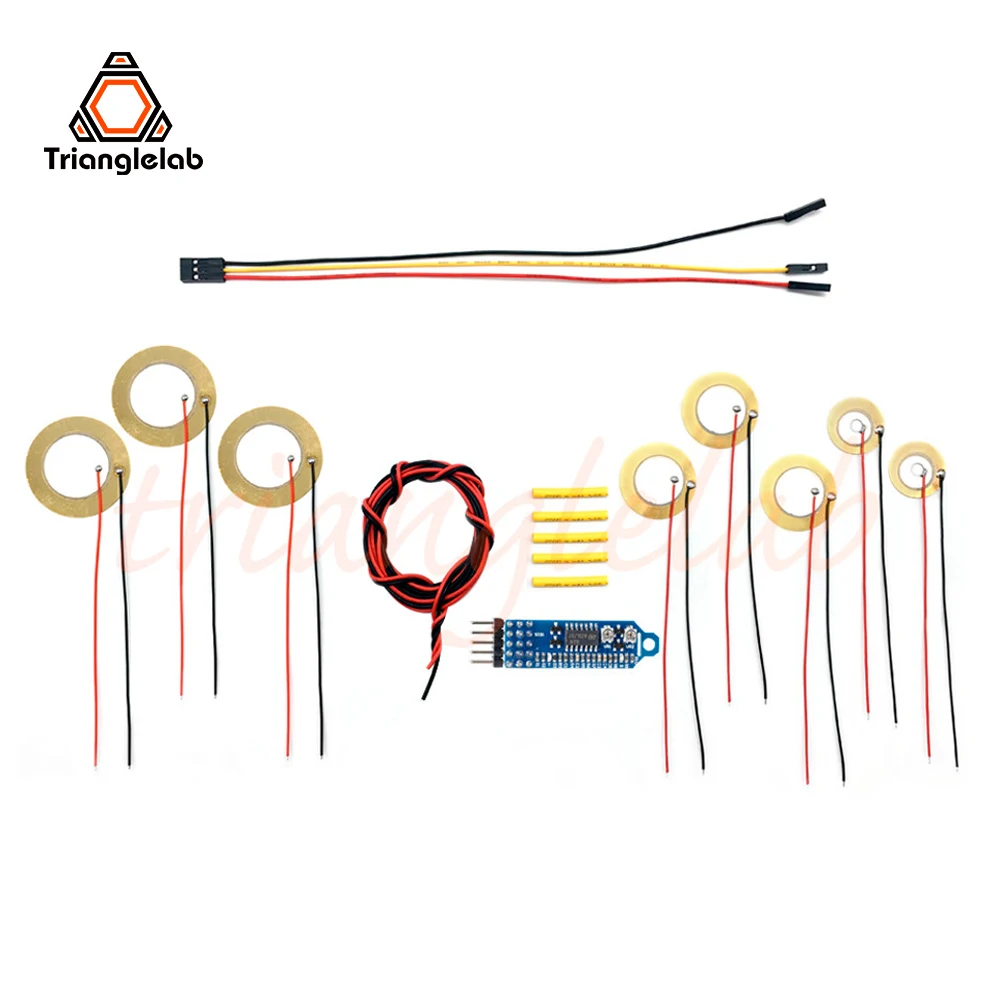

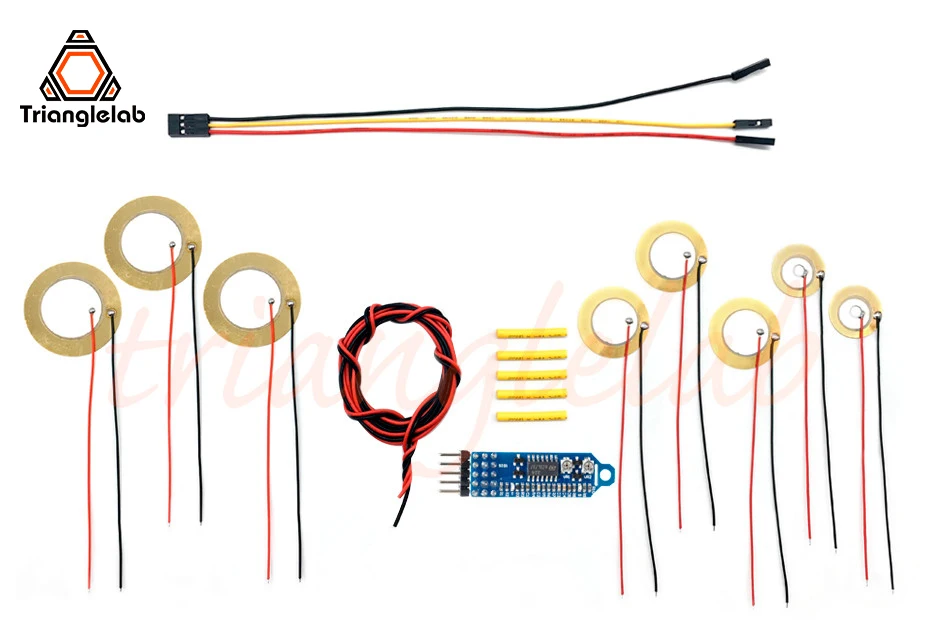

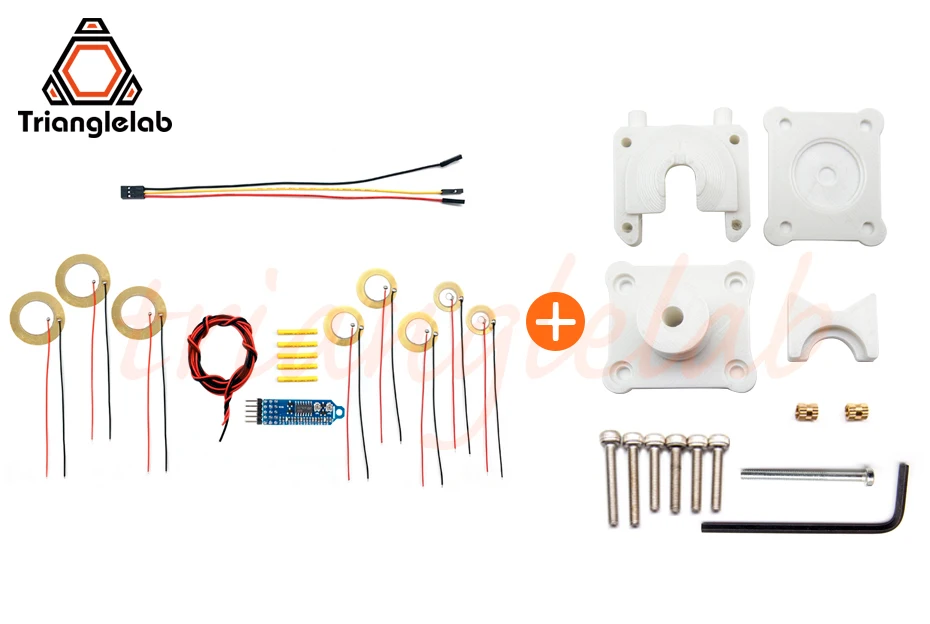

The kit is contains all the electronic components both for hotend piezo and underbed piezo setup
Low cost and easy to use
V2.75 Piezo Sensors manual download
