Präzisions-Piezo Piezo20 Z-Sonde Sensor für 3D-Drucker Revolutionärer Automatischer Bettnivellierungssensor 3D-Drucker Zubehör

31,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–12 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

V2.75 news
The production was officially upgraded on April 30, 2019, and the version is V2.75.

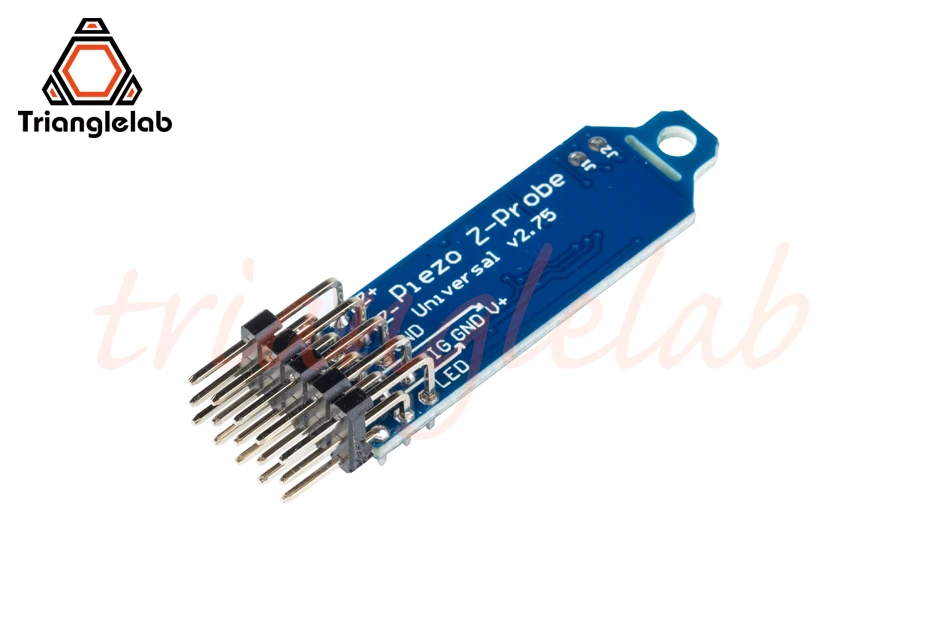

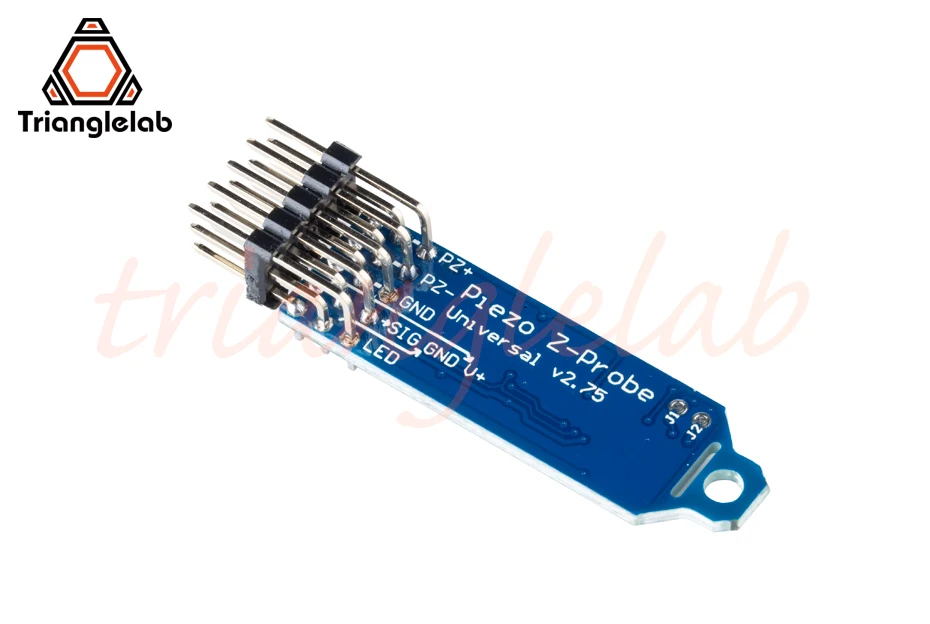

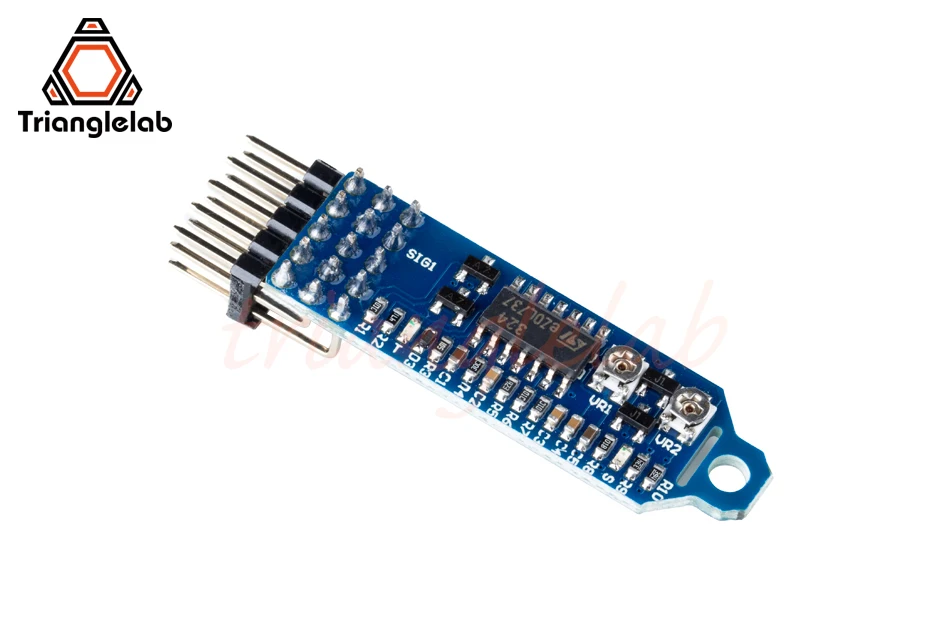

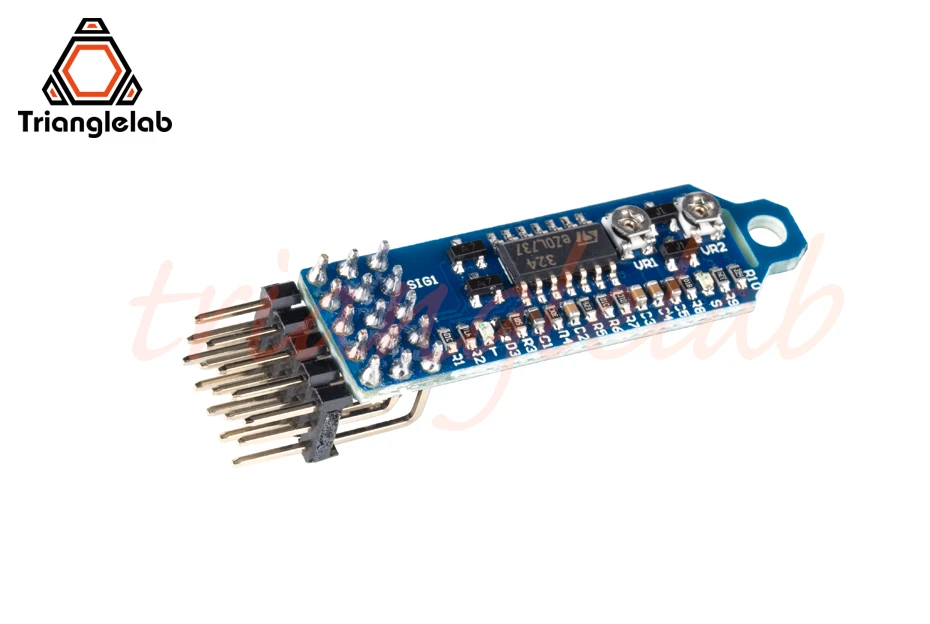

This product is a Z-probe sensor kit using piezo electric bimorphs technology to provide precision auto bed levering on 3D printers.
Of all the other sensing technologies being used in 3D printing we believe this one is the best at present.Nozzle contact is a direct measurement,the nozzle is the 'sharp end of the tool'.Since there are no x and y offsets(and very minimal z-offset) the whole of the printable area of the bed can be probed.It is permanently mounted so no servos to setup,and no issues with repeatability between probings.Any type of tilt in the carriage or effector does not result in probing errors being fed into computations for bed levelling or calibration.
WIKI
It is very precise to 0.01mm accuracy(hotend mount)
Very repeatable-standard deviation in testing 0.007mm
Can be used with any printing surface including Printbite,PEI,Buildtak,Glass, Aluminium,FR4.

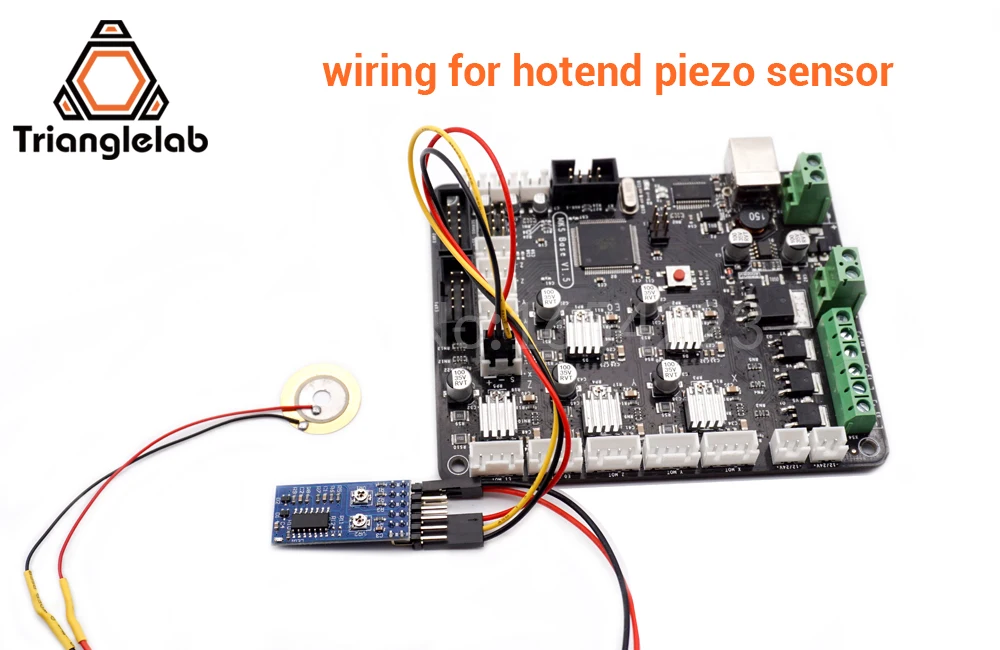

Uses a standard endstop connector
Is permanently fixed,no servos,no deploying required
Easy to configure in your firmware
No X or Y offsets,your nozzle is the tool head,so use the nozzle to probe
Replaces inductive probes,IR probes,Capacitative probes,FSR's,servo probes
Illuminates on probing OR you can specify a solid colour unit both units have LED's front and back.
Full STL's provided,Open Source Hardware.

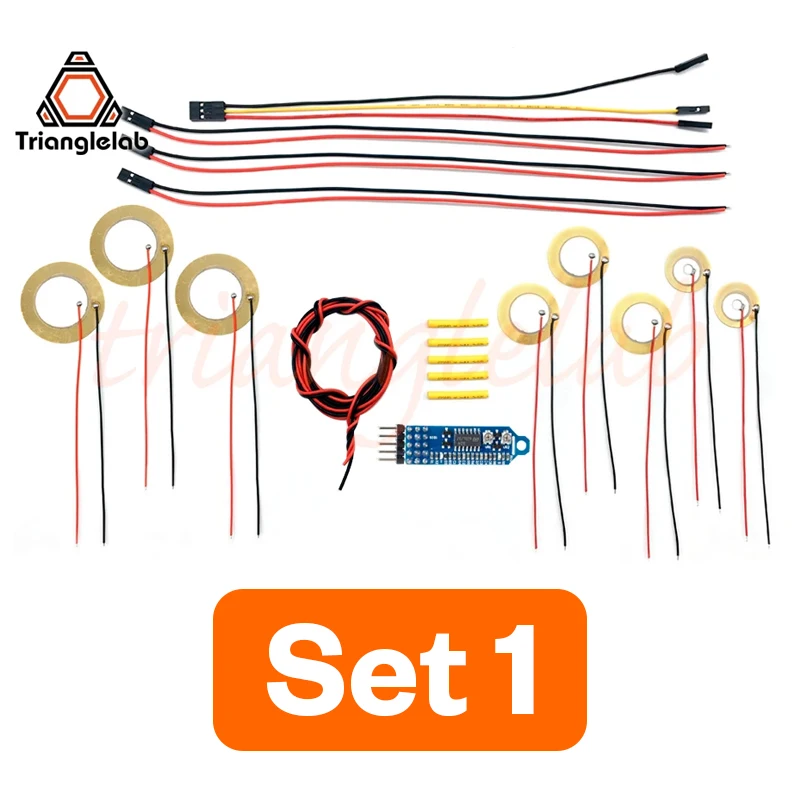

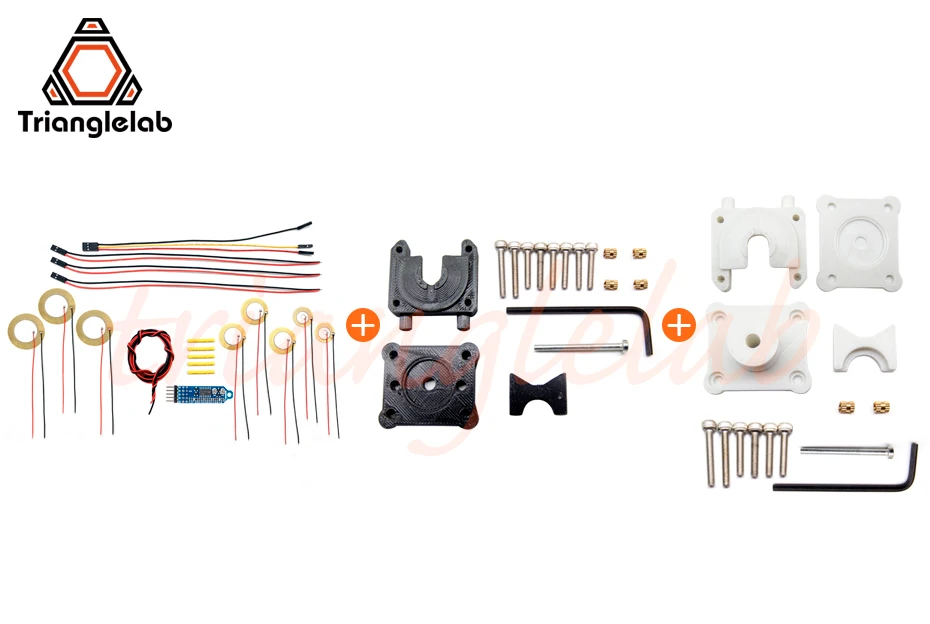

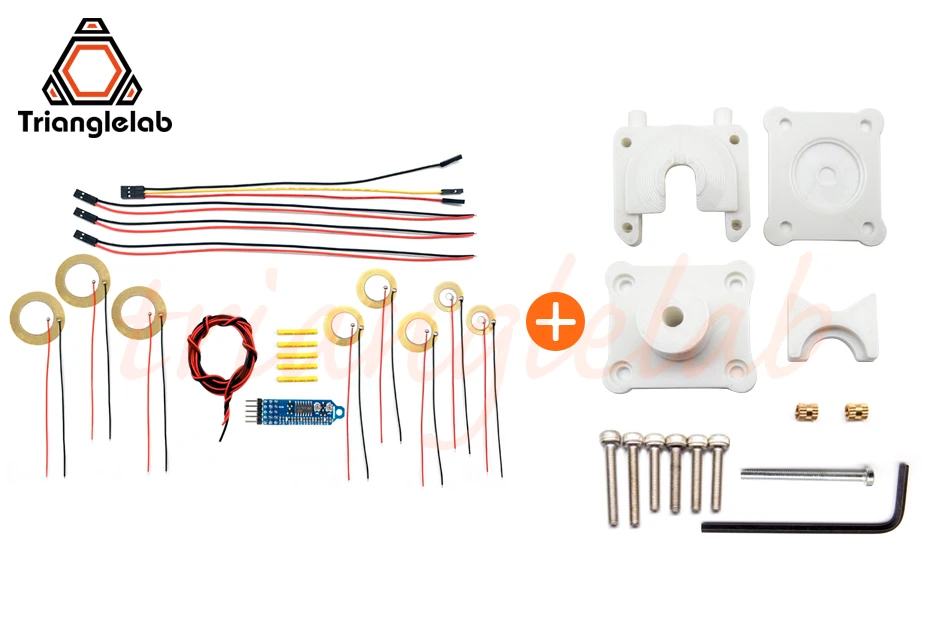

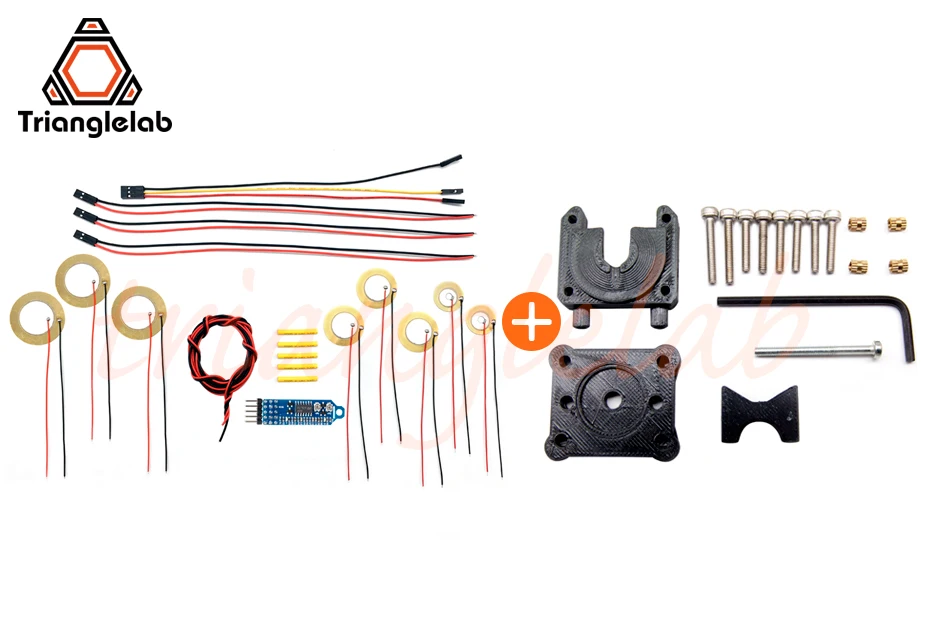

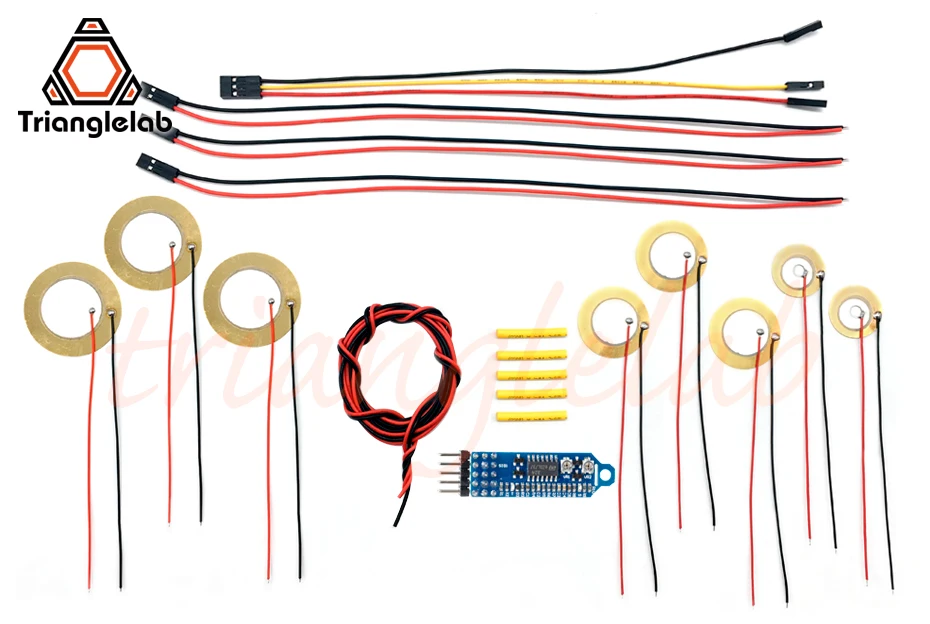

The kit is contains all the electronic components both for hotend piezo and underbed piezo setup.
Low cost and easy to use.
V2.75 Piezo Sensors manual download

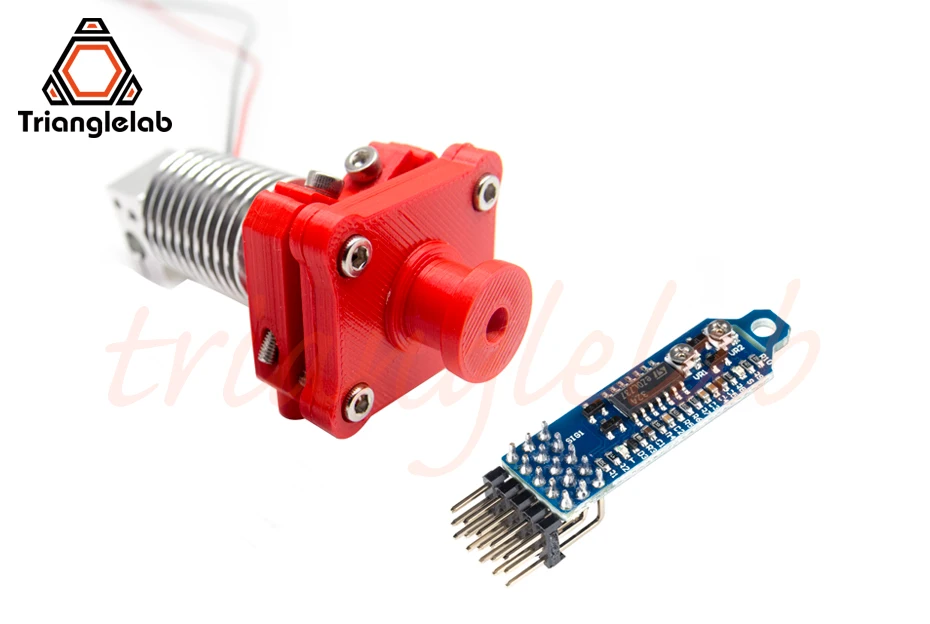

STL files for hotend mounting

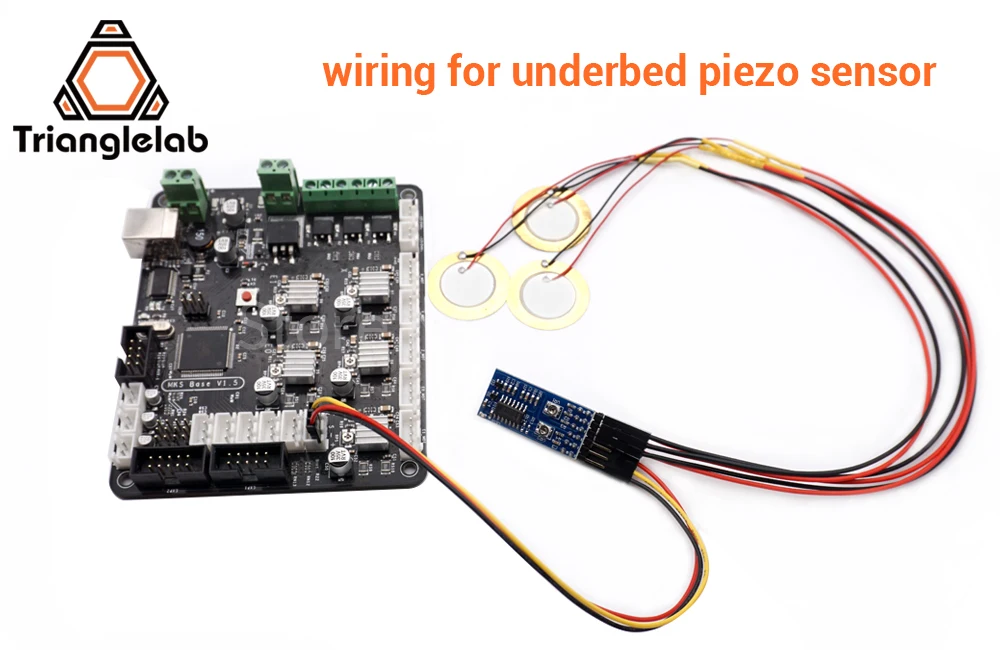

Underbed Piezo Sensor setup manual download
