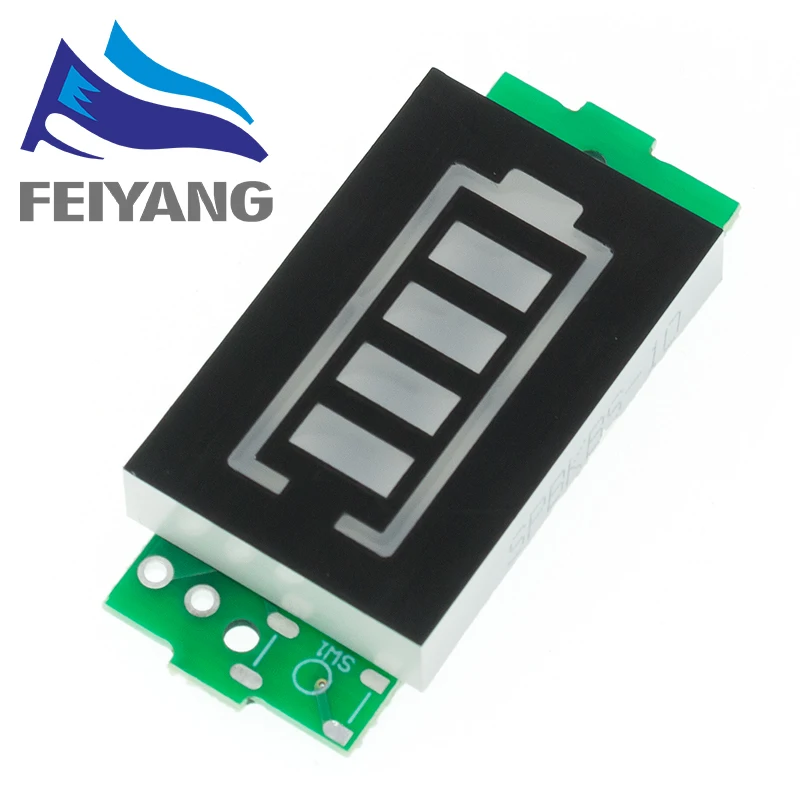

1S 2S 3S 4S Einzel 3,7 V Lithium-Batterie Kapazität Anzeige Modul 4,2 V Blau Display elektrische Fahrzeug Batterie Power Tester Li-Ion

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 18–24 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

64474
Click the collection to become our VIP lover
Features
1.Battery type electricity quantity display 2.Wide application fields:lithium battery 3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity 4.Digital Color:outline red,display block blue (when battery electricity quantity is full,it will be all on) Display Electricity Quantity Parameter: 1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity (note:N represents battery quantity) 2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity 3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity 4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity 5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery
1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive
and negative port,digital tube will display real-time battery electricity quantity
4.Digital Color:outline red,display block blue (when battery electricity quantity is full
it will be all on)
Display Electricity Quantity Parameter
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
(note:N represents battery quantity)
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery
is less than 3.3V,and you can charge the battery

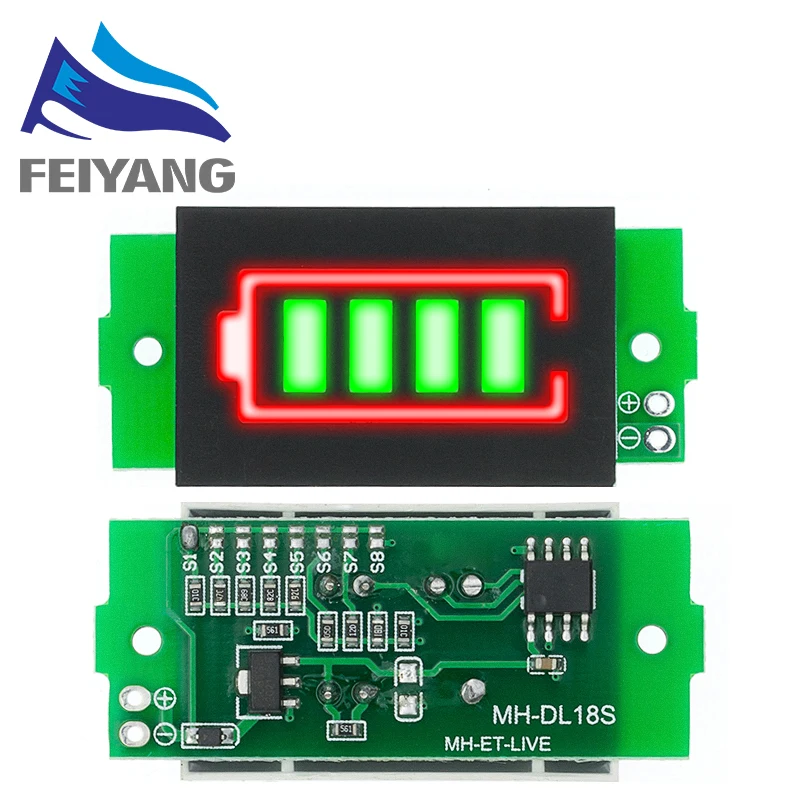

Battery-type power display, select the corresponding pad on the tin, you can detect the battery voltage corresponding to 1S-8S, very convenient.
