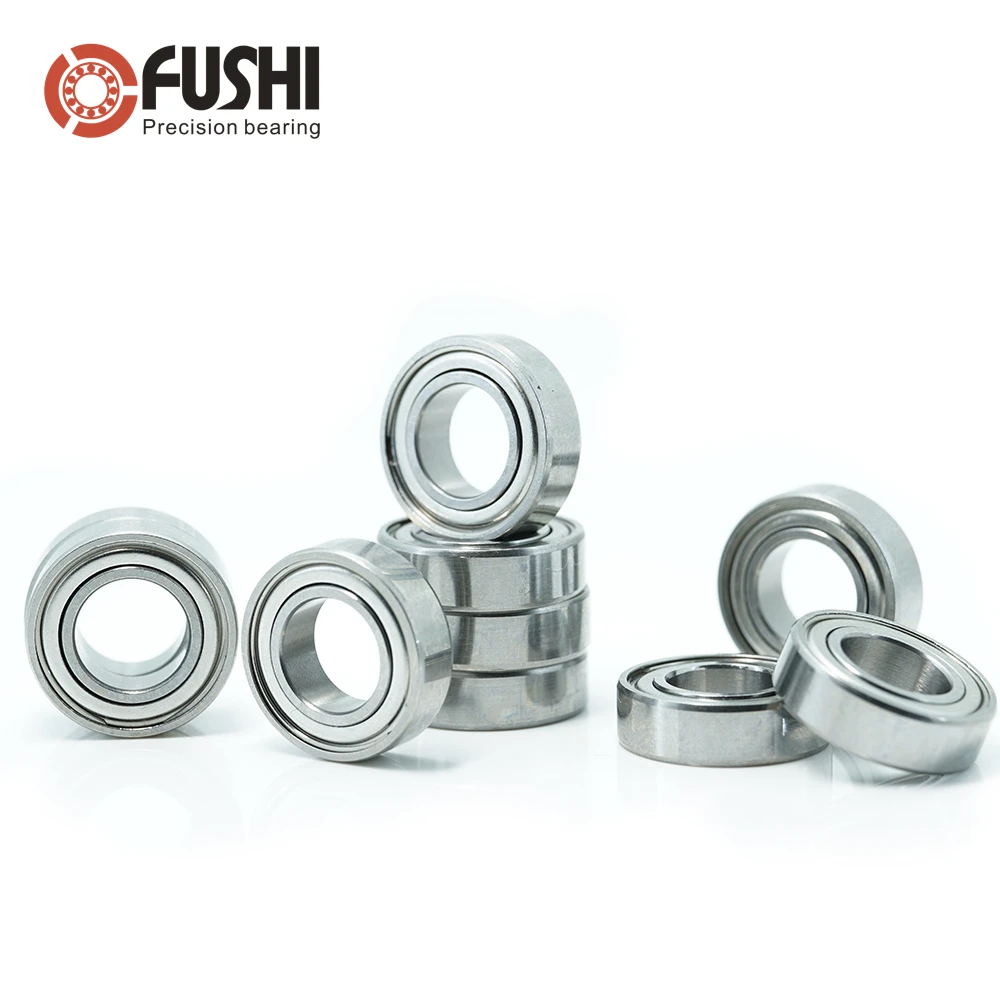

689ZZ Lager 9175mm (10 PCS ) ABEC-5 Miniatur 689 Z ZZ Hohe Präzision 689z Kugellager

20,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–14 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Miniature Bearing Features
Miniature Bearings can sustain some axial load in either direction as well as radial loads
And the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration.
Several different cage designs are available with different characteristics and the choice depends upon the individual application.
TECHNICAL SPECS
Model: 689 ZZ
Inner (d): 9 mm
Outer (D): 17 mm
Width (B): 5 mm
Weight (g): 4.00 g
Grade: ABEC-5
Material: 52100 Chrome Steel
Seal: 2 Shield
Qty: 1 Lot = 10 Pcs
This Bearing Structure
Standard Type: A ball bearing is composed of an outer and inner ring, balls, seal and a retainer.
Open type will no seal
Flanged type with flange side.
This Bearing Cover
Compared to the open type, the shielded and sealed bearing types provide better protection from contamination and grease leakage.
