PRO MICRO/TYPE-C USB 5V 16MHz Board Modul für Arduino/Leonardo ATMEGA32U4-MU Controller Pro-Micro ersetzen Pro Mini

Produktbeschreibung

64474
Click the collection to become our VIP lover
Description
The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board.
The USB transceiver inside the 32U4 allows us to add
USB connectivity on-board and do away with bulky external USB interface.
This tiny little board does all work for Arduino tricks that you're familiar with
4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as
hardware serial connections Rx and Tx. Running at 16MHz and 5V
this board will remind you a lot of your other favorite for Arduino-compatible boards but this little guy can go just about anywhere.

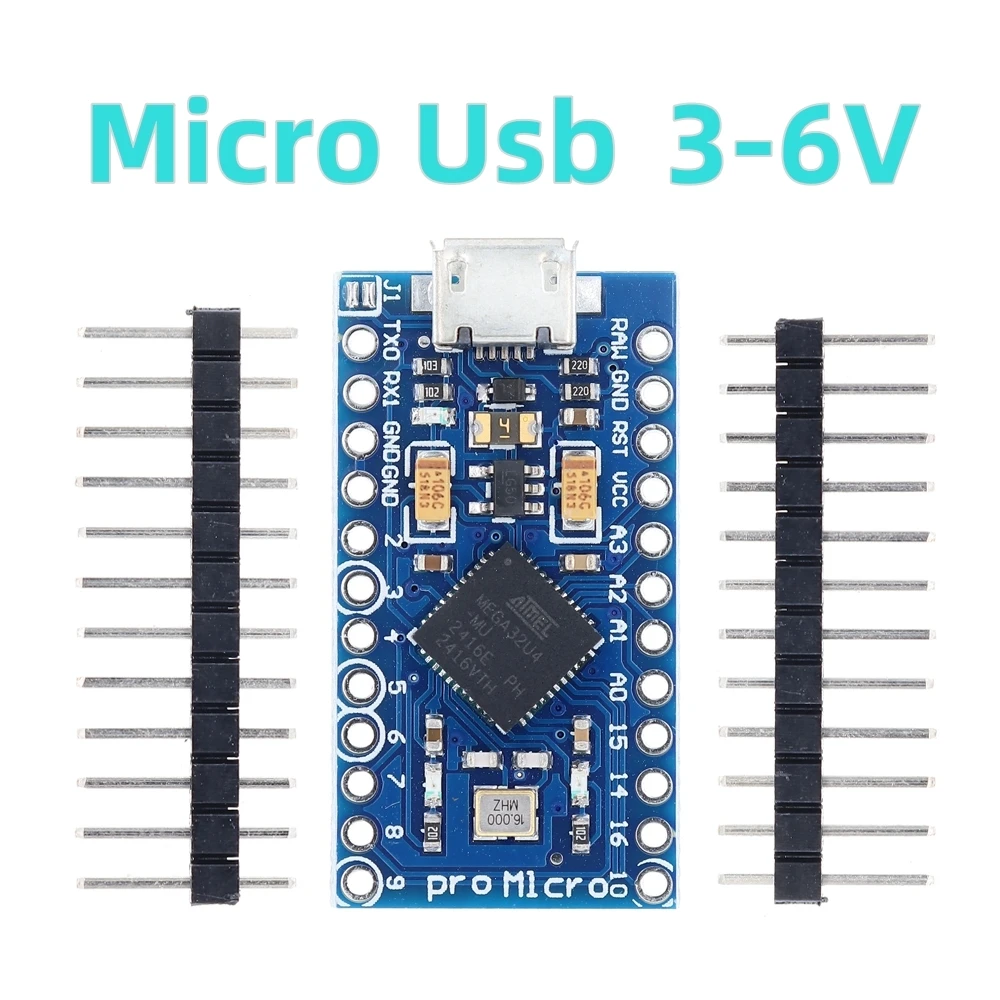

There is a voltage regulator on board so it can accept voltage up to 6V(Blue board)/
18V(Black board).
If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.
This latest revision corrects the silk error from the last version of the board so that pin 14 is correctly labeled.
We've also added a PTC fuse and diode protection to the power circuit and corrected the RX and TX LED circuit.
Features
ATMega 32U4 running at 5V/16MHz
Supported under for Arduino IDE v1.0.1
On-Board MINI USB connector for programming
4 x 10-bit ADC pins

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

5V

Verlustleistung

ATMEGA32U4

ist kundenspezifisch

Ja

Betriebstemperatur

16 MHz

Anwendung

Computer

Paket

DIP
