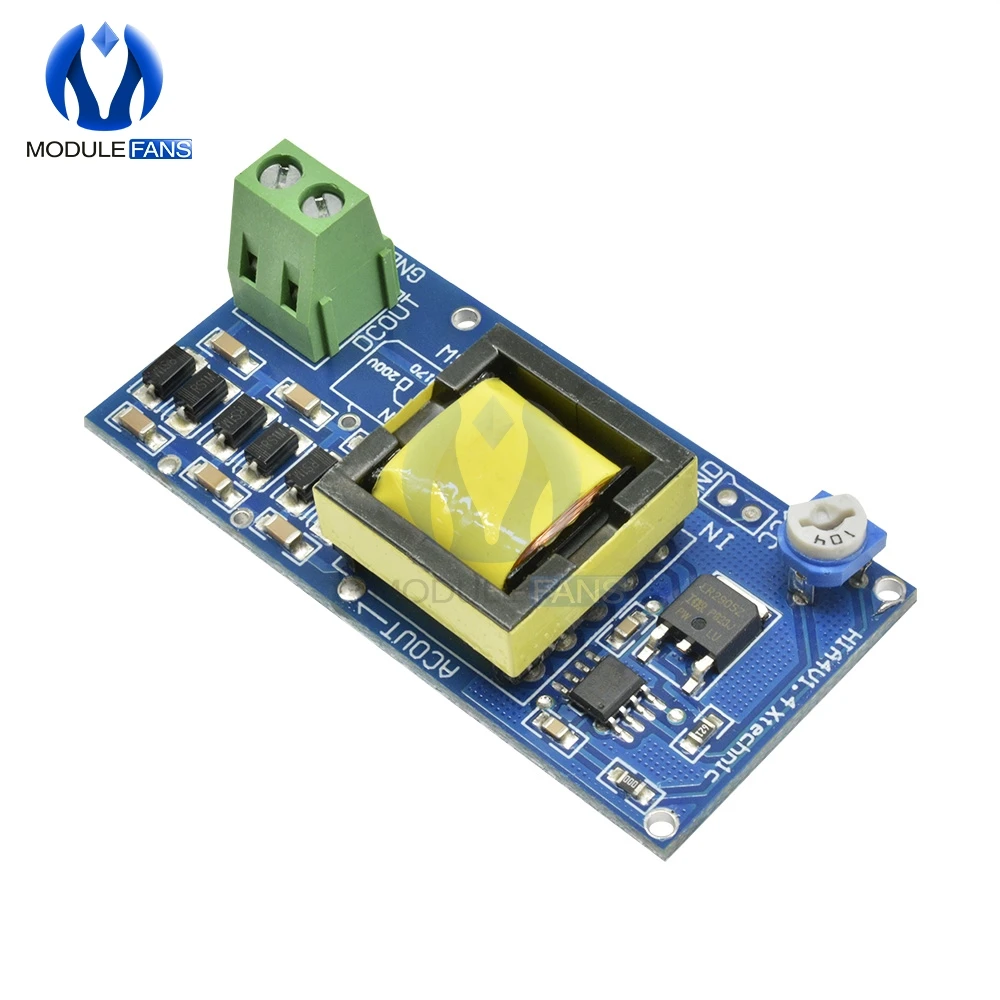

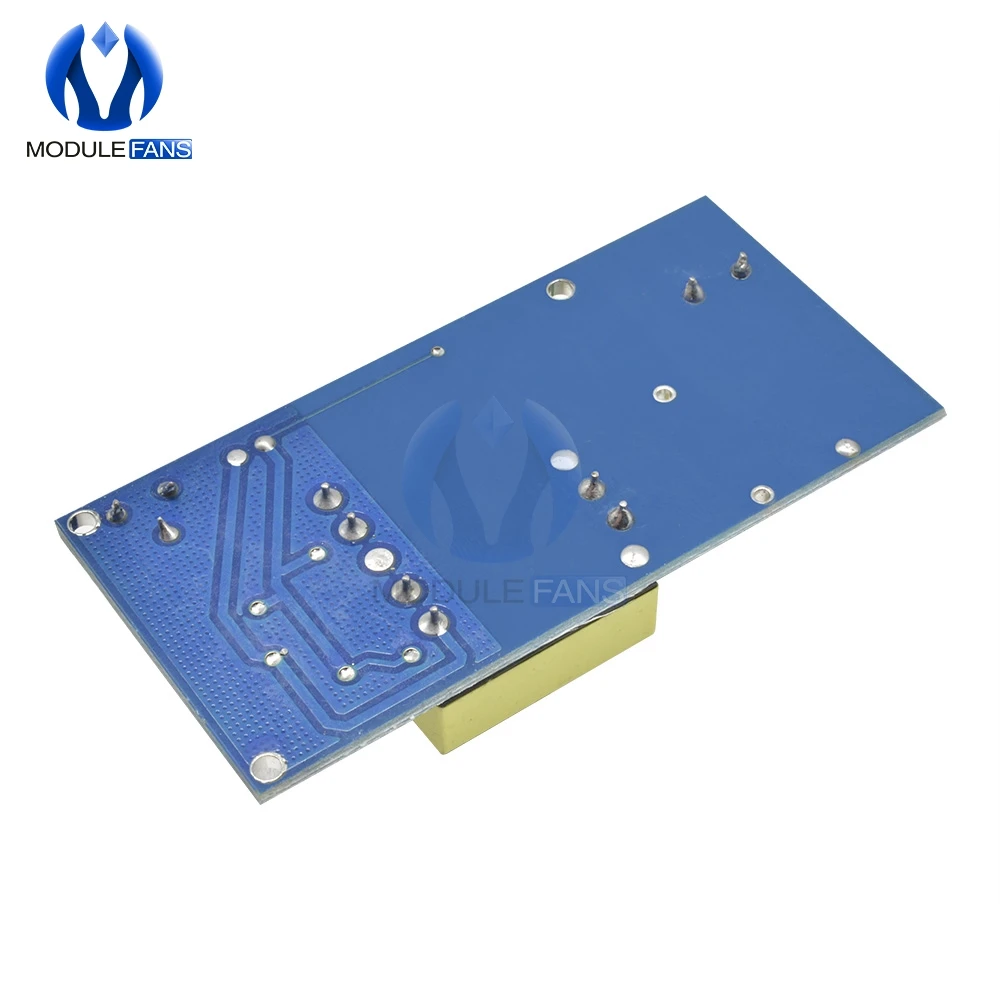

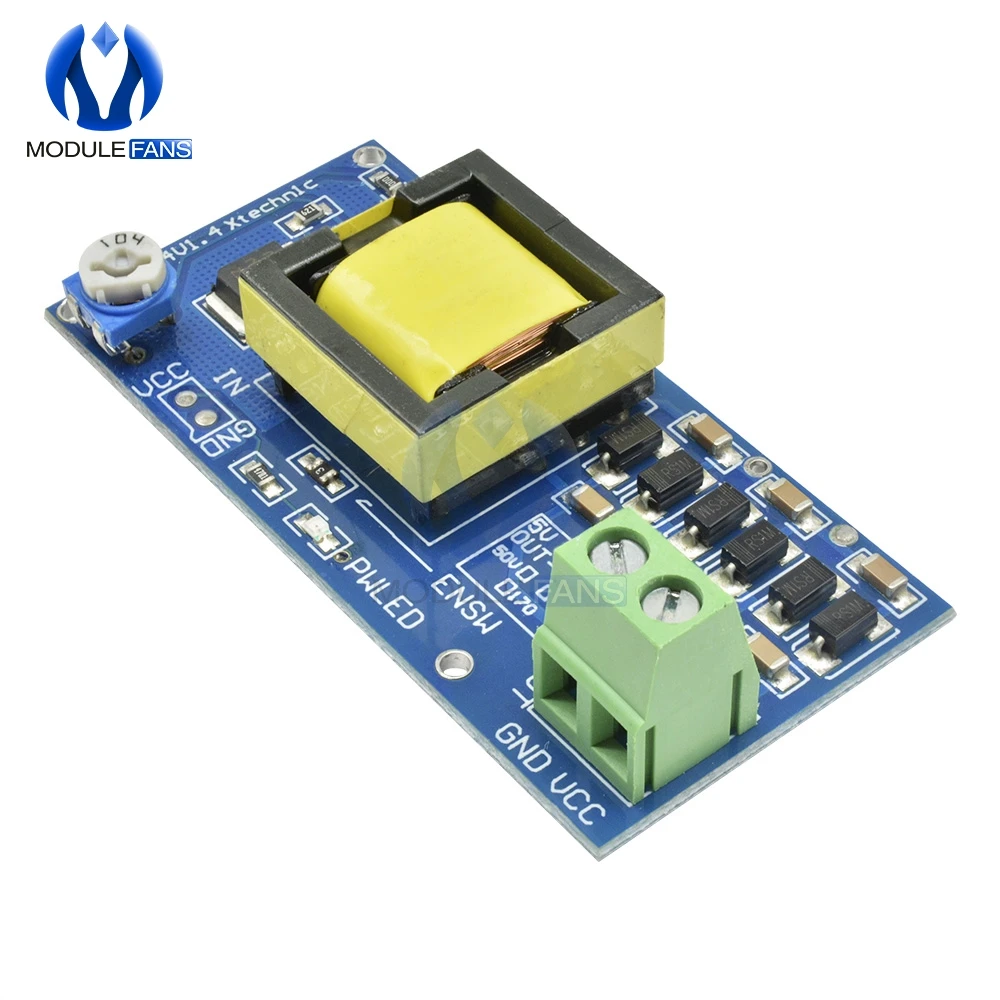

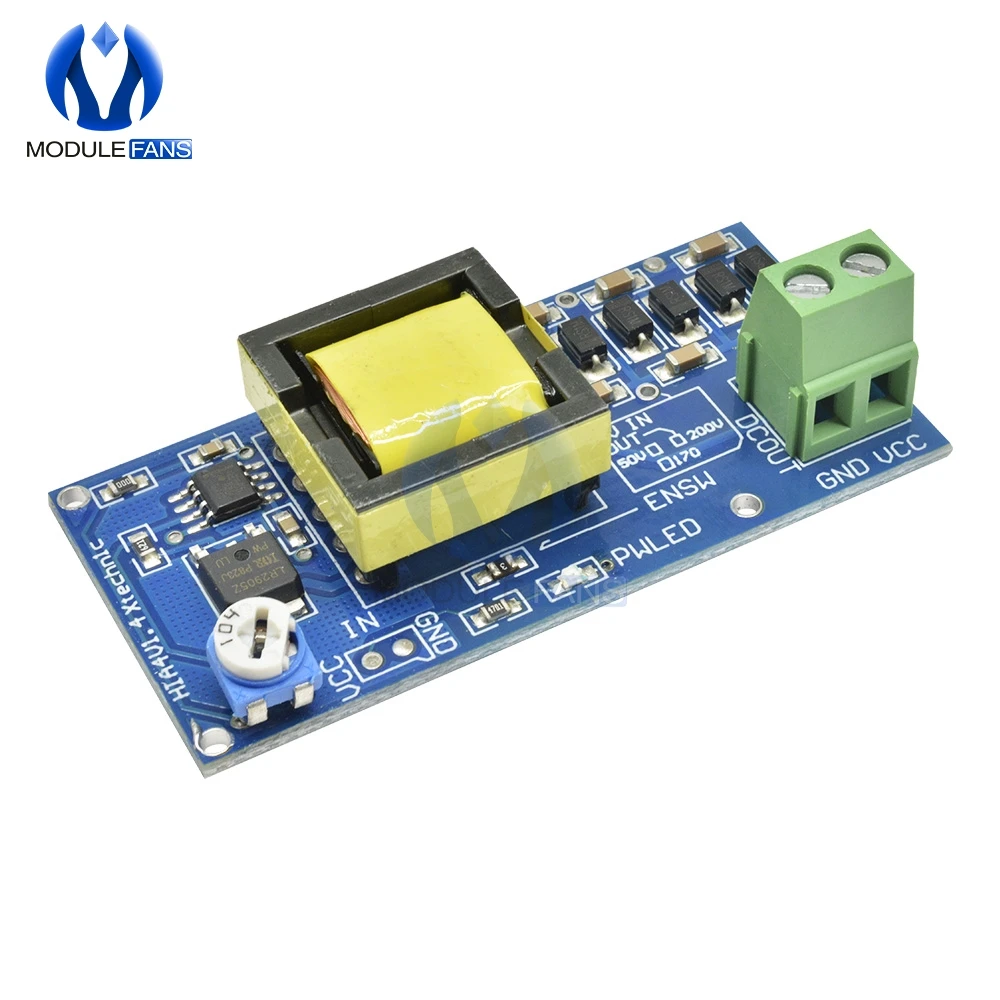

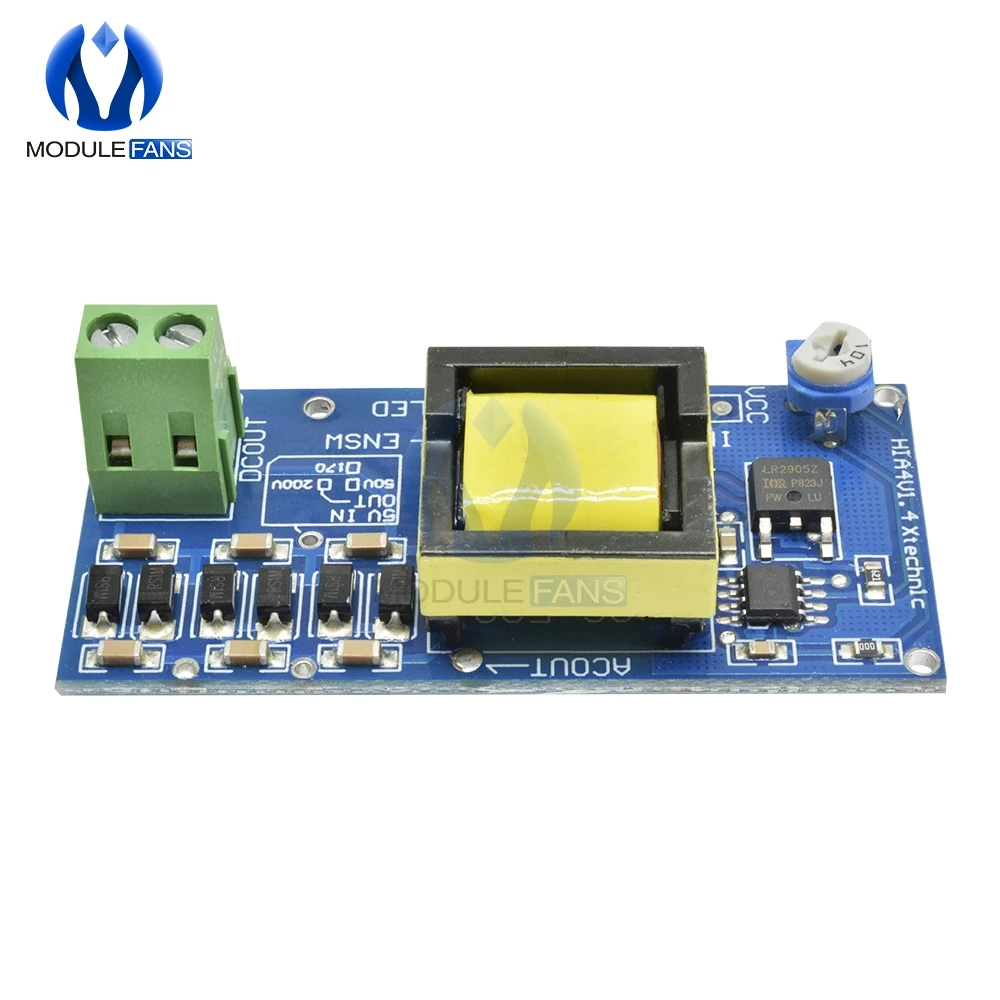

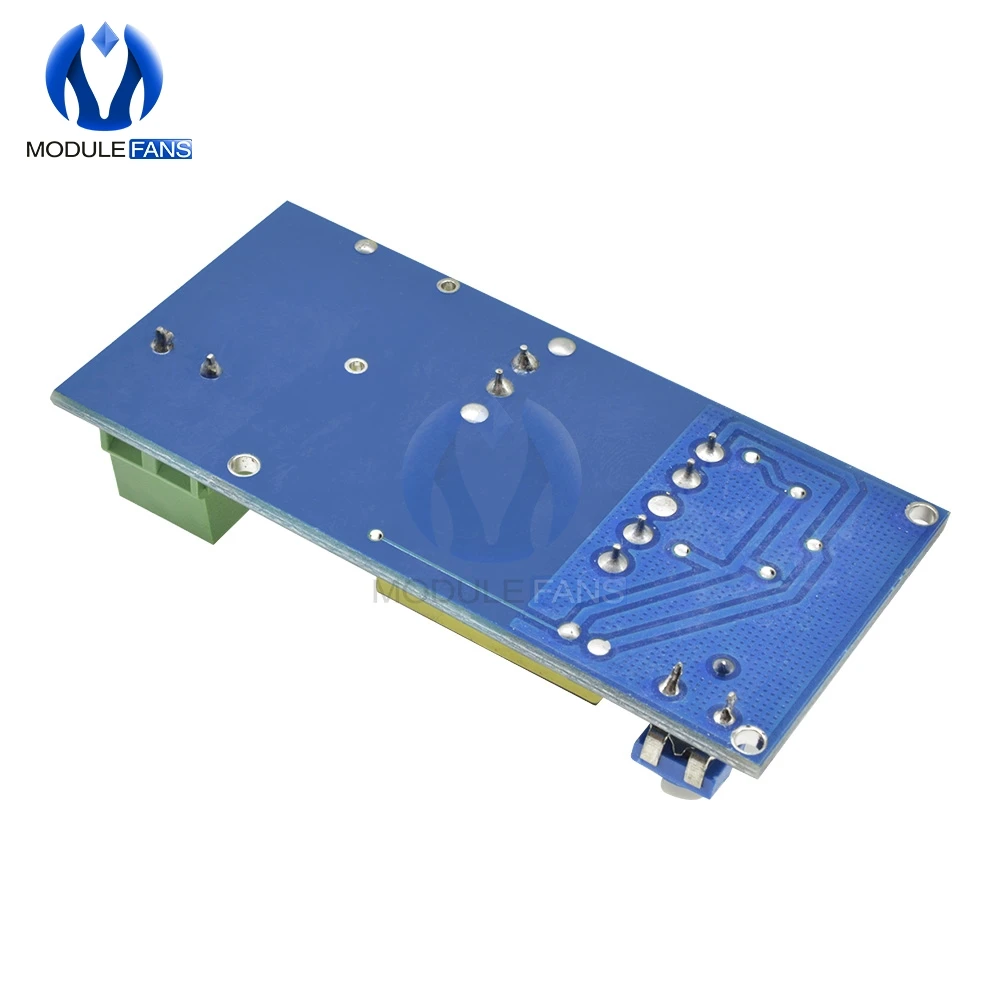

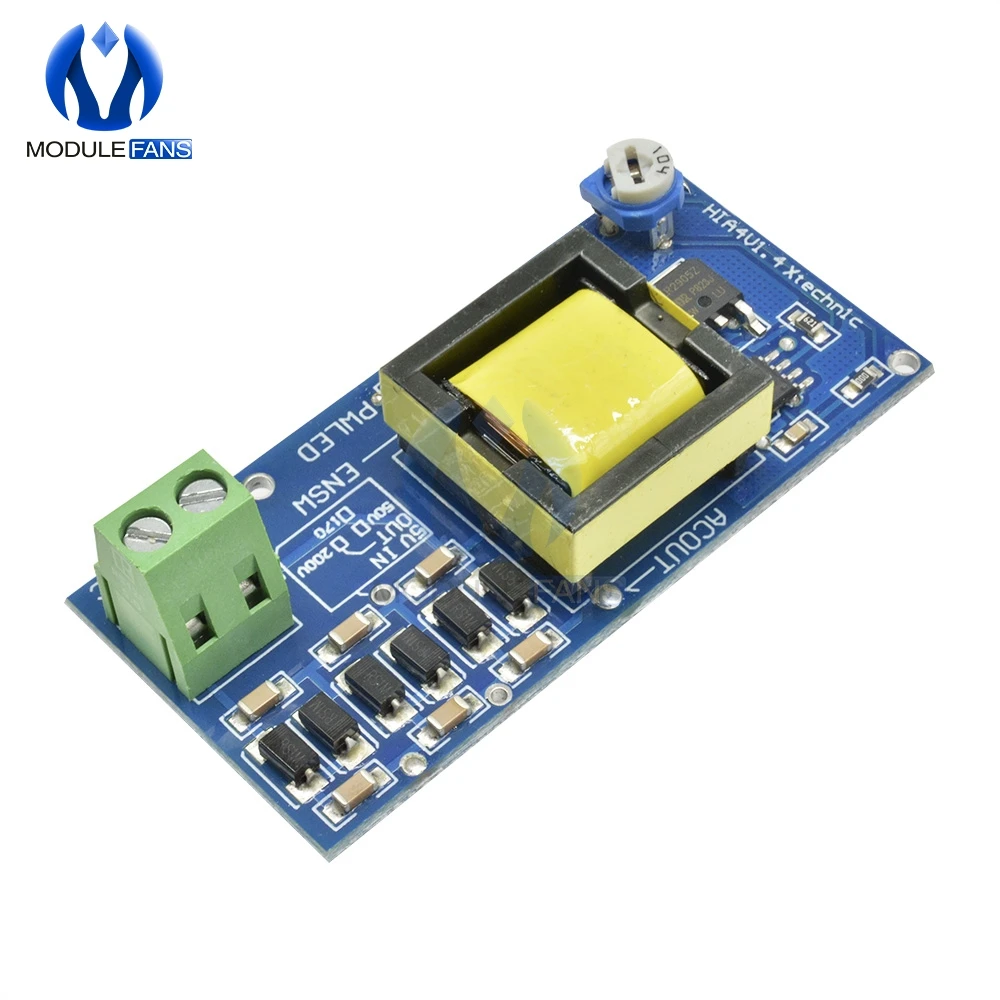

Hochspannungs-DC-DC-Aufwärtswandler, Schritt bis zum Ausgang 300 V–1200 V, 400 V, 900 V, 1000 V, einstellbare Leistung, Netzteilmodul, Platineingang 3 V–5 V

Produktbeschreibung

Features
the latest version Adding features
Support for multiple voltage DC output when 5V input
Module size: about 25 * 48mm (W * L)
Output current: 2 ~ 20mA.
( if you want to addcurrent, pls put insurance below the transformer replaced the 0-ohm resistor, maximum 50mA, but does not recommend increased.)
When the input voltage is 5V, the output voltage can be adjusted in 280 ~ 1200V.
When the input voltage is 6 ~ 12V, the output voltage can be adjusted in 400 ~ 1200V.
The capacitor can be charged, but charging speed is somewhat slow, please note.
As the module power output module, it is not possible for the sensor.
Corresponding Products Description: This module is used on security products, stability is fairly good
This module with AC output, the output about AC 75V, but can't be adjusted
Product test pattern
Please refer to the main map, New products output are generally stable, of course, if you test the output voltage is unstable, you can add a limiting current resistor for testing, usually this problem does not occur.
When adjust the output recommended add a rectifier resistance like the following picture
Warm Reminder: This product is supported by the housing (3D print shell PLA, full-toxic configuration, print a housing needs of one hour long), if you need, please you tell me, and add more 3EUR to me
Package included
1pcs New High Voltage DC-DC Boost Converter 5V-12V Step up to 300V-1200V Power Module

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

5-12V

Verlustleistung

5W

ist kundenspezifisch

Ja

Menge

1

Betriebstemperatur

40°C-70°C

Anwendung

DC-DC-Aufwärtswandler

Paket

SOP
