MLX90640BAA MLX90640BAB MLX90640 GY-MCU90640 IR 32*24 Dot Matrix Infrarot Temperatur Array Sensor Wärmebildkamera Modul AMG8833

Produktbeschreibung

AMG8833 IR 8*8 MLX90640 32*24 Camera Module Thermal Imager Array Temperature Thermometric Dot Matrix Sensor 8x8 32x24 Infrared MLX90640BAA MLX90640BAB

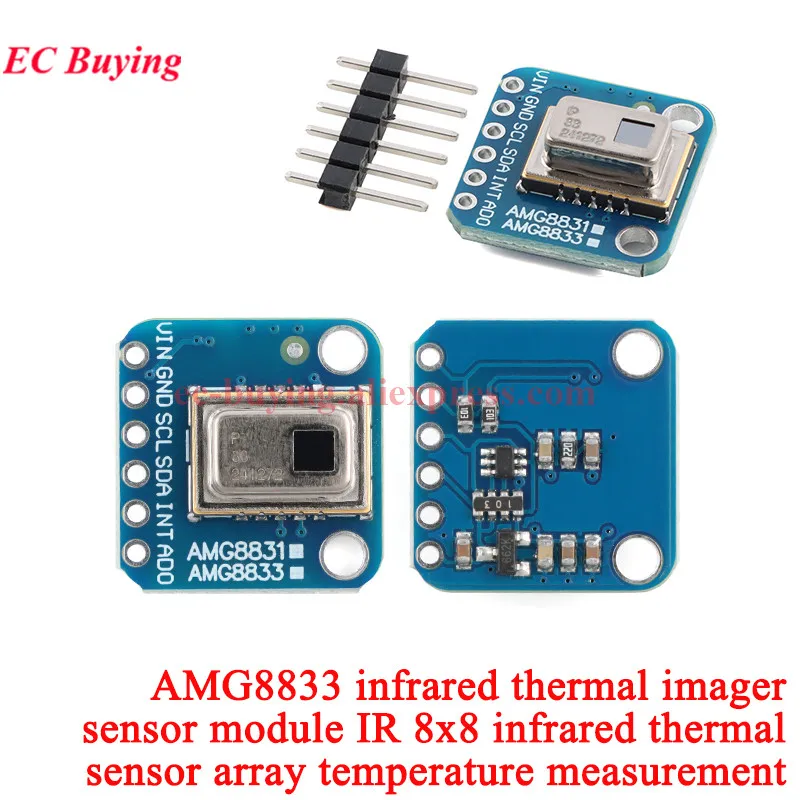

AMG8833 8*8
Product Description
1. The AMG8833 infrared camera sensor is an 8x8 infrared thermal sensor array. When connected to your microcontroller (or Raspberry Pi), it will return a set of 64 individual infrared temperature readings via I2C. It's like those fancy thermal cameras, but it's compact and simple and easy to integrate. The AMG8833 offers higher performance than the previous AMG8831. The sensor only supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below your set threshold.
2. It can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or mini camera. We use this breakthrough code on Arduino or compatible (sensor communicates via I2C) or on Python's Raspberry Pi. On the Pi, thanks to the image processing help of the SciPy python library, we can insert an 8x8 grid and get some very good results.
Product Parameters
1. Accuracy: + - 2.5°C (4.5°F).
2. Maximum frame rate: 10Hz
3. Power supply: 3~5V
4. Temperature Measurement Range: 0°C to 80°C (32°F to 176°F)
MLX90640BAA32*24
：Field of view angle 110*75 degrees (large angle, suitable for close range measurement)
Characteristics：
Provide PC software to directly display temperature imaging graphics.
The module contains a single-chip microcomputer, the serial port directly outputs 768 temperature data, and usb turns ttl directly to the computer to see the data.

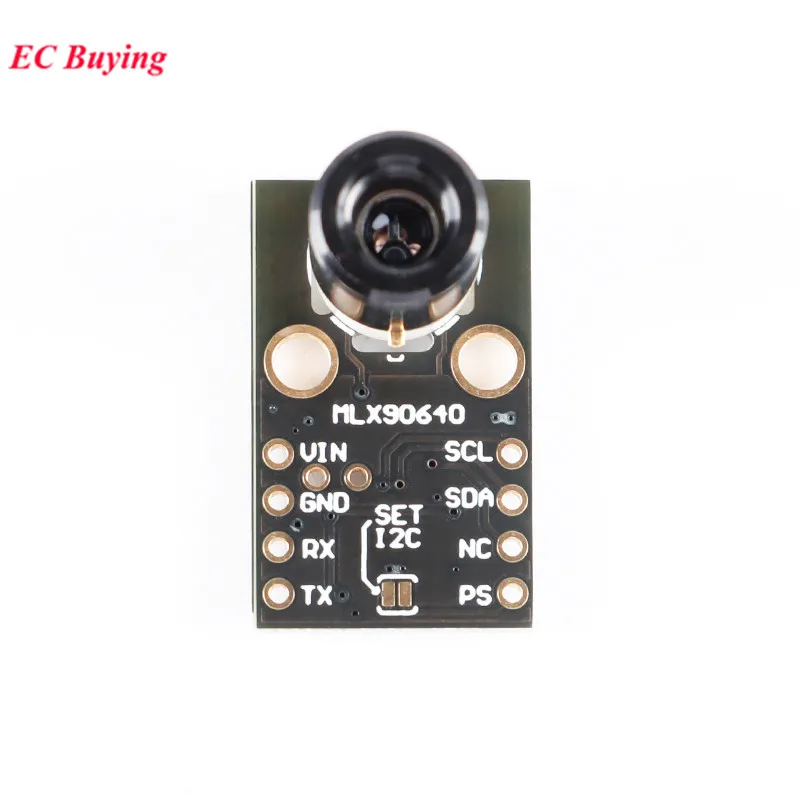

The original I2C interface of mlx90640 is retained, and the sensor chip can be directly operated by an external MCU (PS is connected to GND).

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3V-5V

Verlustleistung

niedrig

ist kundenspezifisch

Ja

Betriebstemperatur

Normal

Anwendung

Computer

Paket

Modul

Experimente mit intelligenter Elektronik

Schalter und Sensor für Arduino STM32

Wärmebildkamera-Array

8x8 32x24

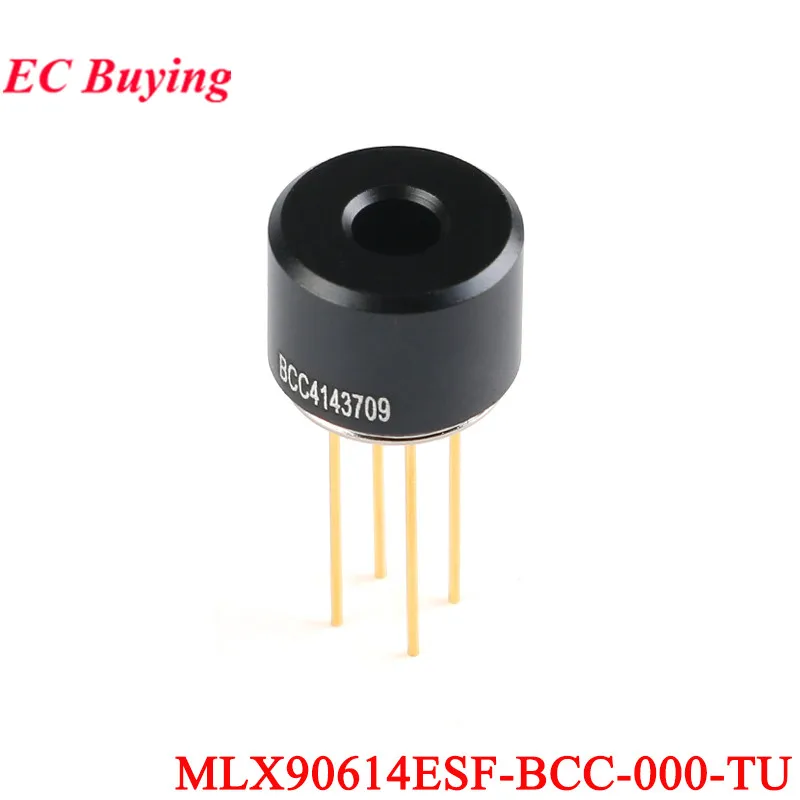

MLX90614ESF-BCC-000-TU

MLX90640ESF-BAB-000-TU MLX90640ESF-BAA-000-TU

AMG8833 IR 8*8 MLX90640 32*24 Wärmebildkamera

Array-Temperatursensor MLX90640BAB MLX90640BAA Infrarotkamera MLX90640ESF-BAB

AMG8833 IR 8*8 MLX90640 32*24 Wärmebildkamera-Array

Temperatursensor-Modul MLX90640BAB MLX90640BAA 8x8 Infrarot-Kamera-Sensor

MLX90640ESF-BAA MLX90640ESF-BAB Berührungsloses Infrarot

Temperaturmessungs-Punktmatrix-Sensormodul Infrarot-Bildgebung/IR-Wärmebildkamera

MLX90640ESF-BAA

Sichtfeldwinkel 110*75 Grad (großer Winkel, geeignet für Nahbereichsmessungen)

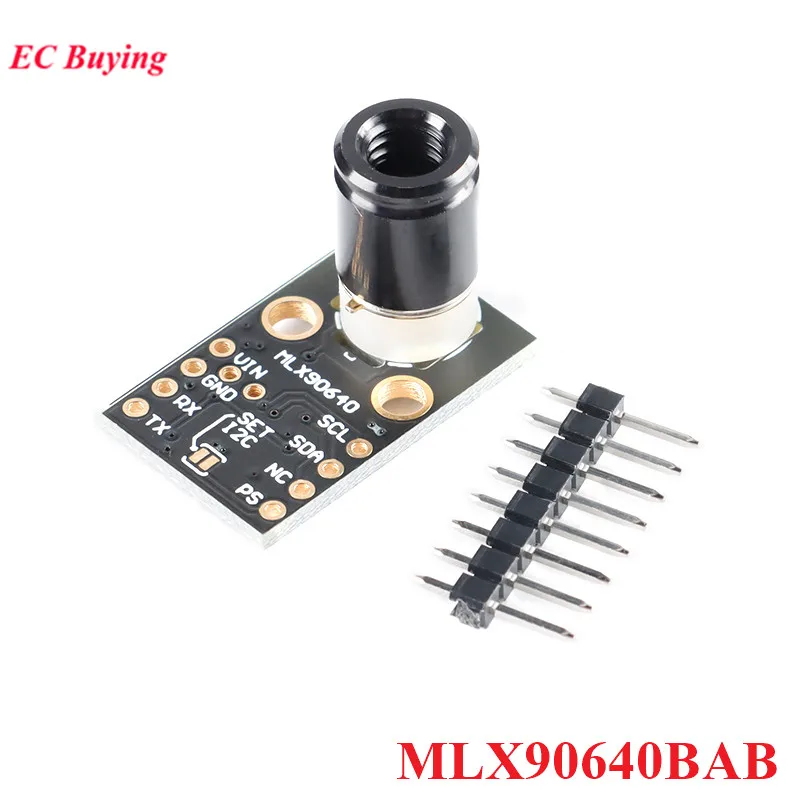

MLX90640ESF-BAB

Sichtfeldwinkel 55*35 Grad (kleiner Winkel, geeignet für Langstreckenmessungen)

MLX90640BAA MLX90640BAB IR 32*24 Infrarot

Temperaturmessung Punktmatrix-Sensor Wärmebildmodul GY-MCU90640 MLX90640

AMG8833 IR 8*8 MLX90640 32*24 Wärmebildkamera-Array

Temperatursensor MLX90640BAB MLX90640BAA Infrarotkamera MLX90640ESF-BAB
