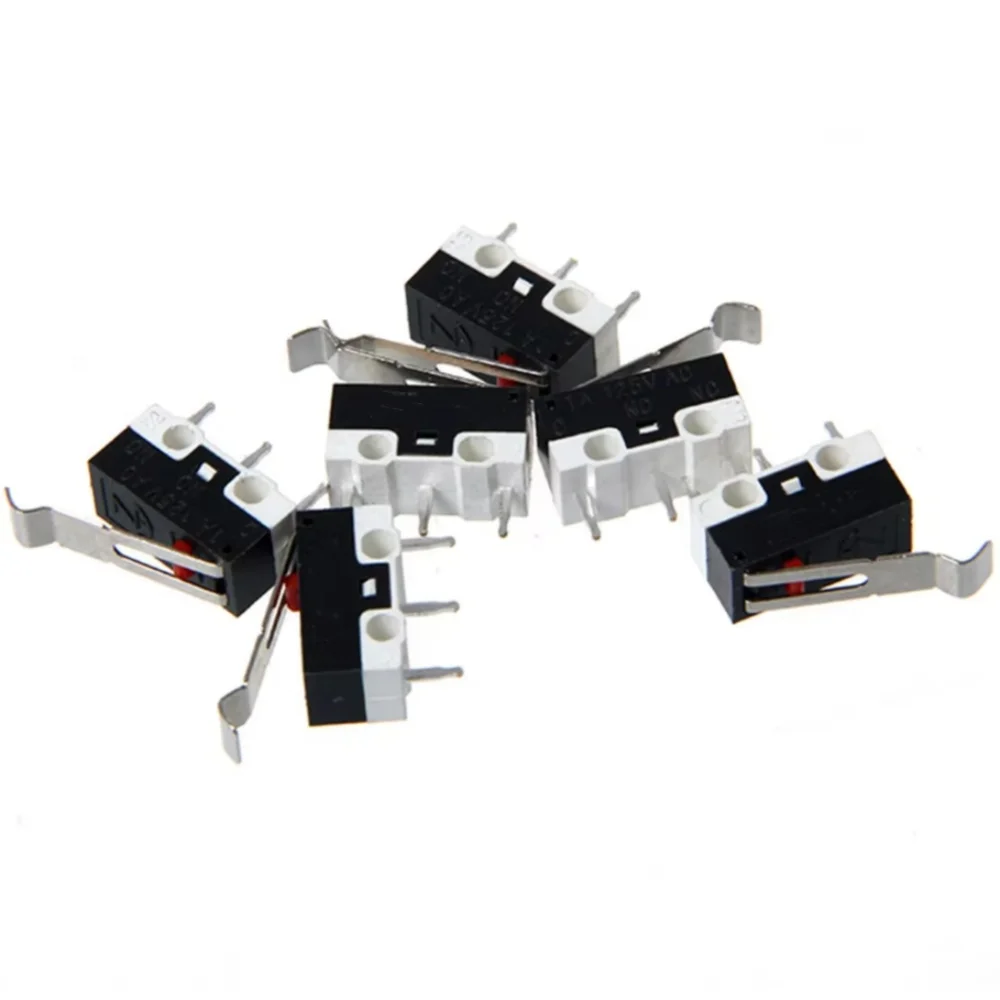

10 Stück 125 V 1 A SPDT Subminiatur-Mikrohebelschalter

Produktbeschreibung

Rated Load: AC 1A 125V
Mechanical Life: 100000 Time
Lever Size (Approx.): 15 x 4mm / 5/8" x 1/8" (L * W )
Size (Approx.): 13 x 5 x 10mm / 1/2" x 7/32" x 3/8" (L * W *T ) AC 125V 1A SPDT Subminiature Micro Lever Switch 5 Pcs
Note: US user need to buy another voltage transformer, here is not included.
Micro Switch widely used in the fields of electronic product, computer mouse, instrument and meter, household appliance and more
3 Pin type with lever actuator and red push button
Material: Plastic, Metal
Contact Resistance: /=100M
Operating Force: 60-100
Withstand Voltage: AC 250V(50Hz)/Min
Temperature Range: -40-70C
Weight: 3g
Package Content: 10 x Micro Switch

Produkteigenschaften

Markenname

ELEABC

Material

Kunststoff

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Merkmale

Micro Switch

Artikeltyp

SCHALTER

Garantie

2 years

Schaltertyp

DRUCKKNOPFSCHALTER

Zertifizierung

CCC

Modellnummer

Micro Switch

Choice

yes

semi_Choice

yes
