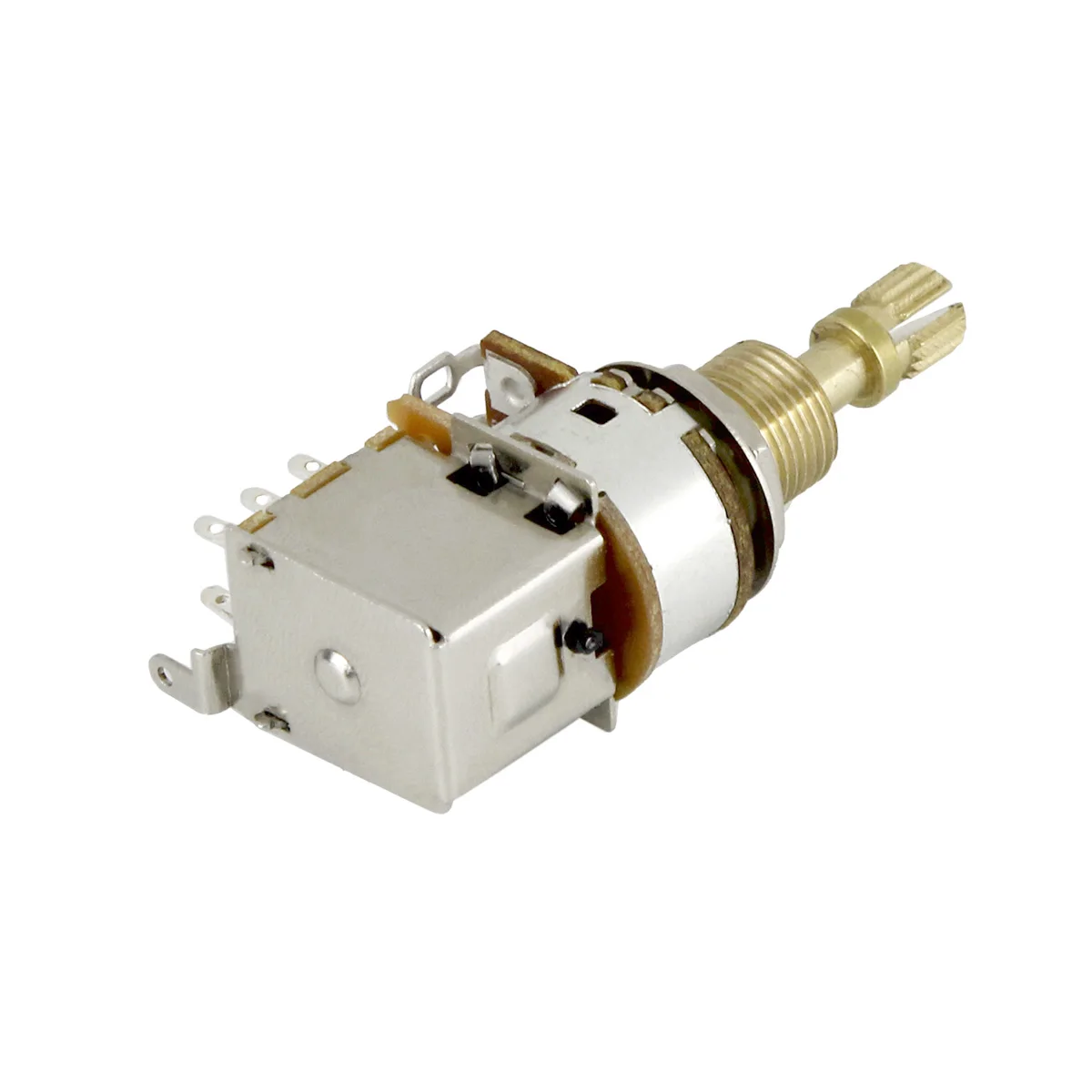

FLEOR 1 Stück Gitarren-Potentiometer Push-Push-Potentiometer A250K / B250K / A500K / B500K Kupfer Langer geteilter Schaft (kein Ziehen mehr möglich)

Produktbeschreibung

FLEOR 1PCS Guitar Potentiometer Push Push Potentiometer A250K / B250K / A500K / B500K Copper Long Split Shaft (No Pull Anymore)
Features
🎵100% Brand new and high quality.

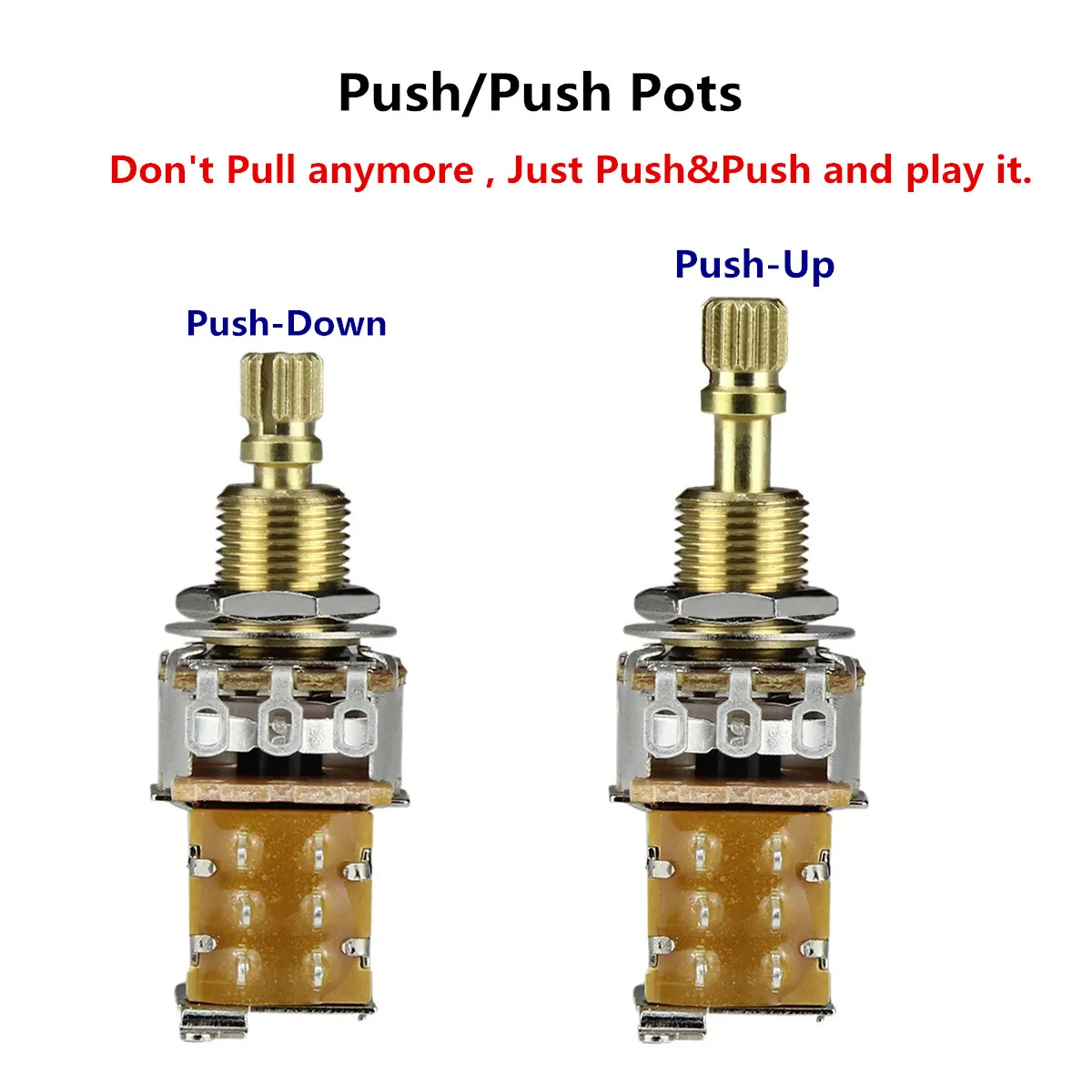

🎵Push & Push potentiometer,one downward touch does it all,no clutching and fumbling forever,there is no need to pull anymore, just Push & Push and play it, so much easier to use than a push/pull pot.
🎵Push-push pot & DPDT switch, with solder terminals.
🎵Perfect for electric guitar/bass building,for pickguard/control plate mounting.
🎵Great for custom wiring such as coil tapping, phase, and series/parallel.
🎵Long split knurled diameter shaft 1/4" (6mm), thread shaft diameter 3/8" (9.4mm), the whole shaft made of copper, durable.

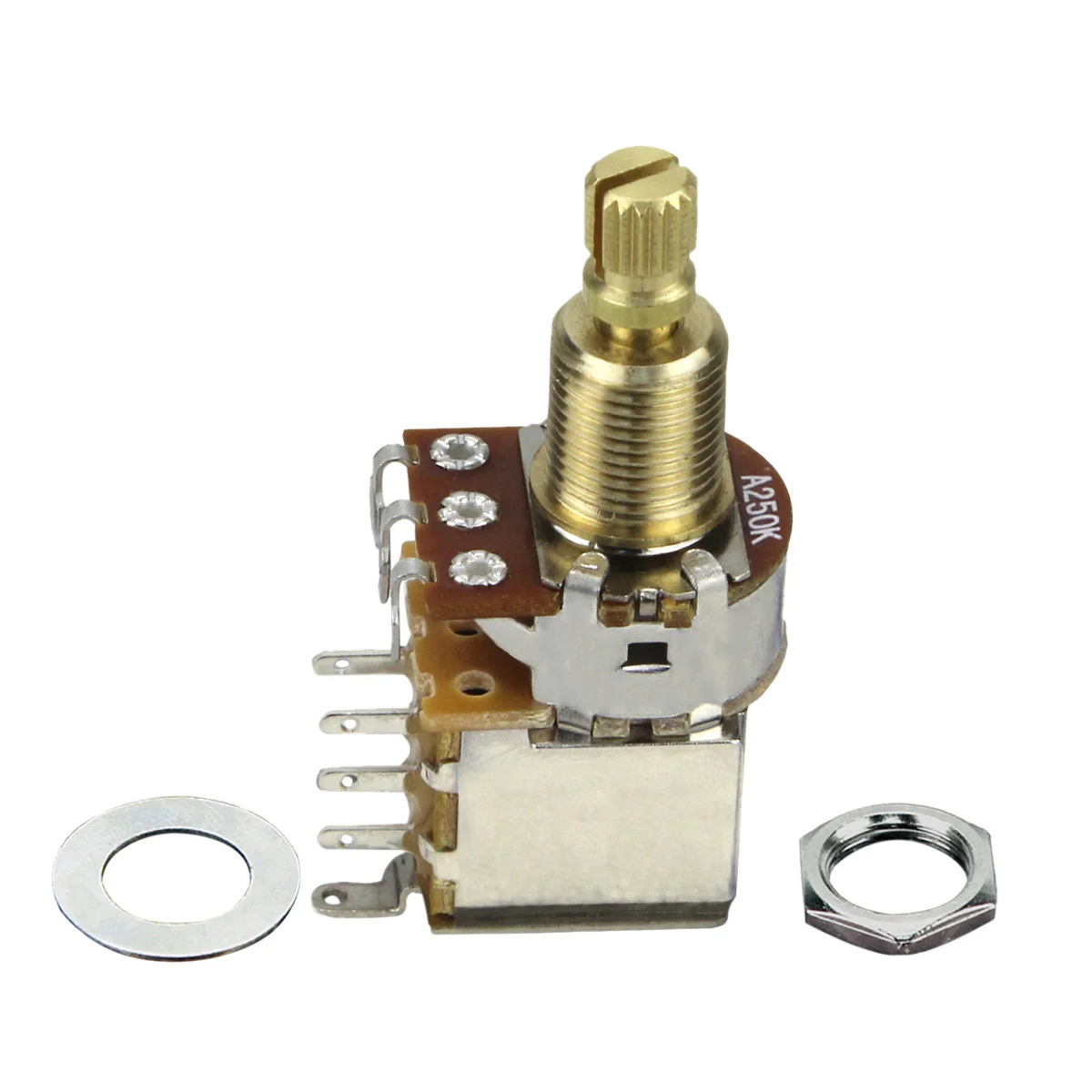

🎵Includes washer & mounting nut.
Specification

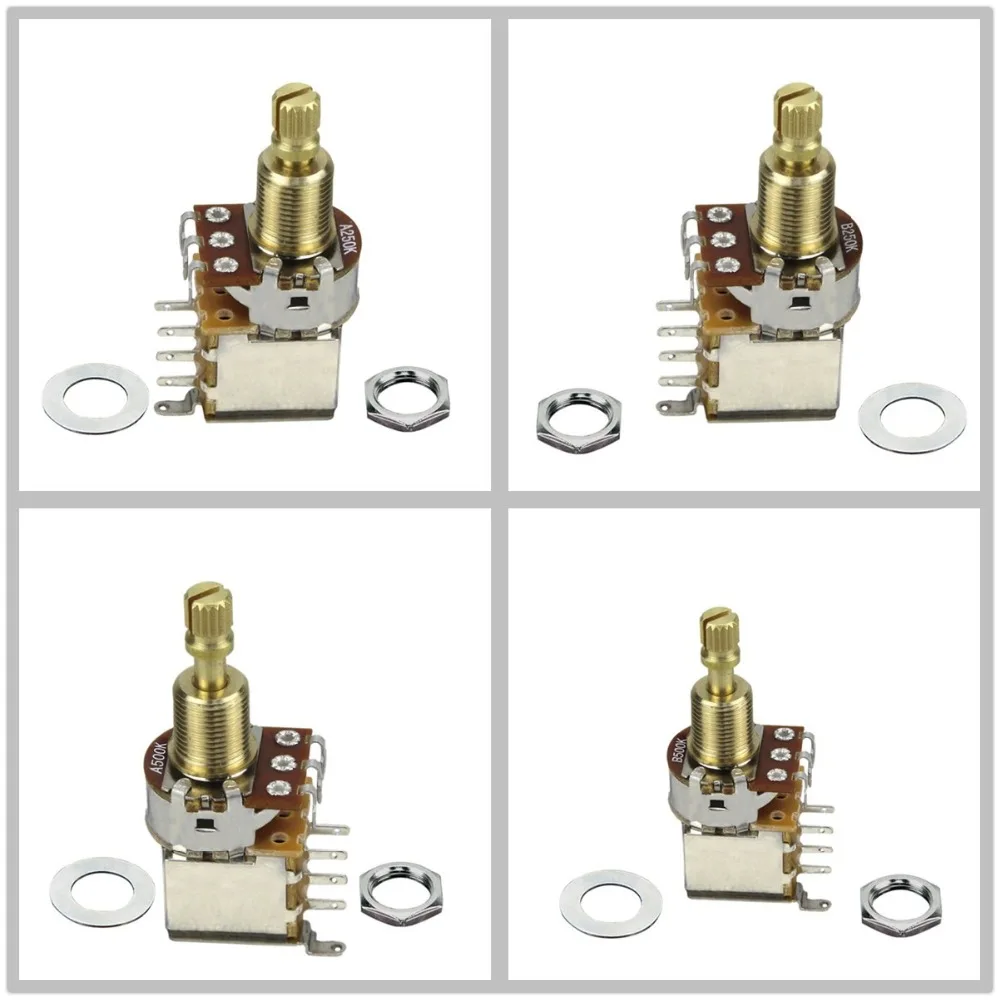

🎵Full Resistance: 250K or 500K ohms for choose.
🎵A Type(Audio Taper) or B Type (Linear Taper ) for choose
🎵Switch type: D.P.D.T.
🎵Shaft: knurl.

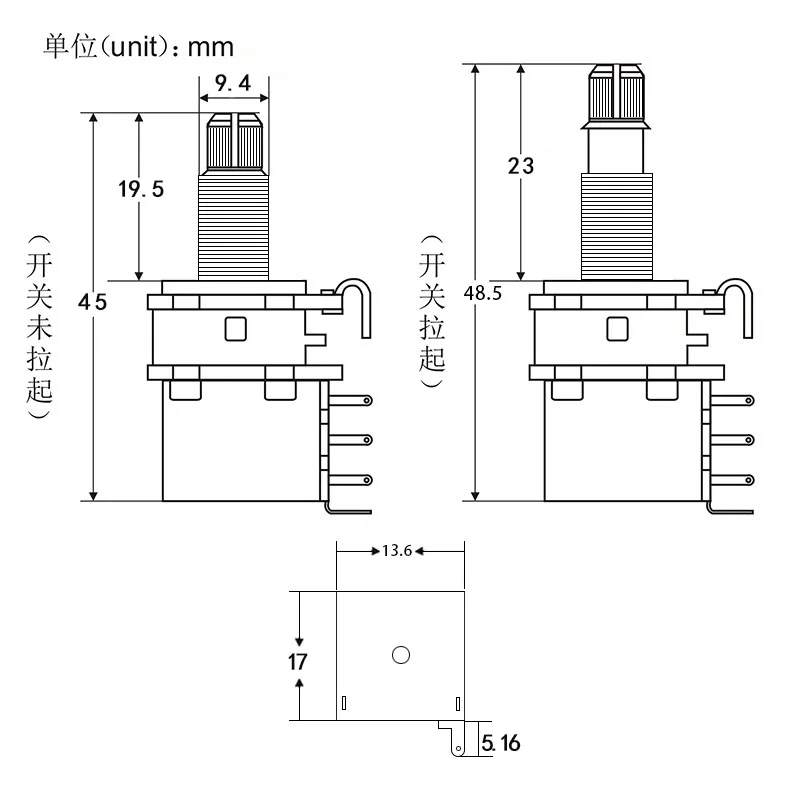

🎵Split Knurled shaft diameter:approx. 1/4" (6mm).
🎵Thread shaft diameter:approx. 3/8" (9.4mm).
🎵Shaft Length: approx.23mm.
🎵Whole Length: approx. 48.5mm.
🎵Base Diameter: approx.17mm.
Tips

Produktdetails in Bildern

Produkteigenschaften

Markenname

FLEOR

Sind Batterien im Lieferumfang enthalten?

no

Material

Metall

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Typ

Potentiometer

Modellnummer

M00720-1/2/3/4

Type 1

Push/Push Pot

Shaft

Long Split Shaft

Choice

yes

semi_Choice

yes
