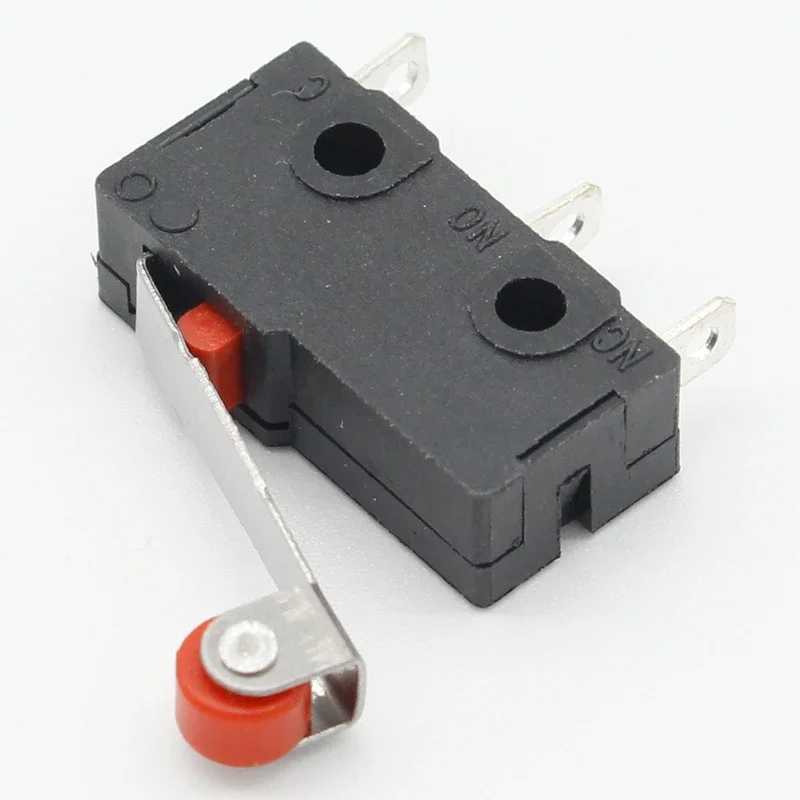

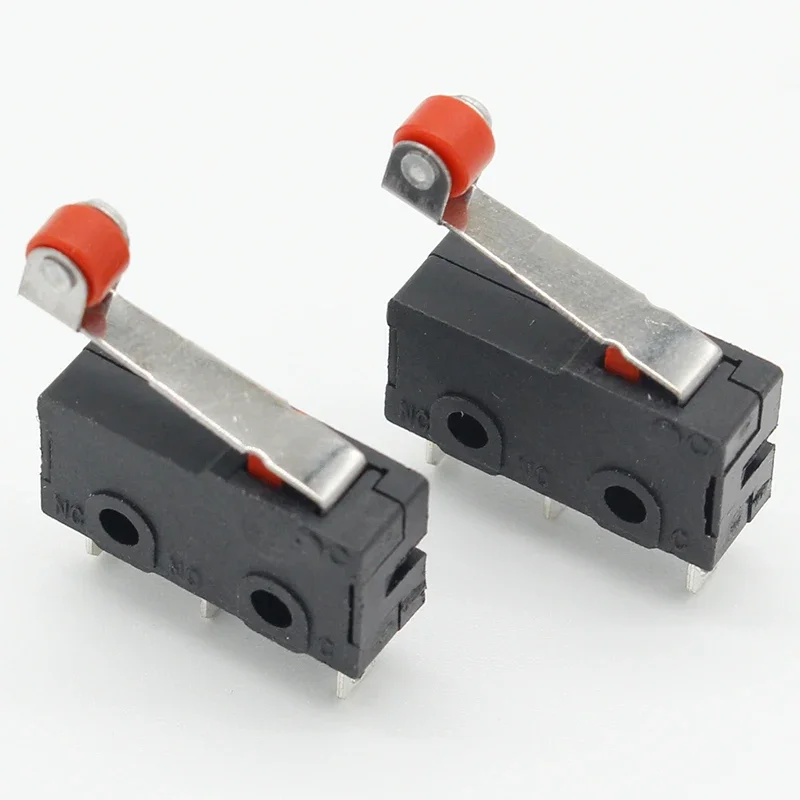

10 Stück Mini Micro Endschalter Rollenhebelarm SPDT Snap Action LOT

Produktbeschreibung

Details
Color: Black

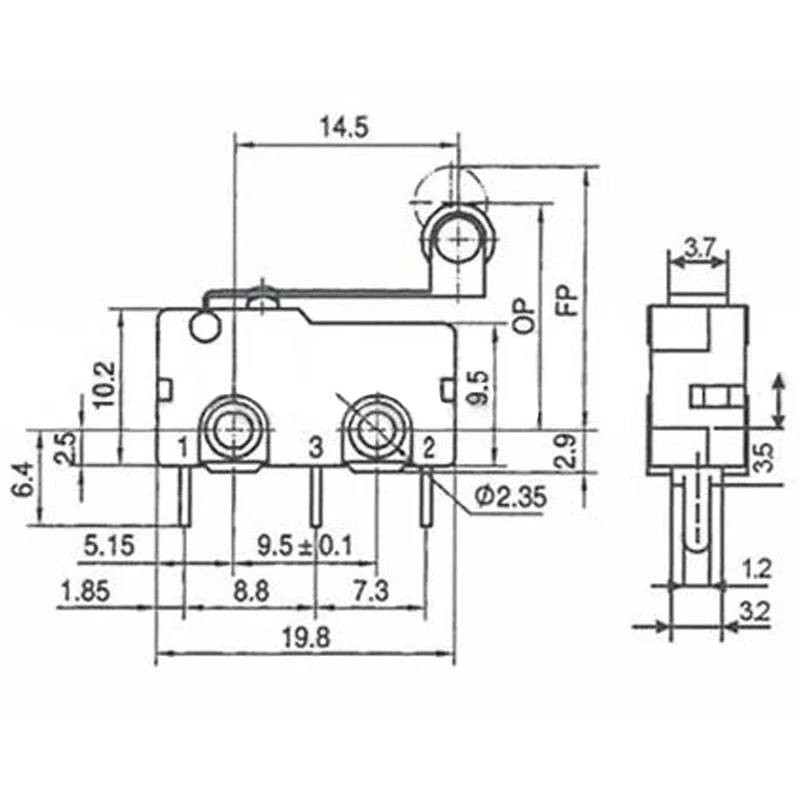

Diamension: 20 x 10 x 6mm (L X W X H)
Rated voltage: AC 125V-250V
Current rating: 5A
PCB Terminals Circuit Board
With Roller Lever Limit
Working principle
By external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) will be used to force action on a reed, producing reed instantaneous action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.
When the force is removed on the drive components, action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.
Feature: contact spacing is small,short stroke action,according to the power of small,fast-break
Application
Apply in A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, ect.
Package Included
10PCS * KW12-3 Micro Roller Lever Arm Normally Open Close Limit Switch

Produkteigenschaften

Markenname

ELEABC

Material

Kunststoff

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Merkmale

Limit Switch

Artikeltyp

SCHALTER

Garantie

2 years

Schaltertyp

DRUCKKNOPFSCHALTER

Zertifizierung

CCC

Modellnummer

Limit Switch

Choice

yes

semi_Choice

yes
