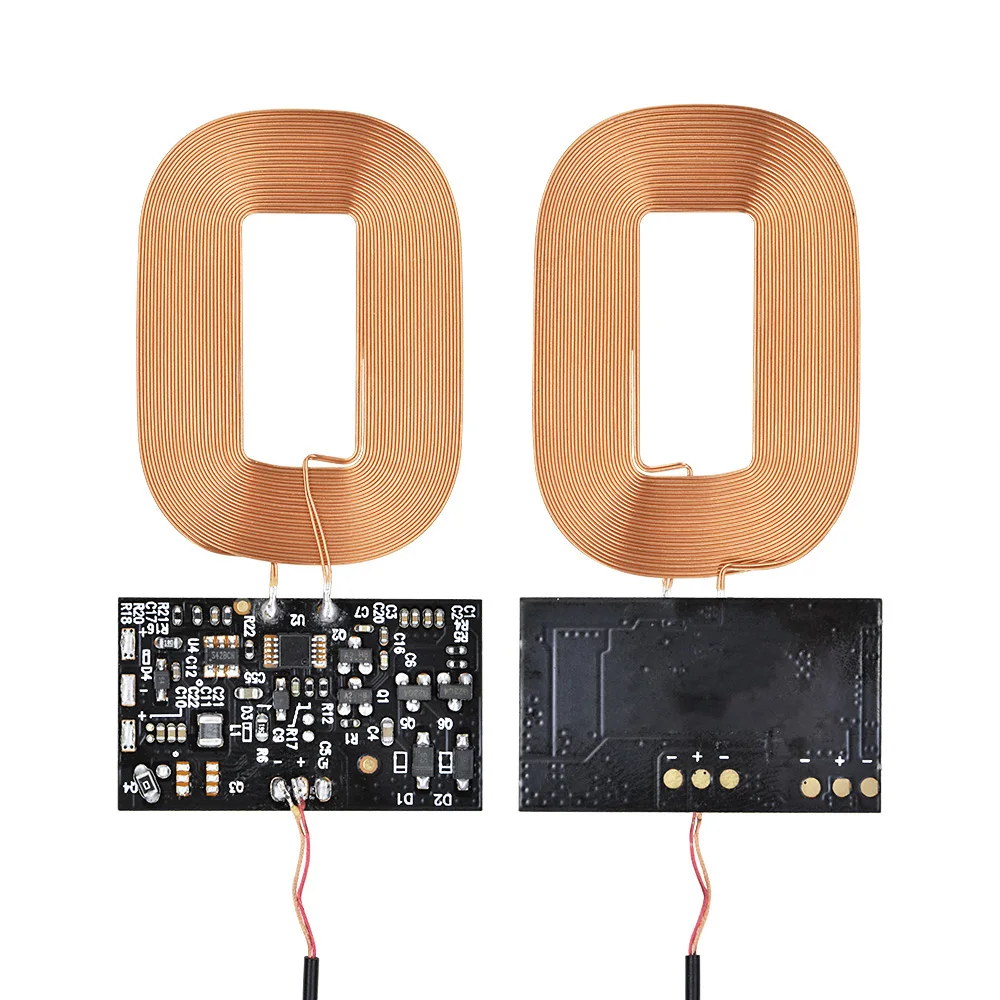

DIY für Qi Standard Drahtlose Lade Spule Empfänger Modul Platine DIY Spule Für Telefon Für Batterie 5V 1A schnelle Schnelle Ladegerät

Produktbeschreibung

Features
1. Pure copper coil, high permeabillity, low loss, assuring fast charging.
2. Can charge the battery directly.
3. Charging current is around 5V 1A.
4. Can be directly connected to the phone's motherboard, the phone will display wireless charging.
5. Red is positive and gold is negative. The wire can be bent freely.
Specification
Material: PCB
Product Name: Wireless Charger Receiver Module
Input Power: 5V 1A or 9V 0.5A
Output: Power up to 5W
Charging Efficiency: 75%
Transmission distance: 2-8mm
Charger Applicable Form: Wireless Charger
Executive Standard: for Qi Wireless Charging Standard
Product Certification: CE/FCC/ROSH
Board Size: 1.9 * 3.2cm / 0.7 * 1.3in
Copper Coil Size: 4.1 * 2.9cm / 1.6 * 1.4in
Cable Length: 5cm / 2.0in
Weight: approx. 6g

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

5V

Verlustleistung

0.5W-5W

ist kundenspezifisch

Ja

Menge

1

Betriebstemperatur

40°C-70°C

Anwendung

Wireless Charging
