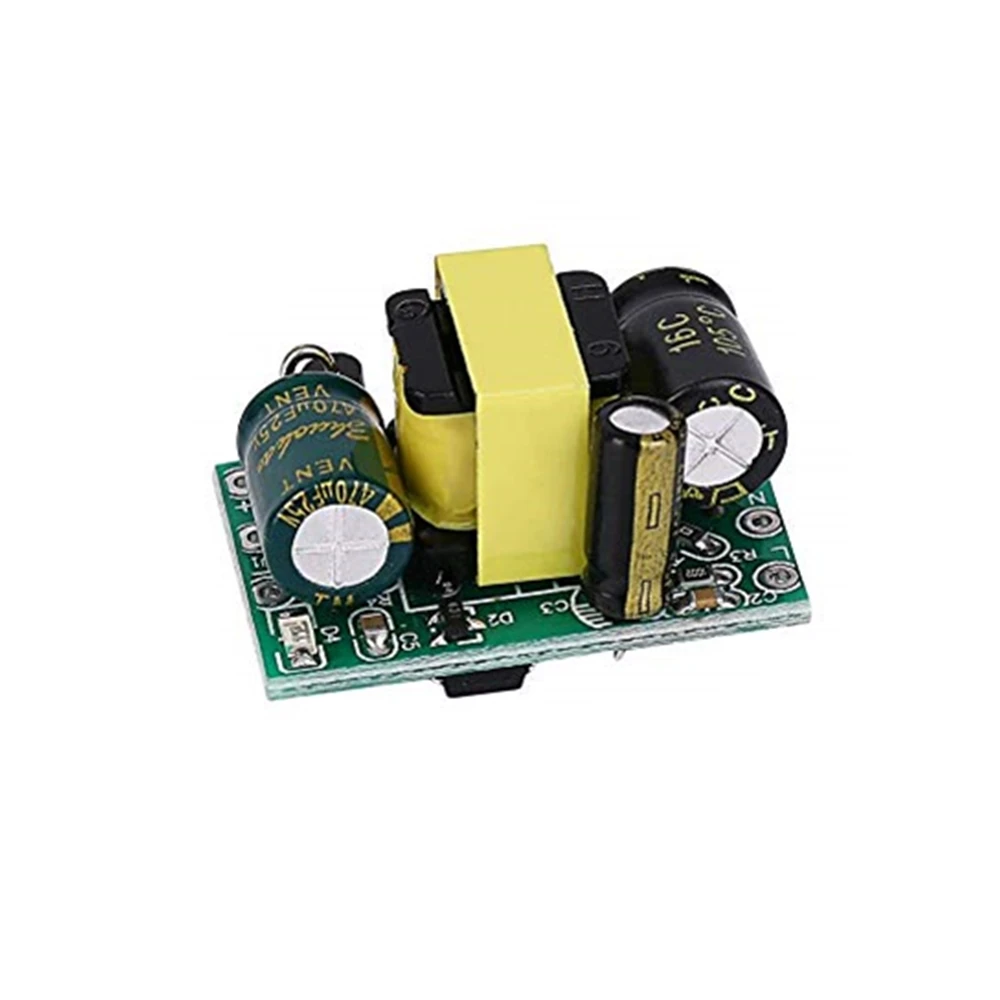

AC-DC 5V 700mA 12V 450mA 9V 500mA 3,5W Präzisions-Abwärtswandler AC 220V zu 5V DC Step-Down-Transformator Netzteilmodul

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

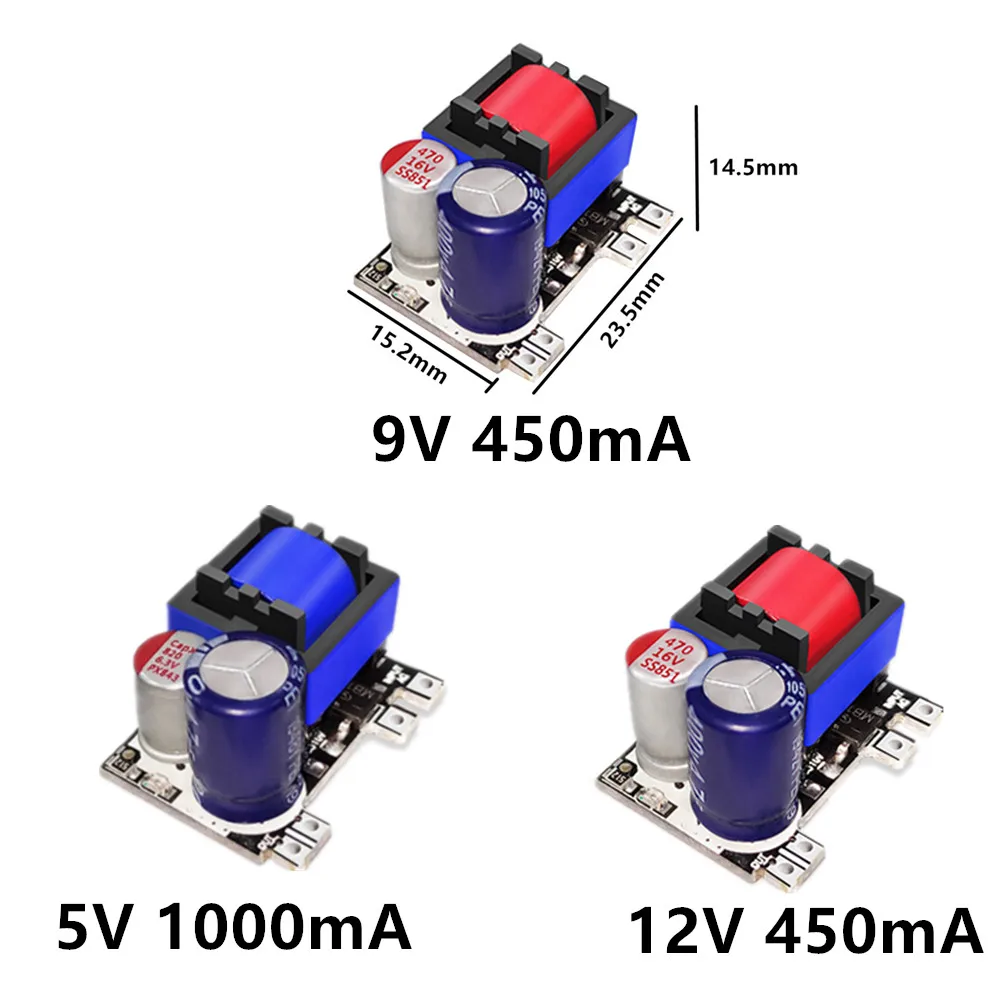

Note: Since the size of this module is the same, the printed data that is different from your option will appear on the back, but don’t worry, you can use it directly, the parts of the PCB board are different.

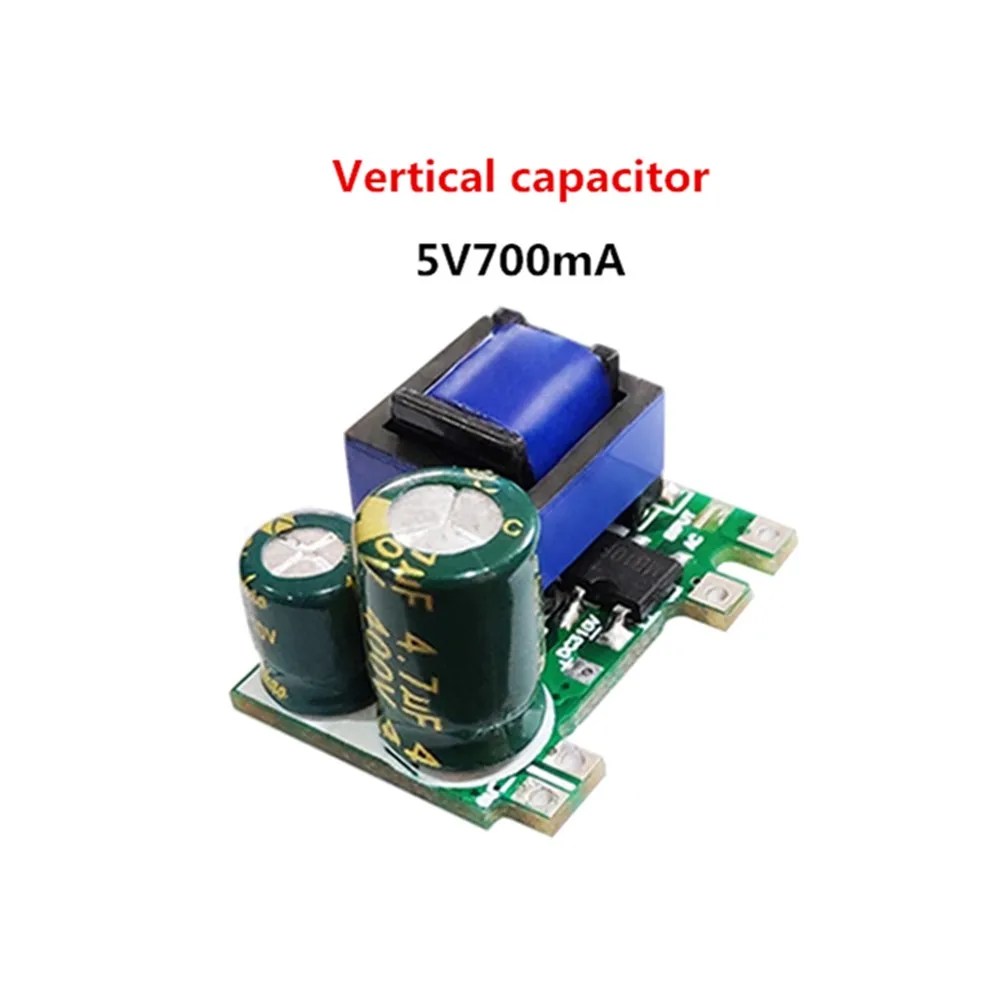

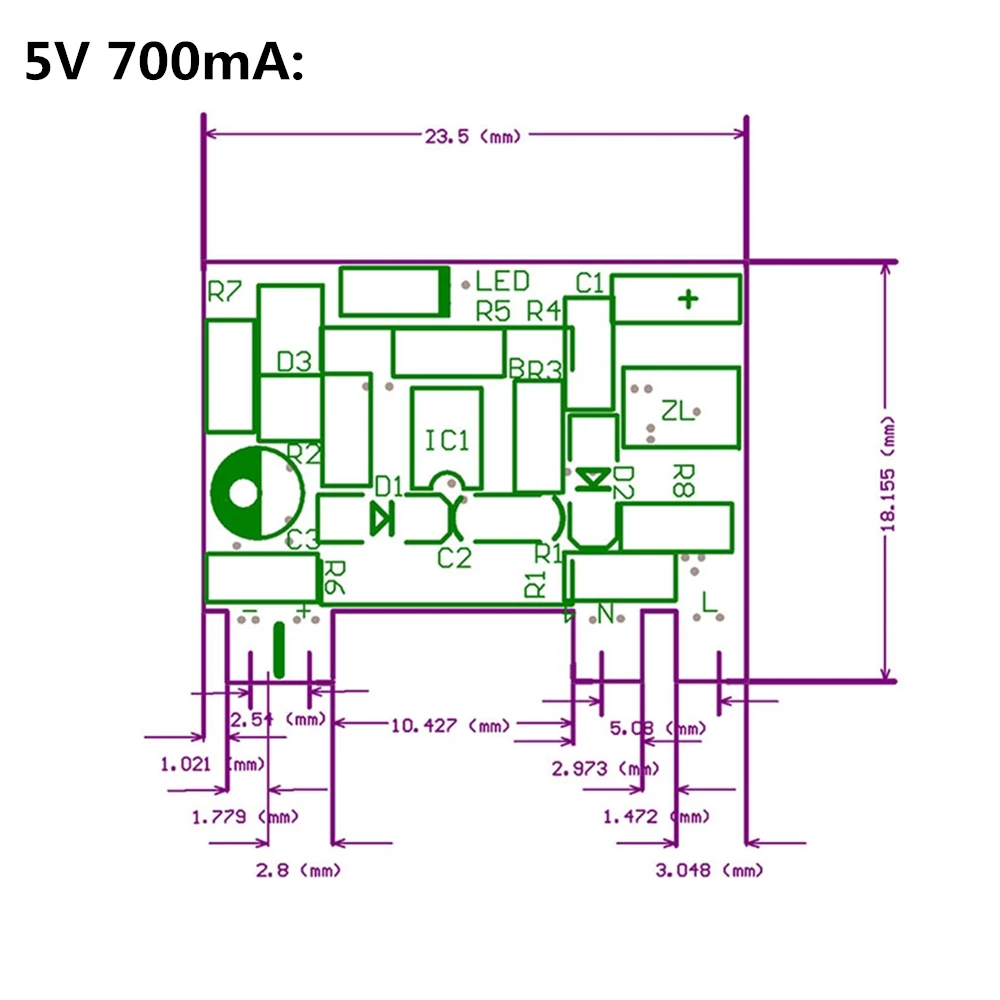

5V 700mA
Step Down Module
Condition: New
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current, 431 precision voltage stability DC5V output
Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
Imput current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 5V (+ / - 0.2 V)
Output current 700 mA
Power 3.5 W
Operating temperature -20~60°
Relative humidity 40-90%RH
Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
Output over power protection:YES,recovery:Lock, restart after recovery
