BB Schruppen Ende Mühle HSS Schneider 4 Flöte 5mm bis 45mm Sägeblatt Metall Bearbeitung Zoll & Iso 6mm 8mm 10mm 12mm 16mm

Produktbeschreibung

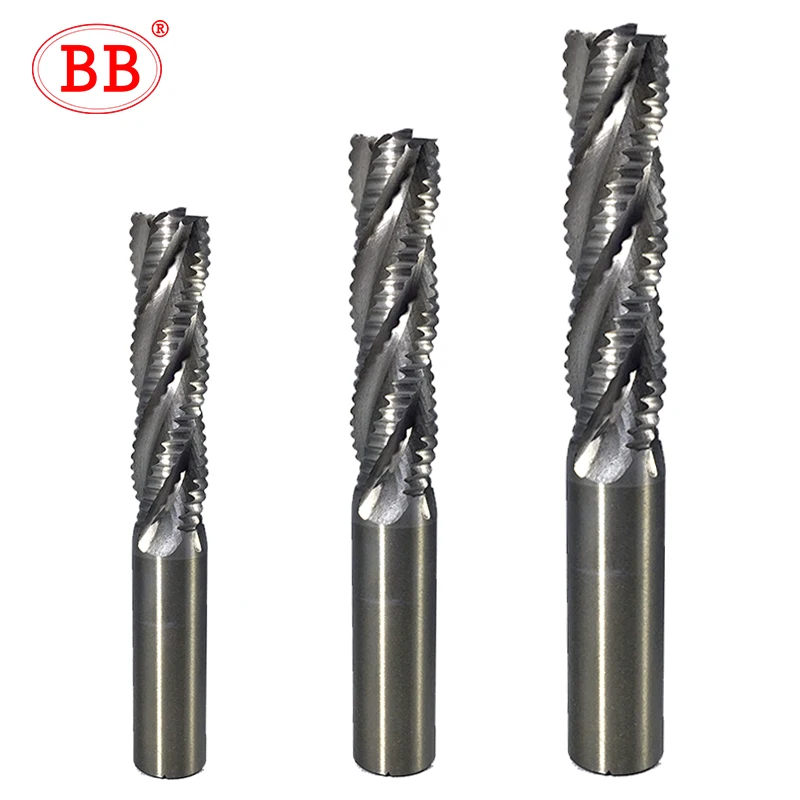

BB-SWY HSS 4F Roughing End Mill
It is used on mild steel, and other soft metals.
Low speed machining.
It is best to process aluminum with 3 flutes.
Not a good choice for wood.(We recommend BB carbide roughing end mill)
Aluminium-containing high speed steel (W6Mo5Cr4V2Al)
W6Mo5Cr4V2Al is based on W6Mo5Cr4V2 to change the carbon content from 0.89% ~ 0.90% to 1.10% ~ 1.20%, super hard high speed steel formed by adding 1% AL, the hardness of this steel can reach HRC68 ~ 69. Chemical composition: C 1.05 ~ 1.20, Si ≤ 0.60, Mn ≤ 0.40, W 5.50 ~ 6.75, Mo 4.50 ~ 5.50, Cr 3.80 ~ 4.40, V 1.75 ~ 2.20, AL 0.80 ~ 1.20, s≤0. 0.030, p≤0. 0.030, the rest are iron and impurities.
More Choice for you - click on the image to see more.
�� BB HSS roughing end mill with center cutting.
Higher precision -Full grinding -3&4 Flutes(Teeth) -Optional TiN coating.
�� BB Carbide roughing end mill.
Solid carbide material. -Higher rotation speed than HSS. -Better heat resistance. -Better wear resistance. For harder metal, wood...
��If you need end mills, please click the following to purchase.
Dimensions (Unit:inch) with center hole
7.94=5/16''*3/8
1/4''*3/8''*31mm*78mm
15.875= 5/8''*5/8*2-1/2*4-5/8
1-1/4'' * 1-1/4 *4*6-1/2 (6Flutes)
1-1/4''* 3/4*4*6-1/2 -4F
31.75mm=1.25''

Produktdetails in Bildern

Produkteigenschaften

Markenname

BB

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

ISO & inch

Material

HSS

Typ

Schruppnablattefräser

Gesamtlänge

57-186mm

Durchmesser

5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 22 24 25 26 28 30 32 36
