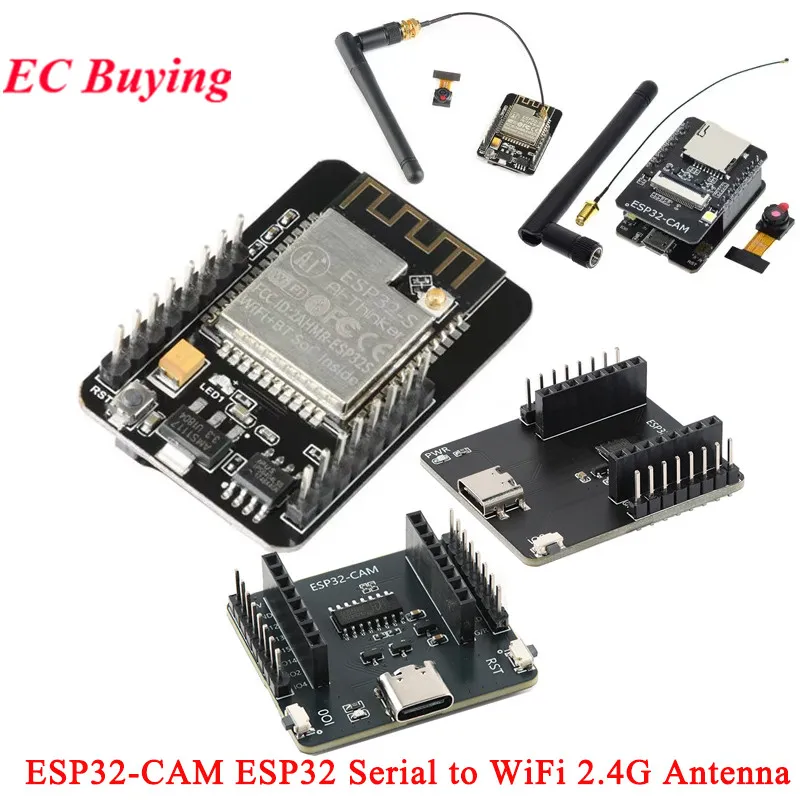

ESP32-CAM WLAN-Modul ESP32 Seriell-zu-WLAN ESP32CAM Entwicklungsboard 5V Bluetooth-kompatibel mit OV2640 Kameramodul

Produktbeschreibung

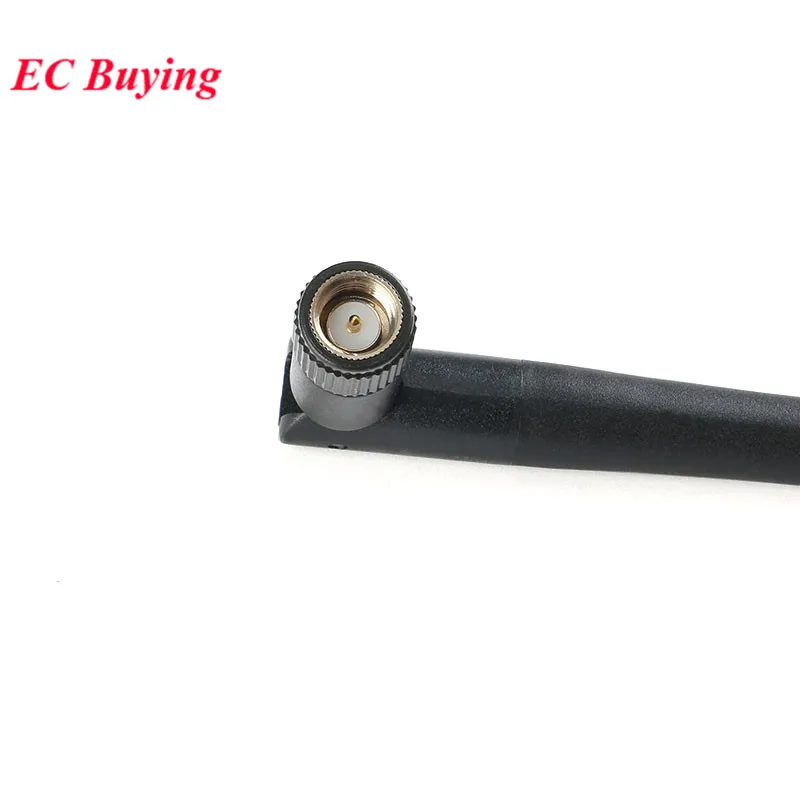

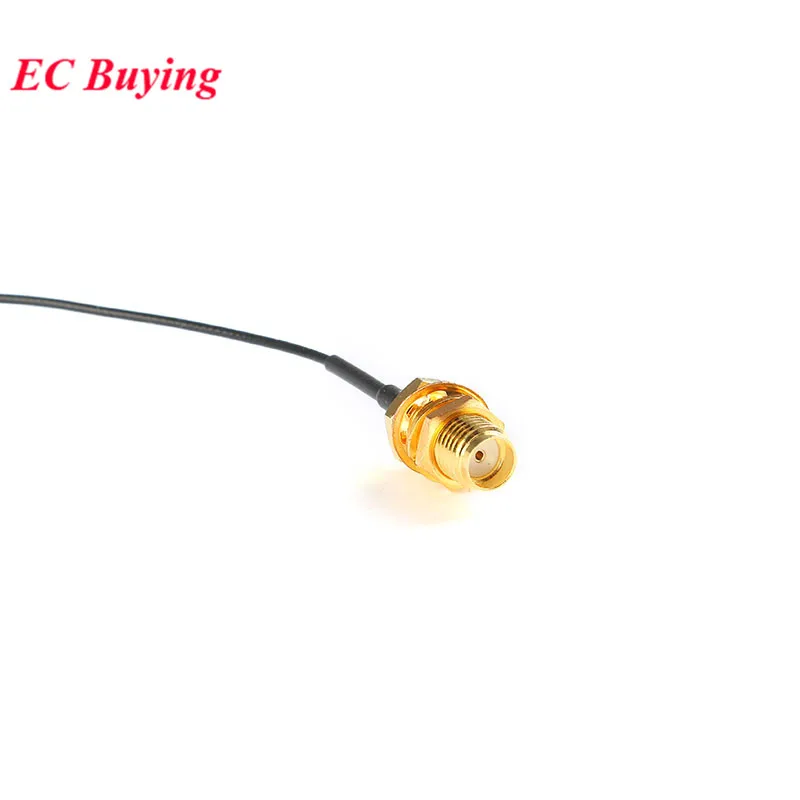

Note: antenna, place an order for the customers who need it, and do not select the ones who don't need it, thank you!
Product Parameters
Product Features
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M P-S-R-A-M
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development
Pin Description

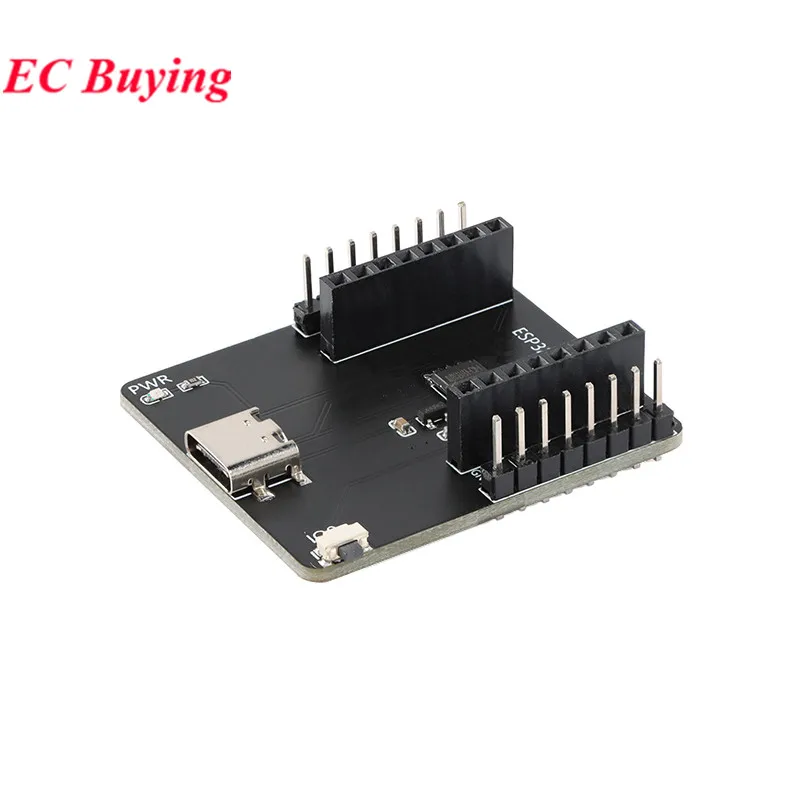

This module serves as the program download backplane for the ESP32-CAM WIFl camera module, eliminating the hassle of wiring. Simply plug the ESP32-CAM into the backplane and connect the USB Type-C cable. The bottom plate leads out all the pins of the ESP32-CAM module, as well as external wires. When not plugged into ESP32-CAM, it can also be used as a regular USB to 3.3V TTL serial port tool.
Usage
Before use, install the CH340 USB to TTL serial port driver for the computer, and identify the COM port in the device management. Due to the integrated reset button on the ESP32-CAM module, there is no additional reset button on this motherboard, and a 100 pin switch is introduced. When downloading the program, simply hold down the button and do not release it, which is equivalent to pulling down the 100 pin. Then, press the reset button on the ESP32-CAM module again to enter the download mode, Click on the download option on the download software again, wait for the program to download.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

5V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Kamera

Paket

module
