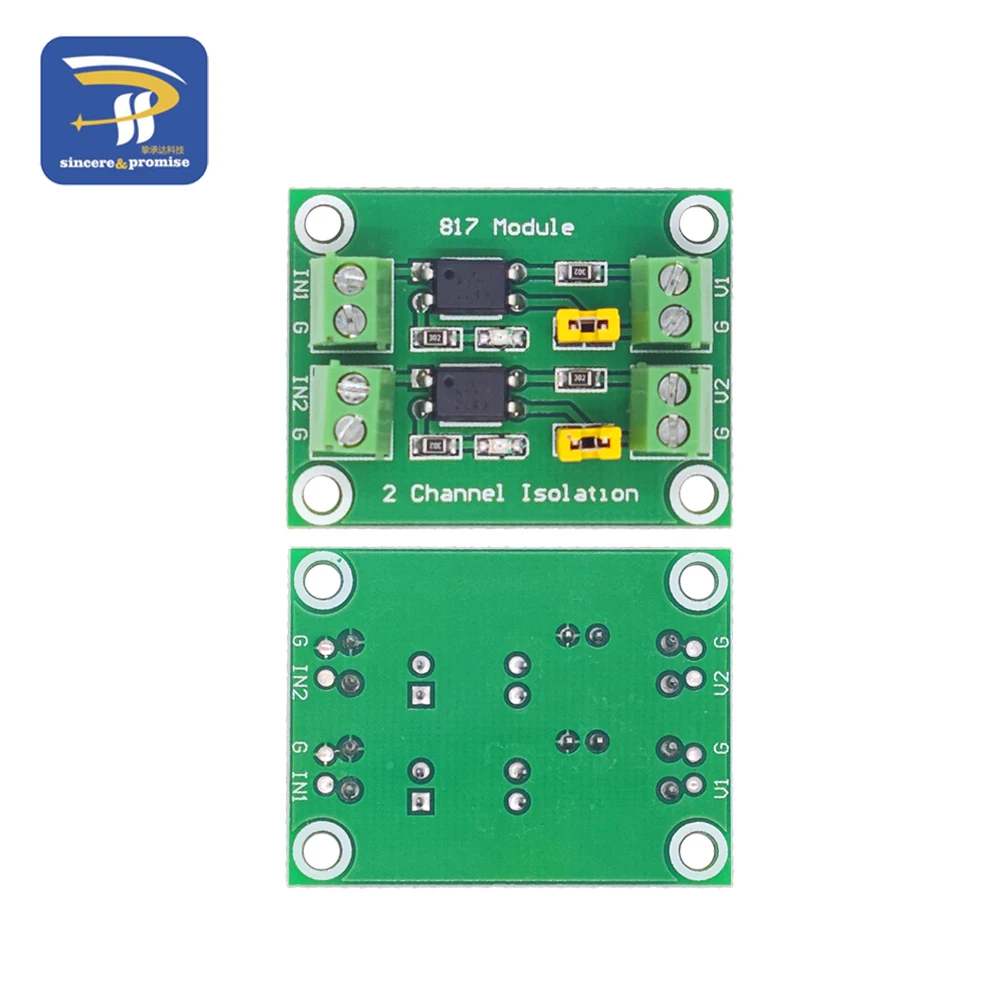

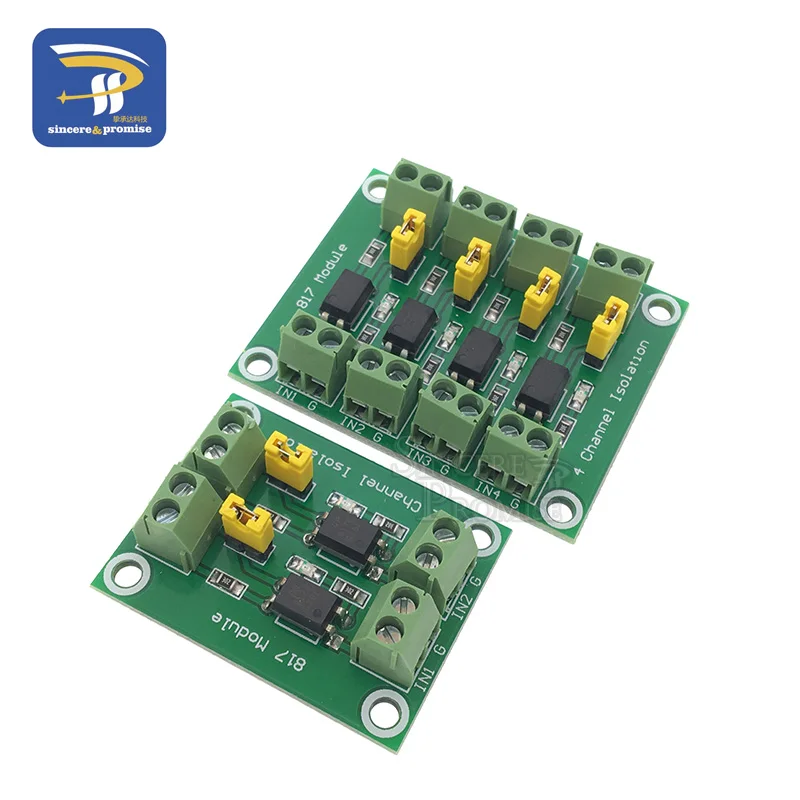

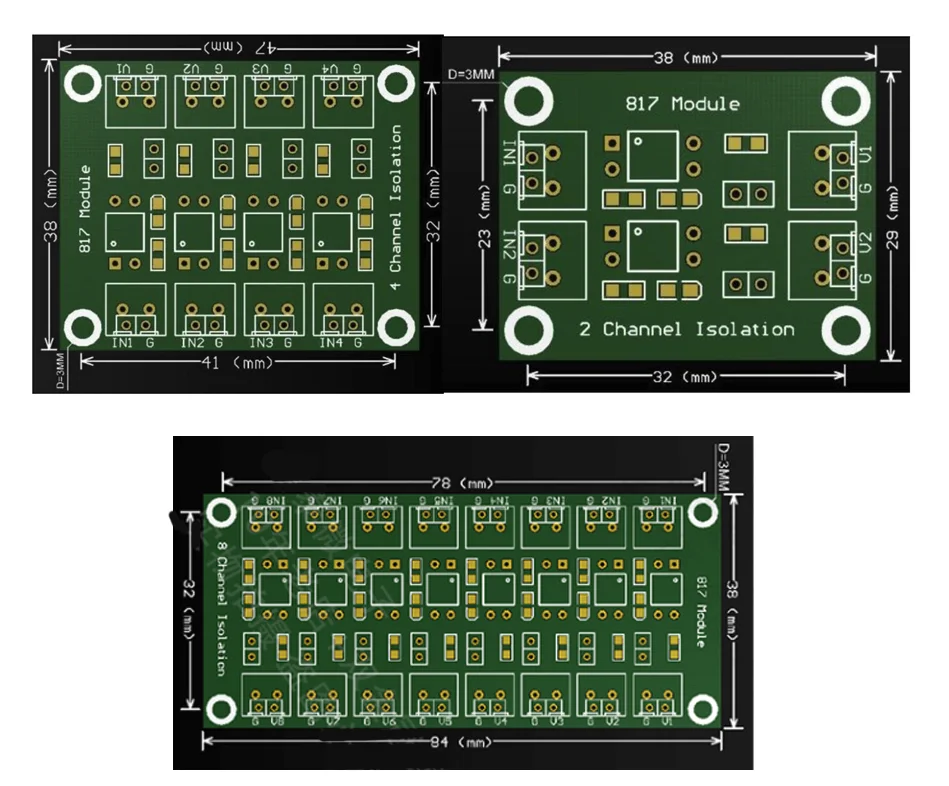

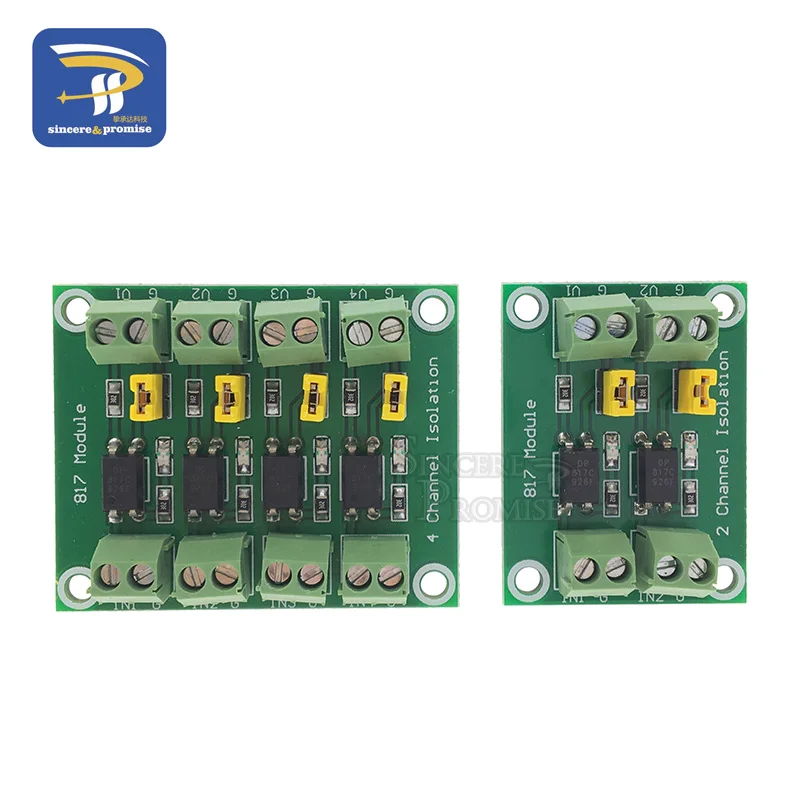

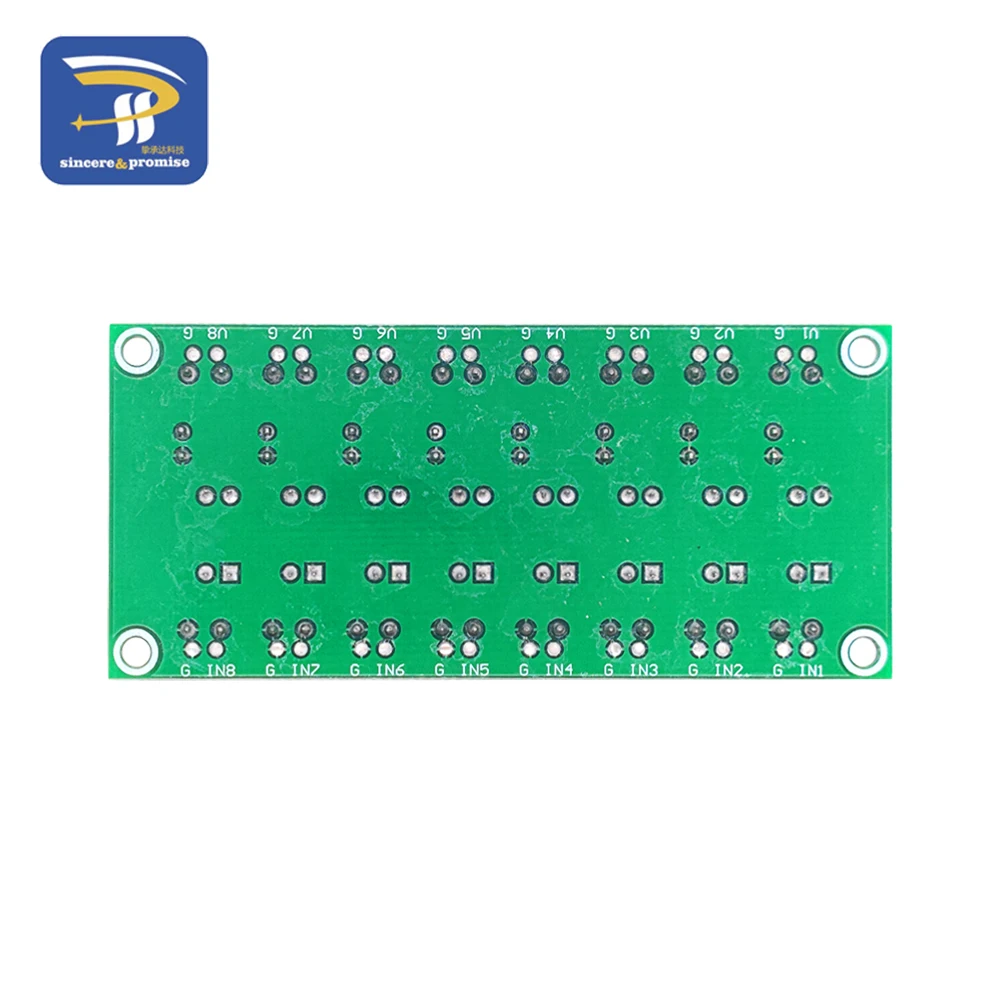

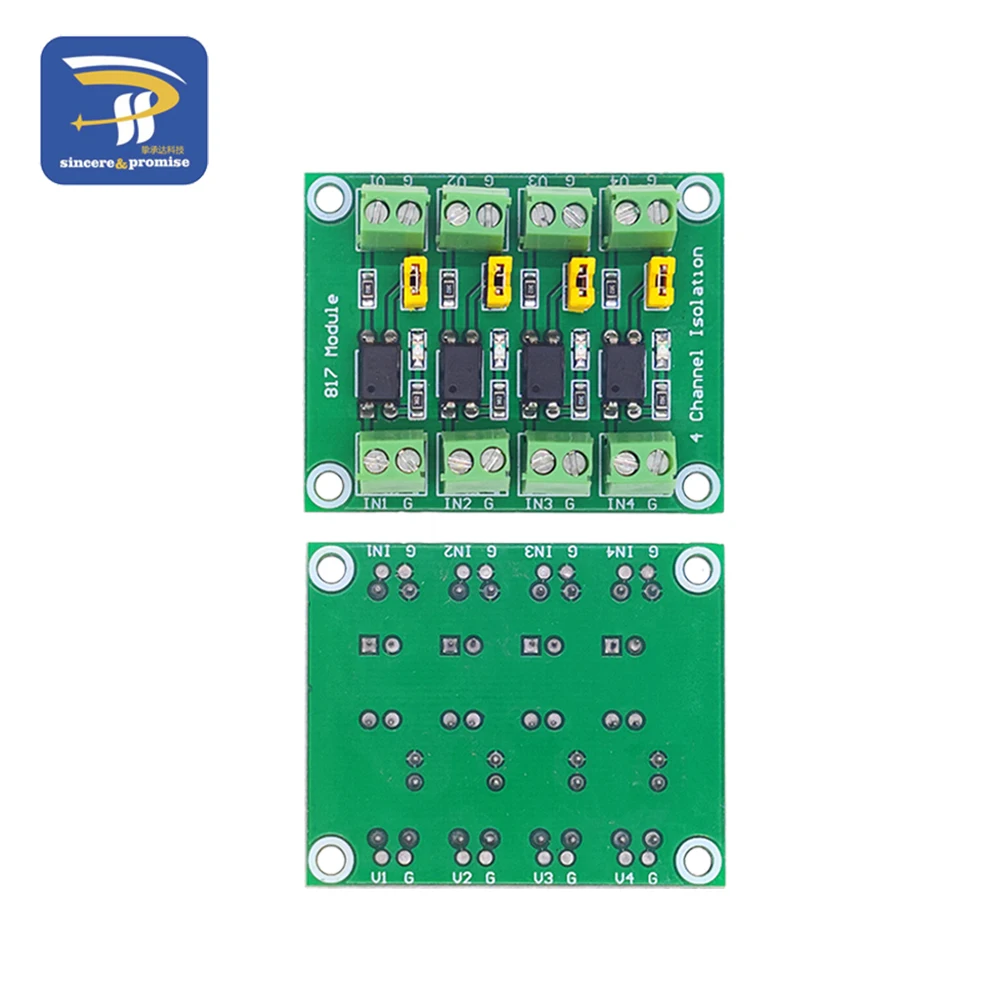

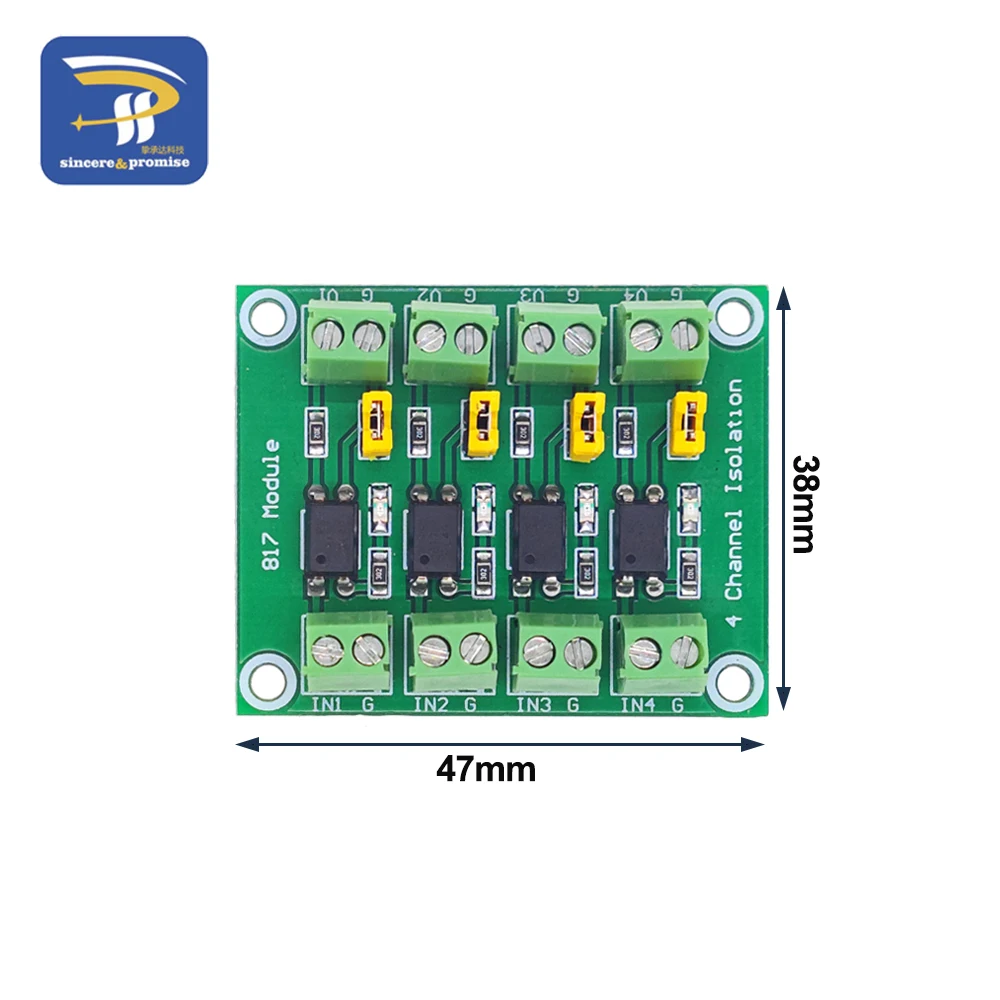

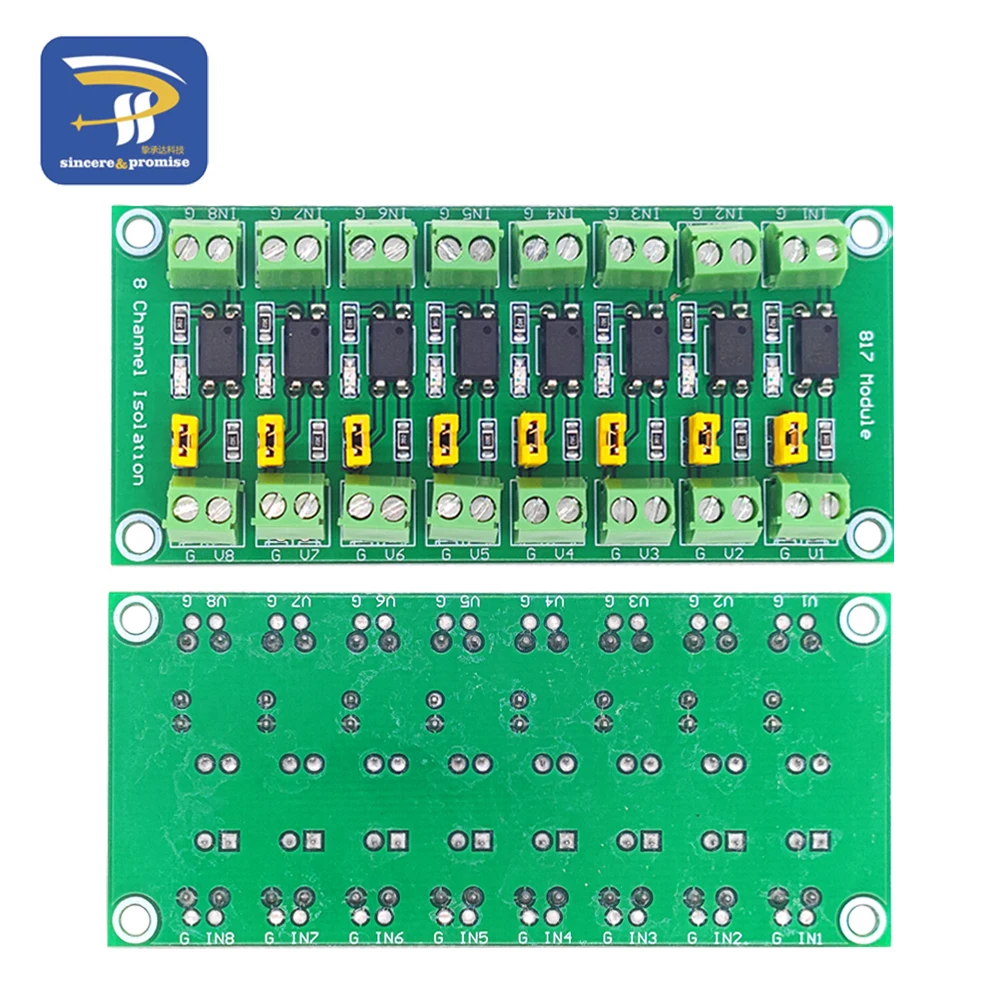

PC817 3,3 V-30 V 2-Wege 4 8-Kanal-Optokoppler-Isolationsplatine Spannungswandler-Adapter-Treiber Photoelektrisch isoliertes Modul

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Description
This module is used when it is necessary to isolate the control in actual work and
voltage conversion.
It can realize 3.3V or 5V control 3.3---30V voltage level interface, after the control
terminal input high level is turned on, the controlled terminal will also conduct to
the ground, and the port changes from the original high level to the low level. For
the friend of the single-chip or PLC, it is only necessary to judge when the output
port is low.
The photoelectric isolation has strong anti-interference ability, and the
combination control of many different devices can be realized later, such as triode
MOS tube, and small power relay module.
If it is a pulse signal, please note that the limit of 817 is below 3KHZ. If the control
signal is greater than 3KHZ, please do not use this module, it will not work properly.
Parameter
1, the drive terminal signal voltage: 3.3-24V
2, the output voltage range: 3.3-30V (output current depends on the specific
situation, but the maximum is not 10MA, the total power is certain, the voltage and
current are inversely proportional)

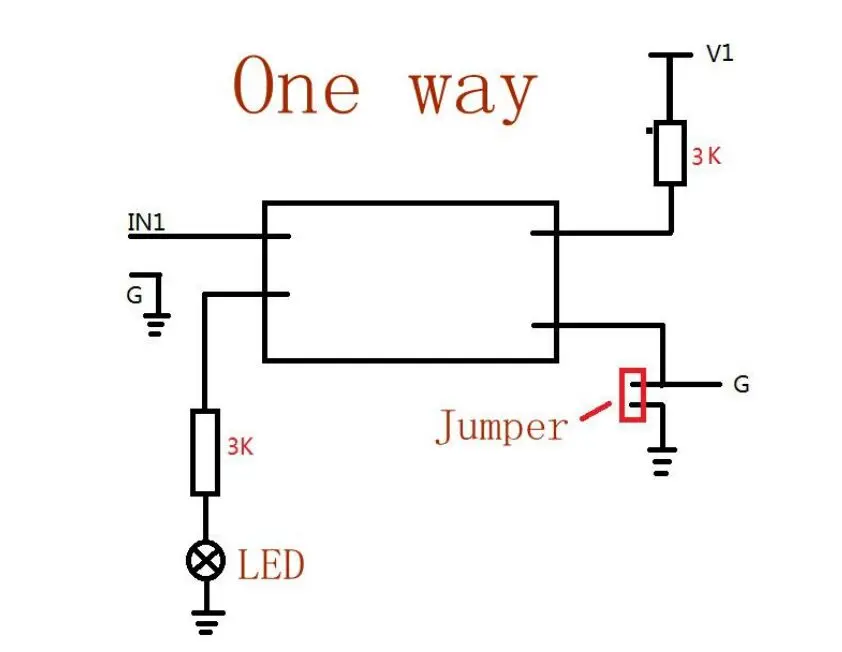

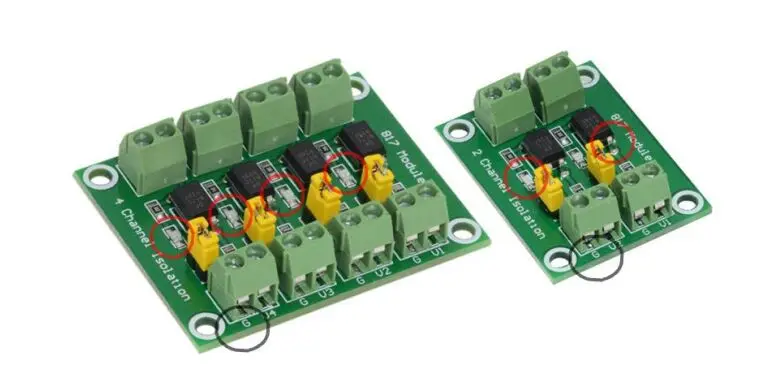

3, through the jumper cap can achieve whether the output is high potential output
or low output.
