OULLX 2-in-1 IDE zu SATA / SATA zu IDE Adapter Konverter 3,5' 40-Pin für DVD CD HDD Bidirektionale Übertragung für PC Datenkabel

Produktbeschreibung

OULLX SATA IDE Adapter 40 Pin IDE to SATA Connector 3.5 HDD IDE/PATA Hard Disk Adapter Converter With 7Pin-SATA Data Cable
Features
Connection method

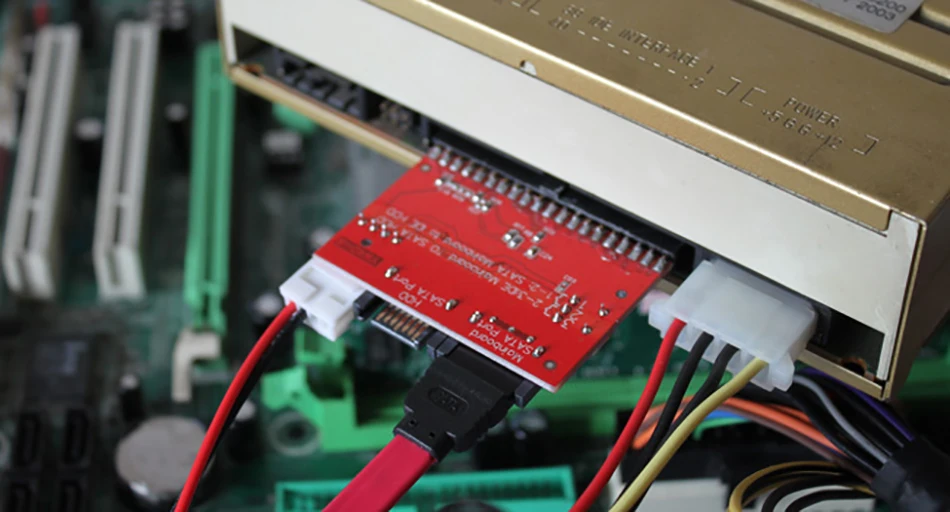

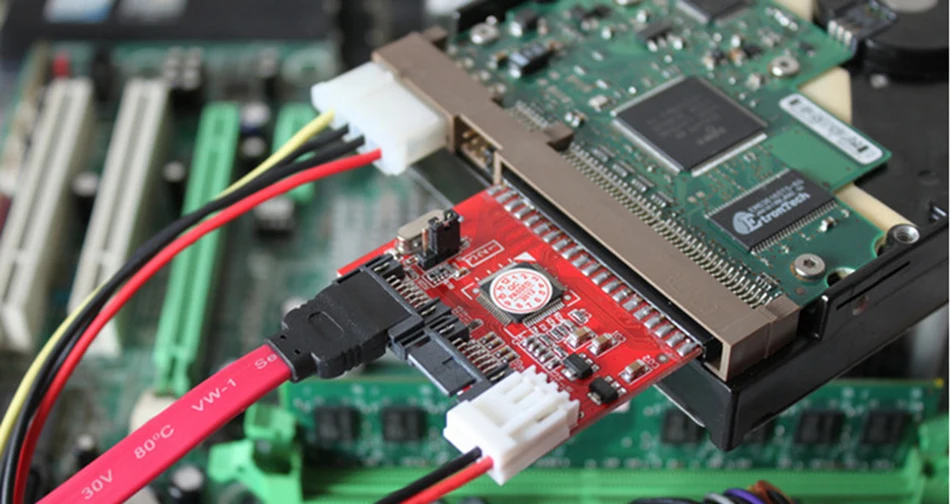

1. The conversion card's IDE jack, plugged into the motherboard IDE interface
2. SATA data cable (delivery) one end plugged into the conversion card, the other end connected to the SATA hard disk
3. The conversion card is connected to the power cable (delivery), the other end of the power cable is connected to the chassis power cable
4. SATA hard drive power conversion line, then the chassis power supply, so that the connection is good, you can start the computer power.
If the installation is still not recognized SATA hard disk, you should check in detail the above installation steps and connections, and note the following
1. This conversion card is inserted in the motherboard IDE interface, the motherboard IDE is not the gap with the card IDE prominent position on the
2. Due to the conversion card's IDE interface is slightly smaller than the hard-line interface, so pay attention to whether the motherboard IDE's target should be plugged in, may be staggered in a row
3. In addition to the SATA hard disk must be connected to the data cable and the power cord, the conversion card must also be connected to the power (you can use this card delivery power adapter cable or direct use of the floppy drive power cord)
4. Check the BIOS is set to automatically identify the hard disk device IDE interface, if not set to enter the BIOS settings
5. If you can only identify less than 136GB SATA hard drive, but does not support larger SATA hard drive, indicating that the motherboard does not support LBA48 IDE addressing, please contact the motherboard manufacturers to refresh the latest BIOS after the attempt, or replace the newer motherboard Solve, this
Conversion card support large hard drive
1. If you find this SATA hard disk can not be started, please refer to the other online introduction IDE hard disk boot BIOS setup, partitioning, activation partitioning, formatting, transfer boot system and other operations, has nothing to do with the function of this card.
Support the Serial ATA transfer rate of 1.5Gb/s (150MB/s)
Compliant With Serial ATA 1.0 Specification
Compatible With Ultra ATA 100/133
Data transfer rate up to 1.5 Gbps (150 MB/s)
Support IDE drive size larger than 240GB

Produktdetails in Bildern

Produkteigenschaften

Markenname

OULLX

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Typ

Kabeladapter

Paket

Ja

Zertifizierung

CE

Modellnummer

IDE to SATA converter

Feature 1

SATA IDE adapter

Feature 2

SATA IDE hard disk adapter converter

Feature 3

40 pin IDE to SATA

Feature 4

Sata to IDE adapter

Choice

yes

semi_Choice

yes
