Tnmg160404 Massiver CBN-Einsatz TNGA160404 Externe Drehwerkzeugklinge PCBN Hartmetallmaterial Stahlbearbeitung CNC-Bohrwerkzeug

Produktbeschreibung

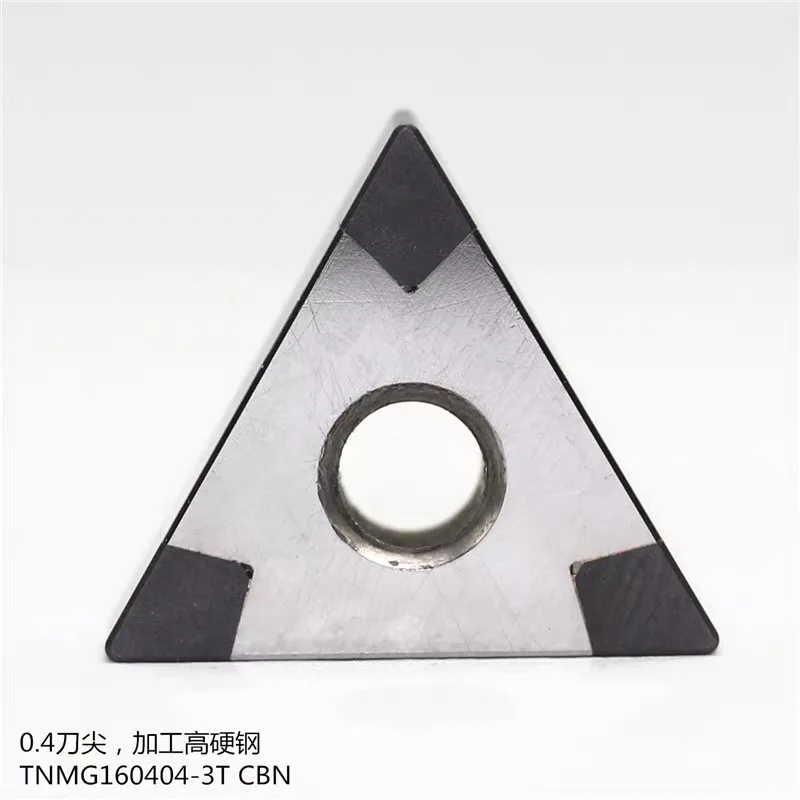

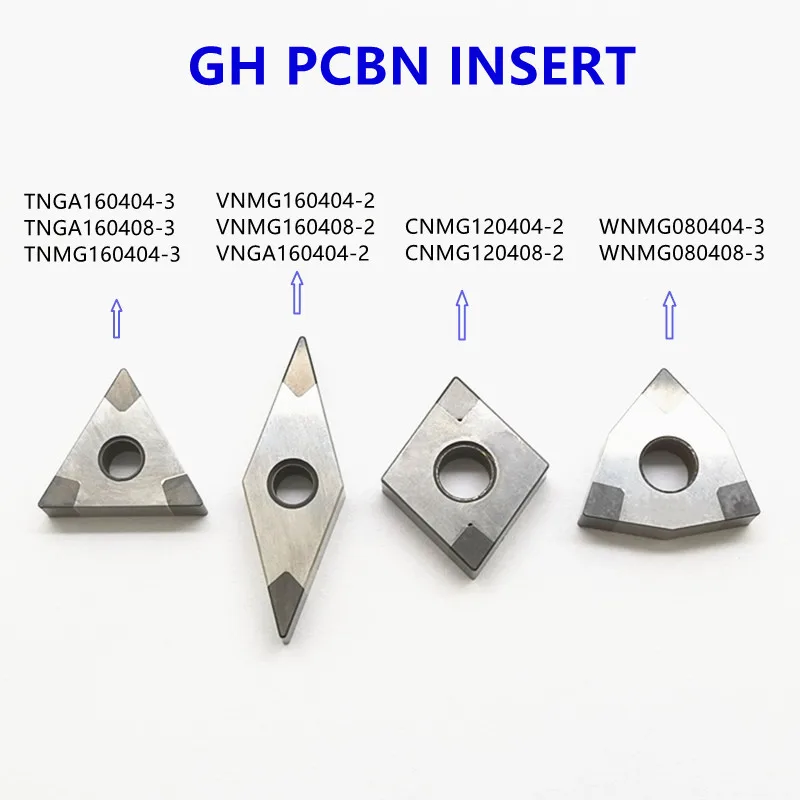

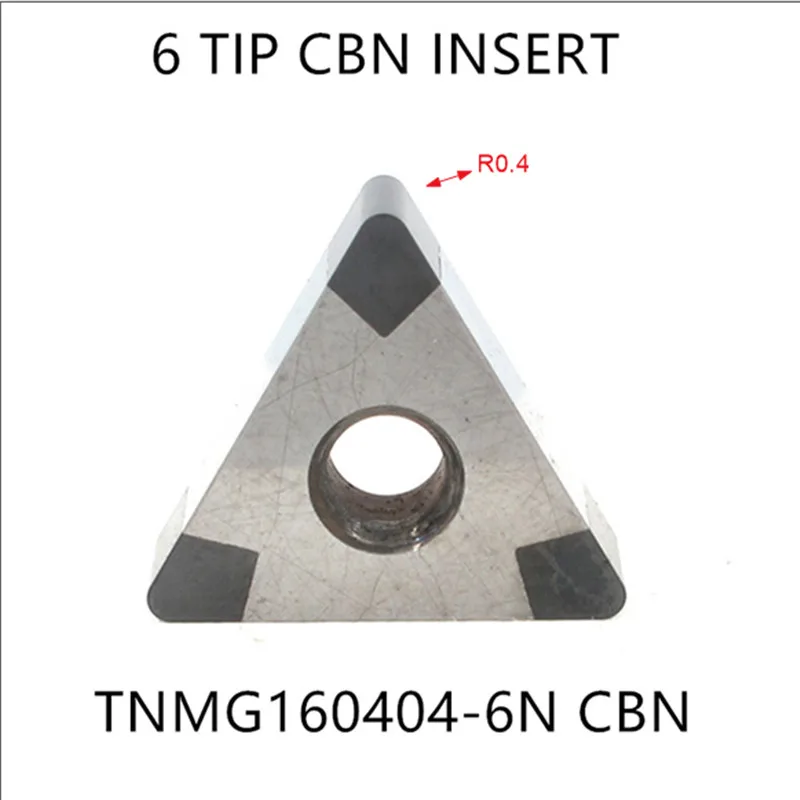

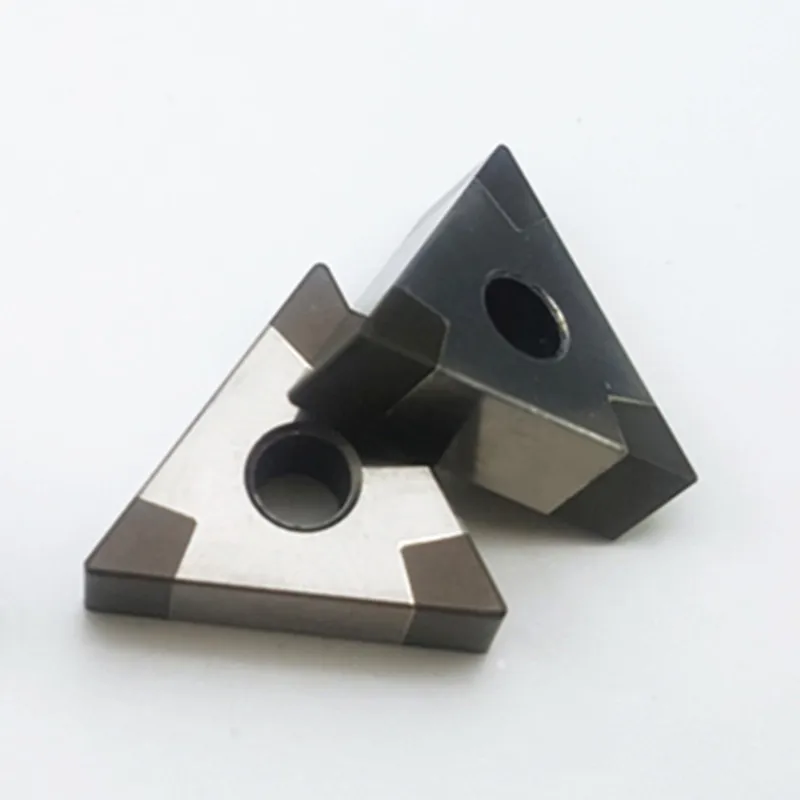

Solid CBN insert TNMG TNGA160404 Tnmg 160408 Cnmg120404
Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase.
PCBN-Cubic Boron Nitride Blade (CBN) is mainly suitable for processing of hardened steel, hard/ grey cast iron, HSS Roll. Sintered metal,high hardness materials
Features
All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.
The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.
With sharp cutting edge, sharp, high precision
The body uses high quality tungsten carbide or steel.
Machines imported from UK, Germany, Japan
Work parts
How to order?
In order to supply the product you require we would need to have the following information
1. The insert & tools designation - ISO code or drawing.
2. The type of abrasive (Diamond or CBN).
3. The material to be machined. As there any different series of PCD/PCBN is used for processing different targets.
4. Length of required PCD/PCBN cutting edge.
5. Any special features eg: Top rake or radius different to the code etc.
We hope to receive your drawing of indexable type insert and tools.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Material

Bor-Nitrid

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Beschichtung

PCBN

Härte

Sonstiges

Benutzen

Externes Drehwerkzeug

Modellnummer

turning tools

Choice

yes

semi_Choice

yes
