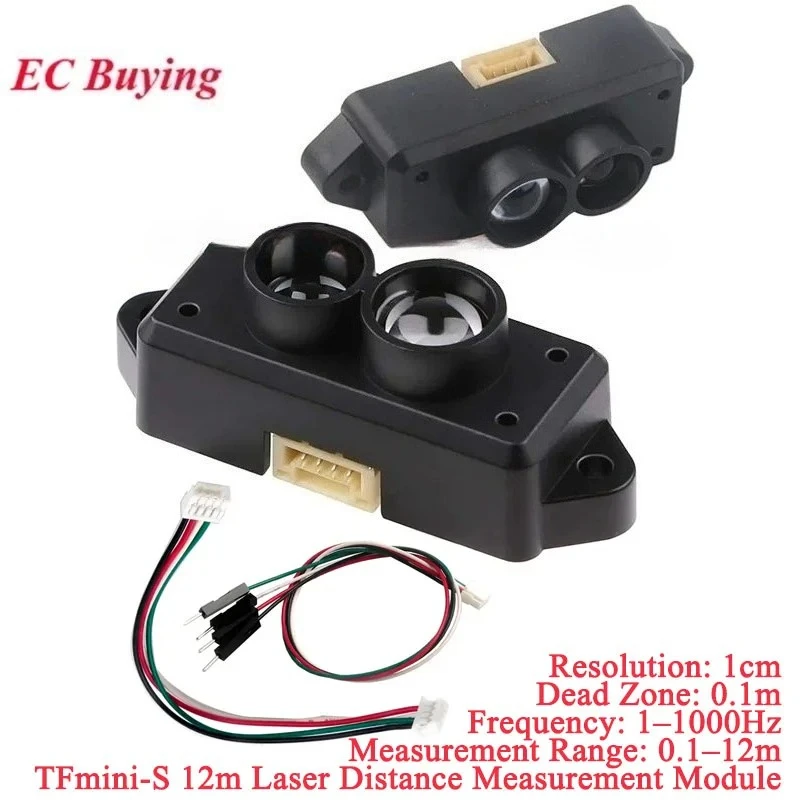

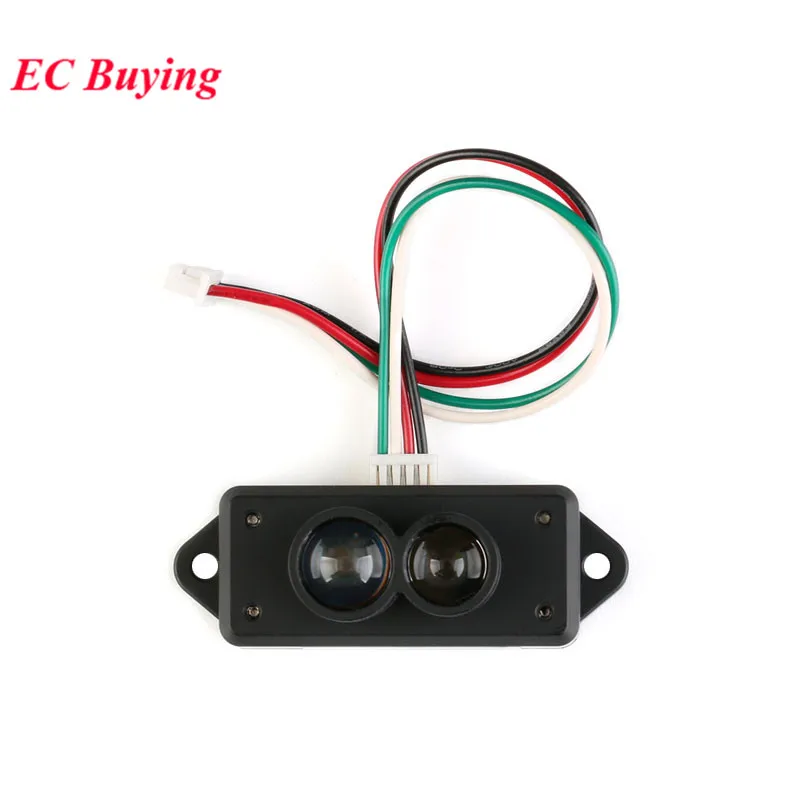

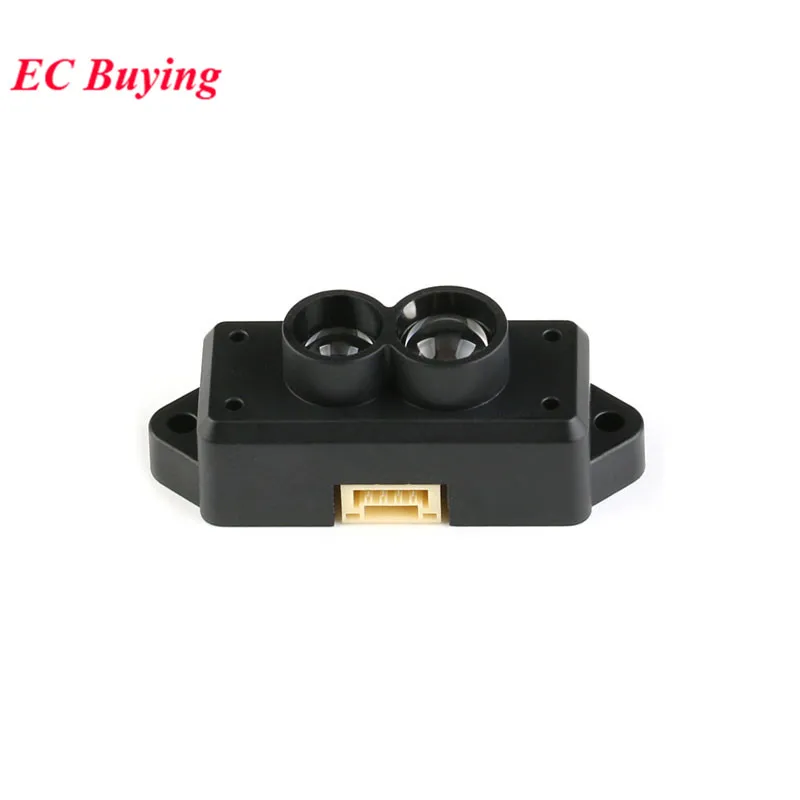

TFmini-S ToF Lidar Single-Point Micro Laser Ranging Finder Modul für Arduino Pixhawk 4,5-6V UART I2C Schnittstelle TFmini aktualisiert

Produktbeschreibung

Product description
TFmini is based on the TOF (time of flight) principle, using 850nm infrared light source, and unique optical and electrical design to achieve stable, accurate, highly sensitive and high-speed distance measurement. The built-in adaptation algorithms for various application environments can ensure that the product still has excellent ranging performance in the case of low cost and small size. Open a variety of adjustable configurations for customers to use flexibly, more in line with customers' product usage needs.
Parameter
Ranging range: 0.3m ~ 12m①
Default distance unit: cm
Distance resolution: 5mm
Receiving half angle: 1.15 °
Emitting half angle: 1.5 °
Measurement frequency: 100Hz
Supply voltage: 5V
Average current: ≤120mA
Average power consumption: ≤0.6W
Peak current: 800mA

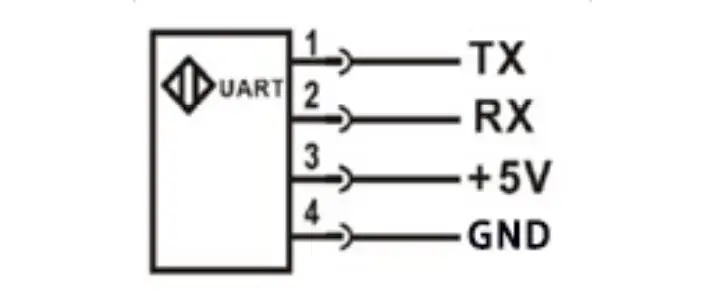

Communication level: LVTTL (3.3V)
Light source: LED
Center wavelength: 850nm
�� The range that can be reached under the condition of indoor standard whiteboard (90% reflectance)
�� Within 0.3m ~ 2m, due to the range switch, the individual point error will be within ± 6cm.

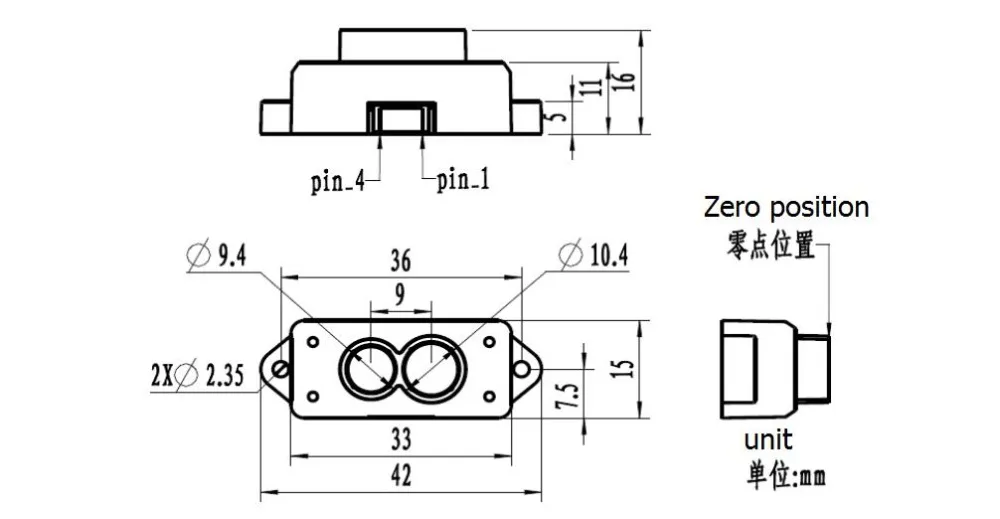

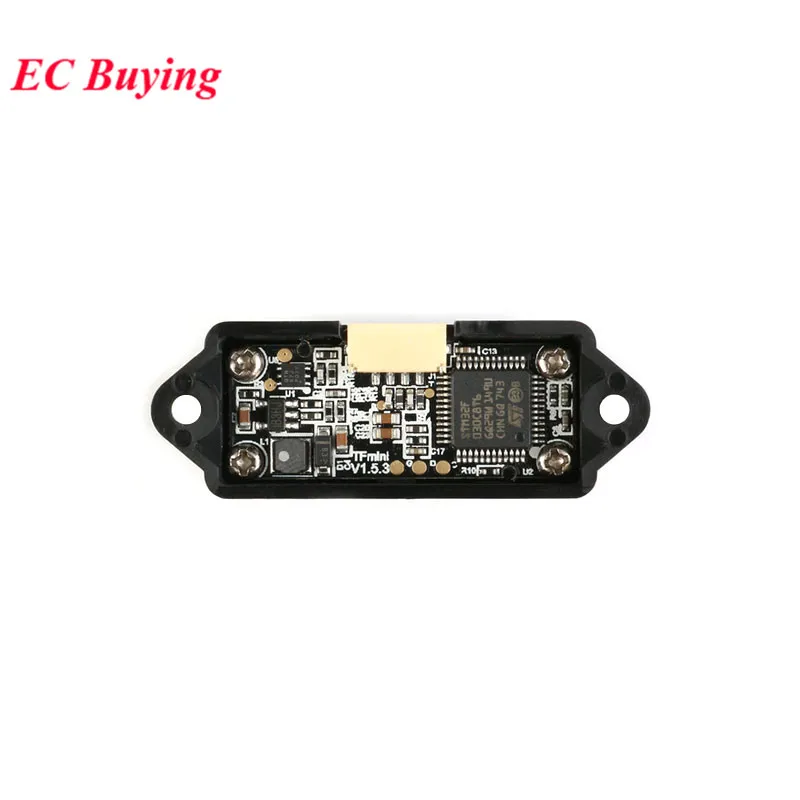

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

4.5-6V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

TFmini-S ToF One-way Laser

Ranging Distance Measuring Sensor Module 0.1-12m Range Finder High-precision UART IIC I2C Serial
