Drahtloses Bluetooth-Audioempfänger-Board-Modul MH-MX8 M18 M28 M38 BLT 20M 4.2 5.0 MP3 Verlustfreier Decoder Stereo Elektronisches DIY-Kit

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 7–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

MH-M18/M28/M38 is a low-power Bluetooth design solution that supports the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, and Bluetooth wireless transmission when the module is connected to Bluetooth, which is very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.
Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.

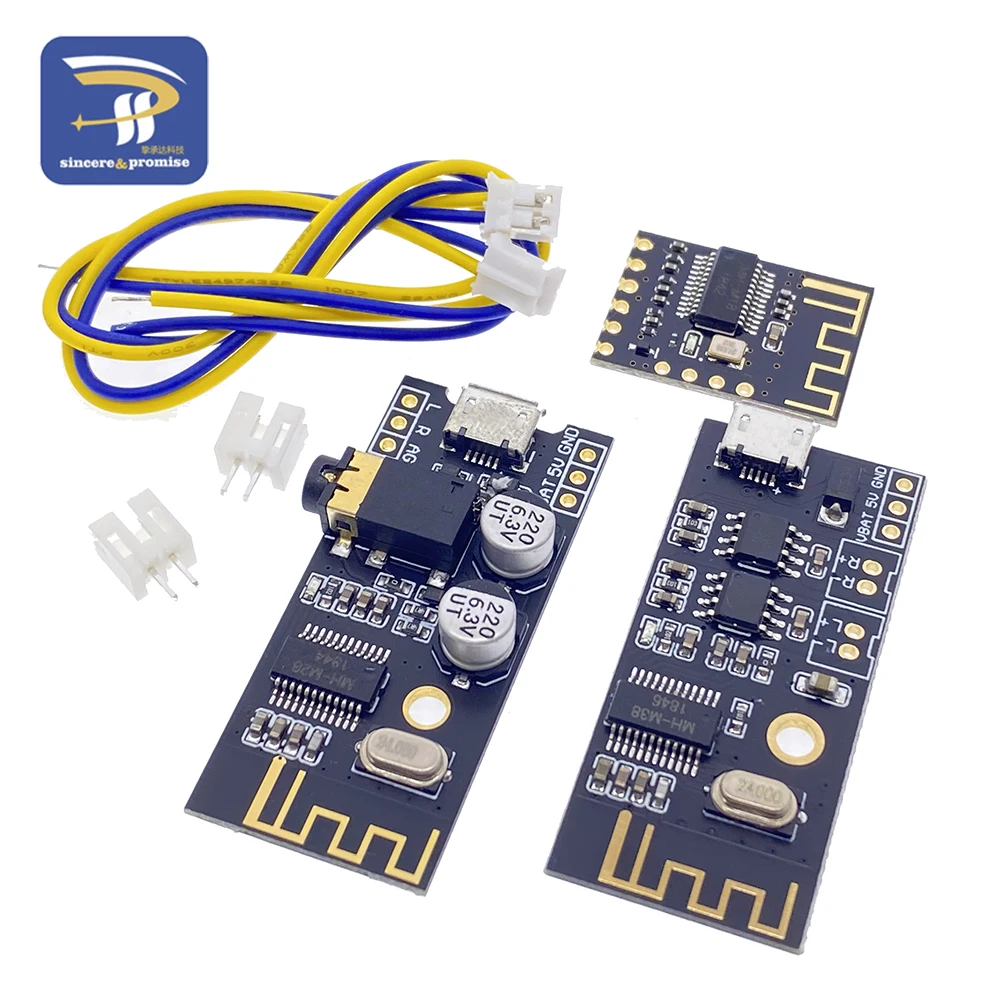

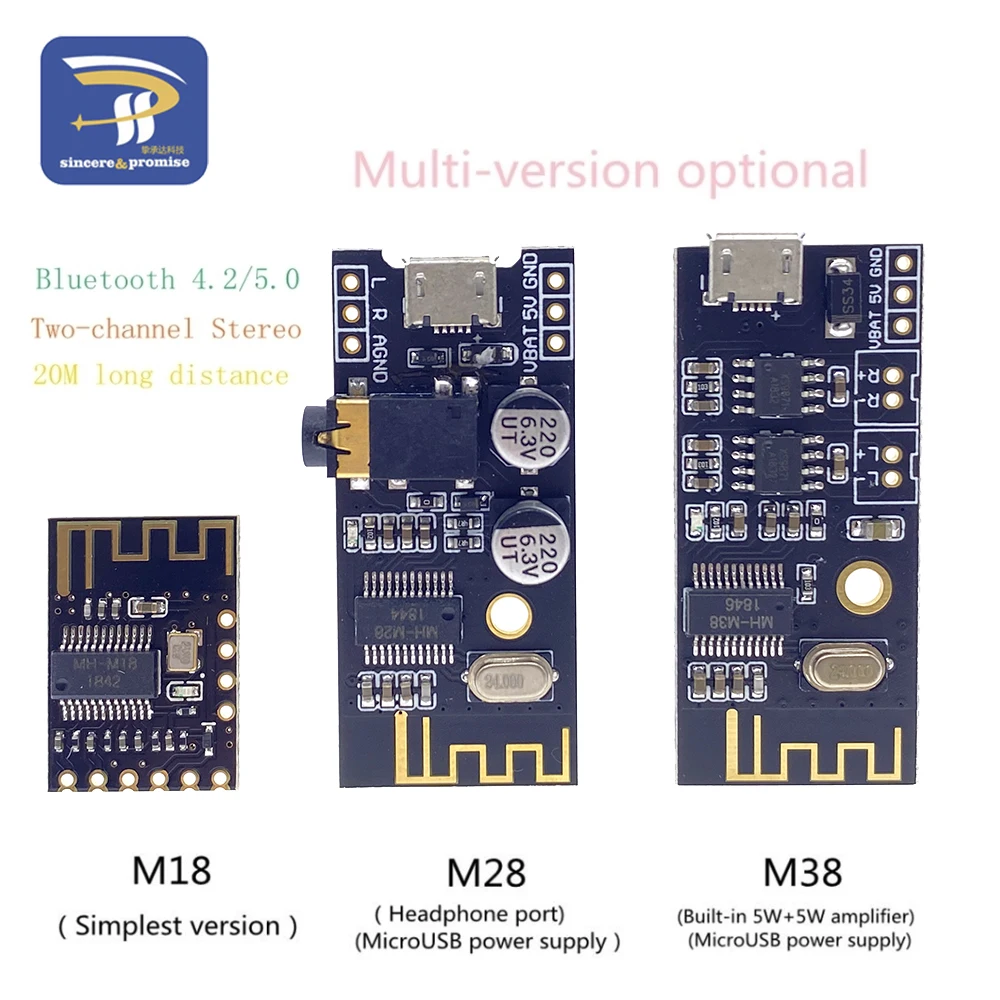

For your different needs, we offer 3 versions for you to choose from

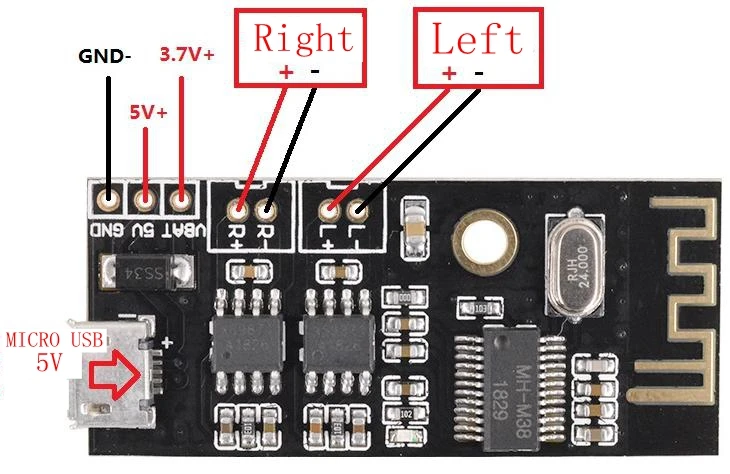

2..Function /Pin definition
1. Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
2. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth.
3, module blue indicator light
When the Bluetooth is not connected, the indicator light flashes quickly
When the Bluetooth connection is on, the indicator light is always on

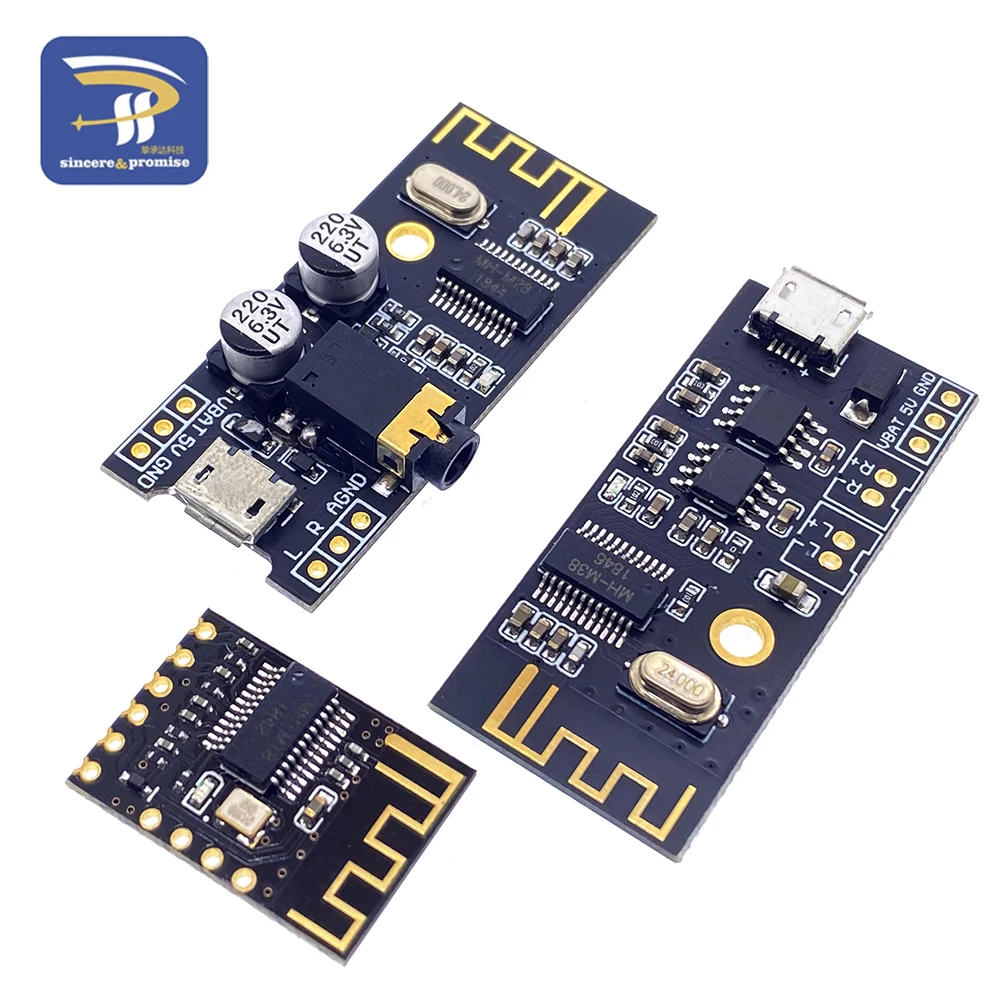

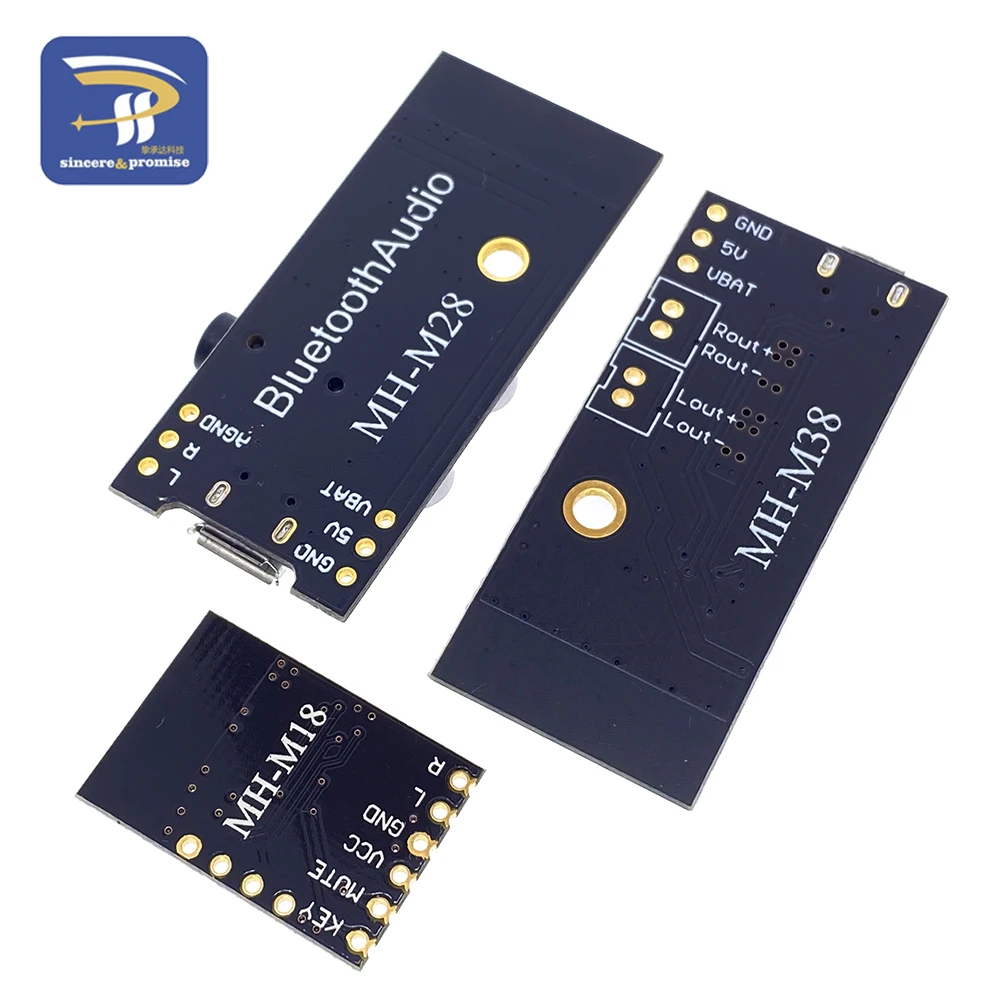

The following is an introduction to each version
MH-M18

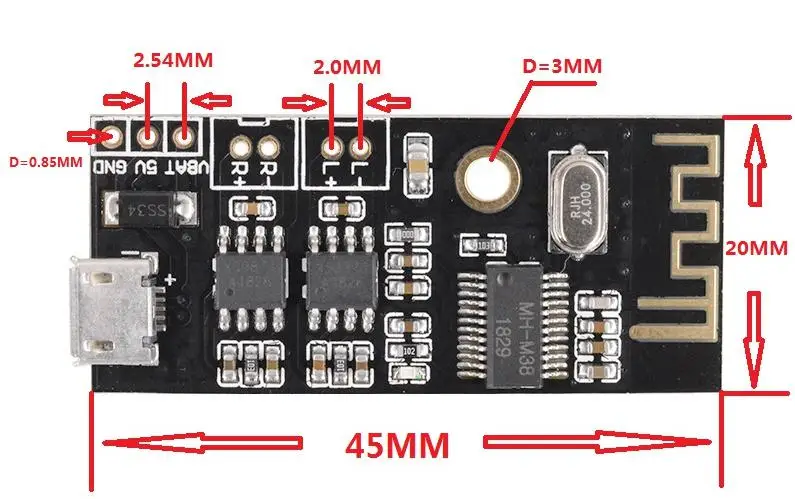

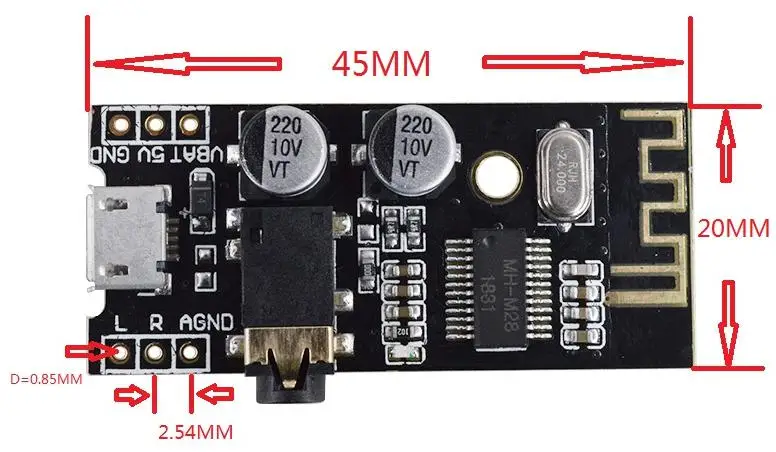

PCB size: 23*16*2.5mm (length, width and height)
Pin pitch: 2.54mm (can be directly attached or soldered)

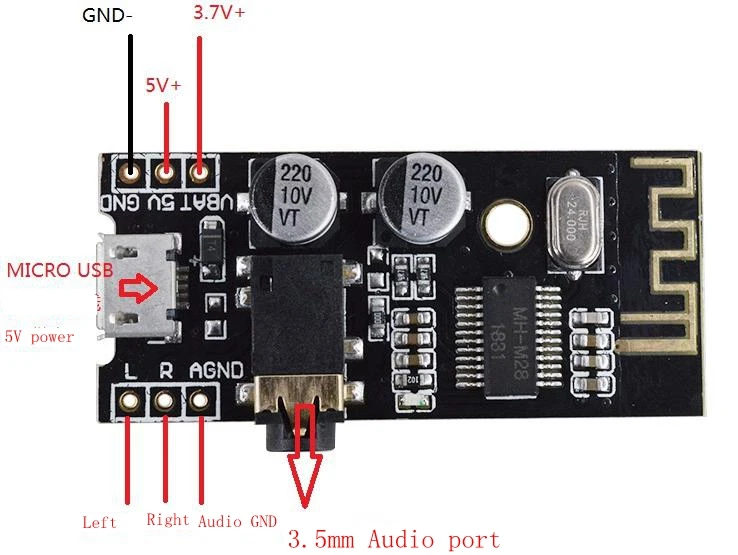

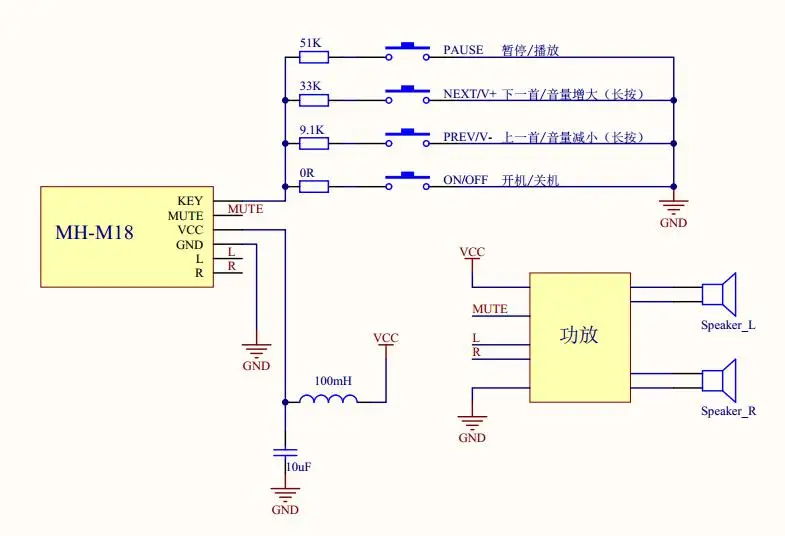

3. Function /Pin definition
1.The interface adopts a semi-hole process, which is convenient for customers to directly attach or solder to the board.
2.1. Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
PIN NO
Function
Description
1
