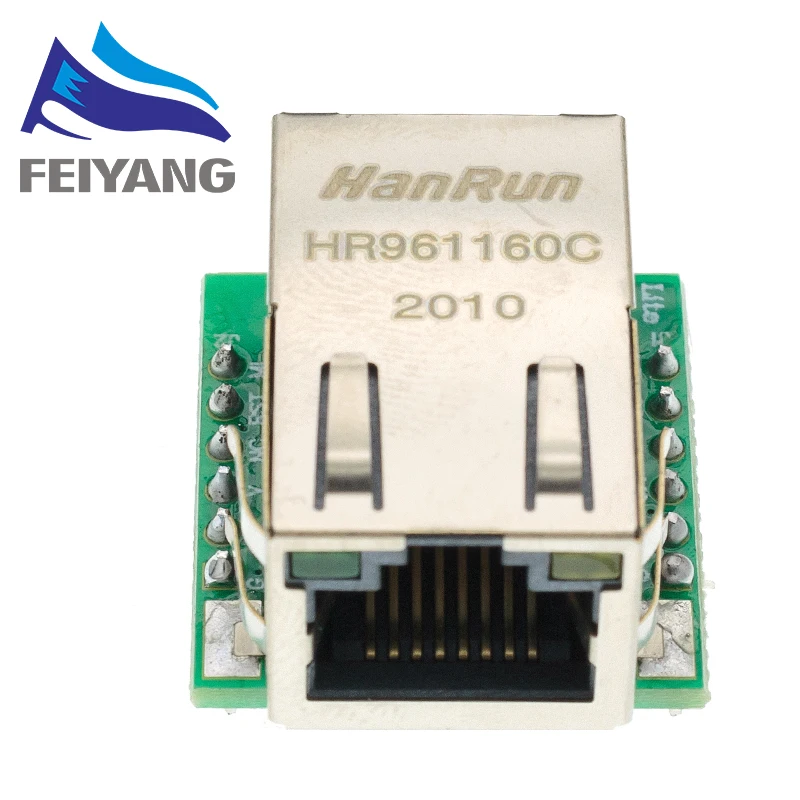

Smart Electronics USR-ES1 W5500 Chip Neuer SPI zu LAN/Ethernet-Konverter TCP/IP Mod

Produktbeschreibung

Power supply mode:3.3V external power supply, current should be more than 200mA
Control interface:The TTL level, 3.3V SPI interface
PCB size:23 * 25 mm
Mechanical Dimensions:28.5 * 23 * 24
USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of +3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable +3.3V.
High speed SPI interface 80MHz
Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge
Supports up to 8 Socket
Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
Integration of the data link layer, physical layer
Support the wakeup
Support high speed serial peripheral interface (SPI model 0, 3)
Internal 32K bytes receive buffer
The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
Support auto negotiation (10/100-Based full duplex or half duplex)
Does not support the IP patch
The working voltage of 3.3V, I/O and 5V voltage signal
LED display (full duplex or half duplex, network connection, network speed,active)
Pin type package ultra small, convenient for embedded applications
Application of C sample project

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

USR-ES1 SPI TCP/IP Modul

Verlustleistung

W5500 Chip Smart LAN/ Ethernet Konverter

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Für Arduino STM

Elektronikmodul

model Nummer

USR-ES1 W5500
