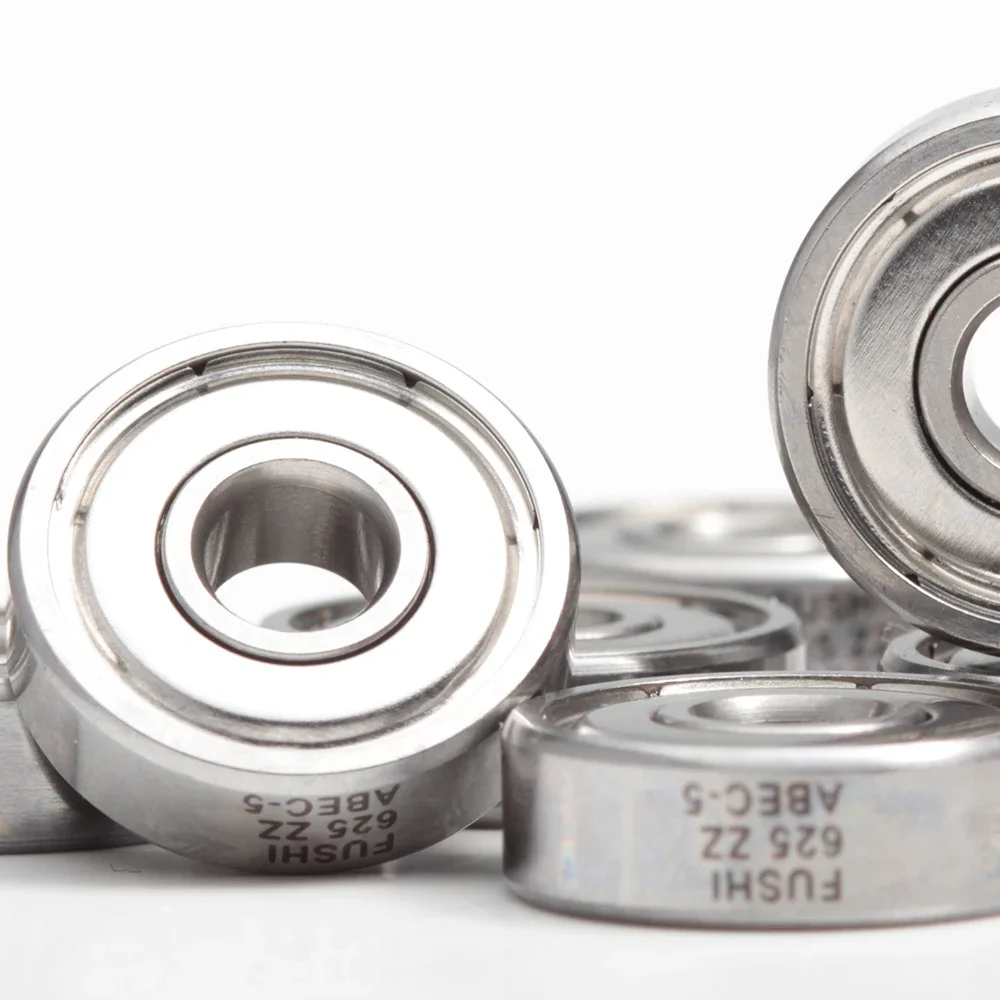

625ZZ Lager 5*16*5mm ABEC-5 (10 PCS) Miniatur 625Z Kugellager 625 ZZ Für VORON Mobius 2/3 3D Drucker Makefr Rs CNC32

Produktbeschreibung

Miniature Bearing Features
Miniature Bearings can sustain some axial load in either direction as well as radial loads
And the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration.
Several different cage designs are available with different characteristics and the choice depends upon the individual application.
TECHNICAL SPECS (metric)
Model: 625-ZZ
Inner (d): 5 mm
Outer (D): 16 mm
Width (B): 5 mm
Weight (g): 4.51 g
Grade: ABEC-5
Material: 52100 Chrome Steel
Cover: 2 Shield
Qty: 1 Lot = 10 Pcs
This Bearing Structure
Standard Type: A ball bearing is composed of an outer and inner ring, balls, seal and a retainer.
Open type will no seal
Flanged type with flange side.
This Bearing Cover
Compared to the open type, the shielded and sealed bearing types provide better protection from contamination and grease leakage.

Produktdetails in Bildern

Produkteigenschaften

Markenname

FUSHI

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

625ZZ BEARING 5*16*5 MM

ist kundenspezifisch

Ja

Zertifizierung

RoHS-Konformität

Material

Wälzlagerstahl

Choice

yes

semi_Choice

yes
