1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors
1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
Specifications
OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
240 × 280 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
27.97 × 32.63mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.11655 × 0.11655mm
DRIVER
ST7789V2
MODULE SIZE
31.50 × 39.00mm

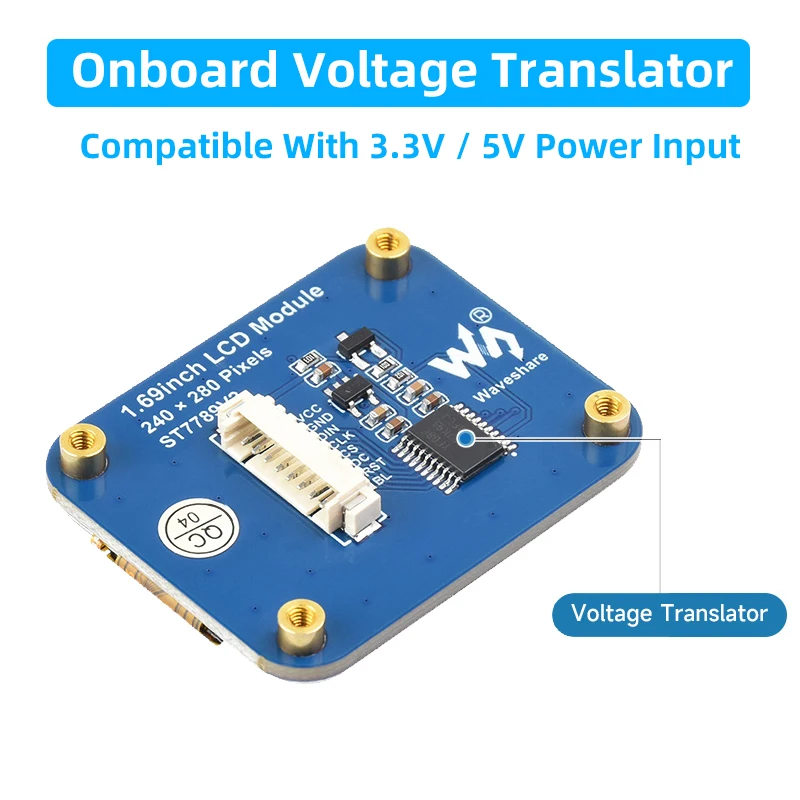

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32
VCC
Power (3.3V / 5V input)
GND
Ground
DIN
SPI data input
CLK
SPI clock input
CS
Chip selection, low active
DC
Data/Command selection (high for data, low for command)
RST
Reset, low active
BL
Backlight
Hardware Connection
Connecting with Raspberry Pi
Connecting with Arduino board
Connecting with STM32
Usage Example
Product Show

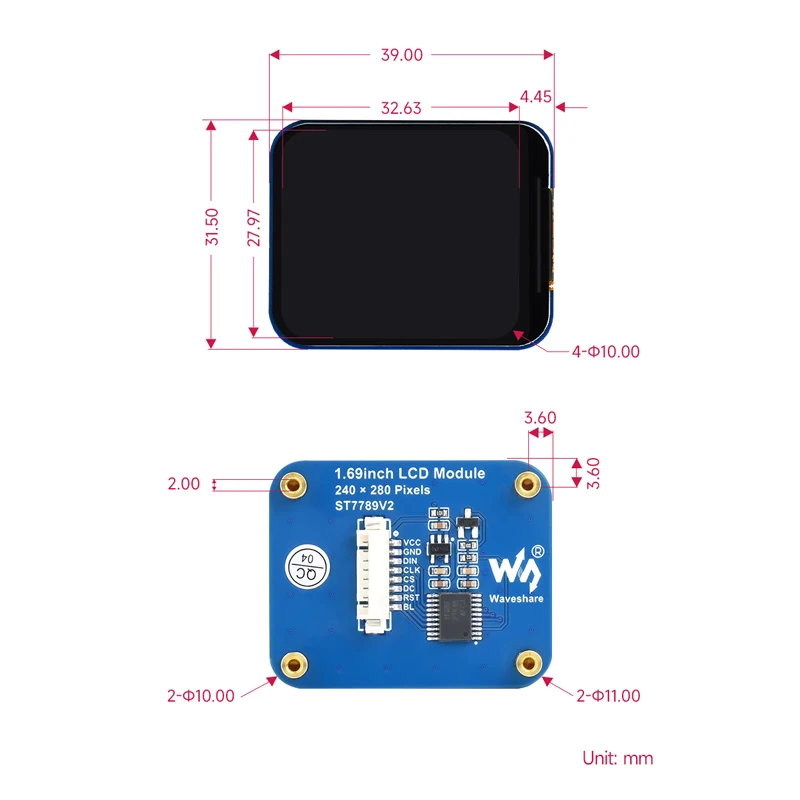

Outline Dimensions
Resources

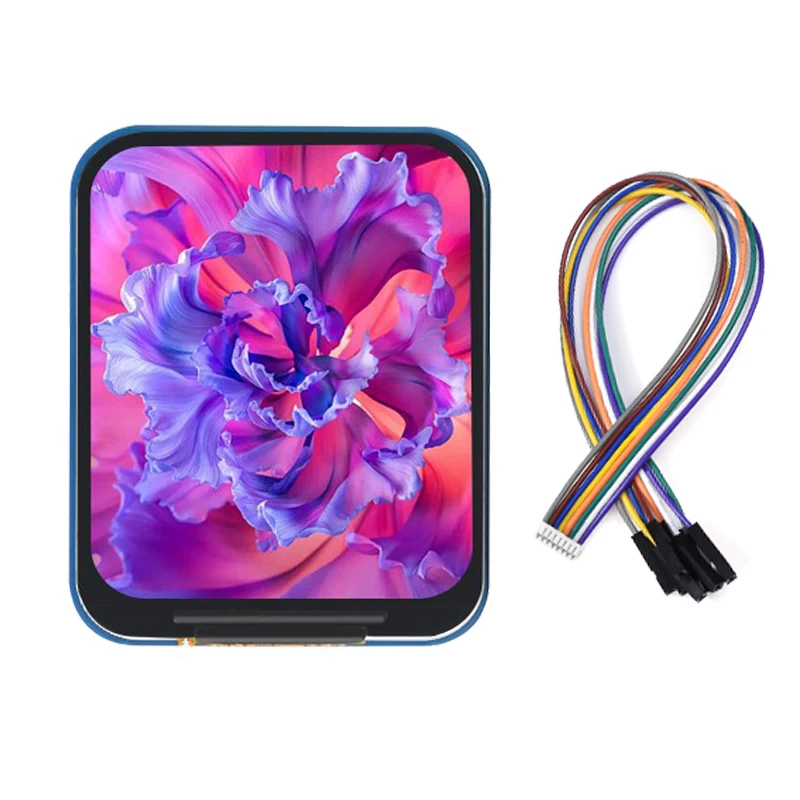

Packing List
1 x 1.69 Inch IPS LCD Module
1 x GH1.25 20cm 8Pin Cable
