3.5 inch Raspberry Pi 3 B Plus Touch Screen TFT LCD 480*320 GPIO Display Monitor ABS Case Box for Raspberry Pi 4 Model B 3B+ 3B

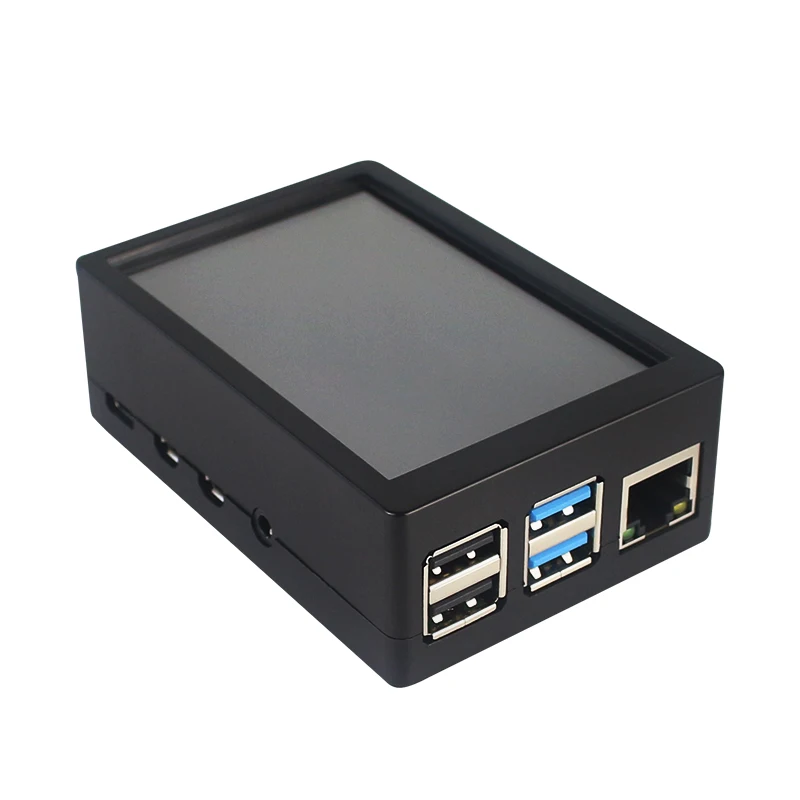

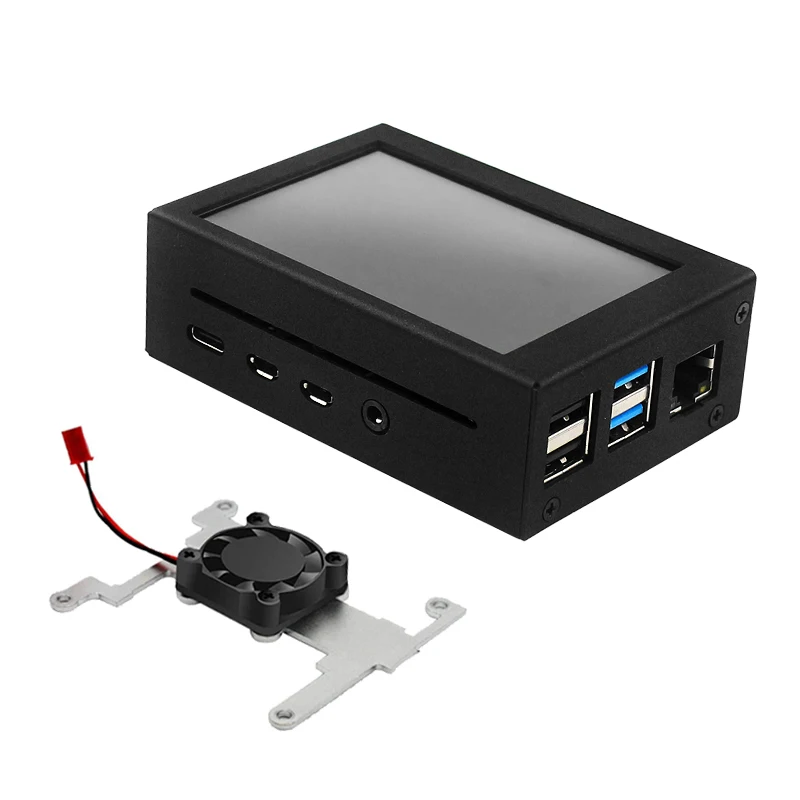

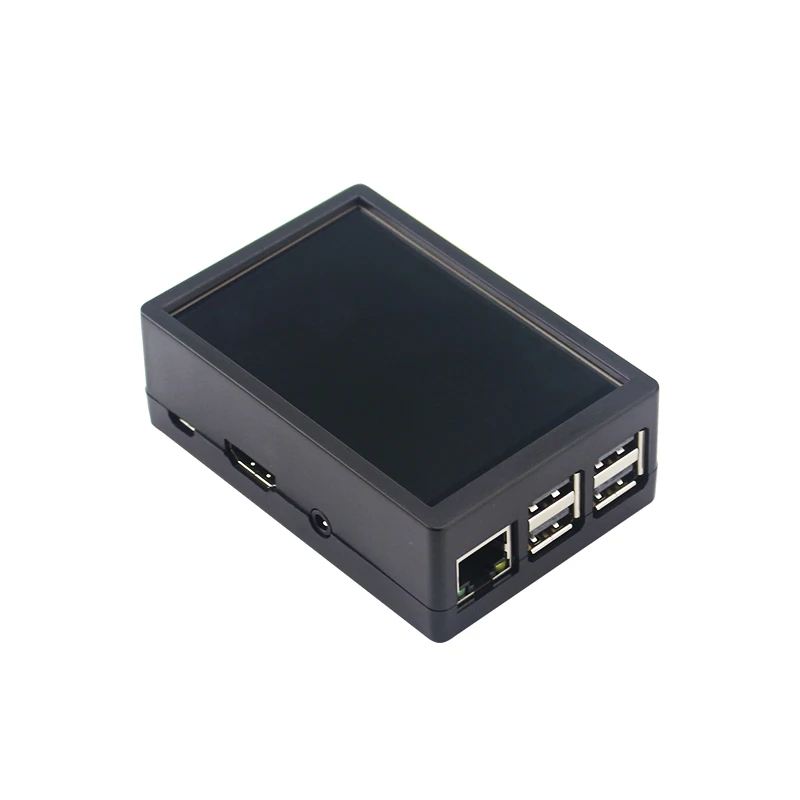

About the case
1. Material: ABS, it is well protective.
2. Brand new design for Raspberry Pi, you can also use 3.5 inch screen and Raspberry Pi together with the case.
3. The case is not completely closed, there are function hole on the top, such as GPIO, camera, cooling fan. There are many gaps at the bottom of the case, it helps to reduce the blocking the WiFi signal and better heat dissipation. You can hang the case on the wall with the gaps.
4. On the side of the case, you can clearly see the indicator light and you can easily insert the SD Card.
About the 3.5 inch screen
1. 480*320 resolution
2. The screen is TFT screen, has touch function
3. Perfect size for Raspberry Pi
Note:When you use the case with 3.5 inch screen, please remove the top piece, the 3.5 inch screen and cooling fan can't be used at the same.
About the pad - use to support the screen
1). Install the Raspberry Pi on the base board
2). Please stick the pad on the back of 3.5 inch touchscreen ( as the picture show ), then insert the 3.5 inch touchscreen on Raspberry Pi by GPIO pin correctly ( don't be malposed )
3). Install the cover board
About the system image.
To use this touchsreen, you need to configure the raspberry pi system at first, here is the refer link for it：
This LCD Module need install driver first.
Step 1：Download the Raspbian IMG
Step 2:Burn the system image
If you don't know how to do that,you can refer to theRaspberry Pi office tutorial
Step 3:Open terminal(SSH) and install the driver on RaspberryPi
(tested on RaspberryPi 3B+,3B,2B,2B+,1B,ZERO)
Run
sudo rm -rf LCD-show
chmod -R 755 LCD-show
cd LCD-show/
sudo./LCD35-show
Wait A Few Minutes, when the system reboot ok, you can see that.
Option 1 ( for Pi 3B / 3B+ )
1 x 3.5 inch Screen for Pi 3B+/3B (not include Raspberry Pi)
1 x Black ABS Case
Option 2 ( for Pi 4 )
1 x 3.5 inch Screen for Pi 4B (not include Raspberry Pi)
Option 3 ( for Pi 4 )
1 x Clear ABS Case
