GROW R503 Round Capacitive Fingerprint Module/Sensor/Scanner
Main Function
1.Integrated image collecting and algorithm chip together, ALL-in-One
2.The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.
3.The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

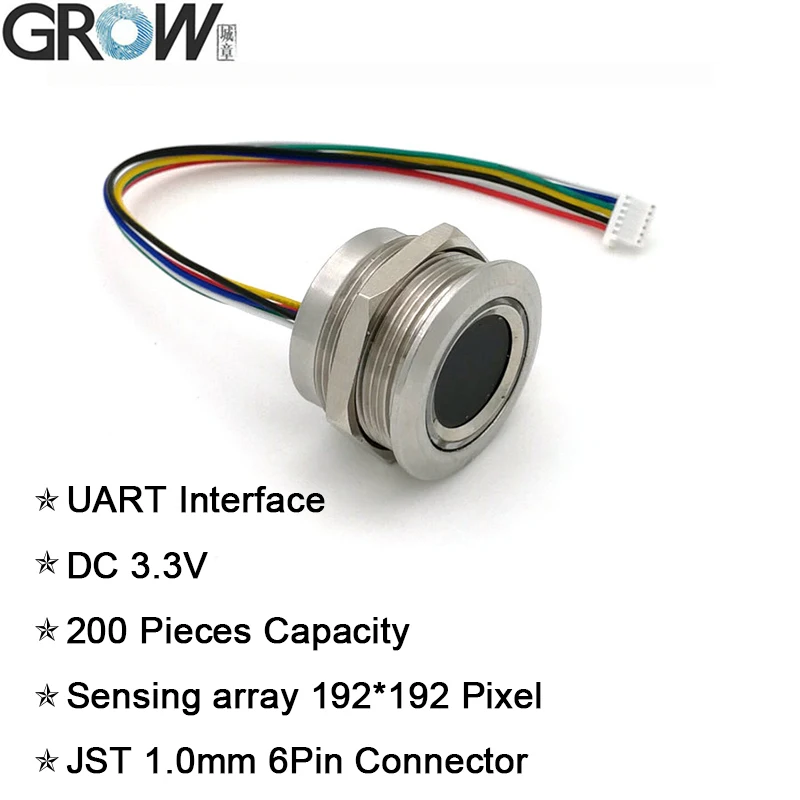

Specification
Model
R503
Type
Capacitive Fingerprint Module
Interface
UART(TTL)
Resolution
508 DPI
Voltage
DC 3.3V
Fingerprint Capacity
200
Sensing array
192*192 pixel
Working current
20mA
Standby current
Typical touch standby voltage: 3.3V, Average current: 2uA

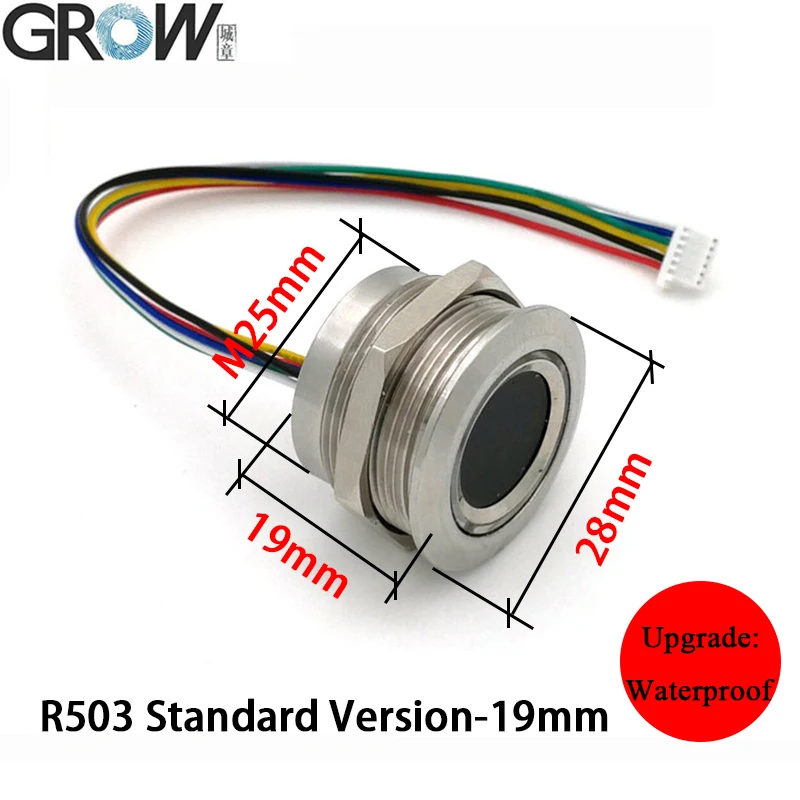

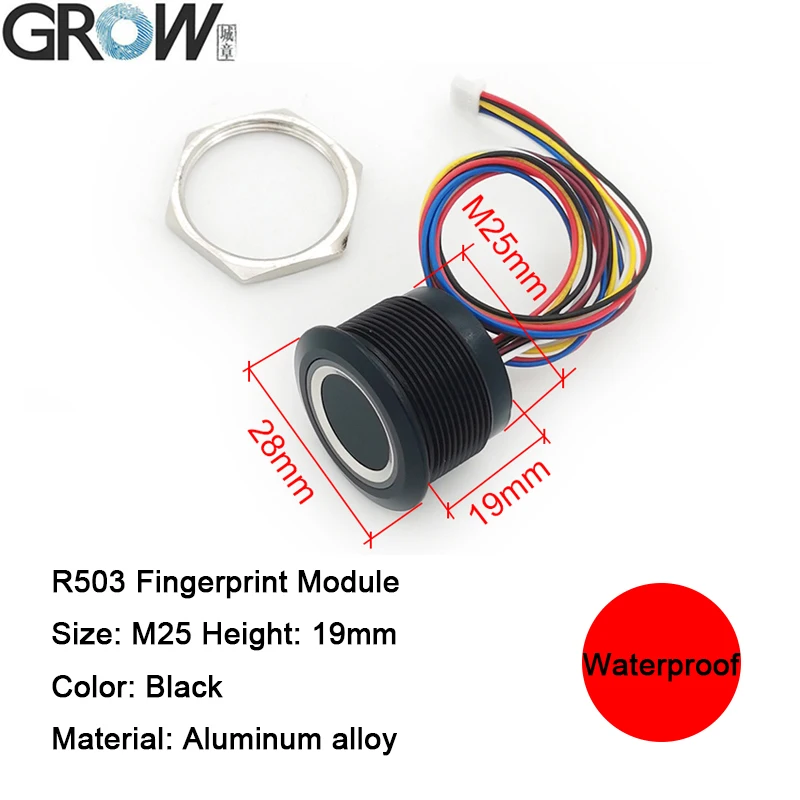

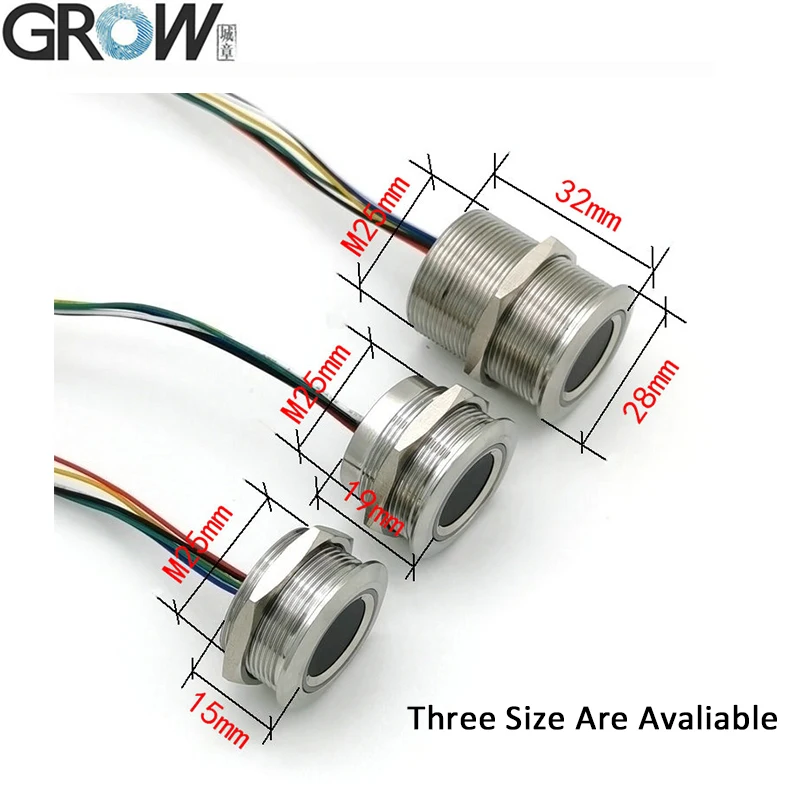

Fingerprint module external size
Diameter 28(mm)
Fingerprint module inner size
Diameter 25(mm) (M25)
Fingerprint module height
19(mm)
Collection area
Diameter 15.5 (mm)
Finger Touch Function
Yes
LED Color
RGB

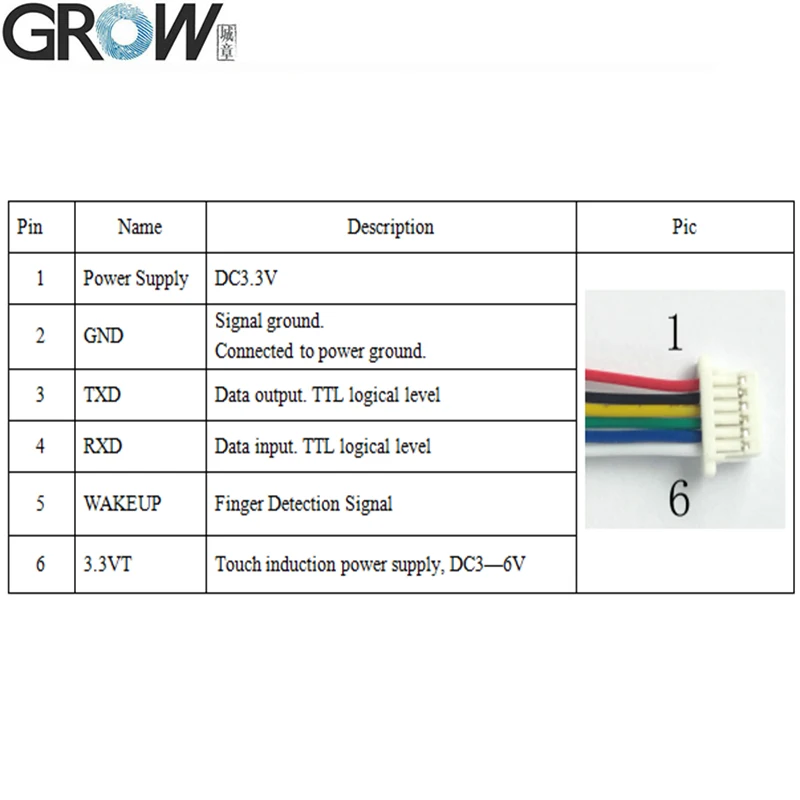

LED Control
Connector
SH 1.0mm 6Pin
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
FAR
Work environment
20C ---60C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART)
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

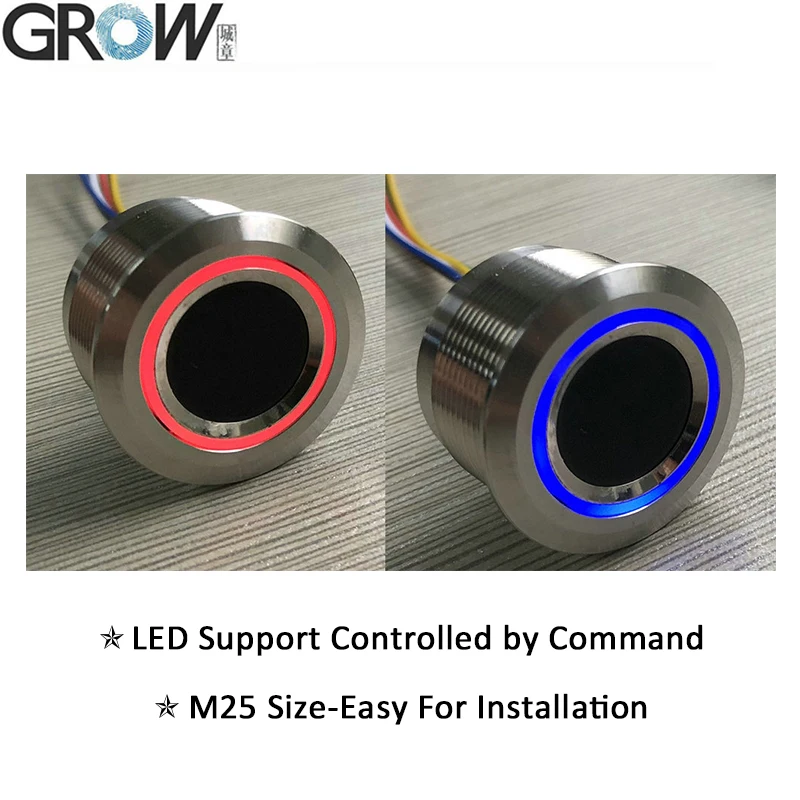

The R503 already updated to RGB color and have 7 colors which can be controlled by command and provides threads with a diameter of 25mm for your easy installation.
Note
1.IP65 Waterproof. When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.
2. RGB LED Color, have 7 colors which can be controlled by command.

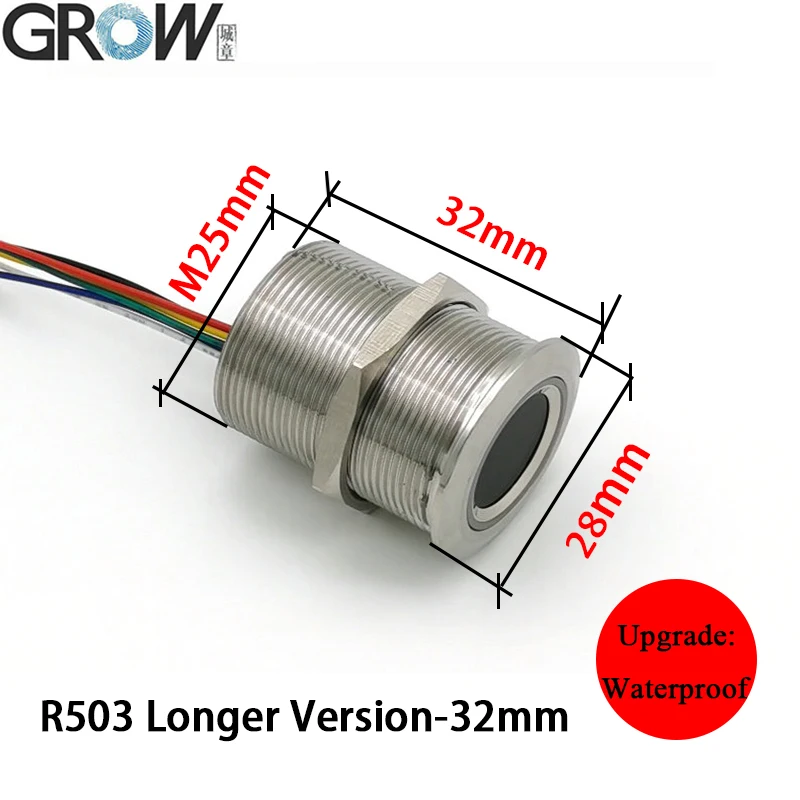

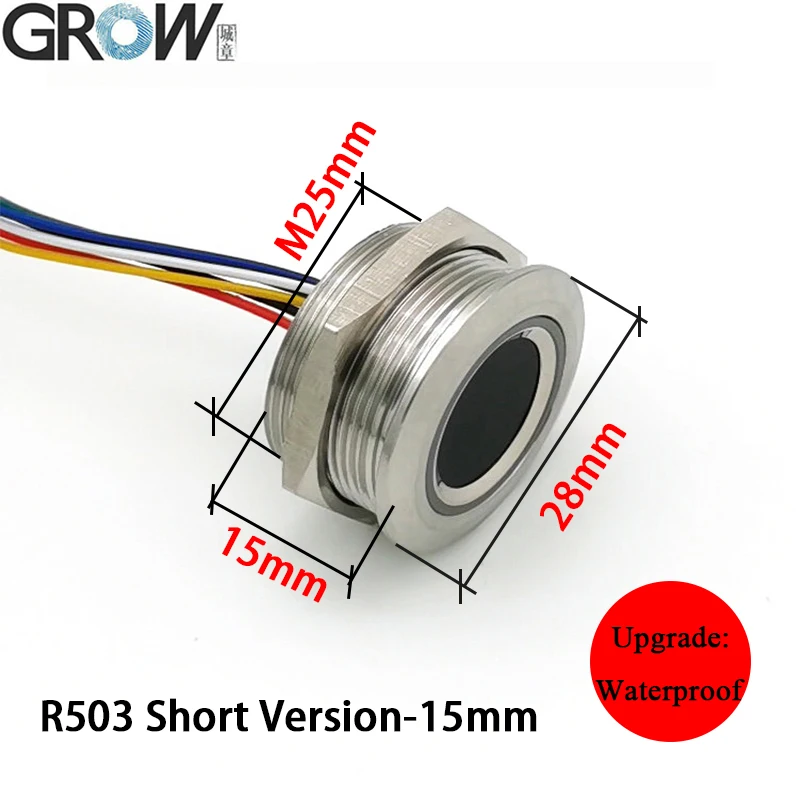

3. The Different between R503 and R503-5V and R503-M22 and R503Pro and R503S
R503-5V
R503-M22
R503Pro
R503S
Power
Supply
DC 5V
UART
USB
Sensing
Array
192*192
Pixel
160*160
1500
150
