THINKCAR THINKDIAG Mini OBD2 Scanner Lifetime Free Update for All Cars Full System Diagnostic Scan Tool for iOS and Android

THINKCAR Thinkdiag Mini Bluetooth OBD2 Scanner, OEM Full System Diagnostic Scan Tool for iOS and Android, Check Engine Light Fault Car Code Reader

Lifetime Free Update, no Annual fee

Support More Than 120 Car Brands All system Diagnosis, Full OBD2 Functions, No Subscriptions

[All System Diagnostic]This obd2 scanner bluetooth supports all Systems diagnostic function, it can read/clear fault codes, read live data, read control module information, actuation tests and maintenance functions for ECM, BCM, SRS, TCM, BMS, TPMS, SAS, A/C system etc.

[Full OBD2 Functions]This obd2 scanner can support all 10 OBD2 test modes. Read Codes, Erase Codes, MIL Fault Indicator Light, Live Data, EVAP System Test, On-Board Monitor Test, View Freeze Frame, O2 Sensor Test, Vehicle Info, I/M Readiness, DTC Code Look-up, perform O2 sensor tests and carbon canister tests to ensure your vehicle is ready for all emission services.

[Vehicle Model Coverage, 120 Car Brands, 1000+ Vehicles]Thinkdiag mini available for US-based vehicles that are OBDII compliant (OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN). including 12-volt sedans, SUVs, light duty trucks, mini vans, hybrids and etc. Note: No Reset Service functions.

[Note] if you clear the fault code directly without repairing the car and find that the fault code is still there, it is your car hardware fault still exists. We recommend that after reading the fault code, repair the car first and then clear the fault code.

How to Use the THINKDIAG mini?

Step1: Download the "DollarFix" in the APP store or in GooglePlay store.

Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

Step4: Plug THINKDIAG mini into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.

Step5: Open the DollarFix APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.

Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic"and"OBD Functions".

All cars Lifetime Free Full System Diagnosis, no Annual Fee

All cars Lifetime Free Full System DiagnoseThis THINKDIAG mini OBD2 Bluetooth Scanner has full vehicle systems diagnoses functions

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

Some commonly used systems as follows

Check Engine System: THINKDIAG mini Bluetooth diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.

Diagnose ABS System: THINKDIAG mini scanner checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes.

Read SRS System: This code scanner reads the SRS information, detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.

Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.

All Cars Full OBD2 Functions

*-Read extensive current, pending and permanent codes in OBD system quickly

*-Clear detected fault codes and turn off the Check Engine Light efficiently

*-View graphical live data of vehicle's computer module(s) for easy analyses

*-View the vehicle's operating parameters at the moment a DTC is detected

*-Read I/M readiness status to have a vehicle inspected for state emissions compliance

*-Perform O2 sensor test to check fuel efficiency and vehicle emissions

*-Read the results of on-board diagnostic monitoring tests for specific components/systems

*-Retrieve the vehicle information of VIN, CINs, and CVNs completely

*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Pass Emission Test Smoothly

With this scan tool, you don’t have to drive around endlessly, continuously coming back to the repair shop for the retest.

You can do a quick check of the vehicle, to determine if it is ready to pass the emission test.

Pass Emission Test Smoothly：With this scan tool, you don’t have to drive around endlessly, continuously coming back to the repair shop for the retest.

I/M Readiness

Check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program.

O2 Sensor Test

Retrieve O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor

View the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory.On-Board MonitorView the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory.

Get Effective Diagnostic Result

Your repair work can be done in a short time by using THINKOBD as follows

Vehicle Information

Display the vehicle identification number (VIN), the calibration identification (CIN), and the calibration verification number (CVN), and other information of the test vehicle.

EVAP Test

Mode $08 command tells your car to start a test of the “evaporative emission control system”, to prevent fuel from evaporating out of your tank and contributing to smog.

By this way, you can verify your fix right away, without waiting a few days (or longer) for your car to run it automatically.

Freeze Frame Data

Snapshot the precise conditions of the car when a fault code triggers the check engine light, to help identify the problem.

Live Data Stream

Display the real time PID data from ECU (as analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream)

The live data produced is accurate and tells you exactly what you require to know about your vehicle.

DTC Lookup Support

Reset Check Engine Light

Support 1000+ Vehicles, 12 Languages

English,French,German,Spanish,Italian,Portuguese,Japanese, Russian,Polish,Traditional Chinese, Turkish, Greek

Support 98% Vehicle Compatibility, 12 languages

THINKDIAG Mini is compatible with most American, European, and Asian models manufactured as from 1996. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network). If you don't know your car OBD2 protocols that you could check your car OBD2 connector whether 16 Pin. If yes. This goods support to your car.

1.American Car list

Need standard obd2 and release year from 1996-now

Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect...

2.European car list

Need standard obd2 and release year from 2000-now

Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia,Seat, ect...

4. Japanese / Korean car list

Need standard obd2 and release year from 2008-now

Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai, Kia, ect...

5. Chinese car list

Need standard obd2, and release year from 2014 -now

Great Wall, Huachen, DF Honda,Lifan, ect...

Other Functions

Auto VIN

One-click Diagnose

4 In 1 Live Data Stream

Print Diagnostic Report

Online Feedback

Configuration & Requirments: for 16-pin OBD-II Connector Cars

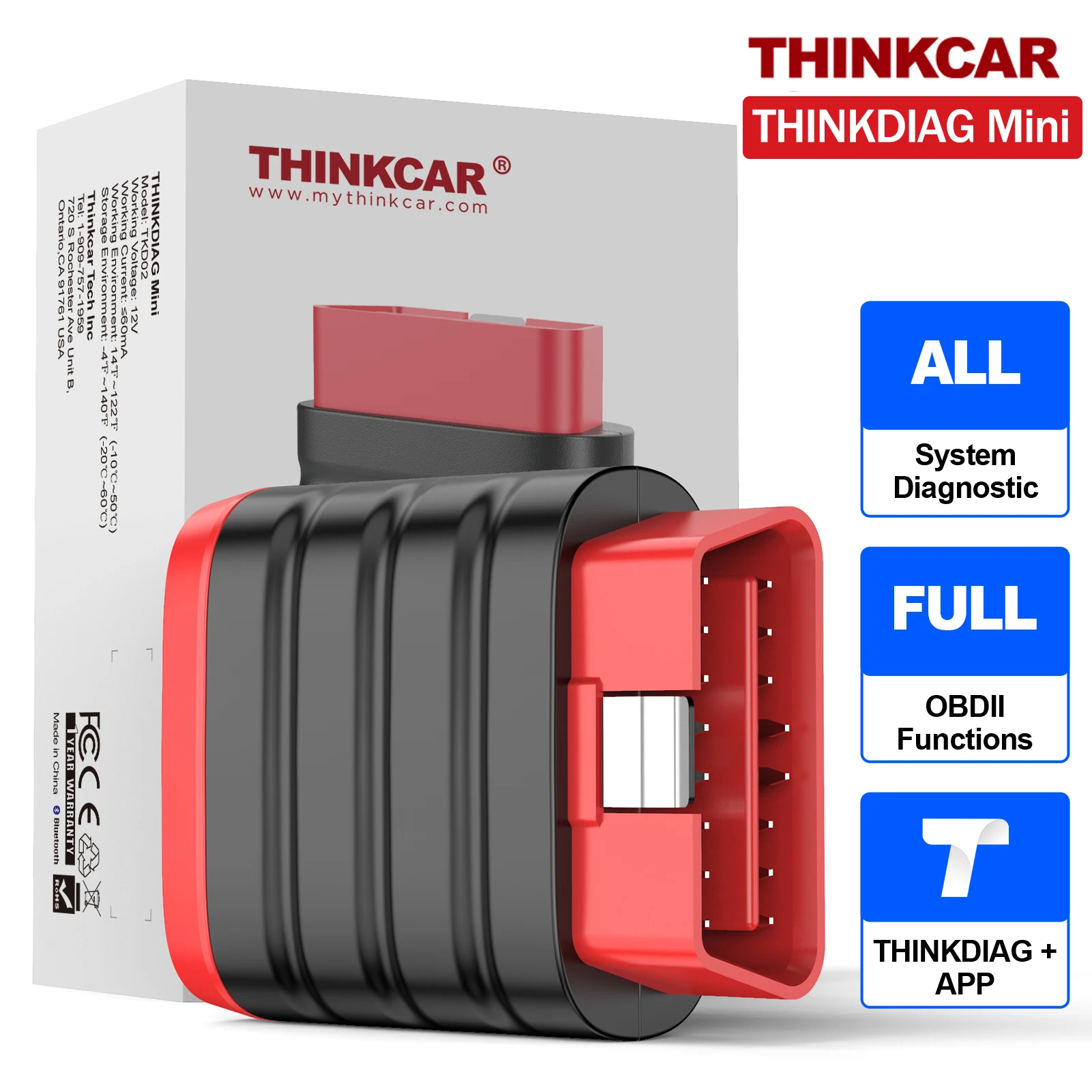

Details Display

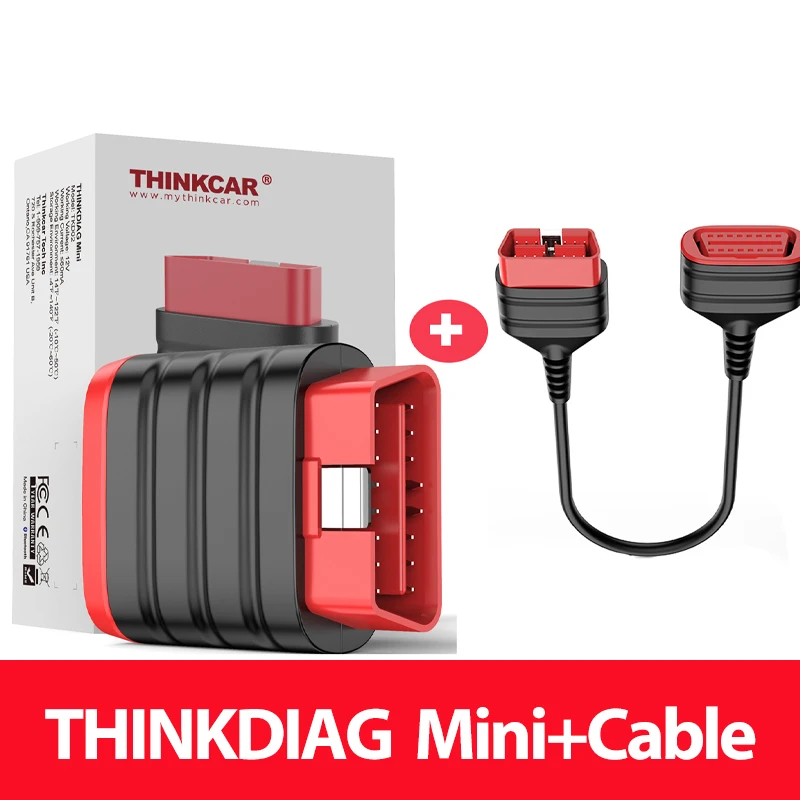

Packing lists
