YIZHAN 4K Digital Microscope For Electronics Universal Microscope Boom Stand 215X Zoom Lens Soldering Microscope With Software
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Nice-power
- Sales: 3
- Package size: 42 × 16 × 8 cm
- Package weight: 1.4 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
🔥The first step to operate after installing the microscope
After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)
🔥YIZHAN XHU4002 4K 48MP Microscope Camera (HDMI USB)
Model: Camera with HDMI USB2.0 two output
Image sensor: Sony IMX327 sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image: 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
🔥Connect to PC via USB for operation.

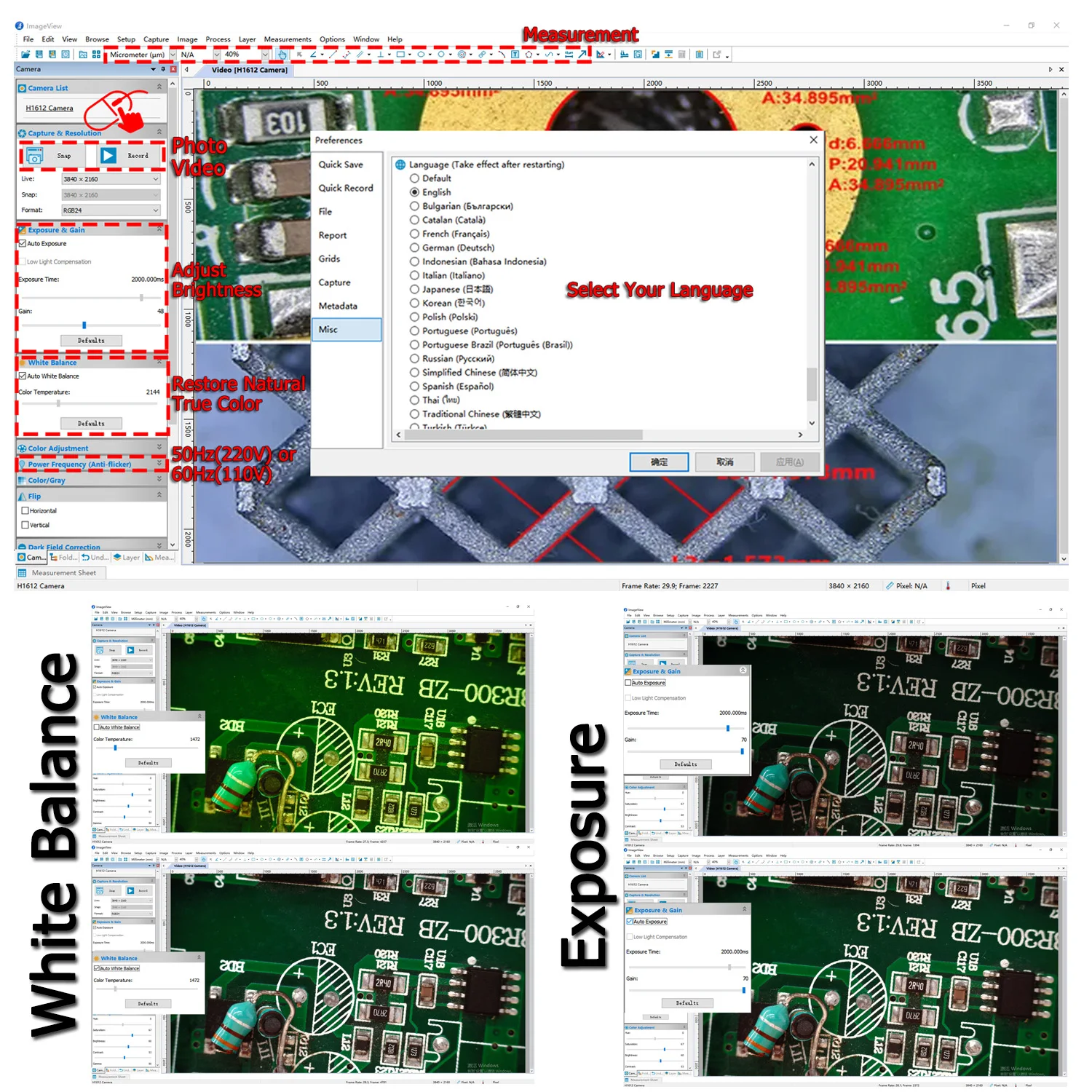

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.
🔥Effect of Exposure Adjustment on the Image
Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.
🔥Function of White Balance
Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

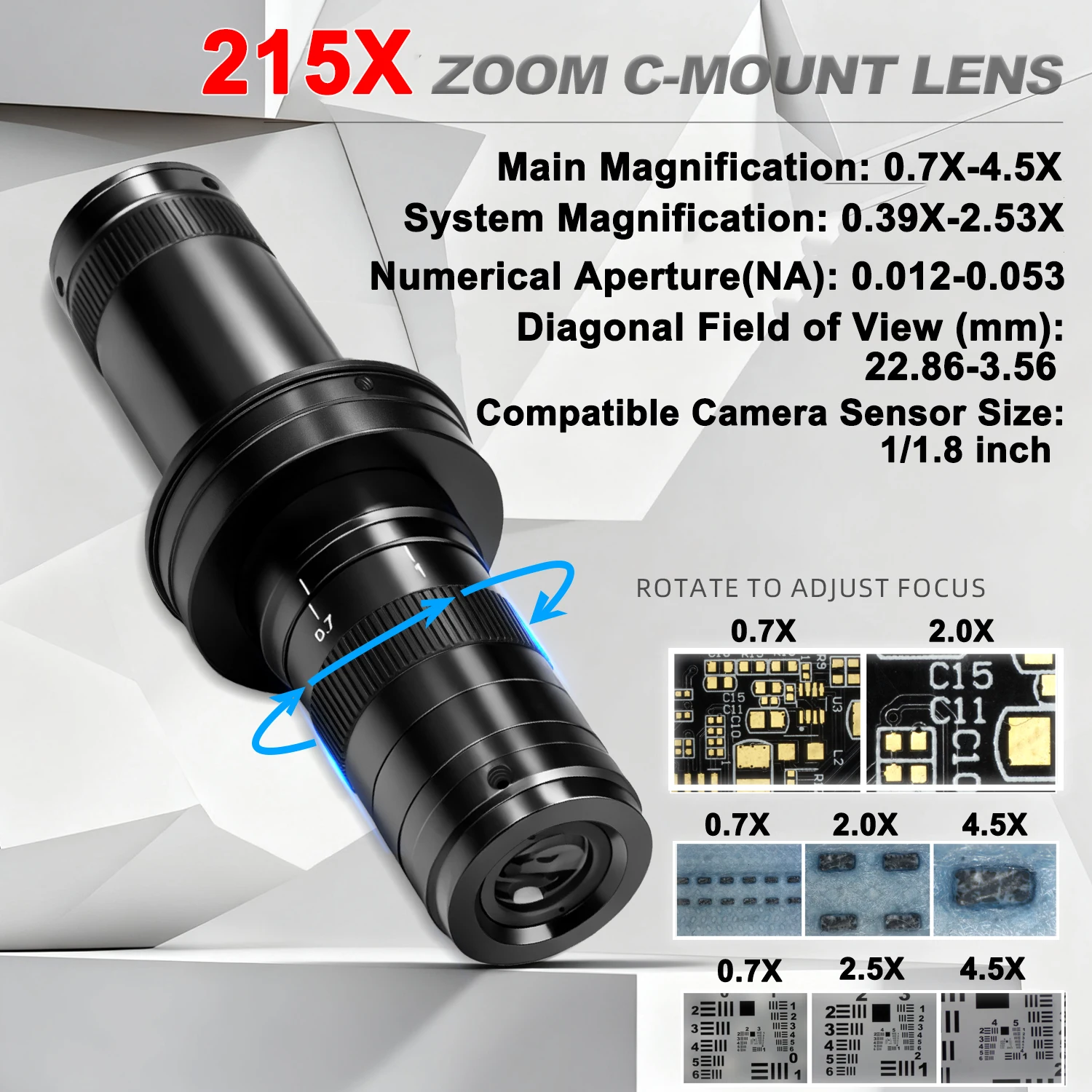

🔥215X Optical Zoom Lens
Working Distance: 130mm
Magnification: 35X-215X(21in displayer)
X-axis Visual Field:2.2mm-14mm
mounting dimensionr: Φ50mm
Optical Zoom: 0.7X-4.5x
zooming ratio: 1：6.5
View of field: 2.67-22.85mm
lens diameter Φ25.5mm
🔥1X-180X Zoom C-mount Lens
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 1 - 180X on the display)
view field of Max multiple: 2.8mm*1.5mm
view field of Min multiple: 25mm*14mm
Eyepiece lense: 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g
🔥1X-180X Zoom C-mount Lens continuous zoom adjustment method
Locate the hexagonal screw hole in Figure 1, and use a hexagonal screwdriver to loosen it.
At this time, the top of the lens in Figure 2 can be separated (Figure 3).
First adjust the lens to the maximum magnification, then adjust the lifting bracket to make the image clear and fix the height of the bracket, then reduce the minimum magnification, adjust the separation height of Figure 3 to make the image clear, and tighten the hexagonal screws to complete continuous zooming.
Note: The working distance will be locked!
🔥1X-150X Focus C-mount Lens
Working distance: 50mm-1000mm
zoom ratios: 1: 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple: 4.2mm*2.4mm
view field of Min multiple: 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
🔥1X-130X Focus C-mount Lens
Work distance: 40mm-170mm
Zoom ratios: 1:17
Magnification Power by 0.1 - 1.3X (about 1 - 130X on the display)
view field of Max multiple: 8mm*4.5mm
view field of Min multiple: 40mm*33mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
🔥56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm
