YIZHAN Electronic Microscope For Soldering 48MP/13MP HDMI TYPE-C VGA Video Industrial Inspection Microscope Camera 150X Lens

13MP Camera Video

Scope of application

1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.

2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.

4. In biological anatomy, applied to local anatomy.

5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.

6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.

7. Cultural relics, books, coins, calligraphy and paintings, the inspection

8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Multiple options available, please note that there are purchase options for both sets and individual cameras. Please purchase according to your needs. Individual cameras do not include bracket lenses and lights

Two different cameras

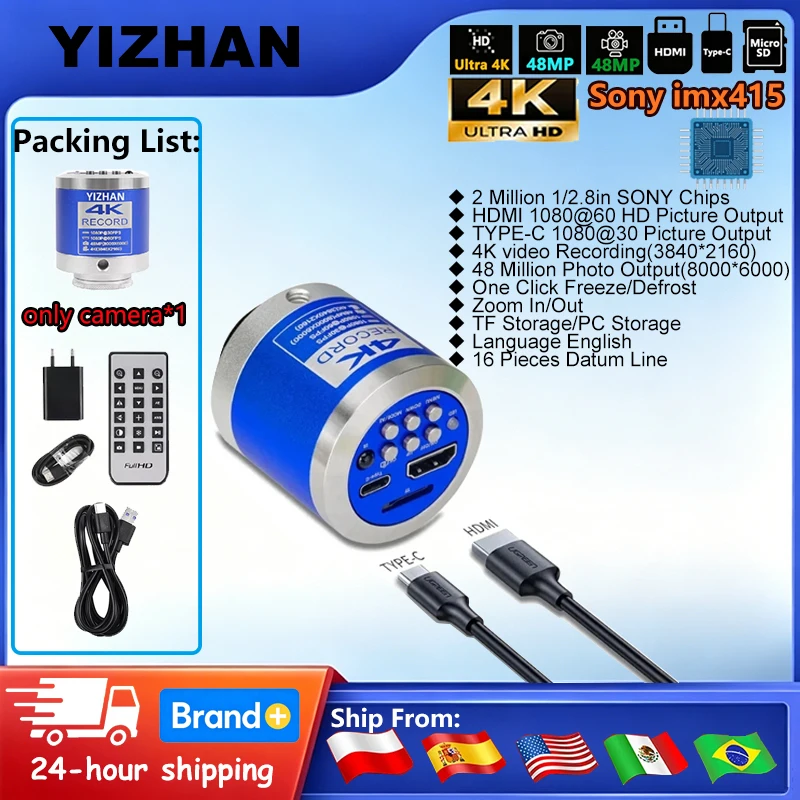

Recommended for use ： 4K Camera XHU4003 Product features FULL HD Camera Parameter

1/2.8in SONY Chips

4K video Recording(3840*2160)

48 Million PX Photo Output(8000*6000)

TYPE-C 1080@30 Video Output

TYPE-C 1080 Picture Output

Measured By Computer

Input Voltage: 12v/1A

C-Mount Lens

One Click Freeze/Defrost

Zoom In/Out

TF Storage/PC Storage

Language English

Supports 16 Datum lines with

adjustable color,thickness and position.

Manual/automatic exposure/one-click exposure

exposure compensation.

Manual/automatic white balance/one-button

white balance.RGB adjustable

Cross center line open/close.

Working Distance: 20 mm—700mm

Magnification: 10X-150X (32in displayer)

X-axis Visual Field: 4.2mm-130mm

Connect Display Via HDMI

1. It Can capture pictures and videos and save them on TF cards

2. It can capture up to 8M 8000X6000 HD images

3. 4K (30fps) /1080P(60pfs) MOV video is available

Connect computer via Type-C

1. Install the ImageView on your computer

2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

13MP Camera As Below: XVH2003 Product features

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm

zoom ratios: 1: 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple: 4.2mm*2.4mm

view field of Min multiple: 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Weight: 195g

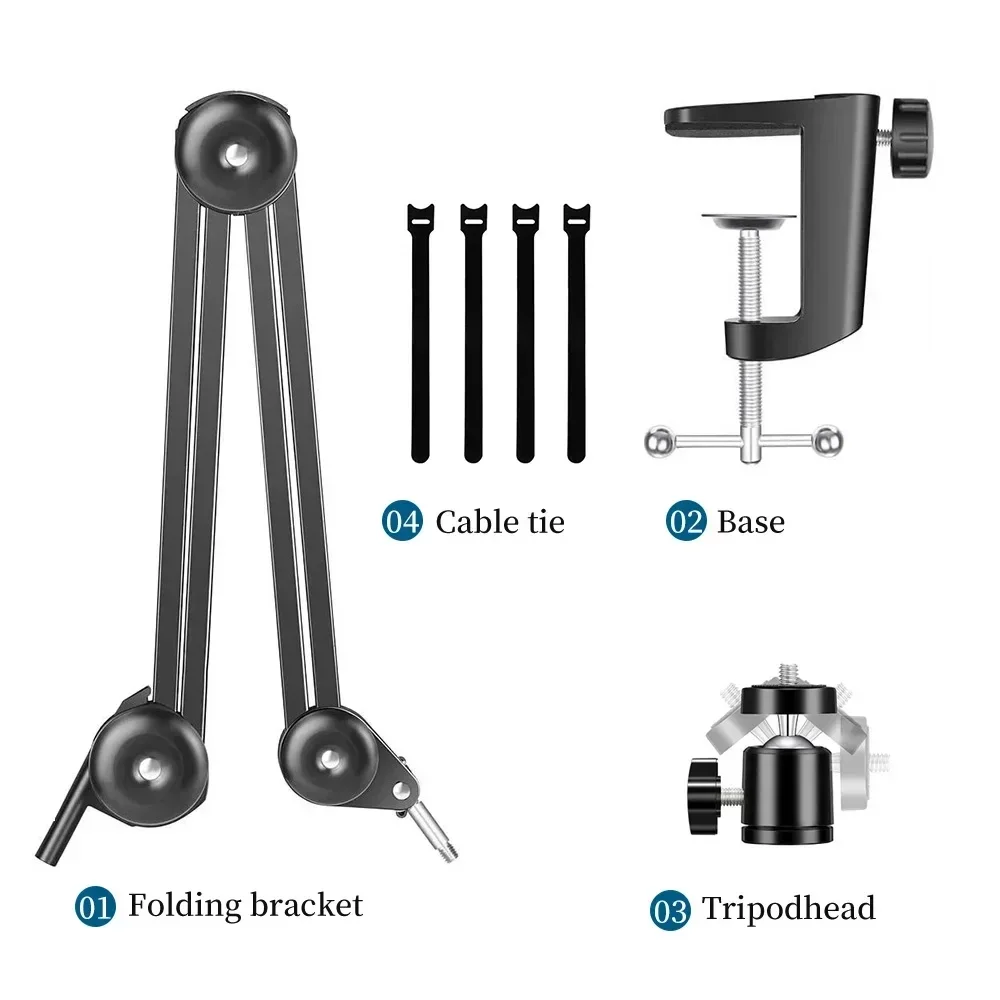

Upgrade the folding bracket

Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.

Folding Stand Specifications

Material: aluminum alloy

Size: 34*32cm
